Atc Drum Type CNC Machinig Center
CNC Machining Center ( Model NA-48)NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficienc......
Send Inquiry
Product Description

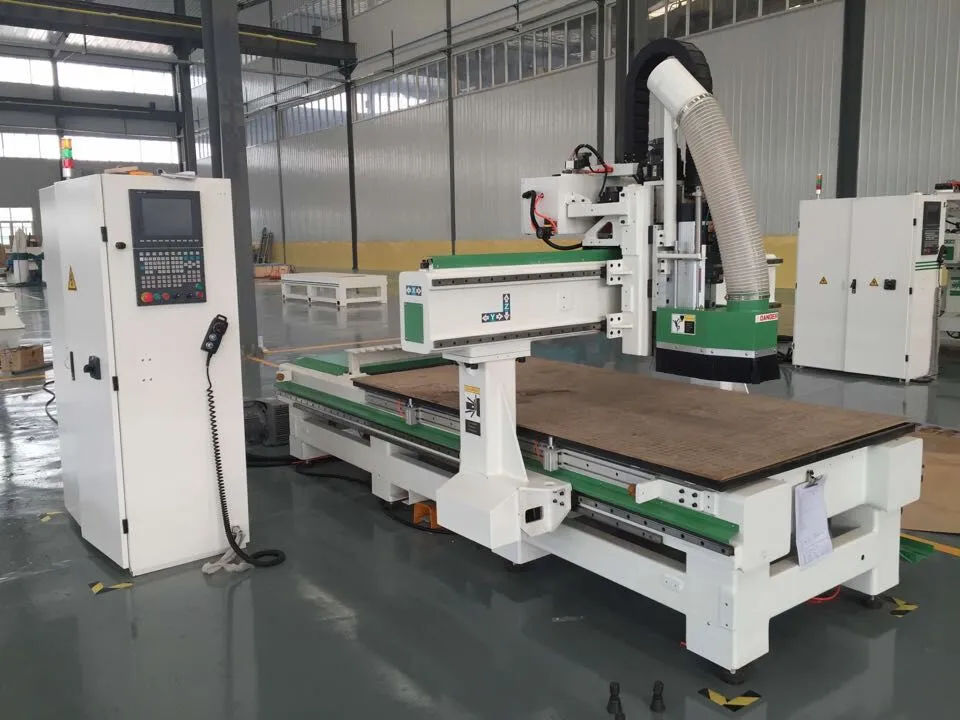

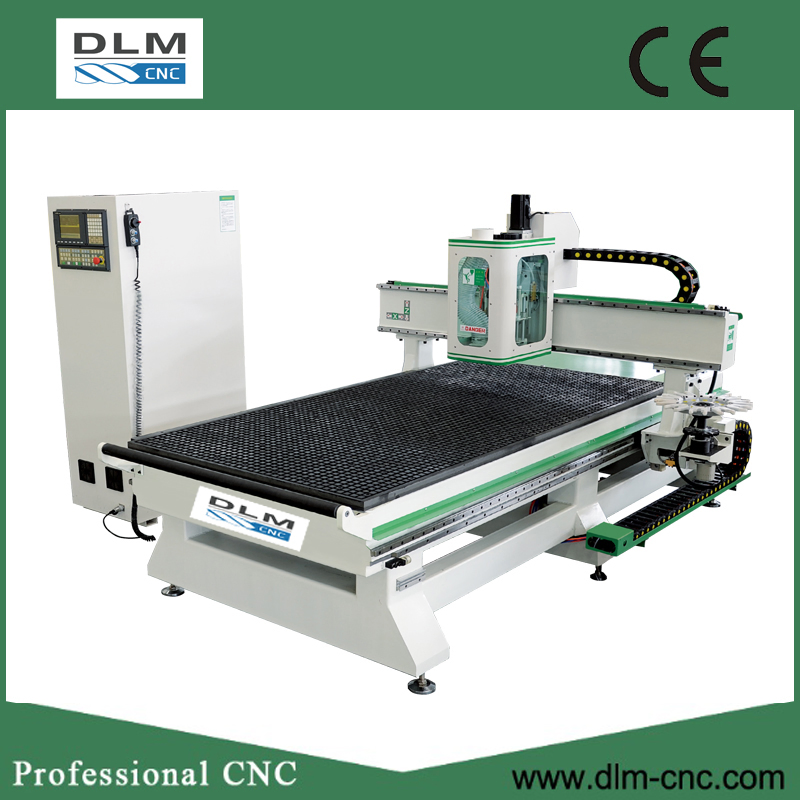

CNC Machining Center ( Model NA-48)
NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.
The standard configuration of drum type ATC machine NA-48 is:
Upgrade:
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.
NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.
The standard configuration of drum type ATC machine NA-48 is:
| Spindle Power | 9kw HSD or Hiteco / Italy |
| Controller | Syntec control system / Taiwan |
| Motor | 750w Delta servo motor |
| Gear Reducer | Japanese Shimpo planetary gear reducer |
| Table | Compact grade vacuum suction table |

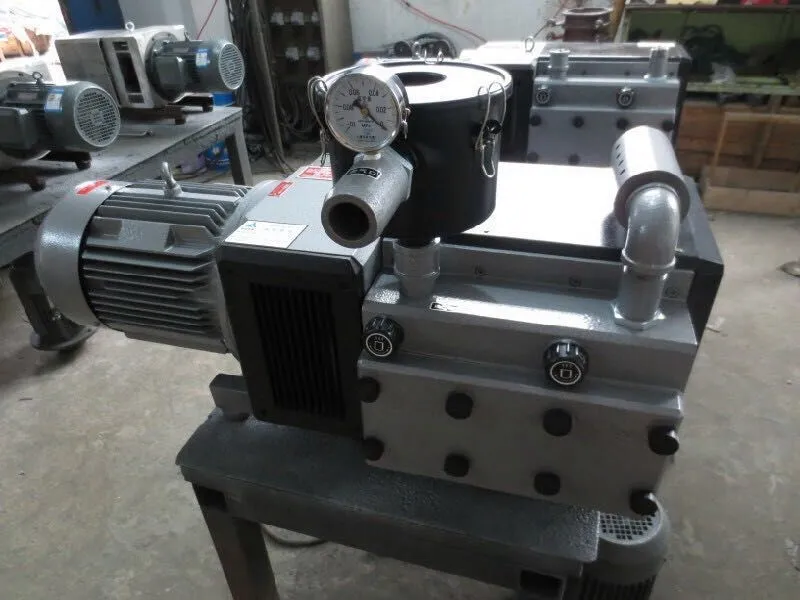

| Vacuum Pump | 5.5kw Chinese Becker pump |
| Tool Magazine | ISO-30 8-slot drum type plastic steel tool magazine with tool setting blocks |
| Software | Router-8 / ArtCAM |
| Transmission | Precision helical rack and pinion drive & Z axis direct drive |
| Ball Screw | Taiwan PMI |

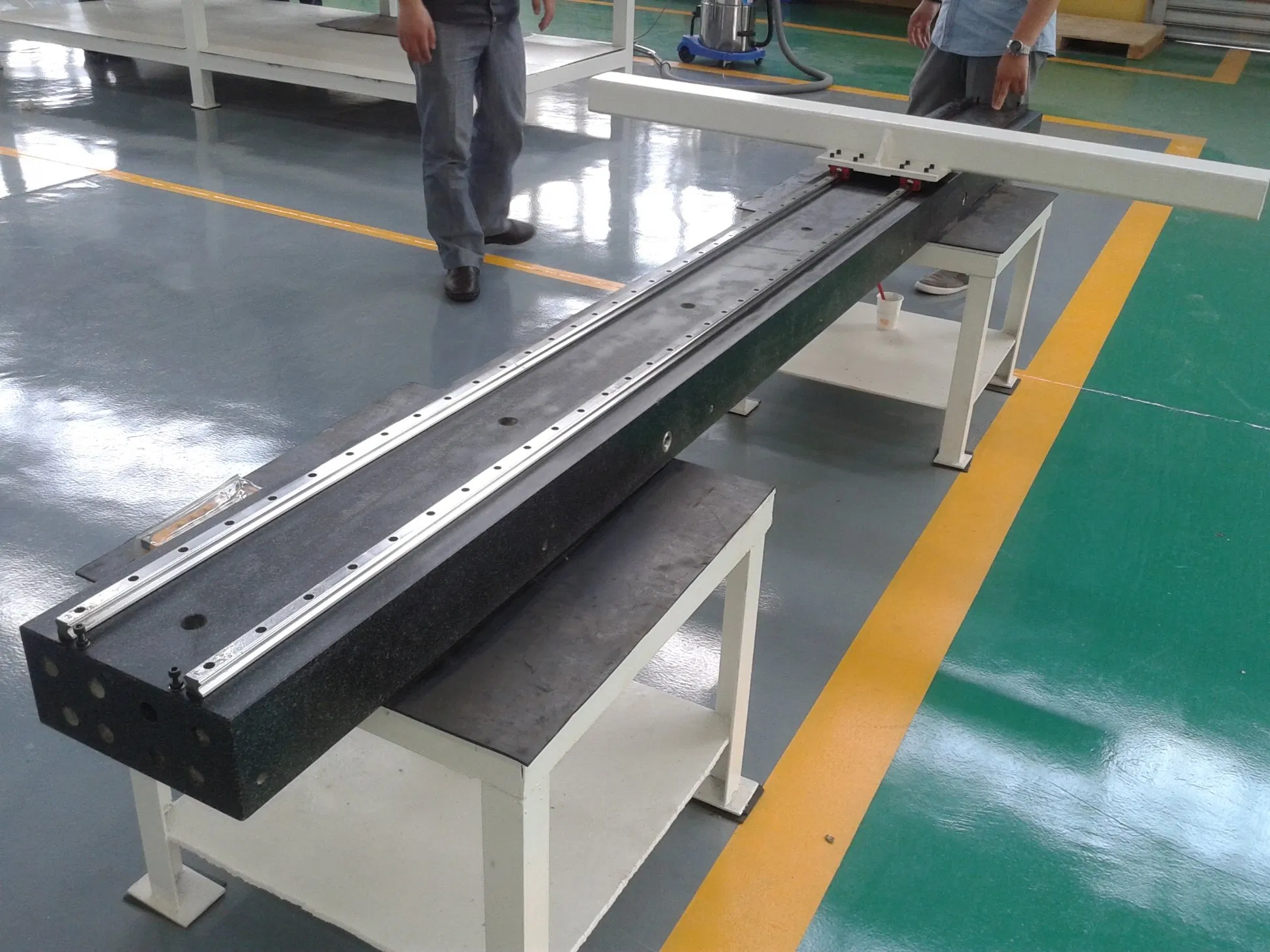

| Guide Rail | Taiwan AMT |
| Table Size | 1220x2440mm |
| Max. Traveling Size (X/Y/Z) | 2540x1320x200mm |
| Max. Workpiece Height | 150mm |
| Dimensions (X/Y/Z) | 3500x1800x2000mm |
| Net Weight | 1800kg |
Upgrade:
- Positioning air cylinder
- Boring aggregate
- Pushing device
- Protection enclosure
- Laser light screen

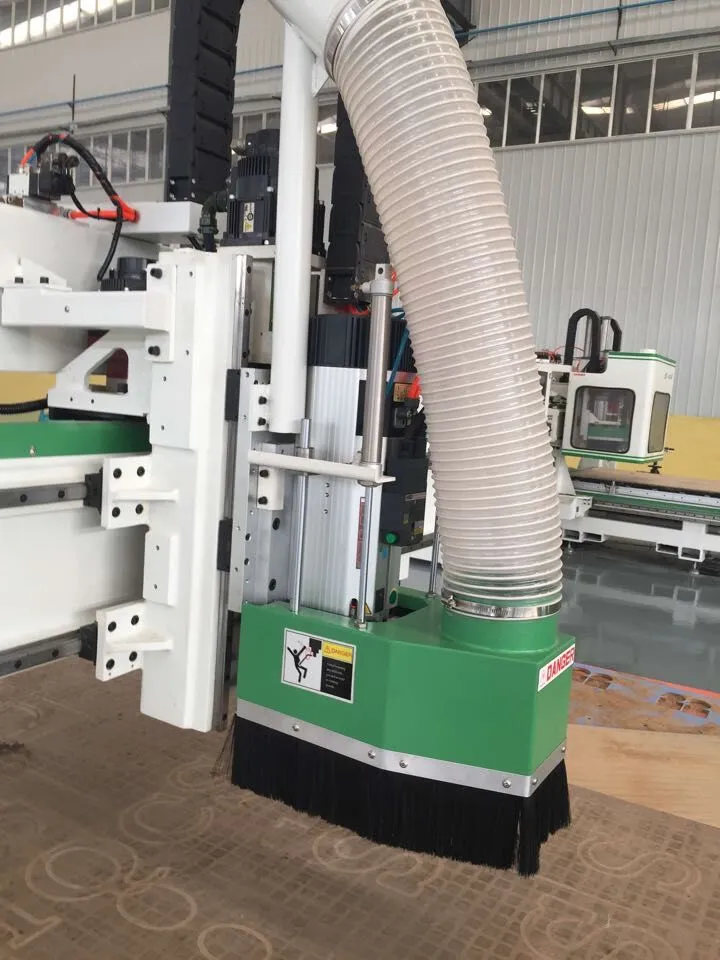

- Spindle cover
- Full-body cover
- HSK-63F spindle
- 8-slot carousel plastic steel tool magazine

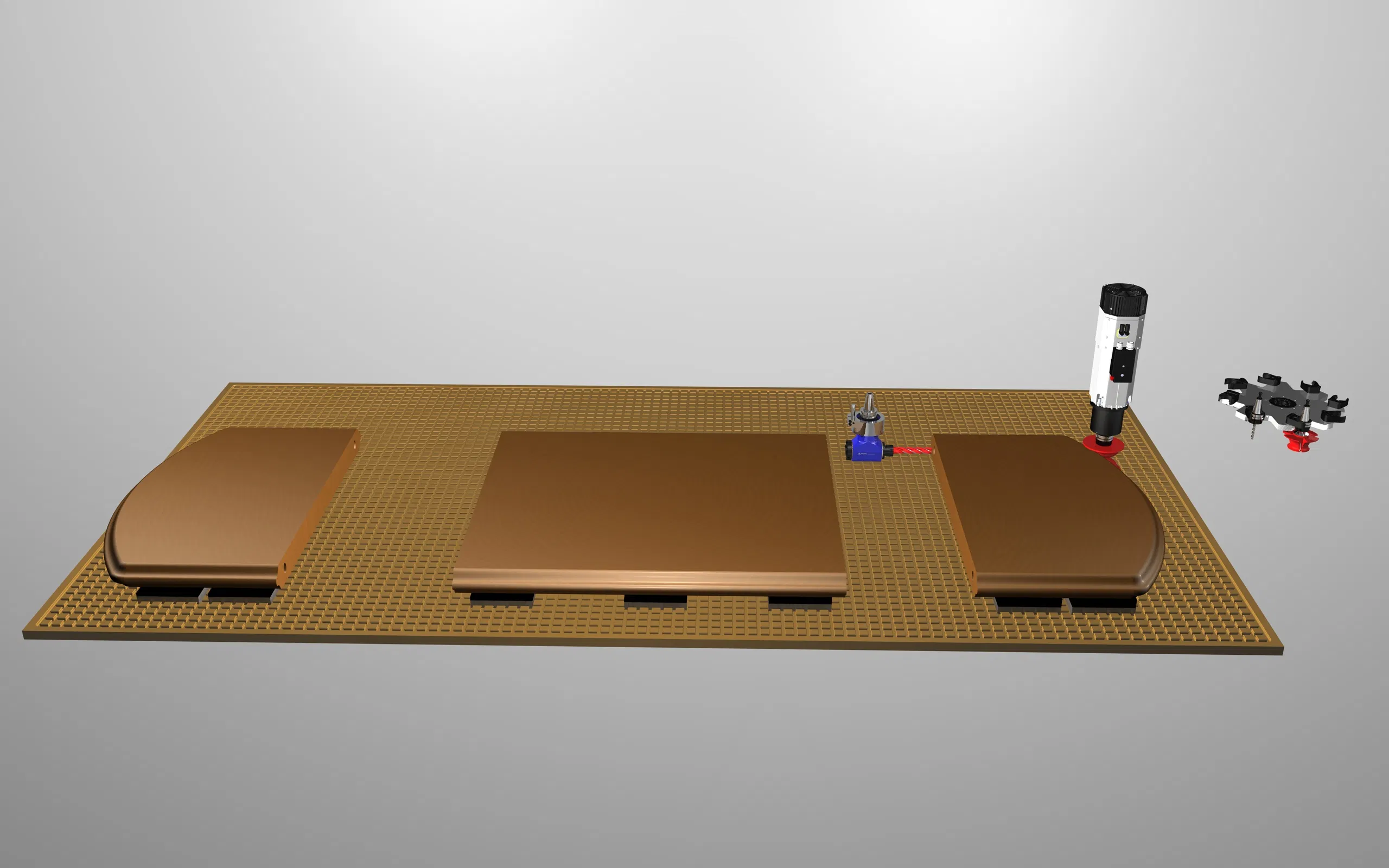

- Movable vacuum suction chucks
- +/-90°spindle horizontal processing design
- OSAI controller
- 12KW air cooling spindle
- Aluminum alloy tool magazine
- Loading & unloading roller table
- floating table
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.
