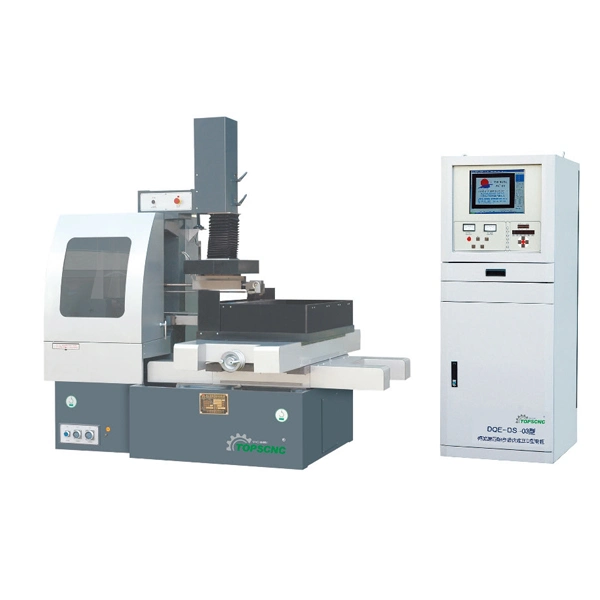

Autocut Software CNC Wire EDM Cutting Controller Machine
Product descriptionTechnique parametersUnitDK7732ZBTable size (WxD)mm440×680Table travel (XxY)mm320×400Table travel (UxV)mm140×140Z-axis control manual controlZ-axis guideway slide guidesMax. workpiece weightkg600Thickness of workpiecemm350Max.taper angle ±1......
Send Inquiry
Product Description
Product description

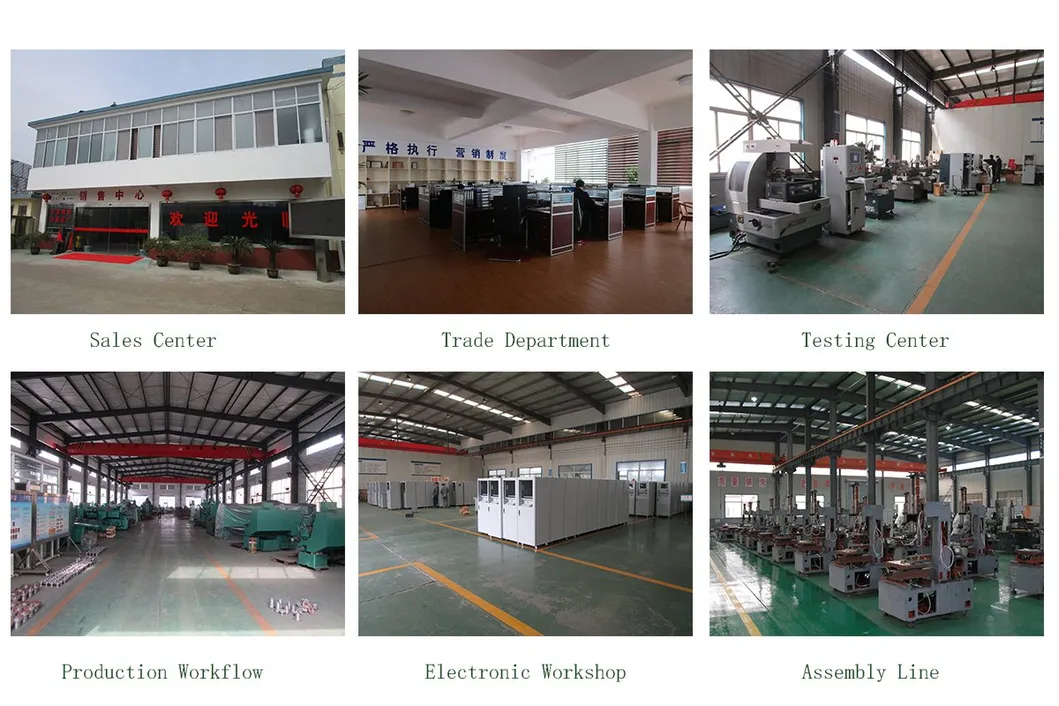

Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.

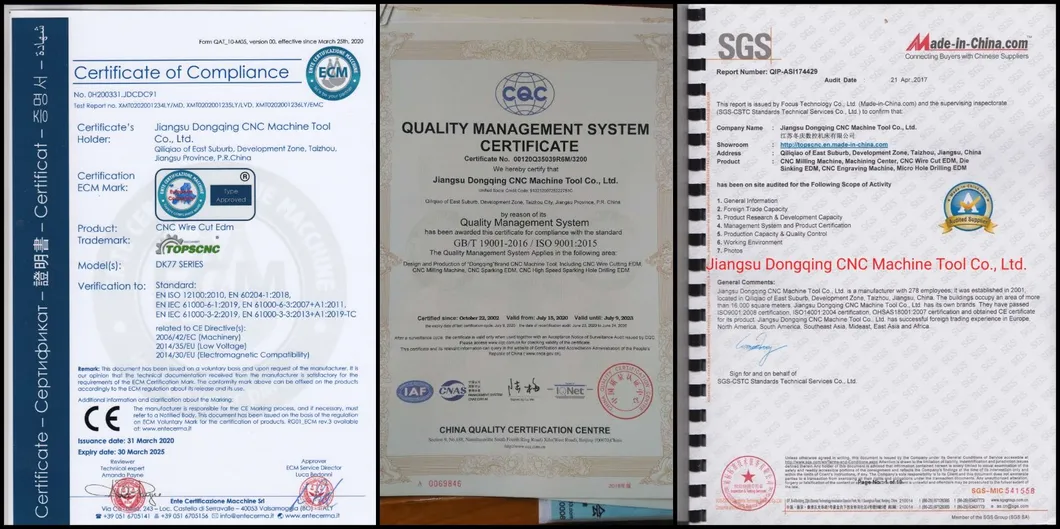

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
It always keep a great ideal in mind, aims to create century brand and strive for top grade. The confidence comes from advanced product, strict quality control system and sustained technical innovation, comes from after-sales service all over the country and global market.
TOPSCNC people wish to share success with you in the future!
FAQ
Q: Are you trading company or factory ?
A: We are factory.
Q. Could your engineers go to our factory to install the machine and train our workers?
A:Yes, our engineers could go to your factory and assist you.
Q:What is your warranty?
A:One year after shipment ,consumables are not included.
Q: What is your terms of payment ?
A:L/C or T/T before shipment.
Contact us
Company: Jiangsu Dongqing CNC Machine Tool Co. Ltd.
Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China
Web: topscnc.en.made-in-china.com
| Technique parameters | Unit | DK7732ZB |
| Table size (WxD) | mm | 440×680 |
| Table travel (XxY) | mm | 320×400 |
| Table travel (UxV) | mm | 140×140 |
| Z-axis control | manual control | |
| Z-axis guideway | slide guides | |
| Max. workpiece weight | kg | 600 |
| Thickness of workpiece | mm | 350 |
| Max.taper angle | ±15°/80mm | |
| Diameter of cutting wire | mm | φ0.15~φ0.20mm(recommendφ0.18mm) |
| Feeding speed | m/sec | 1~11.4m/sec adjustable |
| Precision | mm | ≤0.015 |
| Machining speed | mm²/min | >200 |
| Surface roughness | μm | Ra≤2.5 |
| Motor type | X,Y,U,V stepper motor | |
| Control axis | 4 axis simultaneous | |
| Min. control pace | mm | 0.001 |
| Power supply | 3N-380V/50Hz | |
| Max. working current | A | 12 |
| Power consumption | Kw | 1 |
| Working liquid | JA-1 | |
| Water tank | L | 55 |
| Filtering mode | filter screen | |
| Control System | Auto-cut | |
| Machine weight | kg | 1500 |
| Machine dimensions | mm | 1765×1170×2150 |

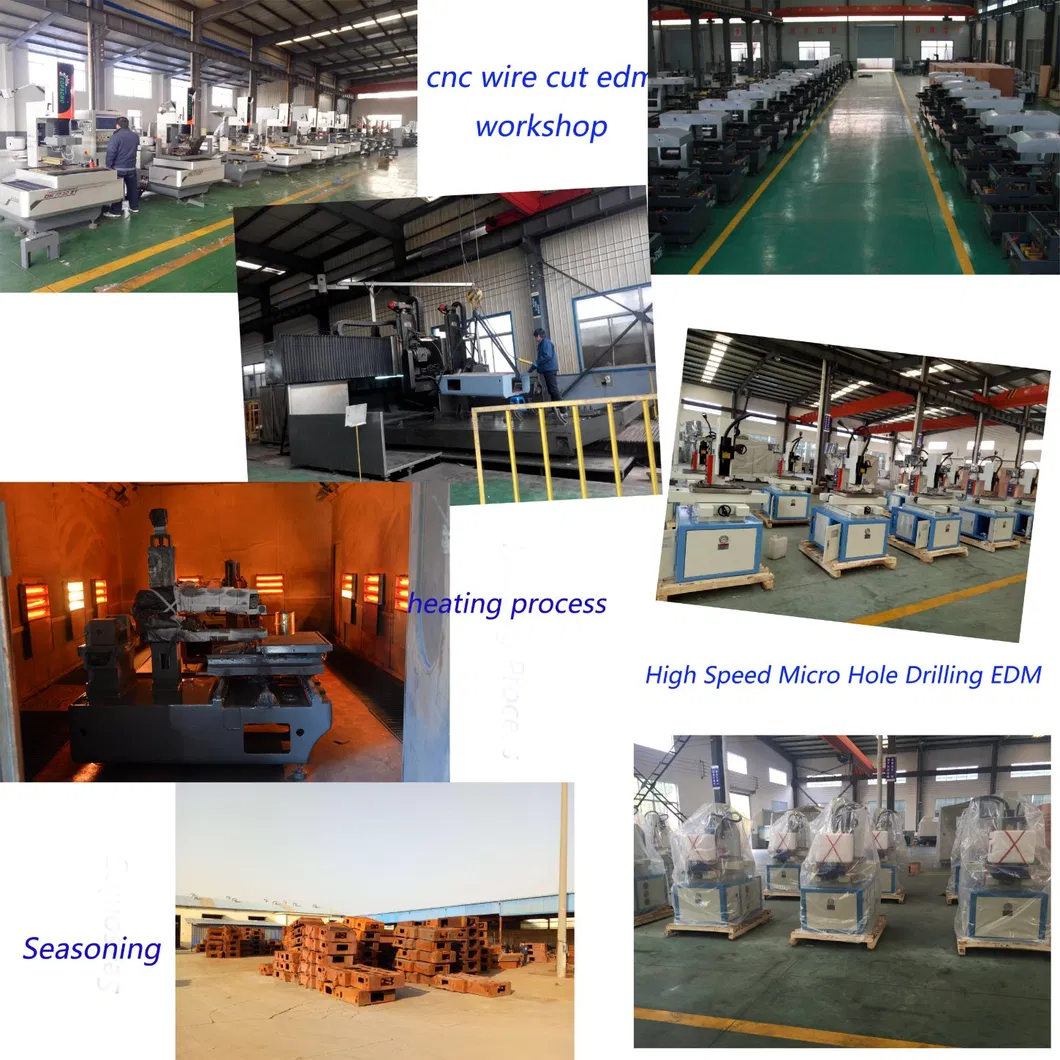

Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
It always keep a great ideal in mind, aims to create century brand and strive for top grade. The confidence comes from advanced product, strict quality control system and sustained technical innovation, comes from after-sales service all over the country and global market.
TOPSCNC people wish to share success with you in the future!
FAQ
Q: Are you trading company or factory ?
A: We are factory.
Q. Could your engineers go to our factory to install the machine and train our workers?
A:Yes, our engineers could go to your factory and assist you.
Q:What is your warranty?
A:One year after shipment ,consumables are not included.
Q: What is your terms of payment ?
A:L/C or T/T before shipment.
Contact us
Company: Jiangsu Dongqing CNC Machine Tool Co. Ltd.
Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China
Web: topscnc.en.made-in-china.com
