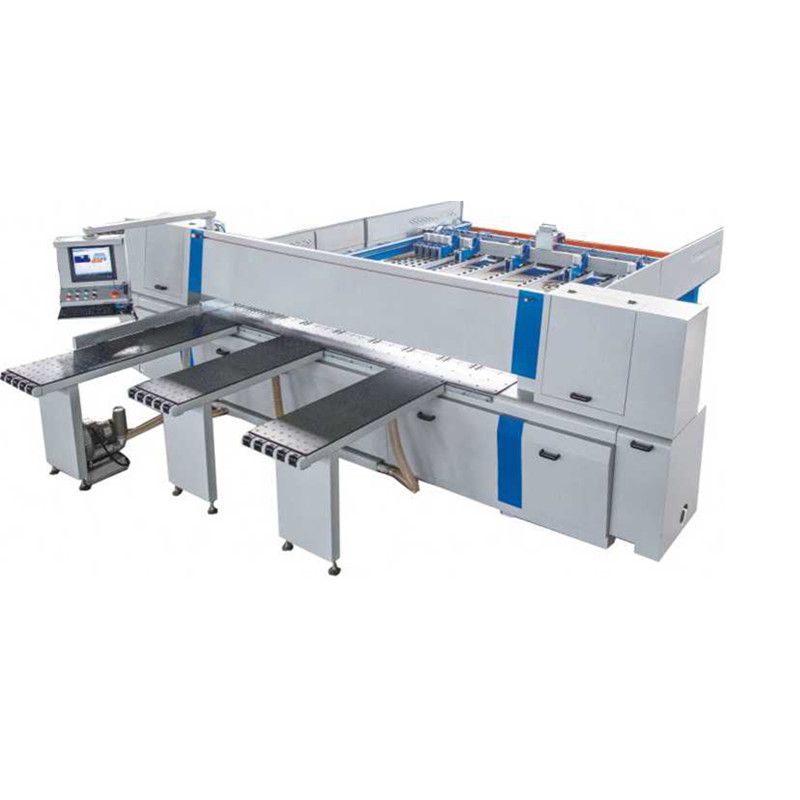

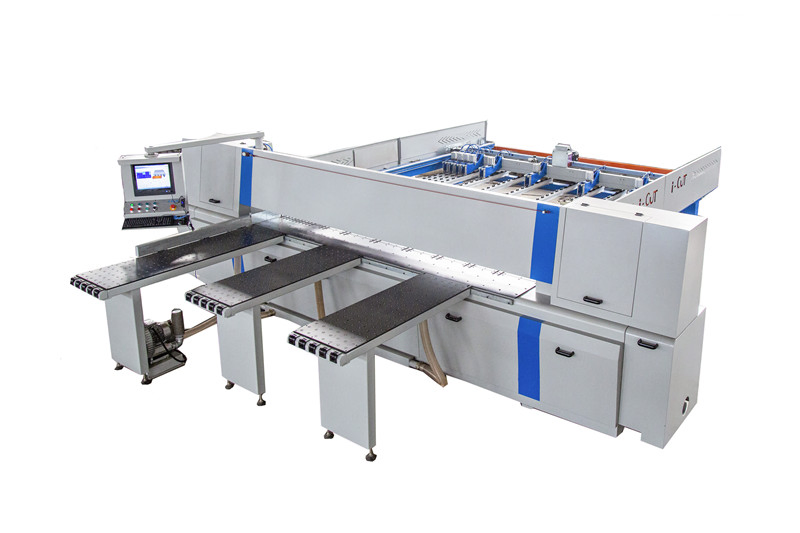

    Automatic Computer Panel Sizing Saw Woodworking Machine
    • Automatic Computer Panel Sizing Saw Woodworking MachineAutomatic Computer Panel Sizing Saw Woodworking Machine
    • Automatic Computer Panel Sizing Saw Woodworking MachineAutomatic Computer Panel Sizing Saw Woodworking Machine
    • Automatic Computer Panel Sizing Saw Woodworking MachineAutomatic Computer Panel Sizing Saw Woodworking Machine
    • Automatic Computer Panel Sizing Saw Woodworking MachineAutomatic Computer Panel Sizing Saw Woodworking Machine

    Automatic Computer Panel Sizing Saw Woodworking Machine

    Automatic Computer Panel Sizing Saw Woodworking MachineSPECIFICATION ModelMJ2700MJ3300MJ3800Cutting length2700 mm3300 mm3800mmCutting thickness85/100/120 mm85/100/120 mm85/100/120 mmDiameter of main saw blade355/400/460 mm355/400/460 mm355/400/460 mmDiameter of scoring saw blade180 mm180 mm180mmSpee......

    Send Inquiry

    Product Description

    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine
    SPECIFICATION

    ModelMJ2700MJ3300MJ3800
    Cutting length2700 mm3300 mm3800mm
    Cutting thickness85/100/120 mm85/100/120 mm85/100/120 mm
    Diameter of main saw blade355/400/460 mm355/400/460 mm355/400/460 mm
    Diameter of scoring saw blade180 mm180 mm180mm
    Speed of main saw blade3950/4500 r.p.m3950/4500 r.p.m3950/4500 r.p.m
    Speed of scoring saw blade6300 r.p.m6300 r.p.m6300r.p.m
    Saw carriage drive motor2.2 kw2.2 kw2.2 kw
    Head saw motor7.5kw/11kw7.5kw/11kw7.5kw/11kw
    Auto feeding motor1.2kw2kw2kw

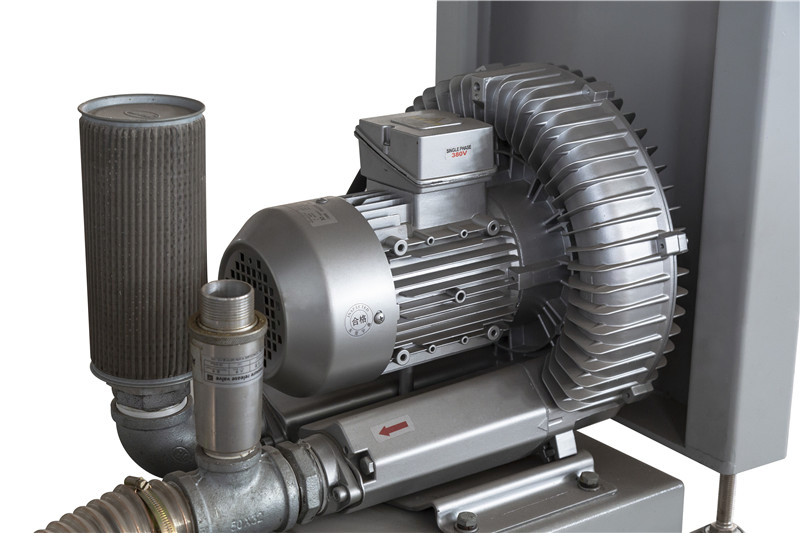

    High pressure blower motor2kw2kw2kw
    Scoring saw motor power1.5 kw1.5 kw1.5 kw
    Pusher power motor2 kw2 kw2 kw
    Total power17/21 kw21/27 kw21/27 kw
    Feeding speed0-120 m/min0-120 m/min0-120 m/min
    Air pressure5-7 kg5-7 kg5-7 kg
    Net weight5000 kg6000 kg7000 kg
    Overall dimension5500*5600*1700 mm6100*6200*1700 mm6700*6800*1700mm

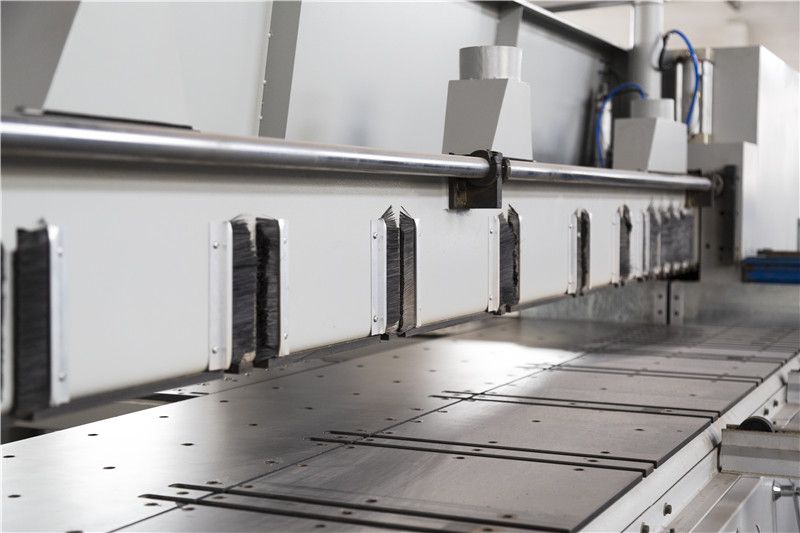

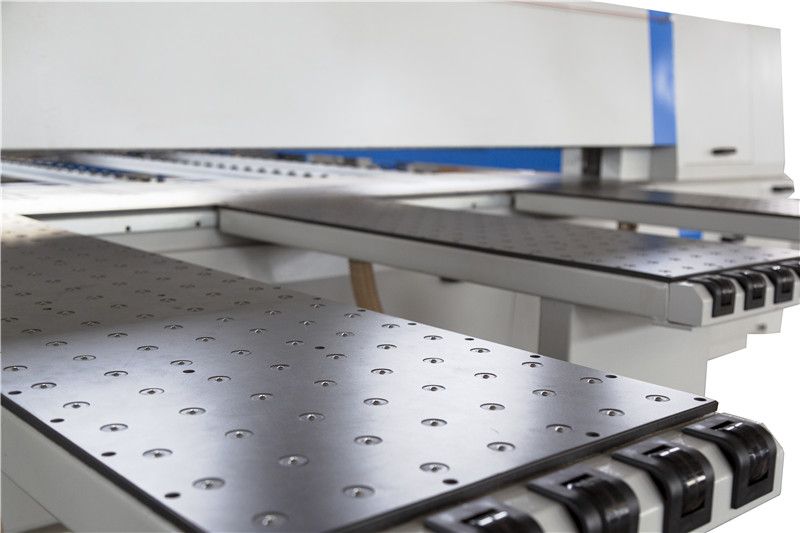

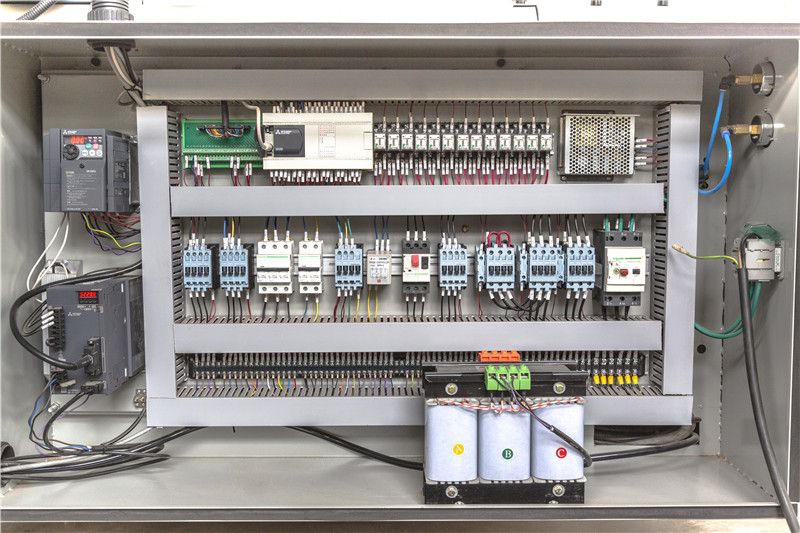

    DETAILS
    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine

    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine
    Automatic Computer Panel Sizing Saw Woodworking Machine

    COMPANY INTRODUCCTIONAutomatic Computer Panel Sizing Saw Woodworking Machine
