    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment

    Technical specificationTwo Spindle Two Vibration Tapping MachineSpecificationNut Max.Out Side DiameterSpeed(pcs/min)Main Motor(HP)Oil CapacitySizeW*L*H(mm)Weight(kg)RNNT 11BM4~M81850~802HP250900*1400*1450660RNNT 19B M10~M162630~603HP280900*1400*1500750RNNT 38B M18~M305025~405HP3601100*1260*17001300 ......

    Send Inquiry

    Product Description

    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment


    Technical specification

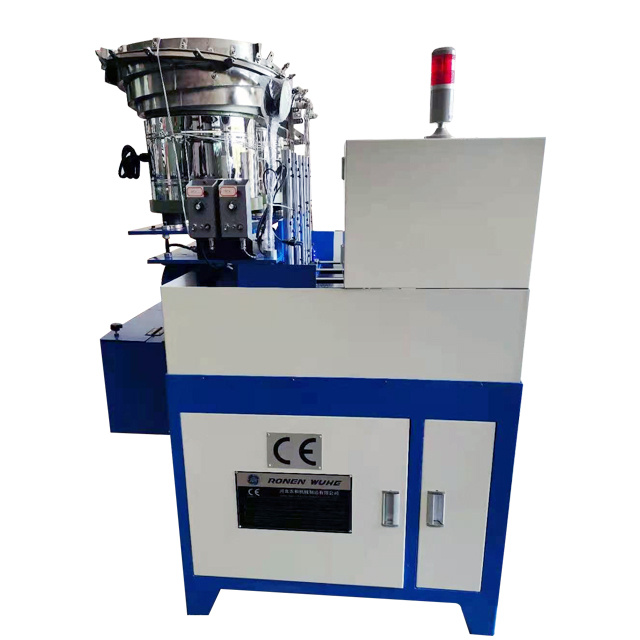

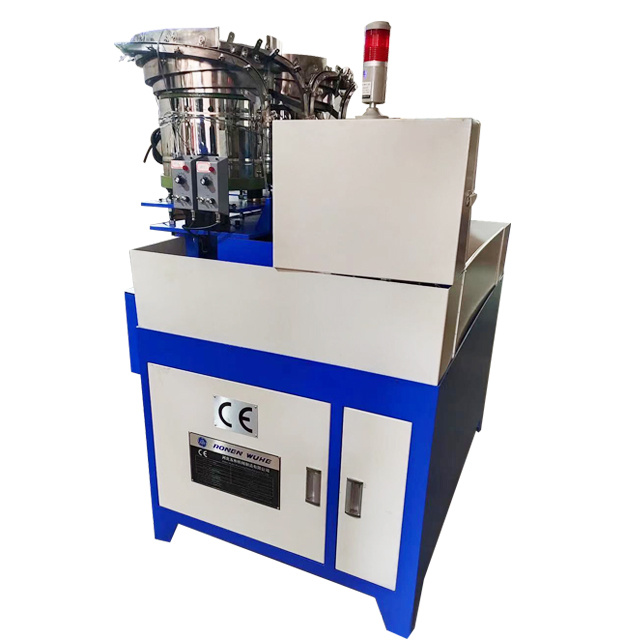

    Two Spindle Two Vibration Tapping Machine
    Specification
    Nut Max.Out Side Diameter
    Speed
    (pcs/min)
    Main Motor
    (HP)
    Oil Capacity
    		Size
    W*L*H(mm)
    Weight
    (kg)
    RNNT 11B
    M4~M8
    18
    50~80
    2HP
    250
    900*1400*1450
    660
    RNNT 19B M10~M16
    26
    30~60
    3HP
    280
    900*1400*1500
    750
    RNNT 38B M18~M30
    50
    25~40
    5HP
    360
    1100*1260*1700
    1300


    Four Axis Two Vibration Tapping Machine
    Specification
    Nut Max.Out Side Diameter
    Speed
    (pcs/min)
    Main Motor
    (HP)
    Oil Capacity
    		Size
    W*L*H(mm)
    Weight
    (kg)
    RNNT 11B
    M3~M6
    16
    360~320
    1HP-4
    120
    		1100*1300*1400
    710
    RNNT 11B
    M6~M10
    19
    260~200
    2HP-4
    120
    		1100*1300*1400
    820
    RNNT 19B
    M8~M12
    22
    240~180
    3HP-4
    150
    		1100*1300*1400
    1060
    RNNT 19B
    M8~M12
    33
    220~120
    3HP-4
    340
    		1650*1700*1670
    1600
    RNNT 32B
    M18~M22
    44
    130~80
    5HP-4
    620
    		1800*2050*1950
    2300

    Reciprocating Tapping Machine
    Specification
    Clamping Way
    MAX. Length
    (mm)
    Speed
    (pcs/min)
    Main Motor
    (HP)
    Auto Feeder
    (mm)
    Oil Capacity
    Size
    W*L*H
    (mm)
    Weight
    (kg)
    RNNT 11B
    M3~M8
    Air Pressure
    40
    30-60
    2-1HP
    2-300
    150
    1000*1400*1500-1
    1350*1700*1500-2
    610
    1060
    RNNT 19B M8~M16
    Air Oil Pressure
    60
    20-50
    2-2HP
    2-360
    150
    1150*1400*1500-1
    1350*1700*1600-2
    700
    1120
    RNNT 38B M18~M24
    Air Oil Pressure
    60
    10-30
    2-3HP
    2-450
    200
    1200*1500*1650-1
    1400*1900*1750-2
    850
    1500

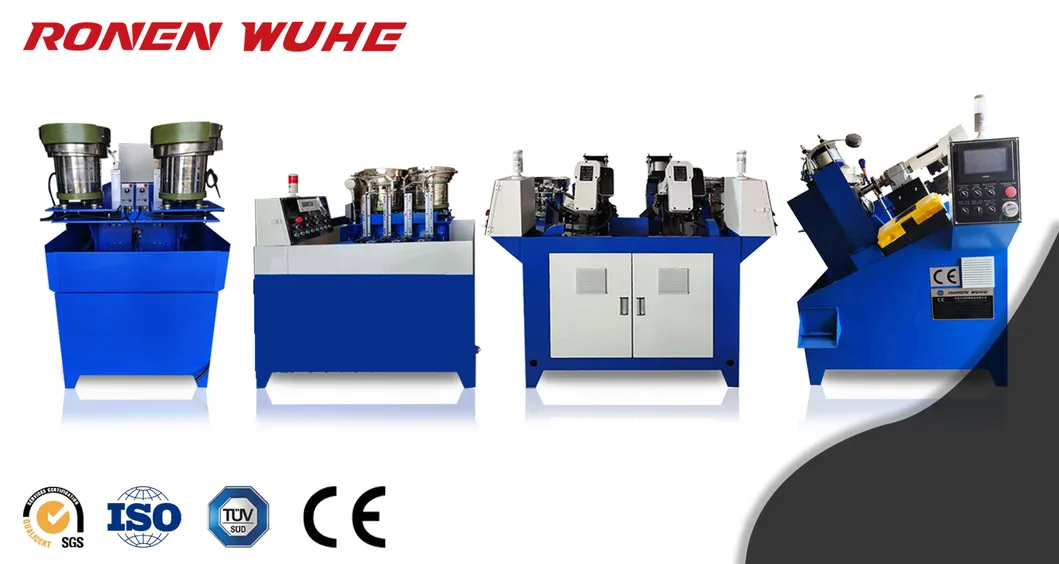

    Factory Introduction
    Ronen Wuhe is one special manufacture for producing Nut Tapping Machine (Fastener Nut) in China. Have Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is 15000 square meter
    Nut tapping Machine produced by Ronen Wuhe is suitable for auto parts, construction hardware, construction fasteners, machinery, electronics, etc. We have big share in domestic market, and In recent years.We have exported to Europe, USA, Korea, Russia, India, Indonesia,Vietnam etc.. At present, the largest model can reach WH-41B6S, sizes from M3~M22,
    In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership.
    Product Introduction

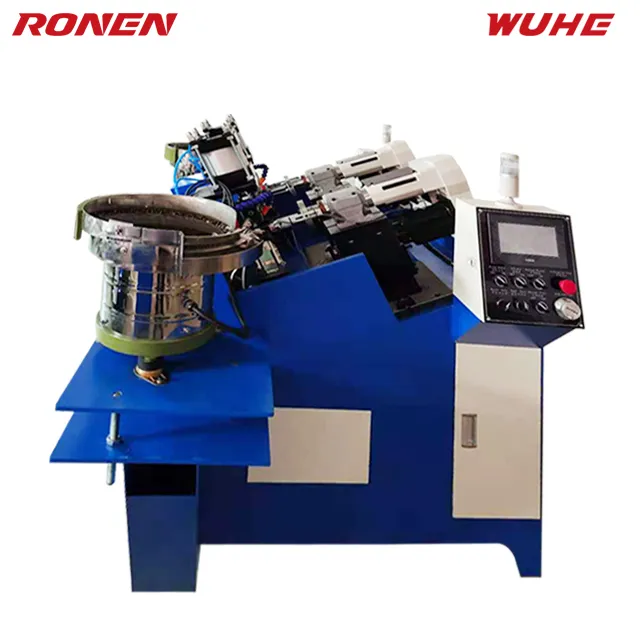

    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping EquipmentTwo Spindle Two Vibration Tapping Machine

    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment

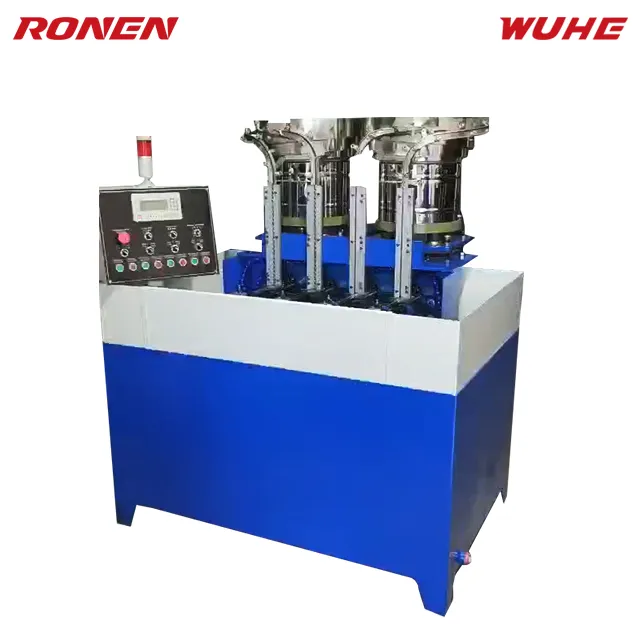

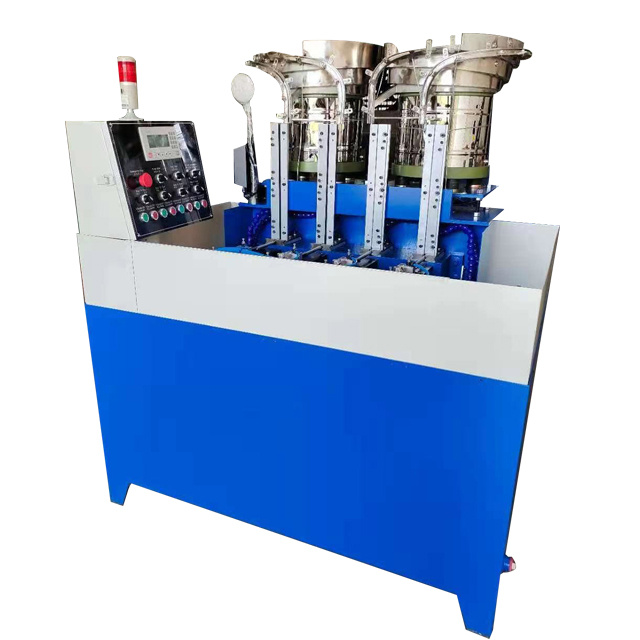

    Four Axis Two Vibration Tapping Machine
    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment

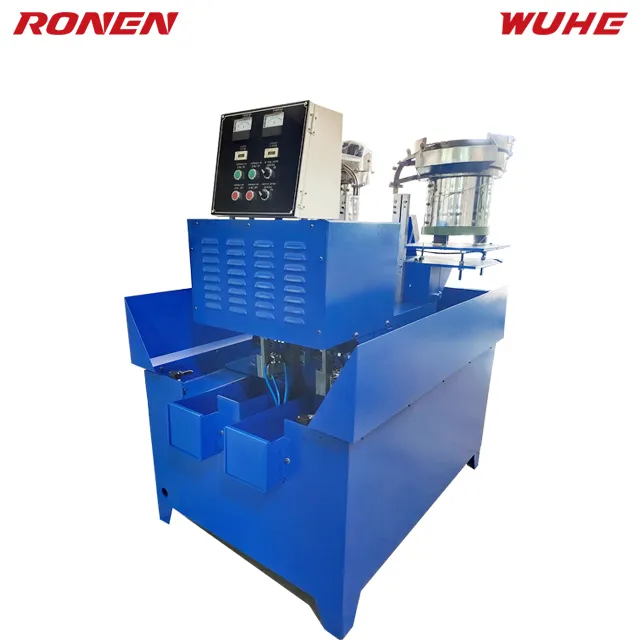

    Reciprocating Tapping Machine

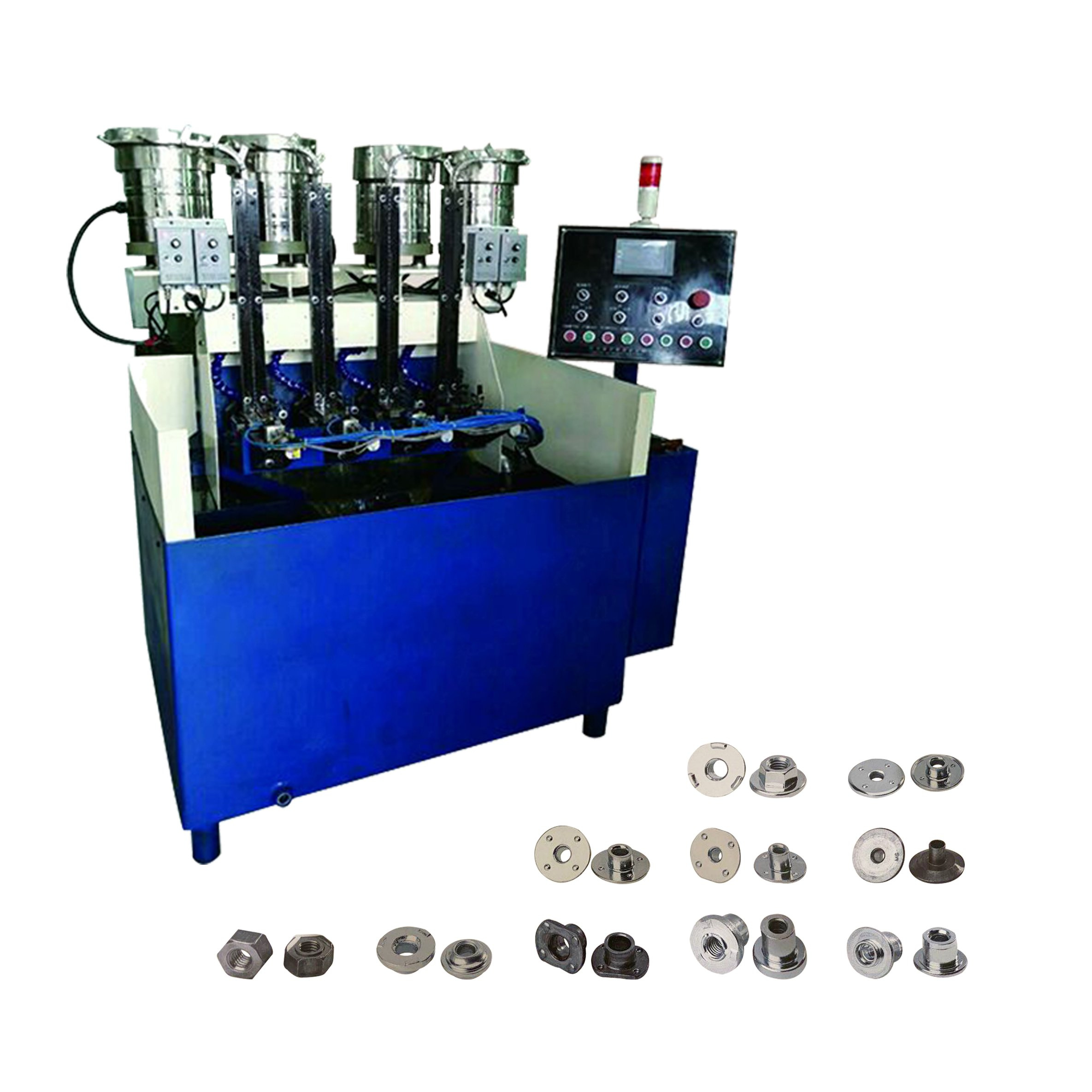

    Nut tapping machine production of products
    The nut tapping machine can do the nuts include standard parts and non-standard parts, such as: hexagon nuts, flange nuts, welding nuts, square nuts, T-nuts, rivets (hollow, semi-hollow) nuts, bushings, sleeves, four Claws nuts, nylon nuts, cap nuts, lock nuts, furniture nuts, automotive fasteners nuts, etc

    Related products

    Nut Making Machine Hot Forging Machine
    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment
    Packaging
    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment
    Certificate

    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment





    FAQ

    1. -Can your machinery produce non-standard parts?

    -Yes, we can. Our machinery can produce non-standard parts, at the same time,we can also customize according to your parts drawings.
    2. -Does your factory have customers in our country?
    -We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
    3. -Can you provide debugging video and samples?
    -Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
    4. -Can you arrange the delivery time according to the contract?
    -Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
    5. -If it is beyond the warranty period, can we check the technical problems with you?
    -Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.

    Automatic M18 M20 M22 Stainless Steel NPT Hex Nut Hex Socket Nut 32b Tapping Equipment
