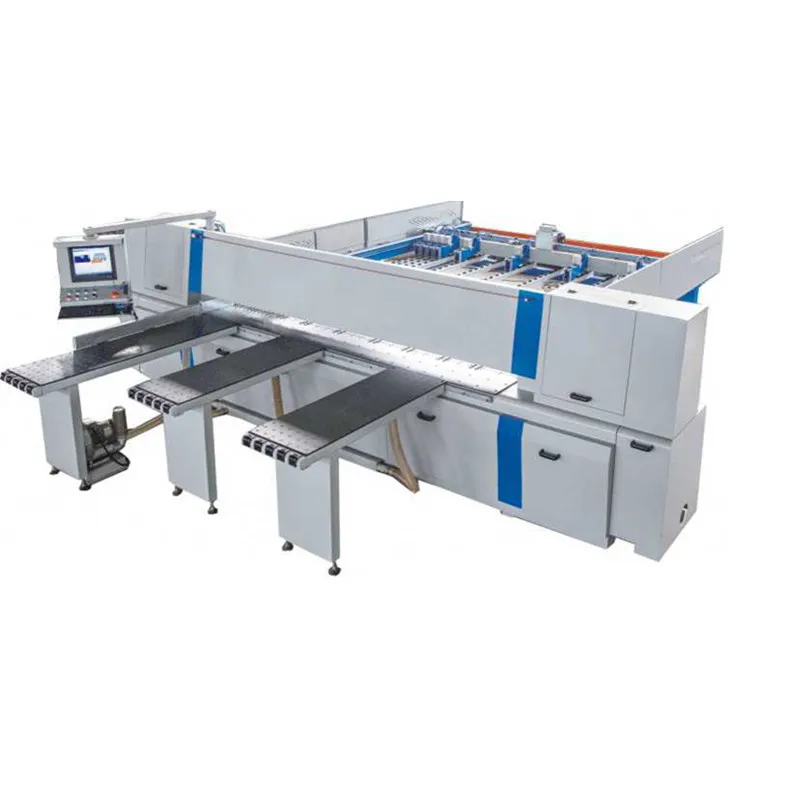

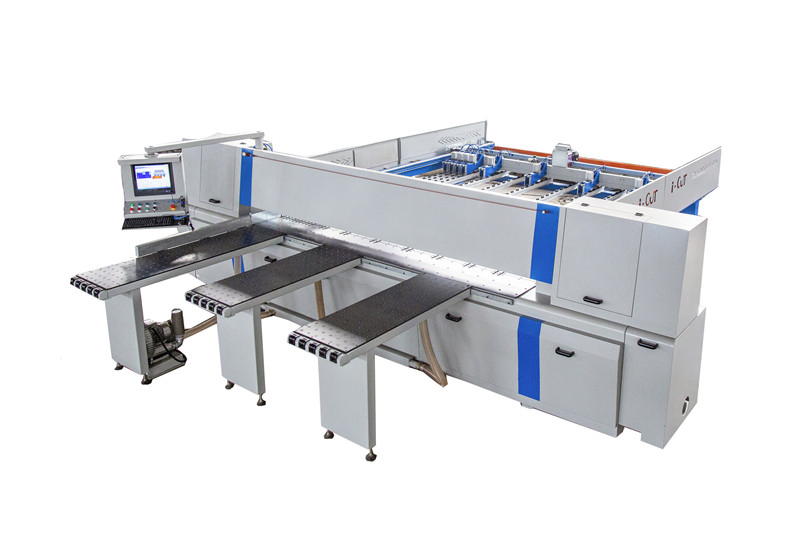

Back Loading Feed Computer Panel Sizing Machine Beam Saw Cutter
Back loading feed computer panel sizing machine beam saw cutterSPECIFICATION ModelMJ2700MJ3300MJ3800Cutting length2700 mm3300 mm3800mmCutting thickness85/100/120 mm85/100/120 mm85/100/120 mmDiameter of main saw blade355/400/460 mm355/400/460 mm355/400/460 mmDiameter of scoring saw blade180 mm180 mm1......
Send Inquiry
Product Description
Back loading feed computer panel sizing machine beam saw cutter
SPECIFICATION
| Model | MJ2700 | MJ3300 | MJ3800 | |
| Cutting length | 2700 mm | 3300 mm | 3800mm | |
| Cutting thickness | 85/100/120 mm | 85/100/120 mm | 85/100/120 mm | |
| Diameter of main saw blade | 355/400/460 mm | 355/400/460 mm | 355/400/460 mm | |
| Diameter of scoring saw blade | 180 mm | 180 mm | 180mm | |
| Speed of main saw blade | 3950/4500 r.p.m | 3950/4500 r.p.m | 3950/4500 r.p.m | |
| Speed of scoring saw blade | 6300 r.p.m | 6300 r.p.m | 6300r.p.m | |
| Saw carriage drive motor | 2.2 kw | 2.2 kw | 2.2 kw | |
| Head saw motor | 7.5kw/11kw | 7.5kw/11kw | 7.5kw/11kw | |
| Auto feeding motor | 1.2kw | 2kw | 2kw | |

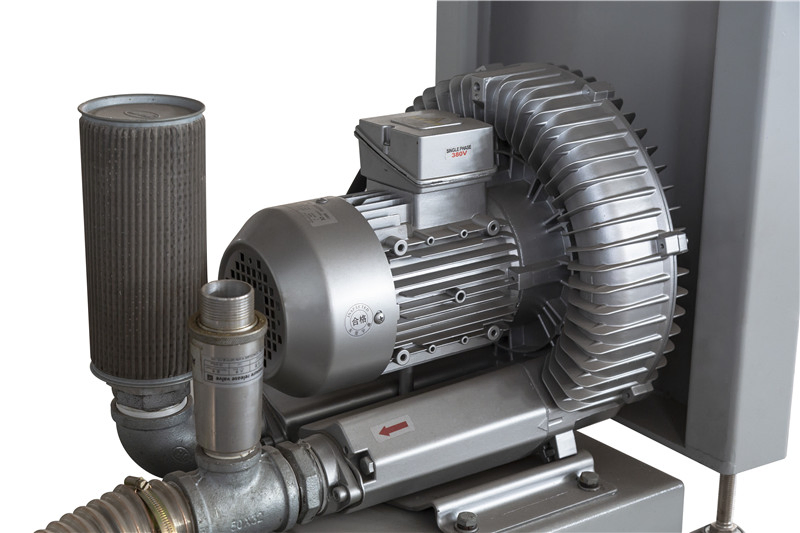

| High pressure blower motor | 2kw | 2kw | 2kw | |
| Scoring saw motor power | 1.5 kw | 1.5 kw | 1.5 kw | |
| Pusher power motor | 2 kw | 2 kw | 2 kw | |
| Total power | 17/21 kw | 21/27 kw | 21/27 kw | |
| Feeding speed | 0-120 m/min | 0-120 m/min | 0-120 m/min | |
| Air pressure | 5-7 kg | 5-7 kg | 5-7 kg | |
| Net weight | 5000 kg | 6000 kg | 7000 kg | |
| Overall dimension | 5500*5600*1700 mm | 6100*6200*1700 mm | 6700*6800*1700mm | |

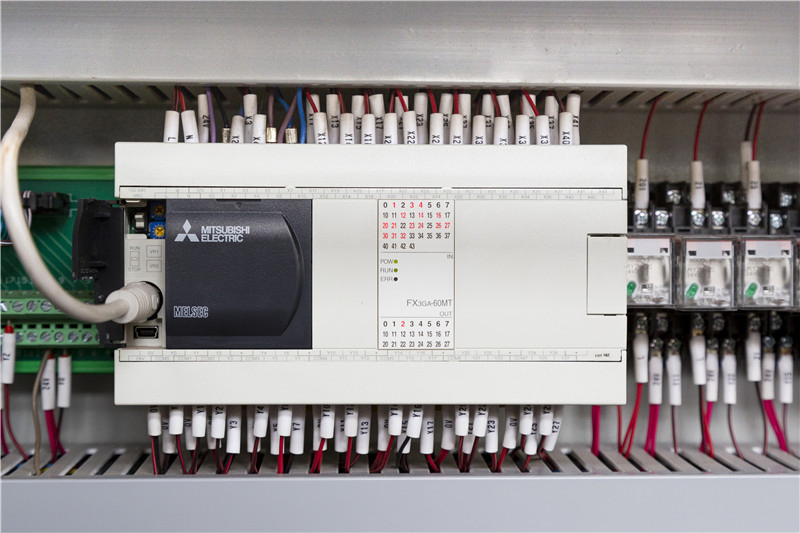

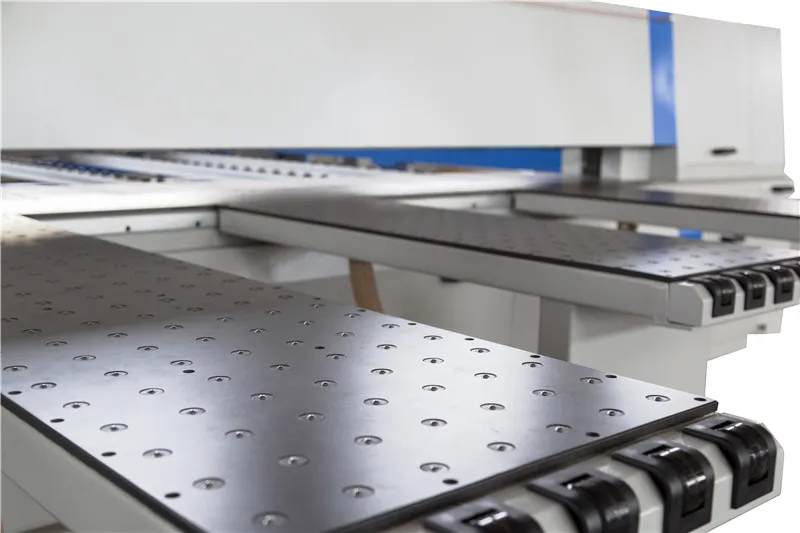

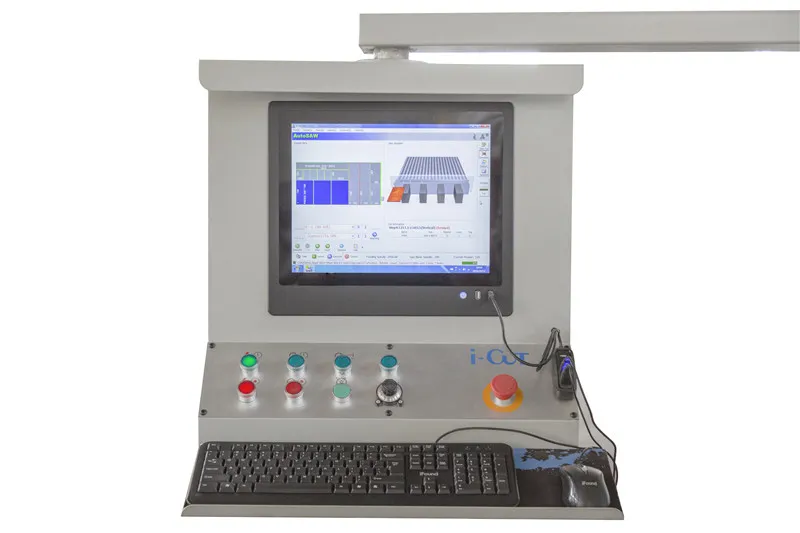

DETAILS
