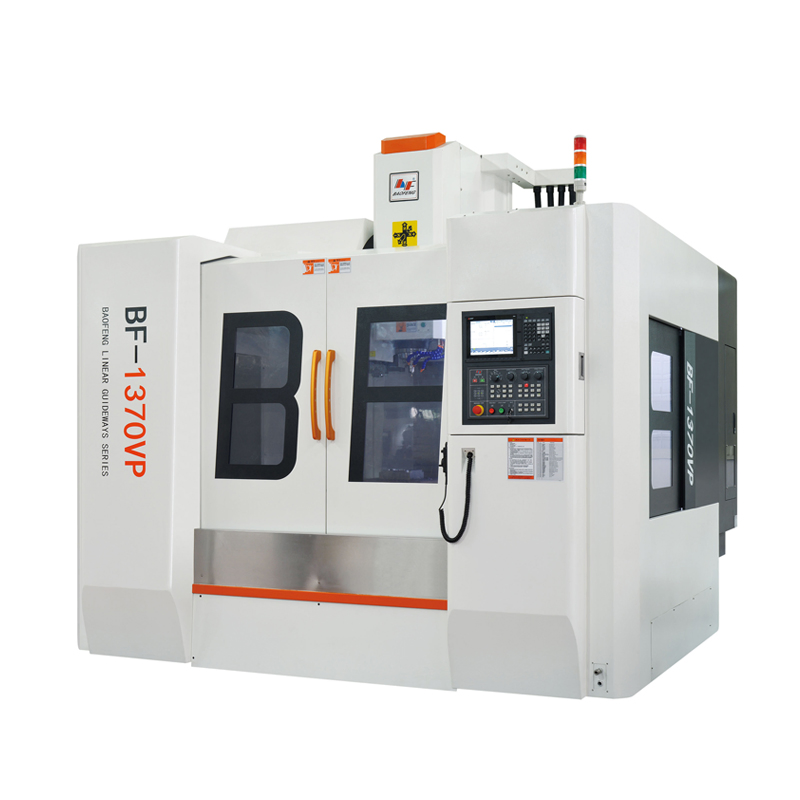

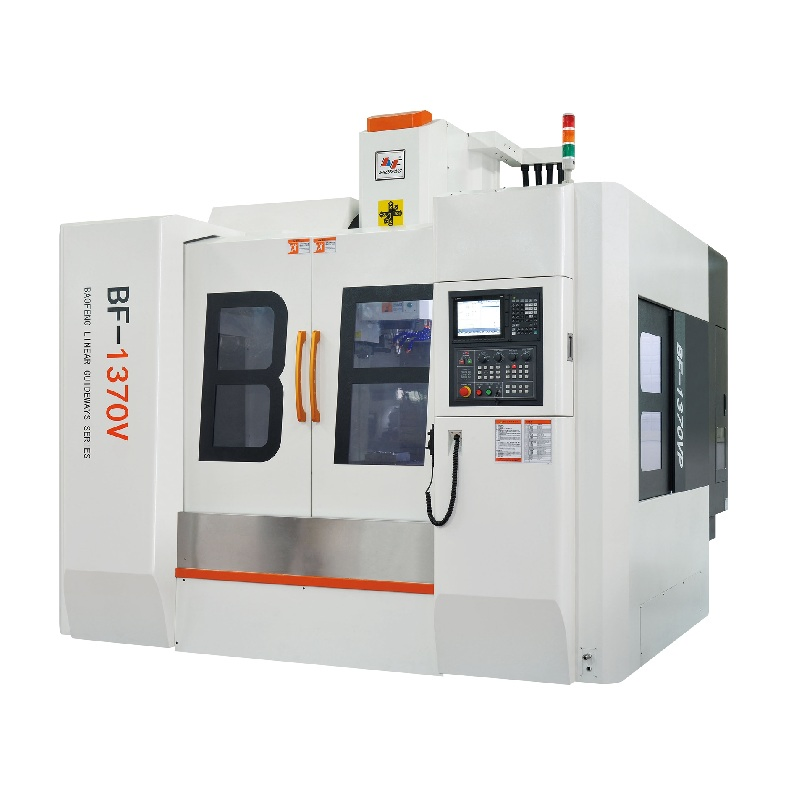

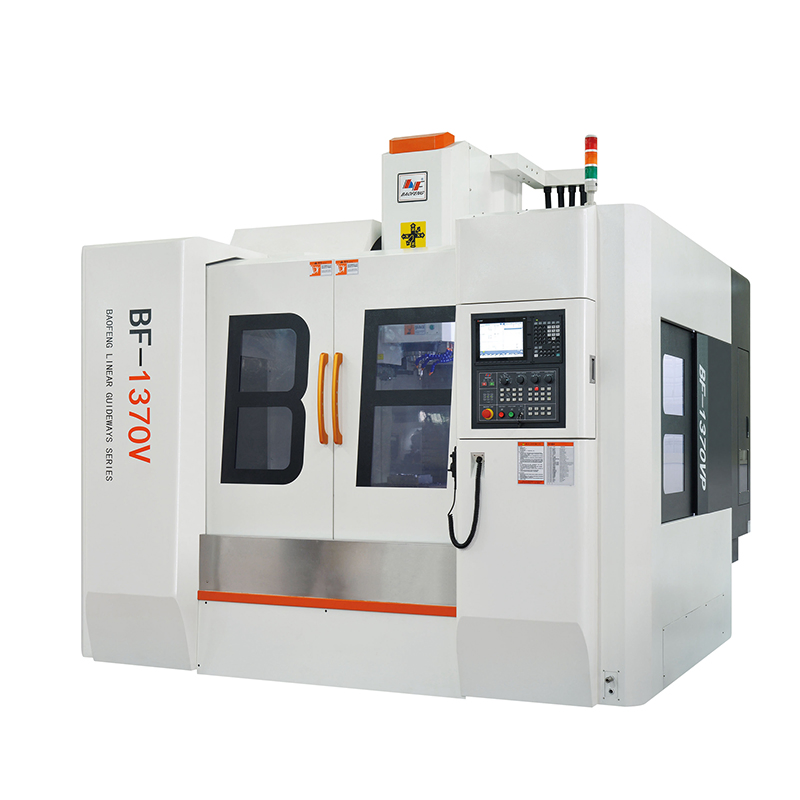

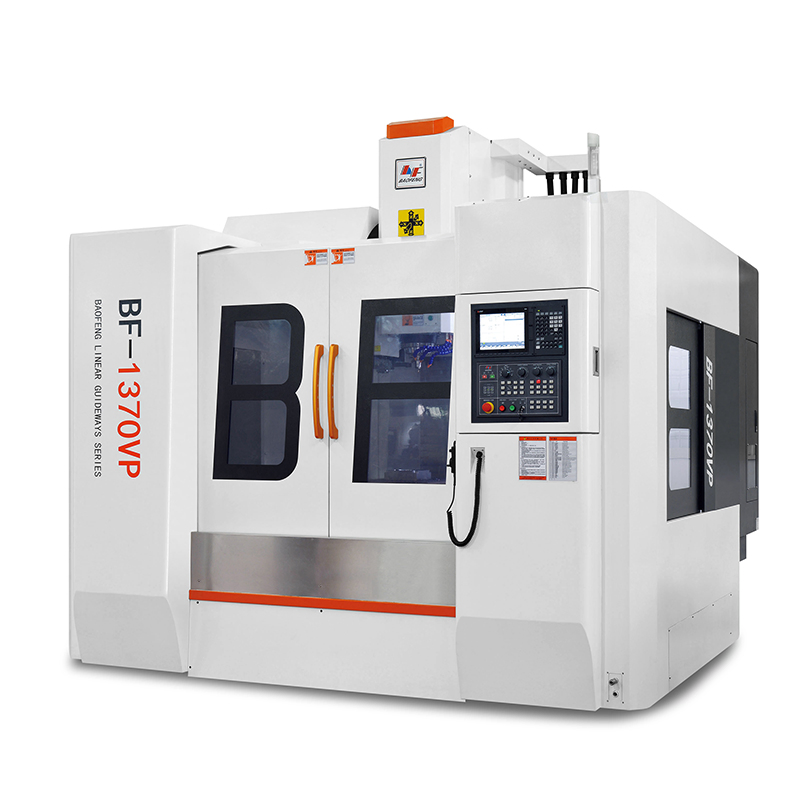

Baofeng Vertical Machining Center Vmc 3 Axis CNC China CNC Milling Machine 1370
Specification TRAVELX/Y/Z axis travel1300*700*700mmSpindle nose to table140-840mmSpindle center to column750mmPositioning accuracy±0.003/300mmRepeated positioning±0.002/300mmSpindleSpindle taperBBT40Spindle transmissionDirect driveSpindle speed12000 rpm/minControllerCNC contr......
Send Inquiry
Product Description
Specification
| TRAVEL | |
| X/Y/Z axis travel | 1300*700*700mm |
| Spindle nose to table | 140-840mm |
| Spindle center to column | 750mm |
| Positioning accuracy | ±0.003/300mm |
| Repeated positioning | ±0.002/300mm |
| Spindle | |
| Spindle taper | BBT40 |
| Spindle transmission | Direct drive |
| Spindle speed | 12000 rpm/min |
| Controller | |
| CNC control | Fanuc 0i-MF |
| Spindle motor | 11/15 kw 12000 rpm/min |
| X/Y/Z motor | 3.0/3.0/3.0kw |
| Table | |
| Table size ( W x L ) | 1450x700mm |
| T slot | 5-18x152.5mm |
| Table load | 1500kg |
| Feed | |
| X/Y/Z rapid feed rate | 30/30/30m/min |
| X/Y/Z linear guideway | 45/45/45mm |
| X/Y/Z ball screw | 10mm-ball |
| MACHINE DIMENSION | |
| Dimension | 3300x3200x3140mm |
| Weight | 10500kg |
Main parts list:
| Item | Brand |
| Spindle | Taiwan-Spintrue |
| Spindle bearing | Japan-NSK |
| Ball screw | Taiwan-HIWIN-C3 |
| Linear guideway | Taiwan-HIWIN |
| Pneumatic parts | Japan-Mitsubishi |
Optional configuration:
- SIEMENS/FANUC/Mitsubishi CNC Controller
- 4th/5th axes rotary table
- Tool setter
- Oil mist collector
FAQ:
Q1. How can I get a quotation for the CNC machine center?
A. Leave us messages with your purchase requirements and we will reply to you ASAP.
Q2. Can you provide training for the operation of CNC machines?
A. Yes, free training in our factory is available.
