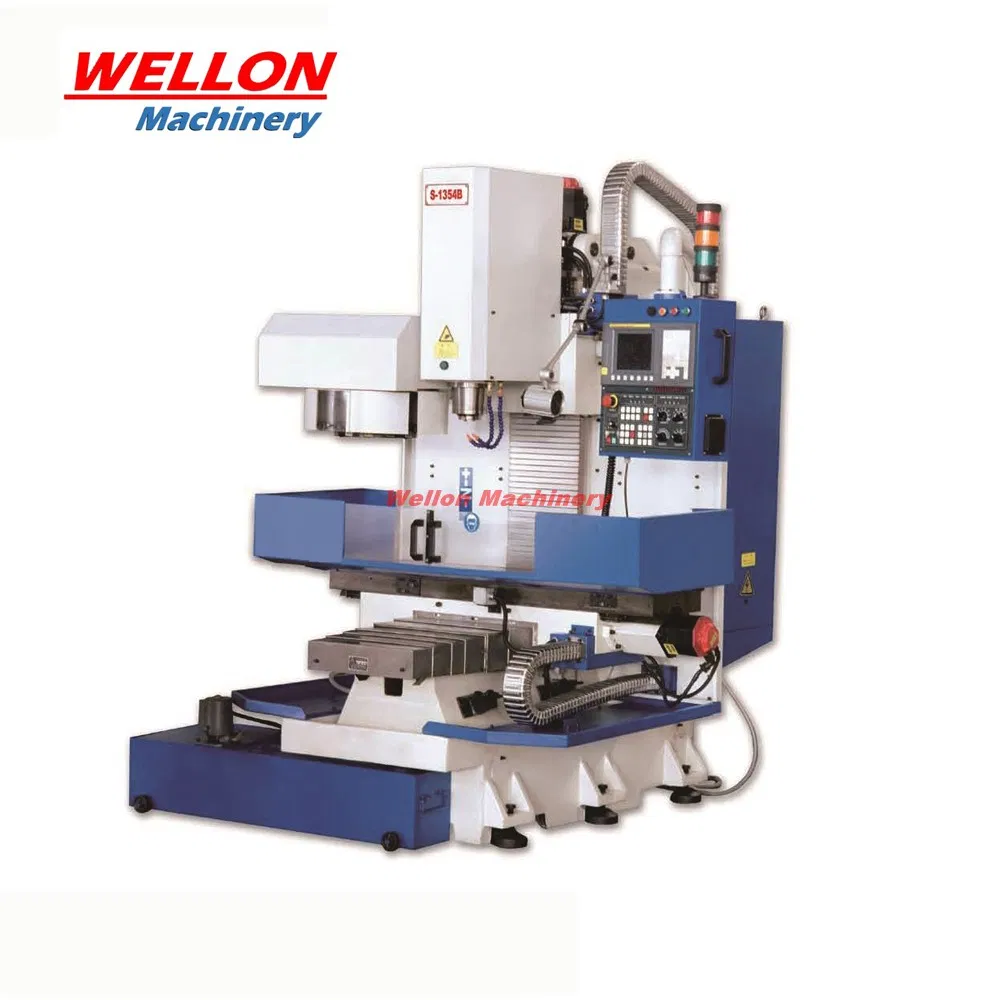

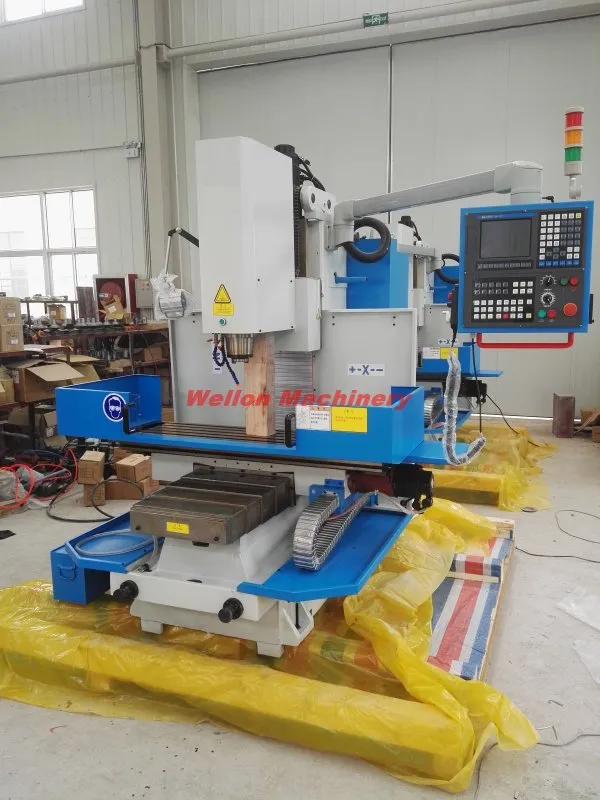

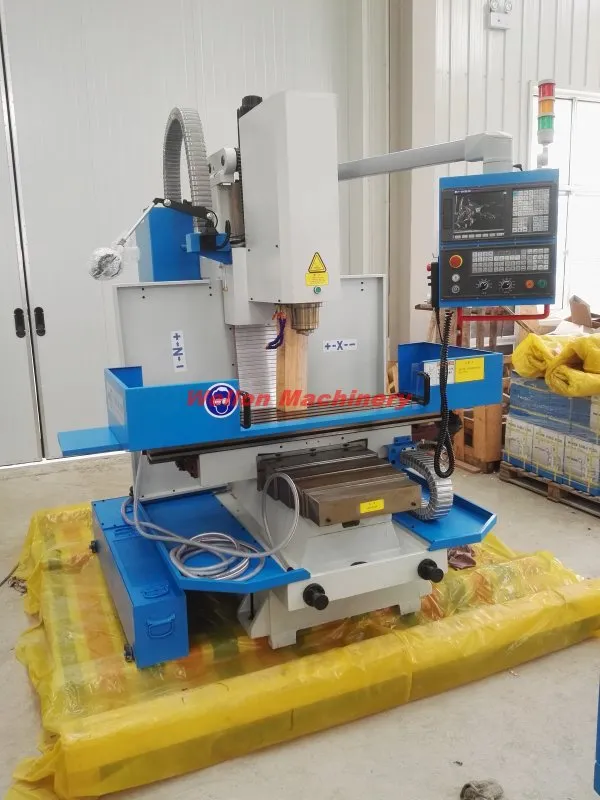

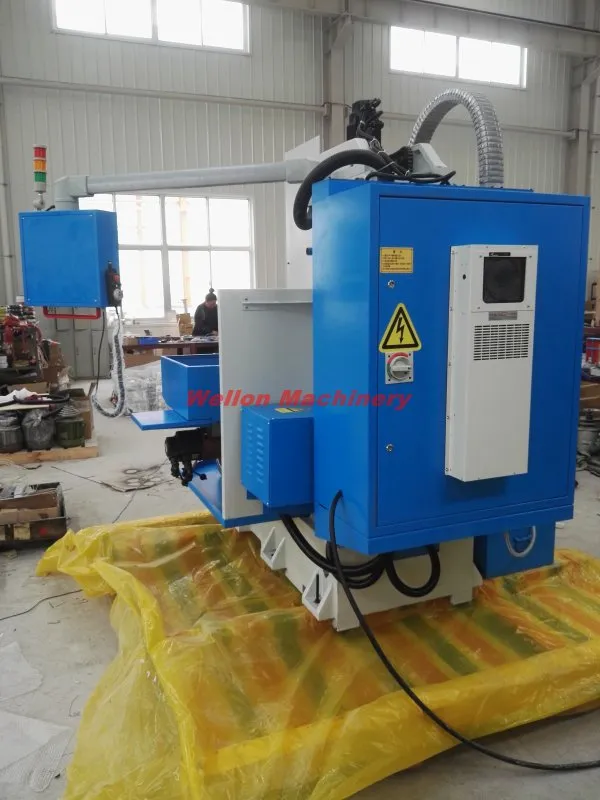

Bed Type CNC Milling Machine Price (S2063 Heavy duty Milling Machine CNC)
Products Description:Performence Features:1. High Quality, high precision, high stability. 2. Beautiful appearances. 3. Guide way fully closed by Protection Shield. 4. Spindle Parts made by TAIWAN SHUENN-JIA, assembly in China Mainland. Dishing Connection Spring made in Germany. (For CNC Milling Mac......
Send Inquiry
Product Description
Products Description:
Performence Features:
1. High Quality, high precision, high stability.
2. Beautiful appearances.
3. Guide way fully closed by Protection Shield.
4. Spindle Parts made by TAIWAN SHUENN-JIA, assembly in China Mainland. Dishing Connection Spring made in Germany. (For CNC Milling Machine);
TAIWAN Integral High Speed Spindle Unit, inside NSK Original Bearings(For Machining Center).
5. Machine bearings use China No. 1 Brand-HRB P4 Class.
6. CHINA Top Class high quality Spindle Motor, itself have Frequency Conversion Function(for CNC Milling Machine),
Machining Center use Servo Motor.
7. TAIWAN Brand special Air-Oil Compound Pressure Adding Cylinder
8. TAIWAN Brand Pneumatic Parts (Air Valve, Air Pipe etc)
9. Special Fireproofing Circuit Board and Groove.
10. CE Safety Standard Electric Cabinet Power Switch.
11. TAIWAN Funnel Type Tool Magazine(12pcs)(for Machining Center)
Technical parameter:
Standard accessories:
1. Semi isolated table shield
2. Cutting fluid circulation system
3. Auto lubrication system
4. Spindle air flow
5. Lamp
6. Pause lamp
7. Leveling adjusting screw and block
8. Clamping apparatus
Optional accessories:
1. POSA spindle
2. Spindle speed: 8000rpm
3. lead screw made in Taiwan
4. Full closed safety guard
Company Information:
Contact Us:
Performence Features:
1. High Quality, high precision, high stability.
2. Beautiful appearances.
3. Guide way fully closed by Protection Shield.
4. Spindle Parts made by TAIWAN SHUENN-JIA, assembly in China Mainland. Dishing Connection Spring made in Germany. (For CNC Milling Machine);
TAIWAN Integral High Speed Spindle Unit, inside NSK Original Bearings(For Machining Center).
5. Machine bearings use China No. 1 Brand-HRB P4 Class.
6. CHINA Top Class high quality Spindle Motor, itself have Frequency Conversion Function(for CNC Milling Machine),
Machining Center use Servo Motor.
7. TAIWAN Brand special Air-Oil Compound Pressure Adding Cylinder
8. TAIWAN Brand Pneumatic Parts (Air Valve, Air Pipe etc)
9. Special Fireproofing Circuit Board and Groove.
10. CE Safety Standard Electric Cabinet Power Switch.
11. TAIWAN Funnel Type Tool Magazine(12pcs)(for Machining Center)
Technical parameter:
| Specifications | Unit | S2063 |
| Table size (L × W) | mm | 1600×510 |
| Table loading capability | kg | 1200 |
| X Travel | mm | 1200 |
| Y Travel | mm | 700 |
| Z Travel | mm | 600 |
| Max. move speed(X/Y/Z) | mm/min | 10000 |
| Max. feed speed(X/Y/Z) | mm/min | 4000 |
| Spindle speed range | r/min | 40~6000 |
| Spindle taper | BT40/BT50 | |
| Spindle motor power | kW | 7.5 |
| X/Y/Z servo motor power | kW | 2.8 |
| Spindle quill diameter | mm | Φ150/Φ155 |
| Distance from spindle nose end face to table surface | mm | 60~660 |
| Ball screws (X axis) | mm | Φ40×10 P4 Double nuts |
| Ball screws (Y axis) | mm | Φ40×10 P4 Double nuts |
| Ball screws (Z axis) | mm | Φ40×10 P4 Double nuts |
| Positioning accuracy | mm | 0.03 |
| Repeat positioning accuracy | mm | 0.016 |
| Packing dimension (Semi-closure guard) (L × W × H) | mm | 2280×2900×2850 |
| Packing dimension (Full-closure guard) (L × W × H) | mm | 3700×2800×2870 |
| Machine weight (Semi-closure guard) | kg | 5000 |
| Machine weight ((Full-closure guard) | kg | 6400 |
1. Semi isolated table shield
2. Cutting fluid circulation system
3. Auto lubrication system
4. Spindle air flow
5. Lamp
6. Pause lamp
7. Leveling adjusting screw and block
8. Clamping apparatus
Optional accessories:
1. POSA spindle
2. Spindle speed: 8000rpm
3. lead screw made in Taiwan
4. Full closed safety guard

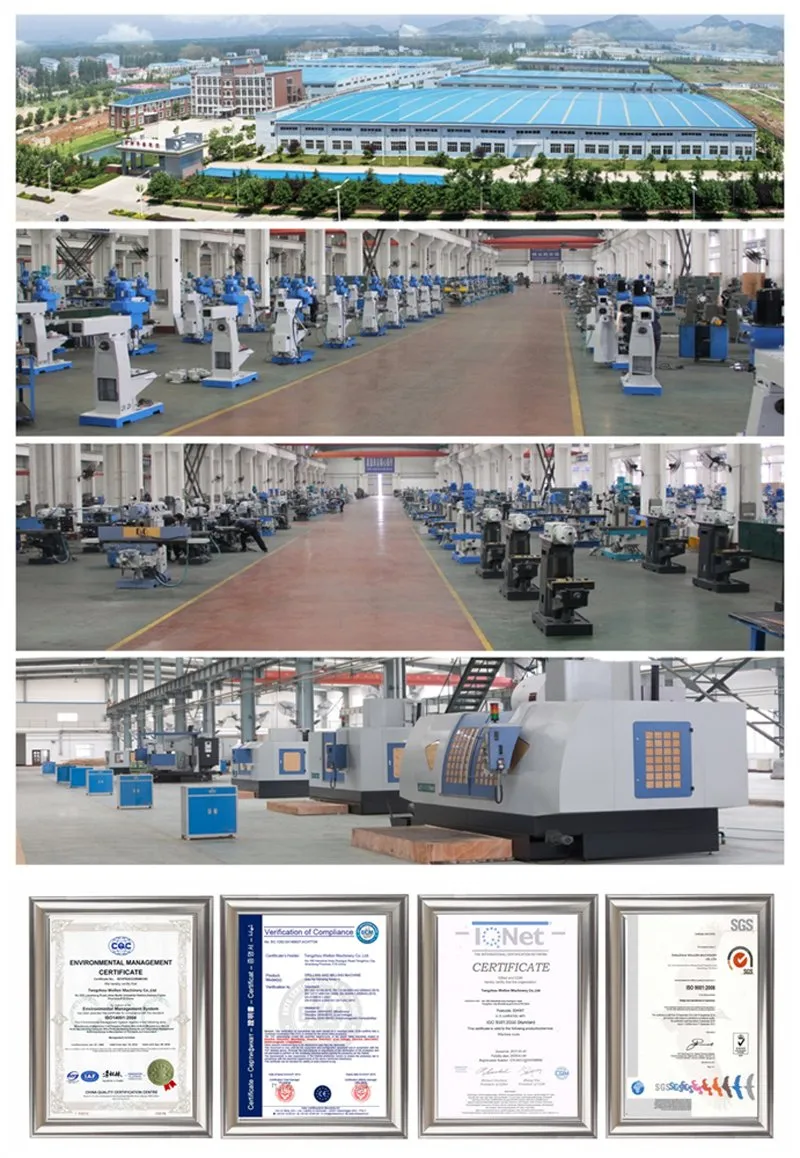

Company Information:
