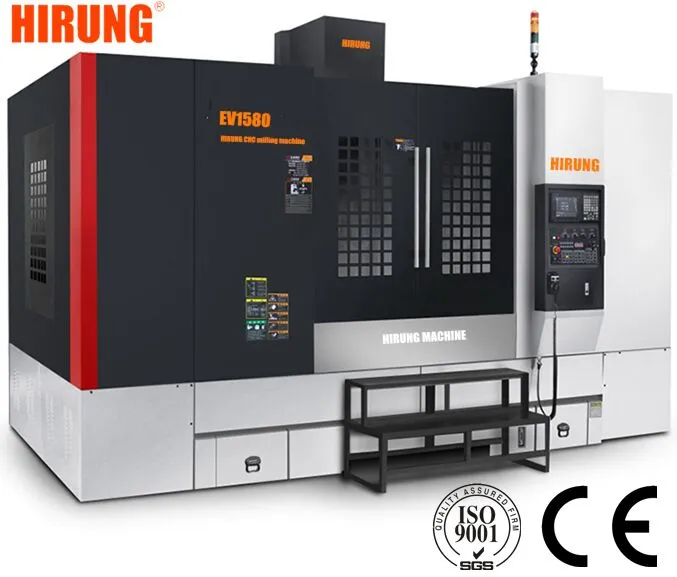

Bt50 CNC Vertical Milling and Drilling Machine, CNC Metal Machining Center (EV1580)
BT50 CNC Vertical Milling and Drilling Machine, CNC Metal Machining Center (EV1580)The casting of the machine Product Description1. Product IntroductionEV Series has high performance, high efficiency, high precision, high stability. The machine can realize the functions of the vast majority of dril......
Send Inquiry
Product Description
BT50 CNC Vertical Milling and Drilling Machine, CNC Metal Machining Center (EV1580)

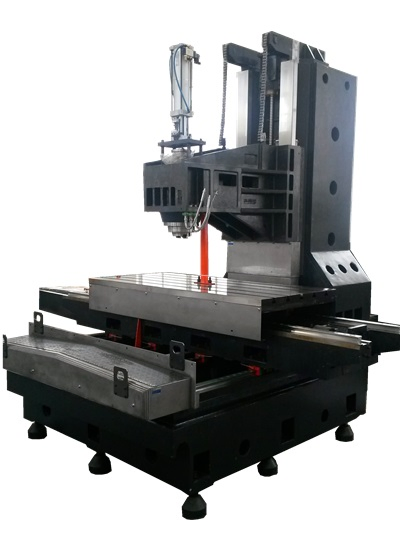

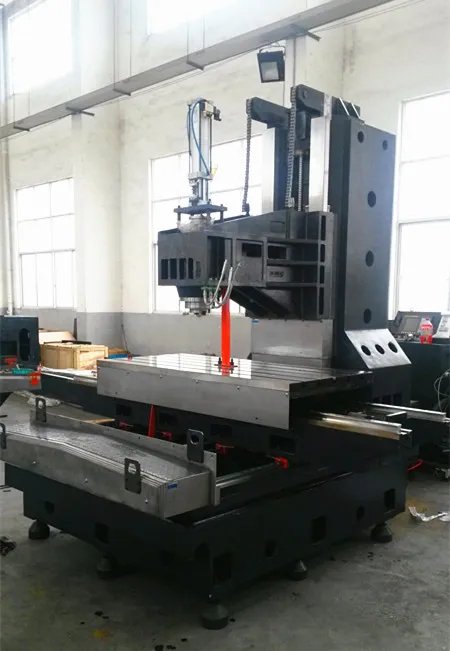

The casting of the machine
Product Description
1. Product Introduction
EV Series has high performance, high efficiency, high precision, high stability. The machine can realize the functions of the vast majority of drilling, milling, boring and reaming automatic processing cycle. It is ideal for light industry, textile machinery, mould industry and spare parts processing equipment.
2. Main features
1)"A" type column has bigger span in base to ensure rigidity and stability.
2)In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column and provides great support.

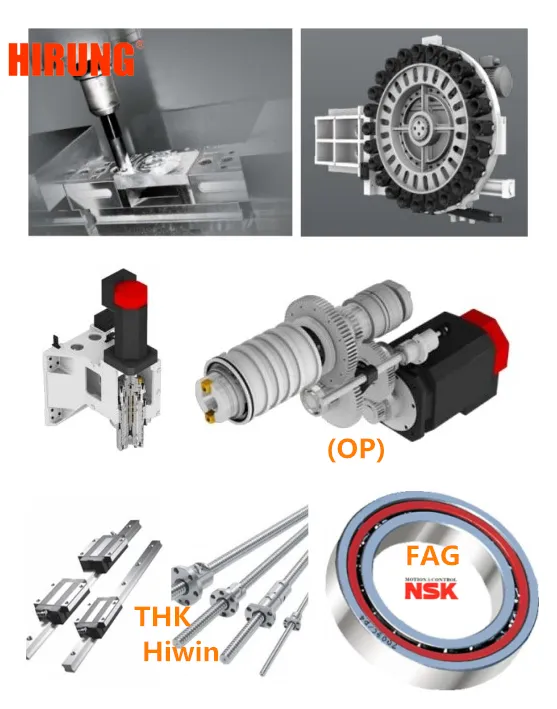

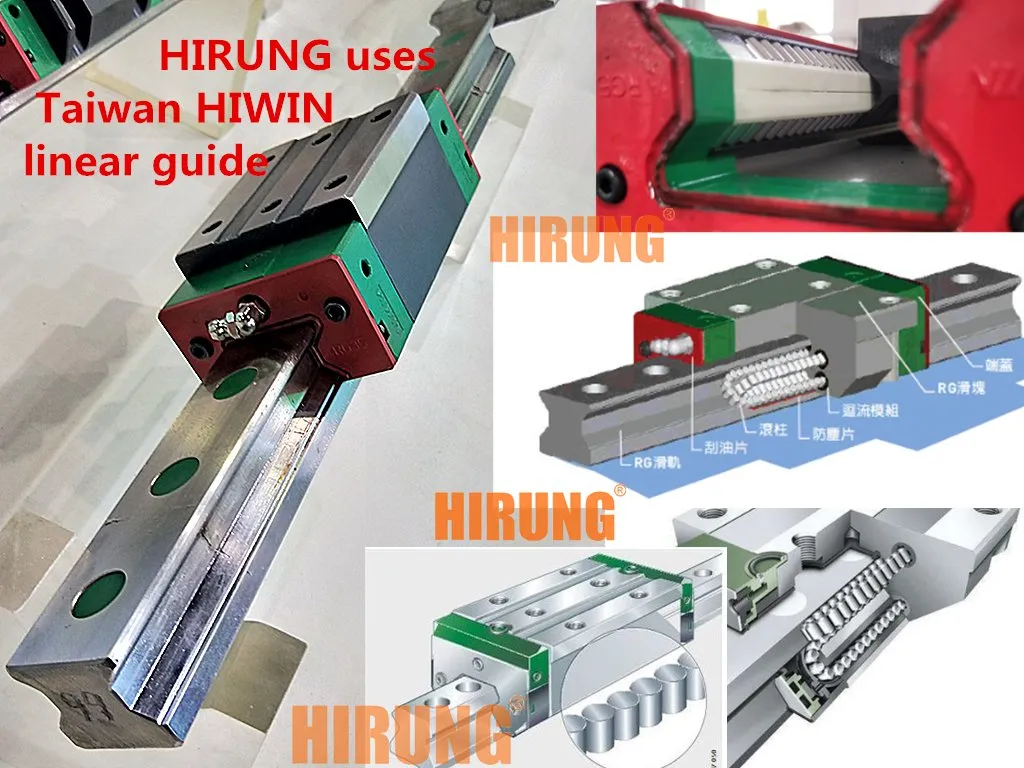

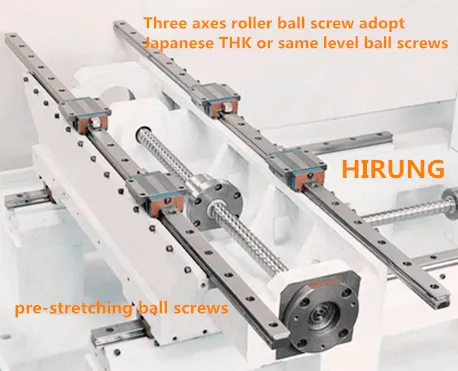

3)All the parts are Germany, Japan and Taiwan imported components to ensure the durability and long-term stability of machine.
Technical Parameters:
| item | unit | EV850L/M | EV1060L/M | EV1270L/M | EV1580 | EV1890 |
| X/Y/Z-axis travel | mm | 800/500/500 | 1000/600/600 | 1200/700/700 | 1500/800/700 | 1800/900/800 |
| Table size | mm | 550*1000 500*1050 | 600*1300 | 700×1360 | 800*1700 | 900*2000 |
| Max. table load | kg | 600 600kg | 1000 | 1400 | 2000 | 2000 |
| BT-Type | BT-40 | BT-40 | BT-40/50 | BT-50(OP40) | BT-50(OP40) | |
| Spindle max. speed | rpm | Belt type 8000rpm(OP10000/12000/15000) | 6000rpm | 6000rpm | ||
| Spindle power | kw | 7.5/11 | 7.5/11(OP 11/15) | 7.5/11(OP 11/15) | 11/15 | 11/15 |
| 3-axis power | kw | X/Y/Z:2.0 | X/Y/Z:3.0 | X/Y/Z:4.0 | X/Y/Z:5.0 | X/Y/Z:7.0 |
| Cutting feed rate | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-8000 | 0-8000 |
| Rapid feed rate | mm/min | L:X/Y:48000 Z :36000 M:X/Y:20000 Z :15000 | L:X/Y:30000 Z :24000 M:X/Y:20000 Z :15000 | L:X/Y/Z :30000 M:X/Y:16000 Z:14000 | X/Y:16000 Z:14000 | X/Y:16000 Z:14000 |
| Net weight | kg | L:6500 M:6000 | 8000 | 9500 | 12000 | 15500 |
| Floor space | mm | L:2700*2500*2730 M:2700*2400*2600 | L:3300*2500*2750 M:3350*2500*2800 | 3700*3000*3000 | 4100*3200*3250 | 4500*3500*3500 |
| NC System | MITSUBISHI M70B/SIEMENS 828D(PPU240)8.4''/FANUC 0IMF | |||||

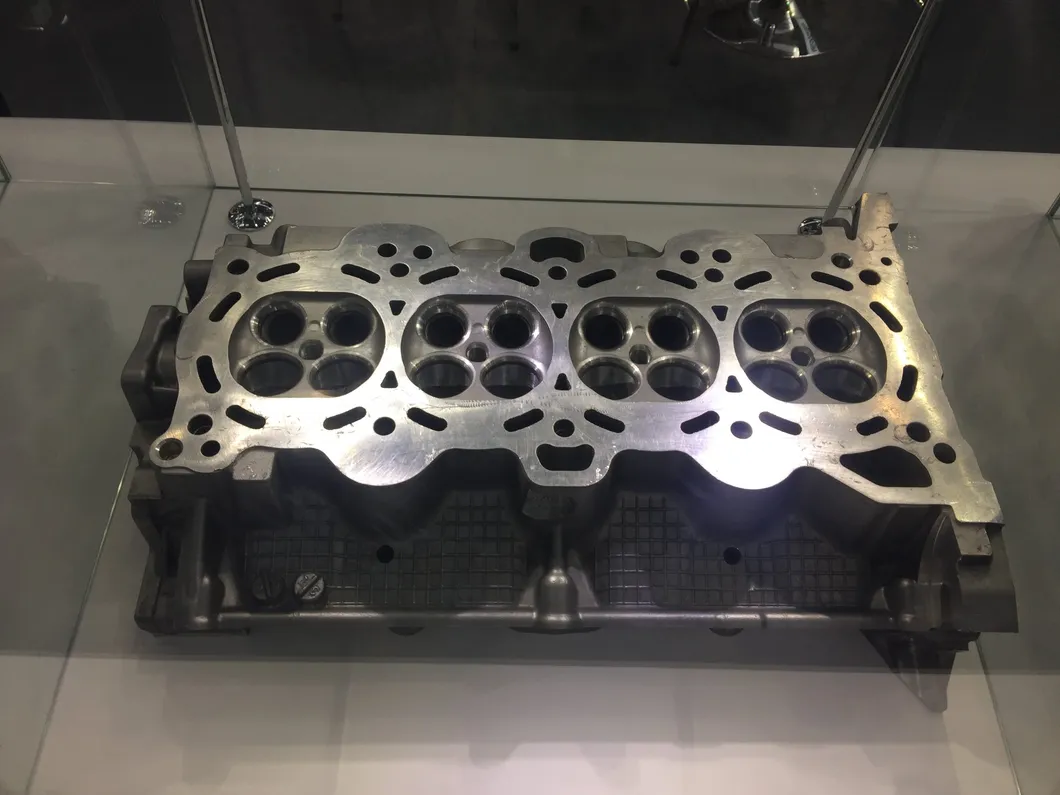

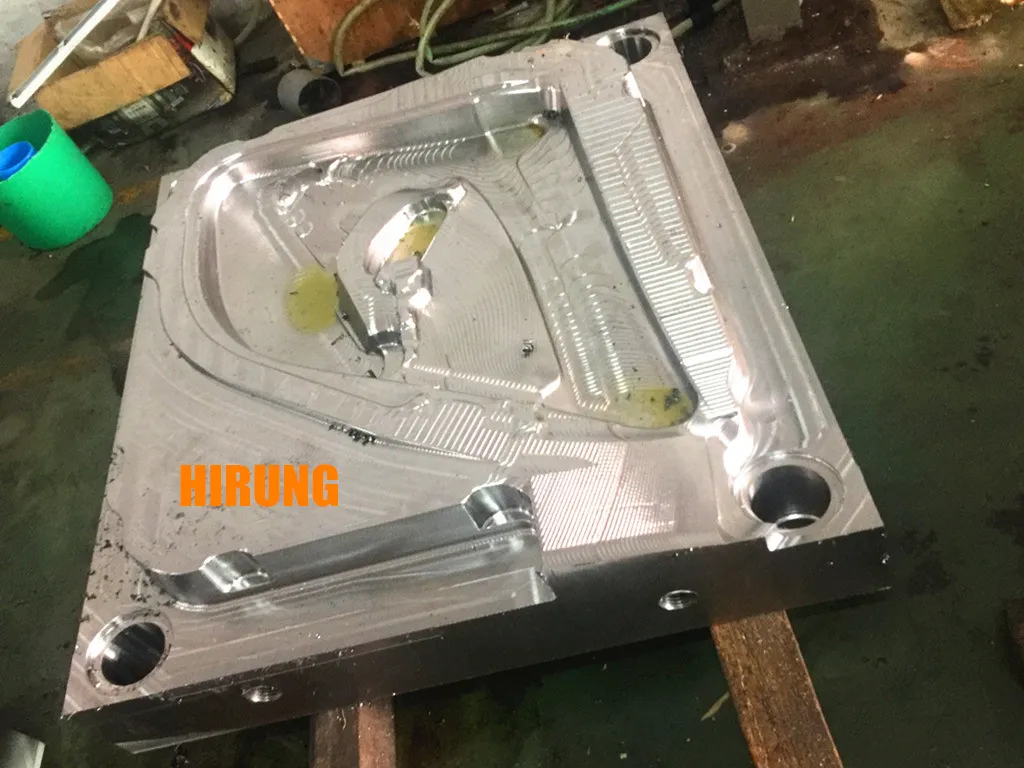

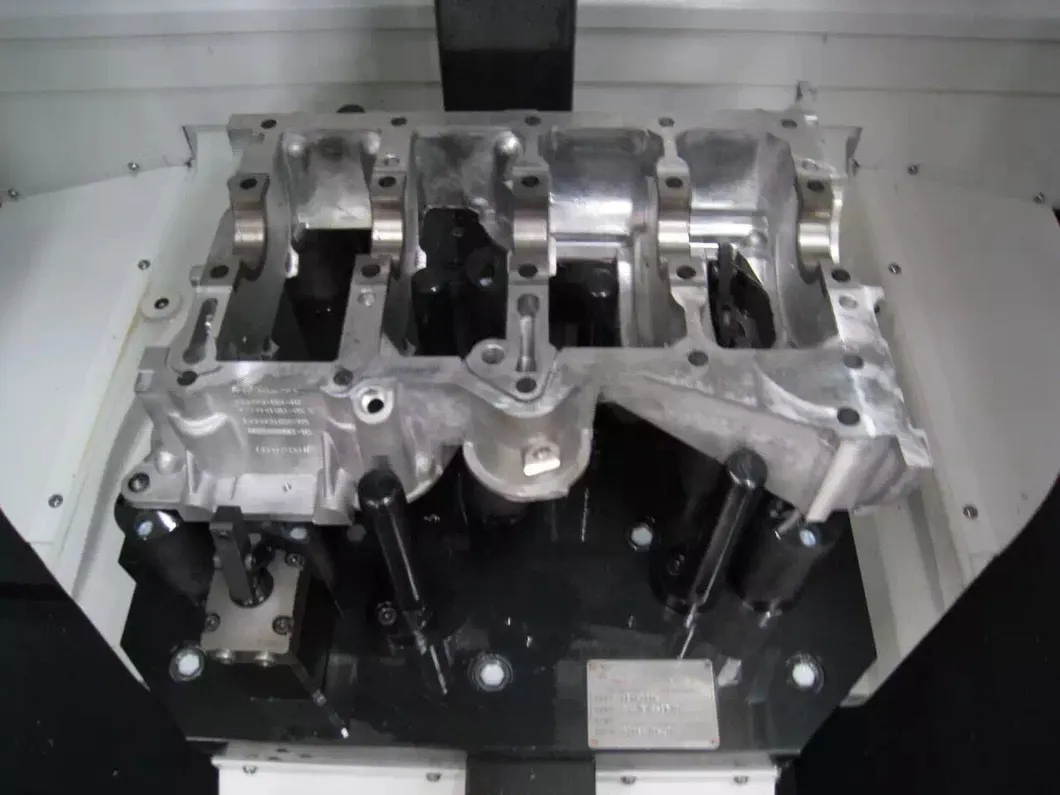

The mould processed by our machine

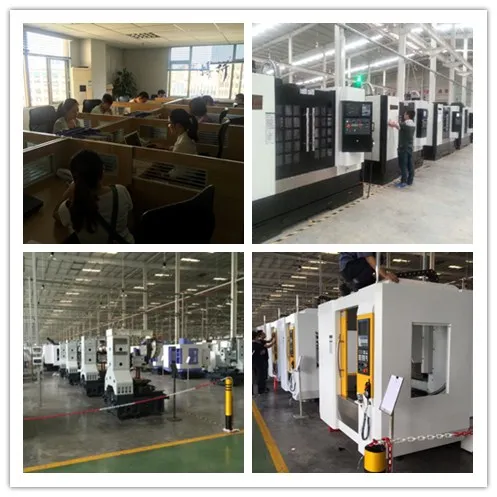

About us
COMPANY PROFILE
Hirung Enterprise Co., Ltd. CNC began machine tools business in 2001, in the beginning , CNC equipment is our flagship product, after the industry 2.0 and 3.0, we have ushered in a new industry 4.0.
In 2014 we set up Hirung Precision Machinery Co., Ltd. in Dongguan City, in July 2015 we set up branch office in Indonesia, in August 2015 we set up branch office in Bangladesh under our global brand marketing strategy. Currently our company is in the line of CNC machine tools, CNC automation tools, we provide good equipment and goodafter-sales service for the customers. Our goal is to make"HIRUNG" CNC machine tools one of China's most professional automation brands.
Our customers come from all over the world, you don't have to worry about the quality .
We have a variety certificates ,you can rest assured to buy
Why choose us:
1.Reliable Trademark Company.
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine According to Customer's Requirement.
4.CE approved and One year warranty,provide whole-life technology support.
5.High quality with competitive price.
