Product Description

Product Description

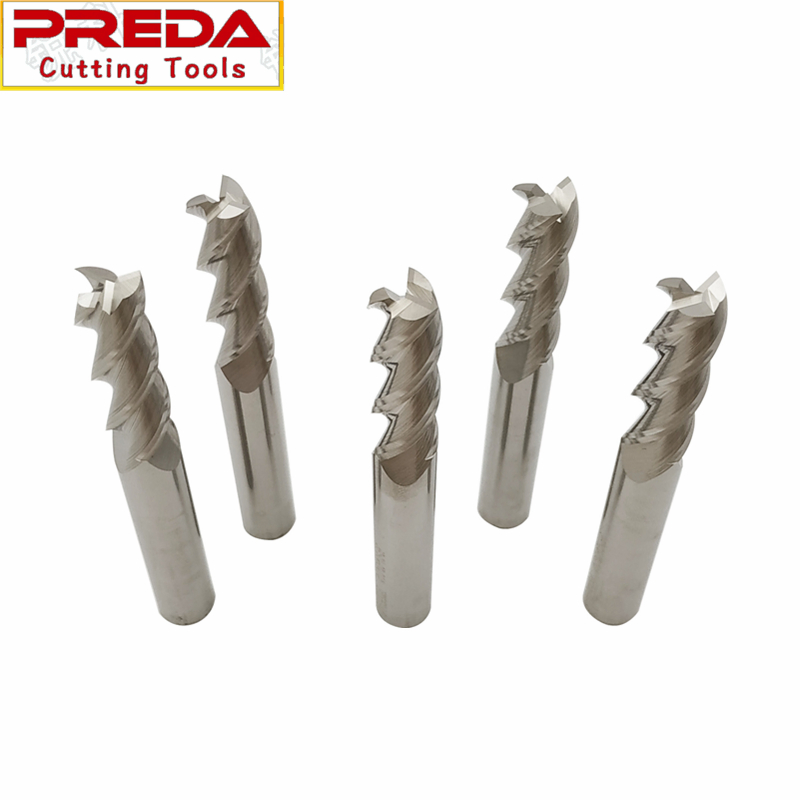

1.3 Flutes HRC55 End Mills Polishing for Aluminium
2. 3 Flutes UNCOATED
3. HRC: 55
4. NO COATNG
5.1mm-25mm / 1/16" to 3/4 "
6. downcut end mills
7 Micro grain 0.5-0.6um

Products specification

3 Flutes HRC55 End Mills Polishing for Aluminium
SurfaceTiCN/TiN/TiAlN/Uncoated
Flexural Strength2500-4000N/mm2
Controling ModeCNC
UsageMetal
Chemical Composition6%-12%Co-WC
Density14.45-14.90g/cm3

1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.

Coating Classifying and Advantage
Item	Coating Type	AlTin	Tialn	TiSin	Naco
Characteristic	Hardness(HV)	3200	2800	3600	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(ºC)	900	800	1000	1200
	Friction Coefficient	0.3	0.3	0.45	0.4
	Color	Black	Violet	Copper	Blue

Specification

Outside Dia/Dc	Shank Dia/D	Flute Length/LC	Overall Length/L	Flute
(mm)	(mm)	(mm)	(mm)	(mm)
1	4	3	50	2& 4
1.5	4	4	50	2& 4
2	4	6	50	2& 4
2.5	4	8	50	2&4
3	4	9	50	2& 4
4	4	12	50	2& 4
5	6	15	50	2& 4
6	6	18	50	2& 4
8	8	20	60	2& 4
10	10	25	75	2& 4
12	12	30	75	2& 4
16	16	50	100	2& 4
20	20	55	100	2& 4

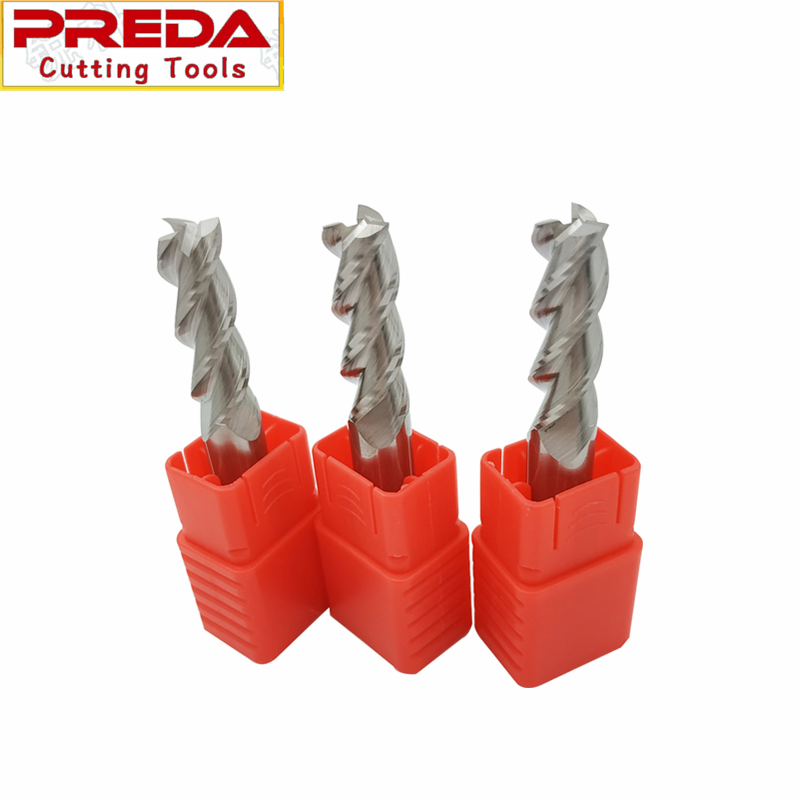

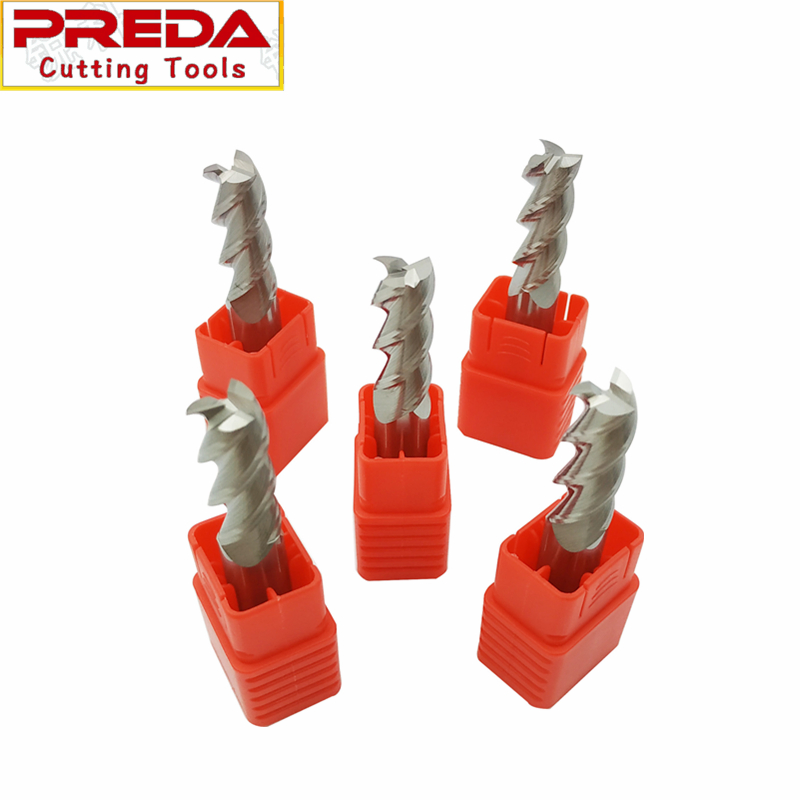

Products Show :

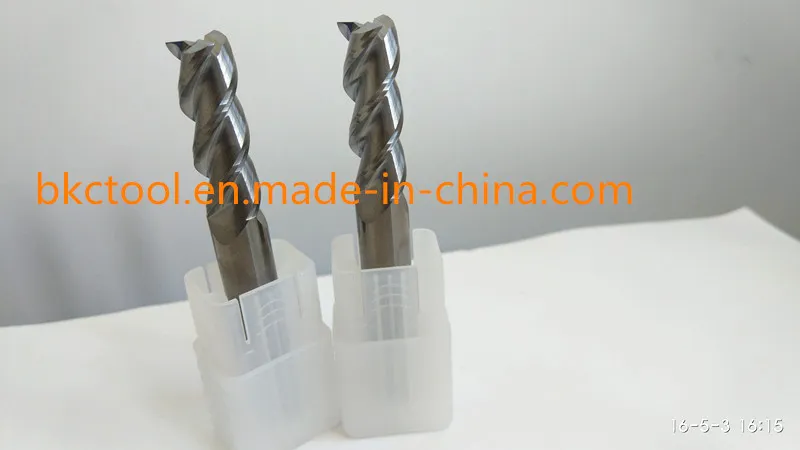

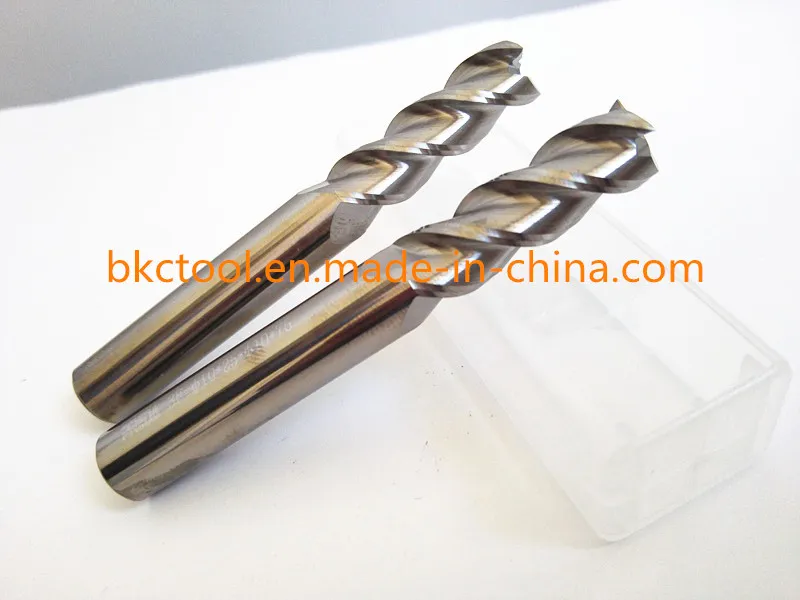

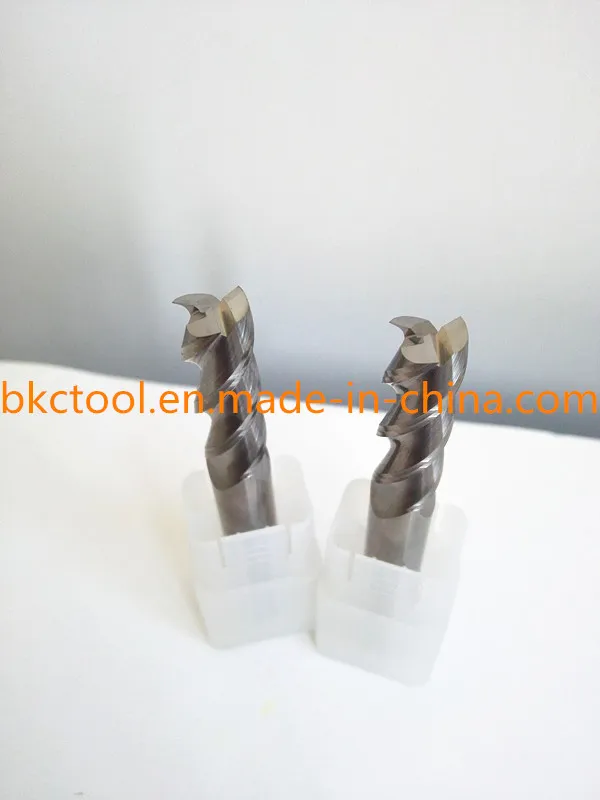

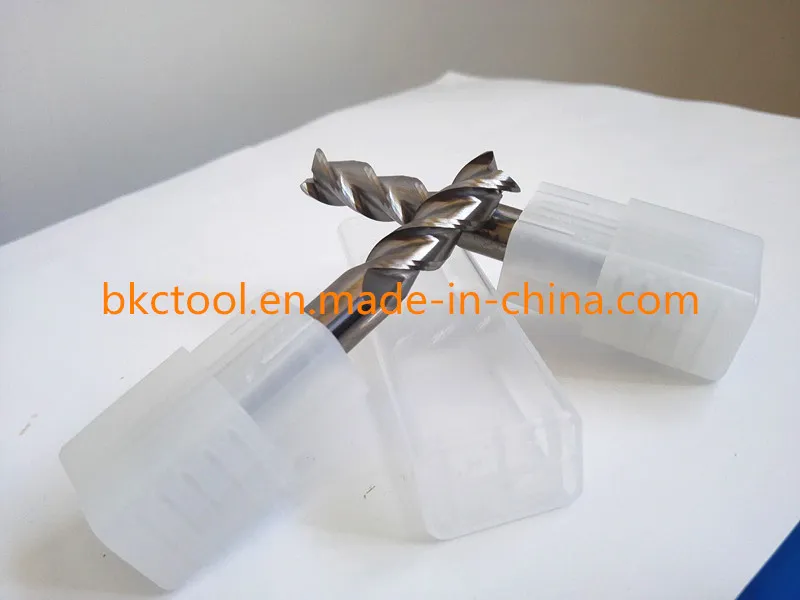

Changzhou Raiko Solid Carbide 3 Flutes HRC55 Square Aluminum End Mills

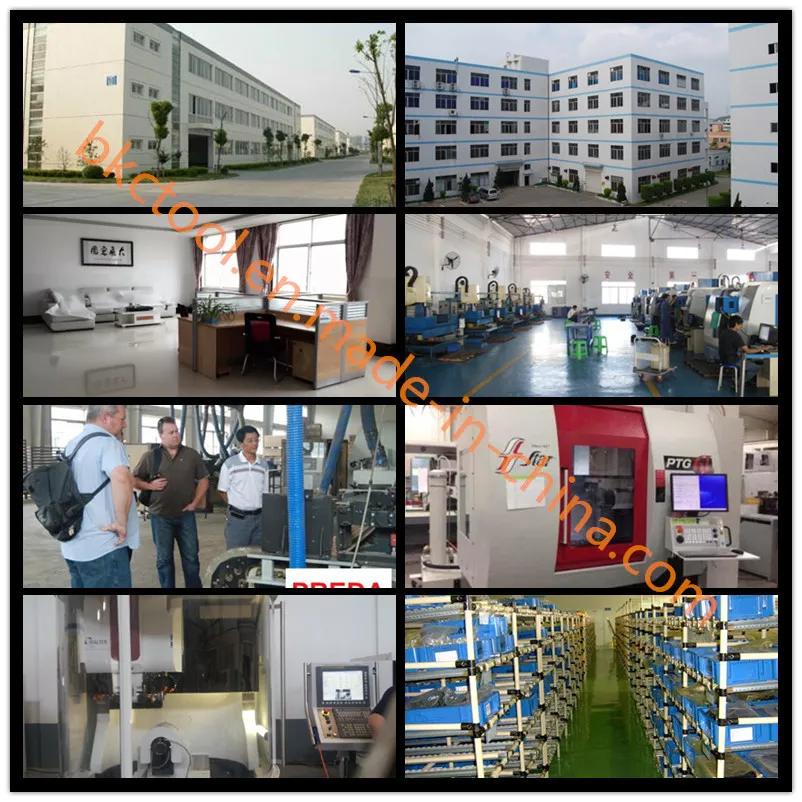

Company Details :

Changzhou Raiko Solid Carbide 3 Flutes HRC55 Square Aluminum End Mills

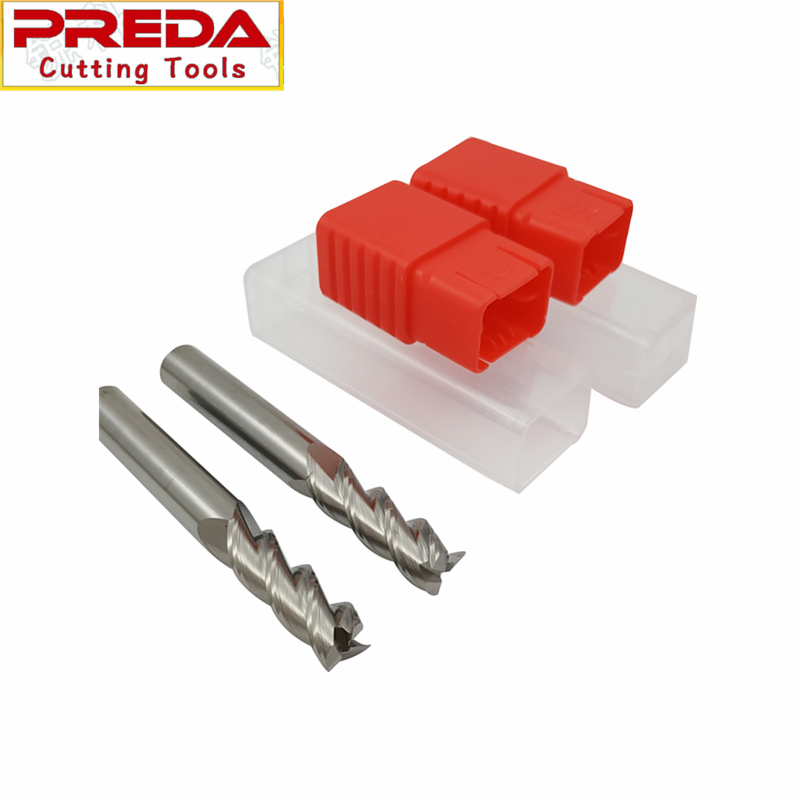

Package details :

Changzhou Raiko Solid Carbide 3 Flutes HRC55 Square Aluminum End Mills

FAQ:

1.  Are you manufacturer? Do you have factory?
---We are Professional manufacturer ,we have more than 15 years experience in this field.

2.  Does free shipping is possible?
----We don't offer free shipping service, but we will give you some discount if you buy large quantity products.

3.  Can you send products to our Forwarder in China?
----Yes, if you have forwarder in China, i will glad to send products to him/her.

4.  Do you make OEM?
----Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.

5.  How about the delivery time?
----According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.

6. Can you produce carbide Special Tool ?
--- Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample
