    Cheap CNC Lathe Machines With Turn Mill Function


    Cheap CNC Lathe Machines with Turn Mill FunctionCheap CNC Lathe Machines with Turn Mill Function

    CK6432 CNC Lathe Specification


    ItemCK6132CK6432
    Max. swing dia. over bedΦ320mmΦ360mm
    Max. swing dia. over cross slideΦ145mmΦ150mm
    Max. workpiece length 450mm 450mm/700mm
    Diameter of spindle bore52mmΦ60mm
    Spindle taperA2-4MT6
    Spindle speed150~2500rpm150-2500rpm
    Chuck size160mm200mm
    Tool holder4 station 4 station
    Tool bar section20x20mm20x20mm
    Main motor power4kw4kw
    X/Z axis position accuracy0.02/0.025mm0.02/0.025mm
    X/Z axis repeatability0.01/0.012mm0.01/0.012mm
    X/Z axis torque4/4N.m4/4N.M
    X/Z axis fast feeding speed4/6M/MIN8/10 M/MIN
    Tailstock sleeve travel75mm100mm
    Tailstock taperMT4MT4
    Dimension1730x1000x1570mm1660/1940×1400×1700mm
    Weight1200KG 1250/1450kg

    Standard Configuration
    1.CNC system :GSK928
    2. 4-position tools
    3.Automatic lubrication pump
    4. Manual 3-jaw chuck
    5.Manual tailstock
    6.auto lubrication system,coolant system,lighting system
    7.standard tools box
    8.standard packing list
    9.operational manual
    10.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
    Select configuration
    CNC system: KND, Siemens, Fanuc, etc.,
    Hydraulic chuck (solid and hollow), pneumatic chuck,
    Hydraulic tailstock, pneumatic tailstock,
    Automatic feeder,
    Horizontal six-station turret, eight-station turret, tool row,
    The spindle center height increase.

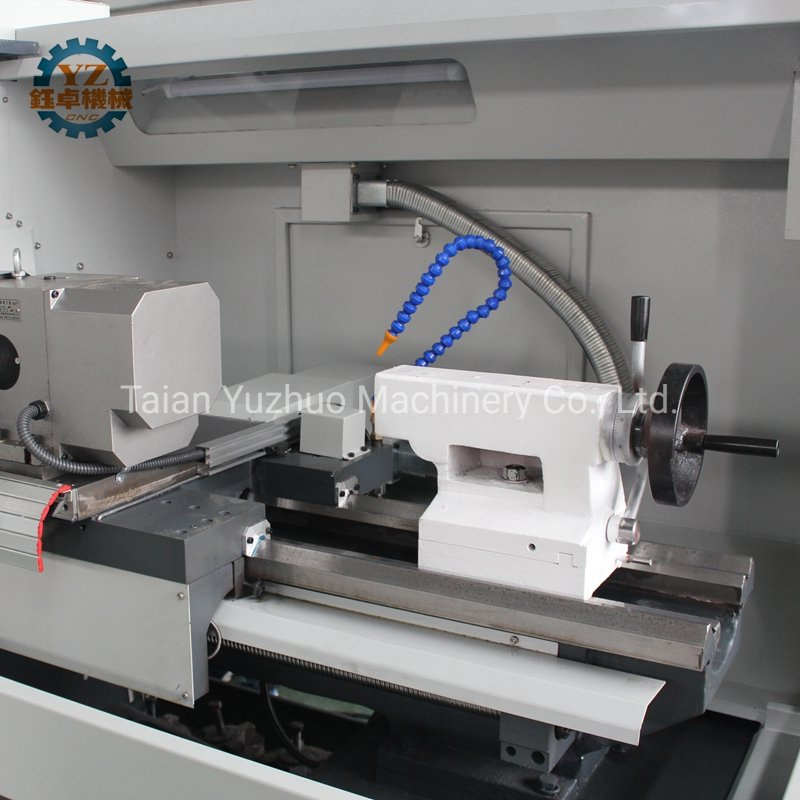

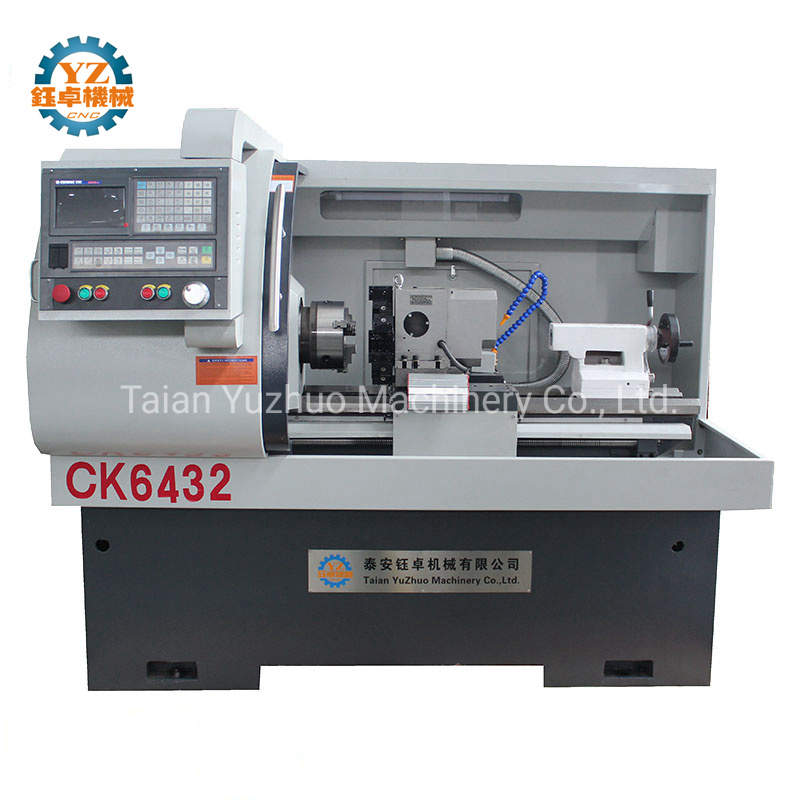

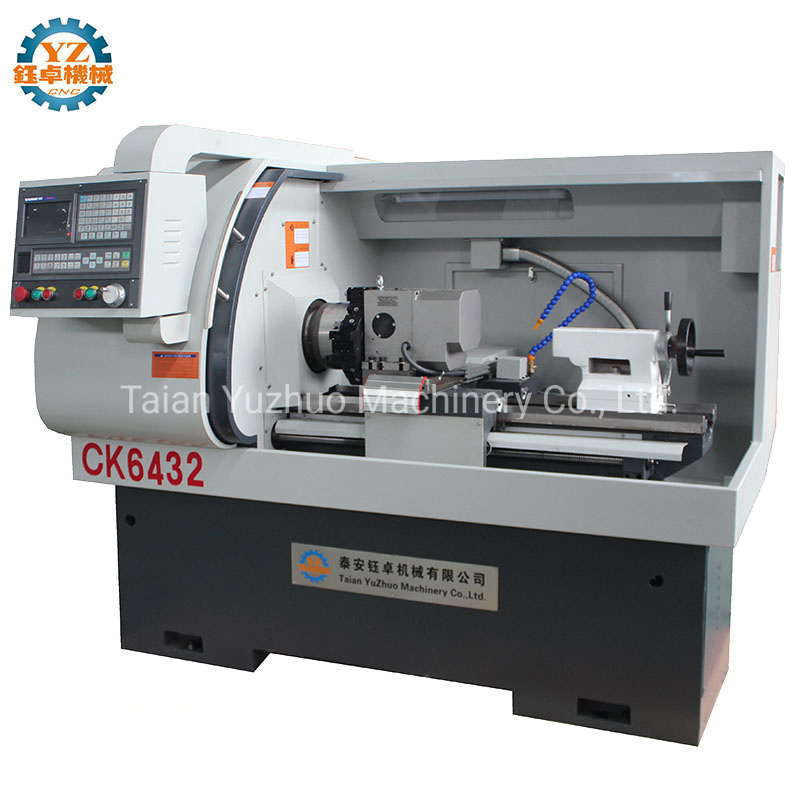

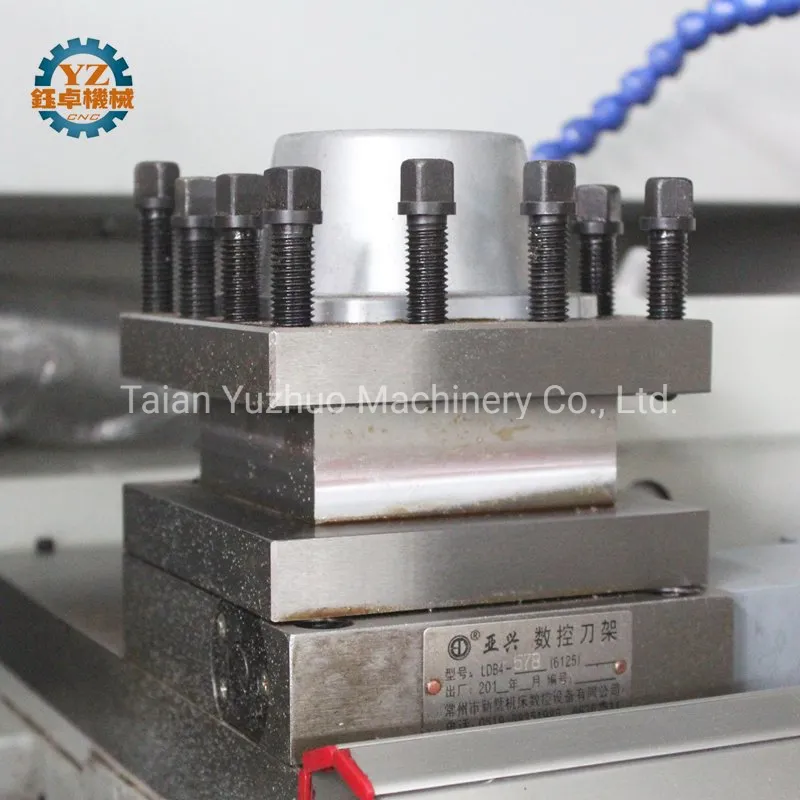

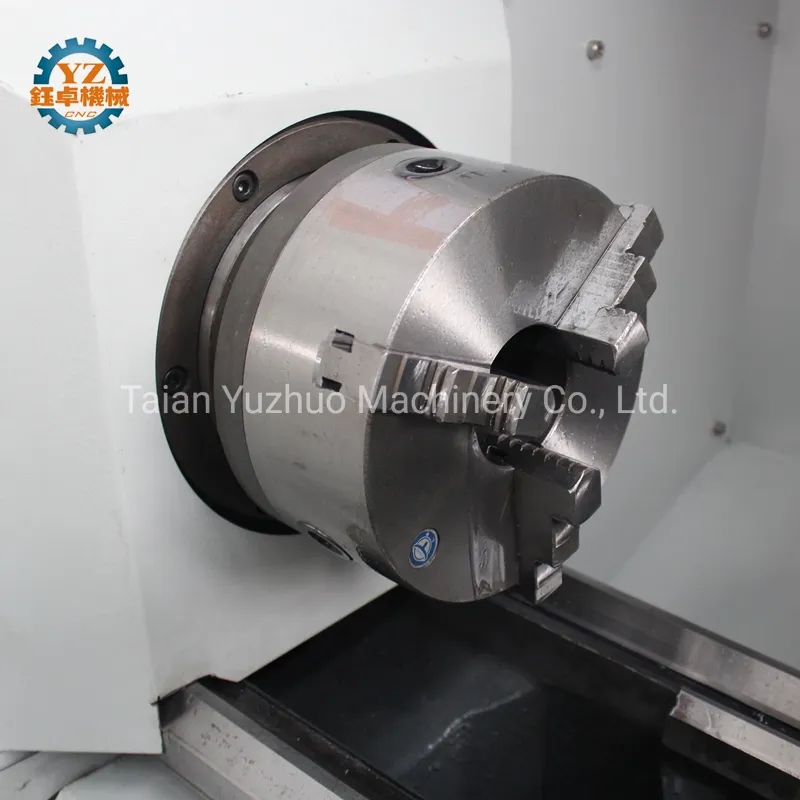

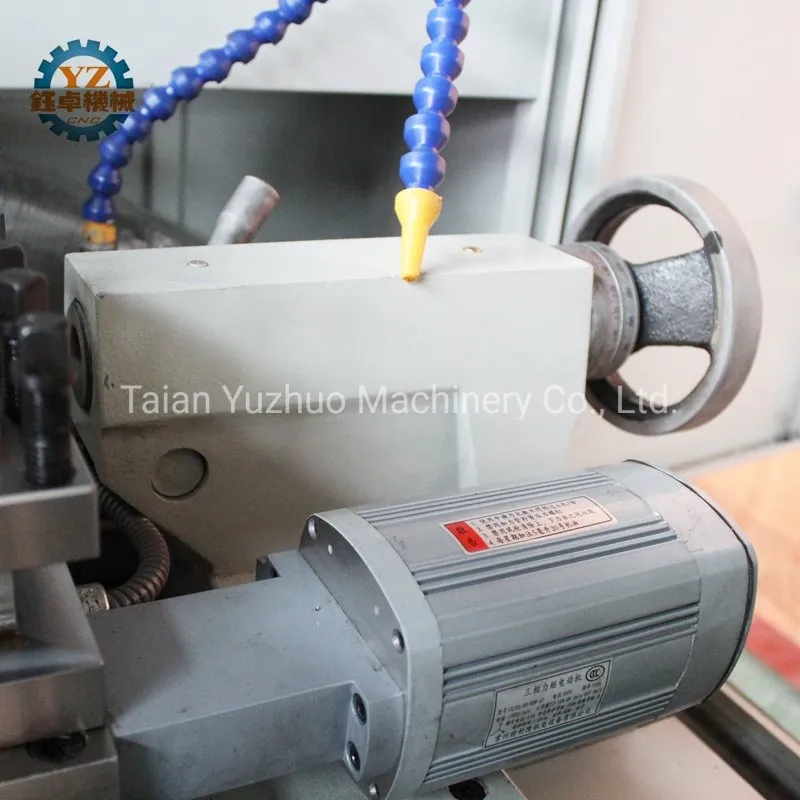

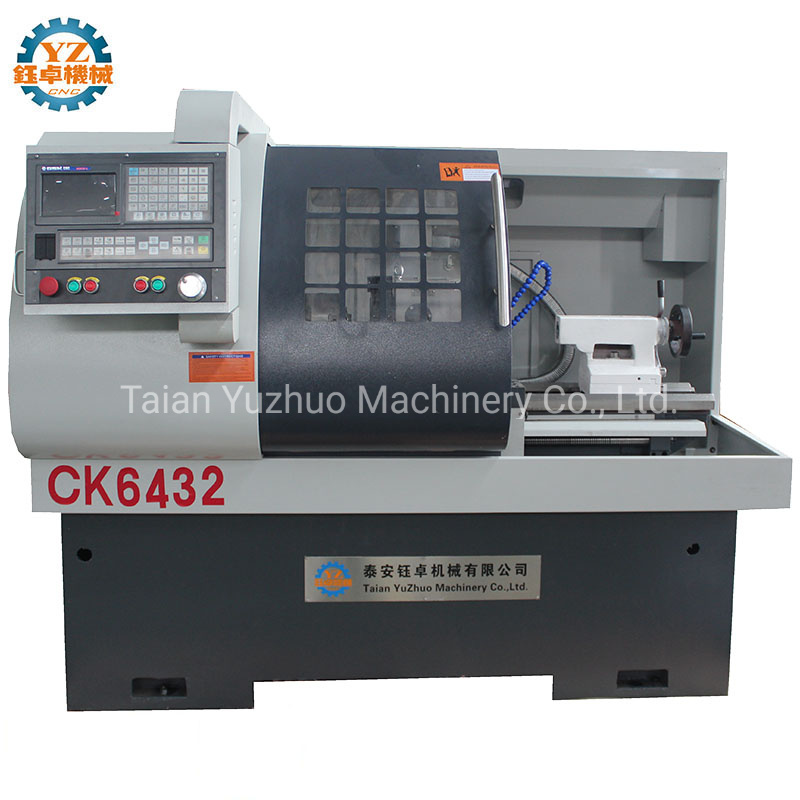

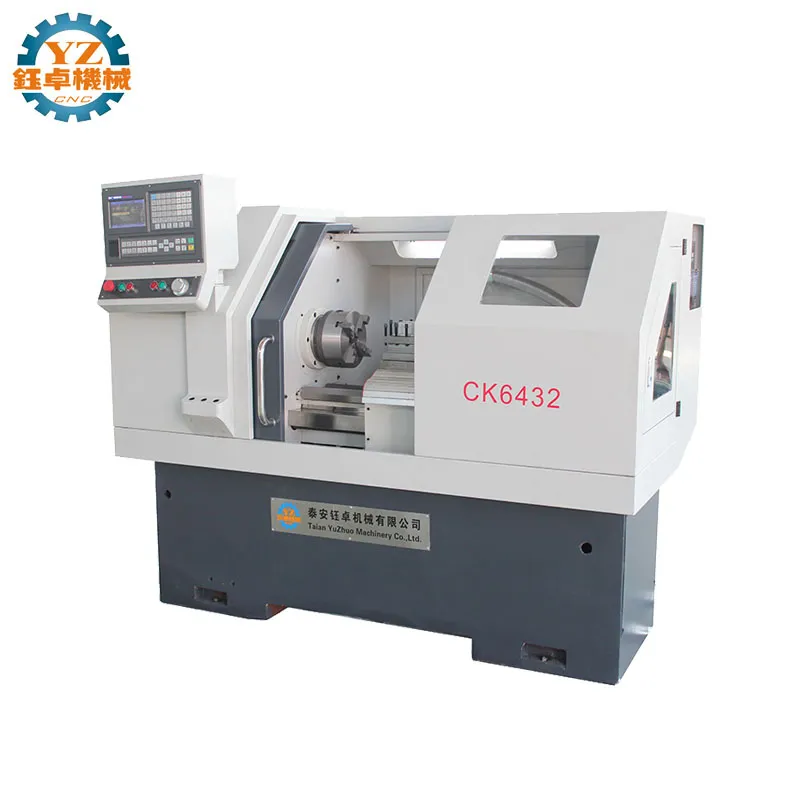

    Lathe CNC Machine Tools CK6432X500 Pictures

    Cheap CNC Lathe Machines with Turn Mill Function
    Cheap CNC Lathe Machines with Turn Mill Function
    Cheap CNC Lathe Machines with Turn Mill Function

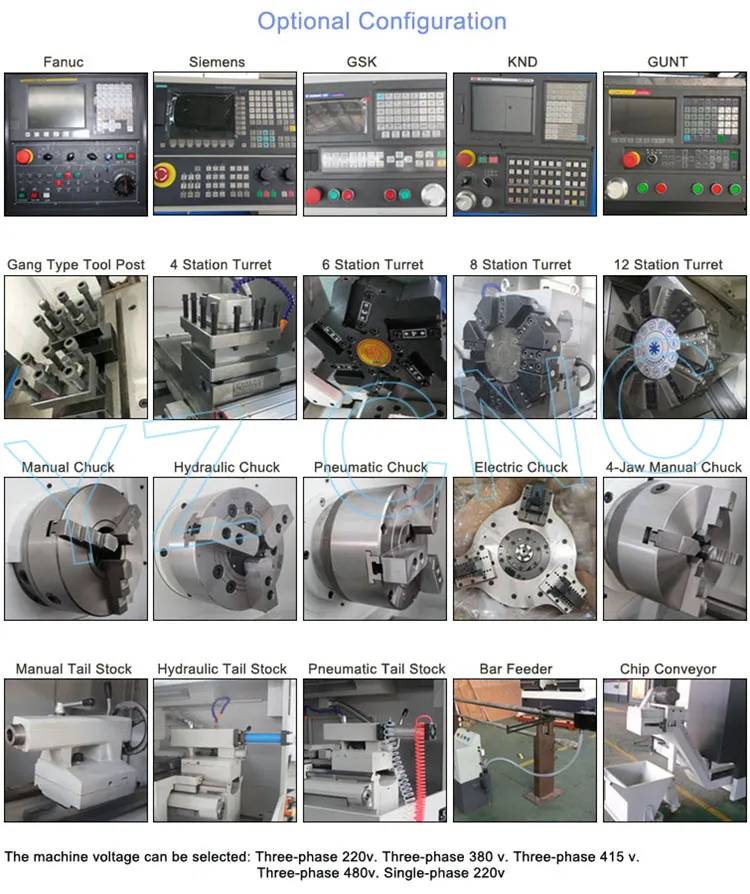

    CNC Lathe Machine optional configuration
    Cheap CNC Lathe Machines with Turn Mill Function

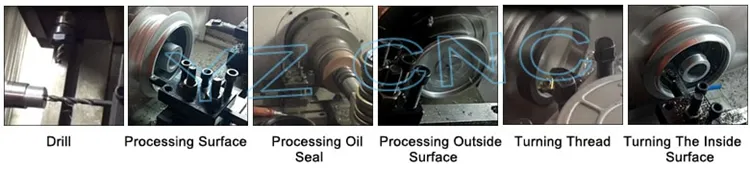

    CNC Lathe Machine Processing Parts

    Cheap CNC Lathe Machines with Turn Mill Function

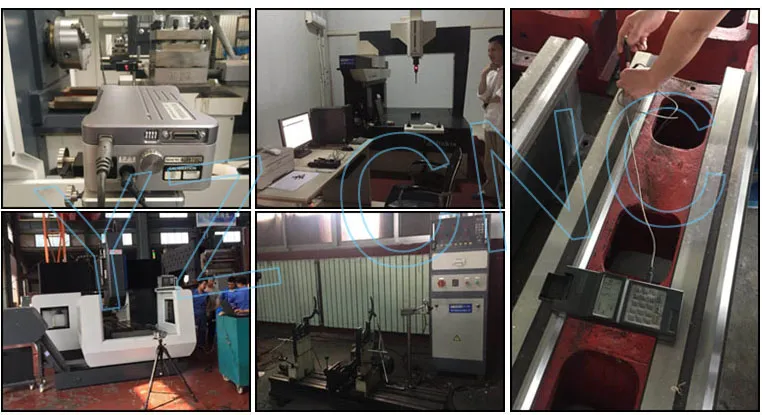

    CNC Machine inspection equipment
    Cheap CNC Lathe Machines with Turn Mill Function

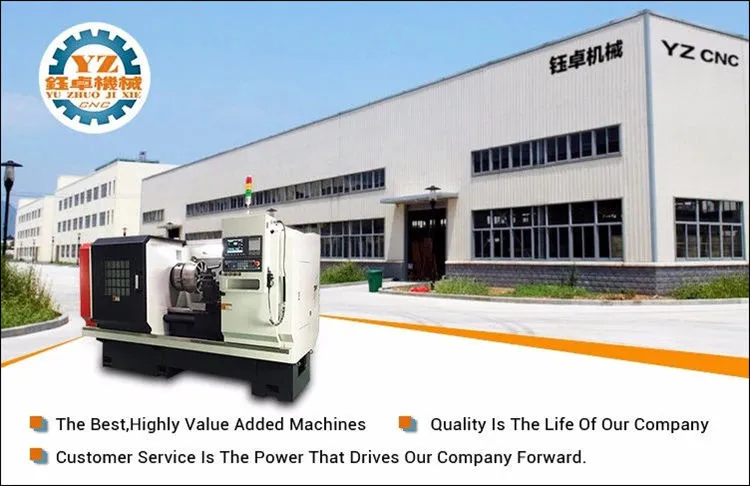

    Company Details
    Cheap CNC Lathe Machines with Turn Mill Function
    Cheap CNC Lathe Machines with Turn Mill Function
    Cheap CNC Lathe Machines with Turn Mill Function
    Cheap CNC Lathe Machines with Turn Mill Function


    If you need more information of CNC Lathe Machine, no hesitate contact with me, and send mail to me.
