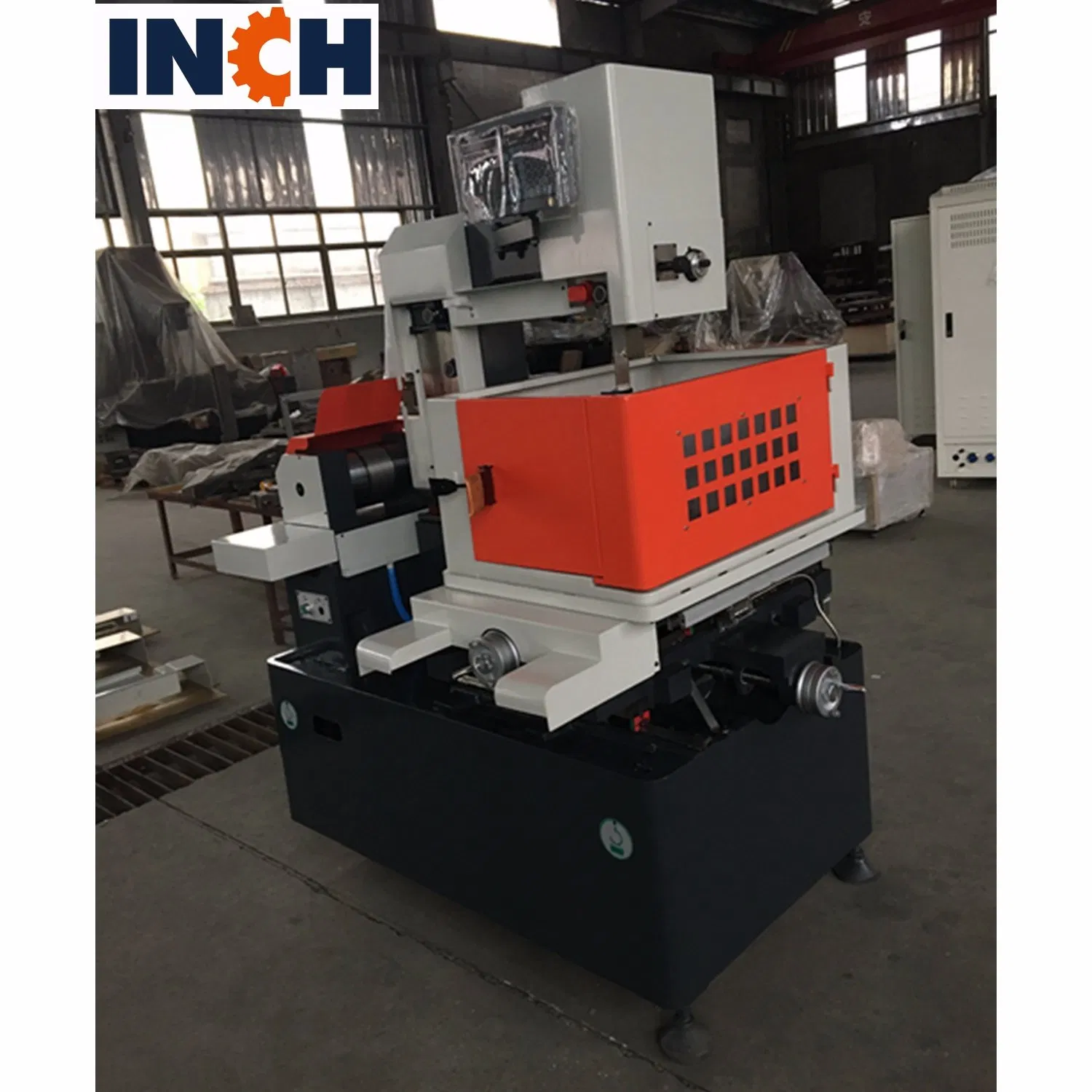

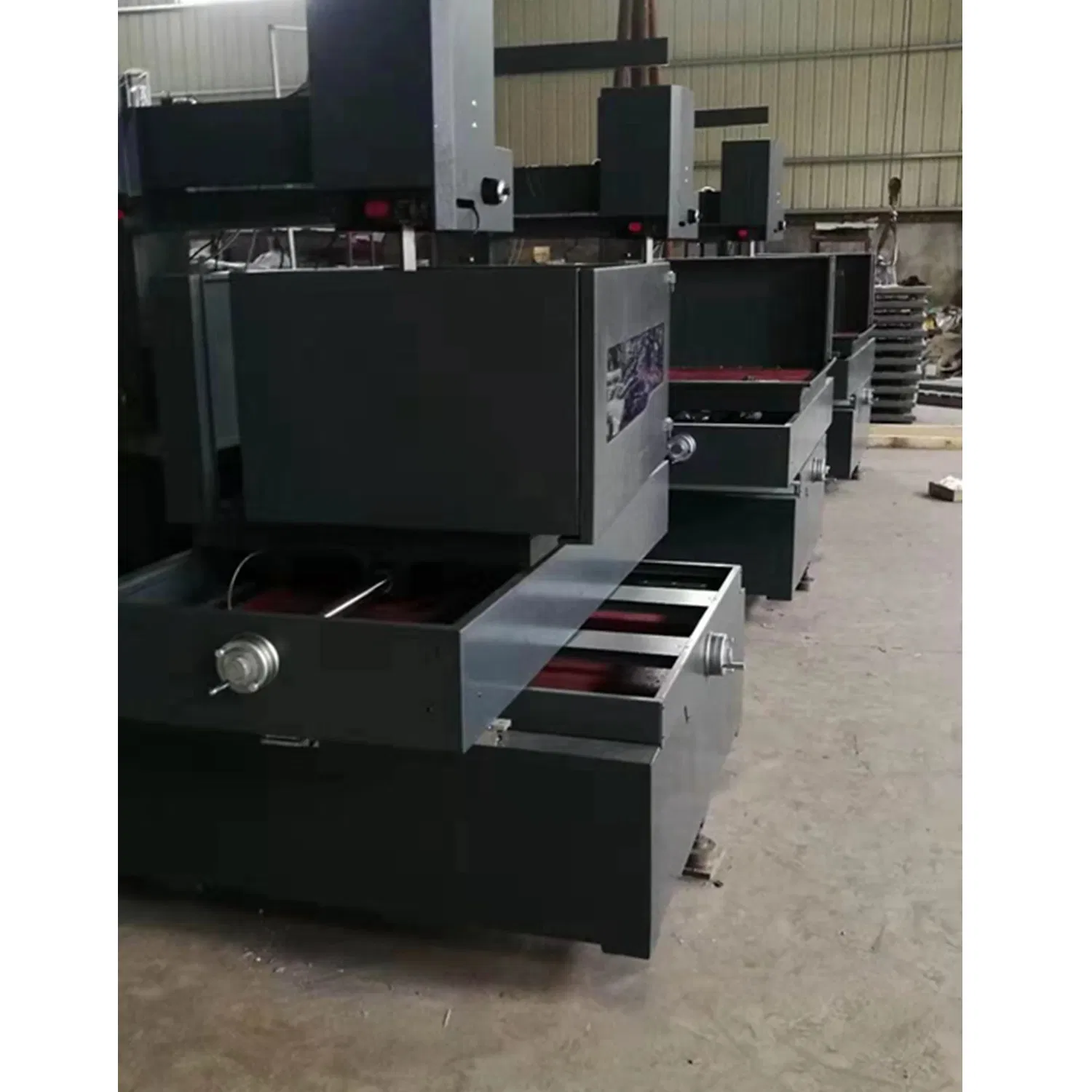

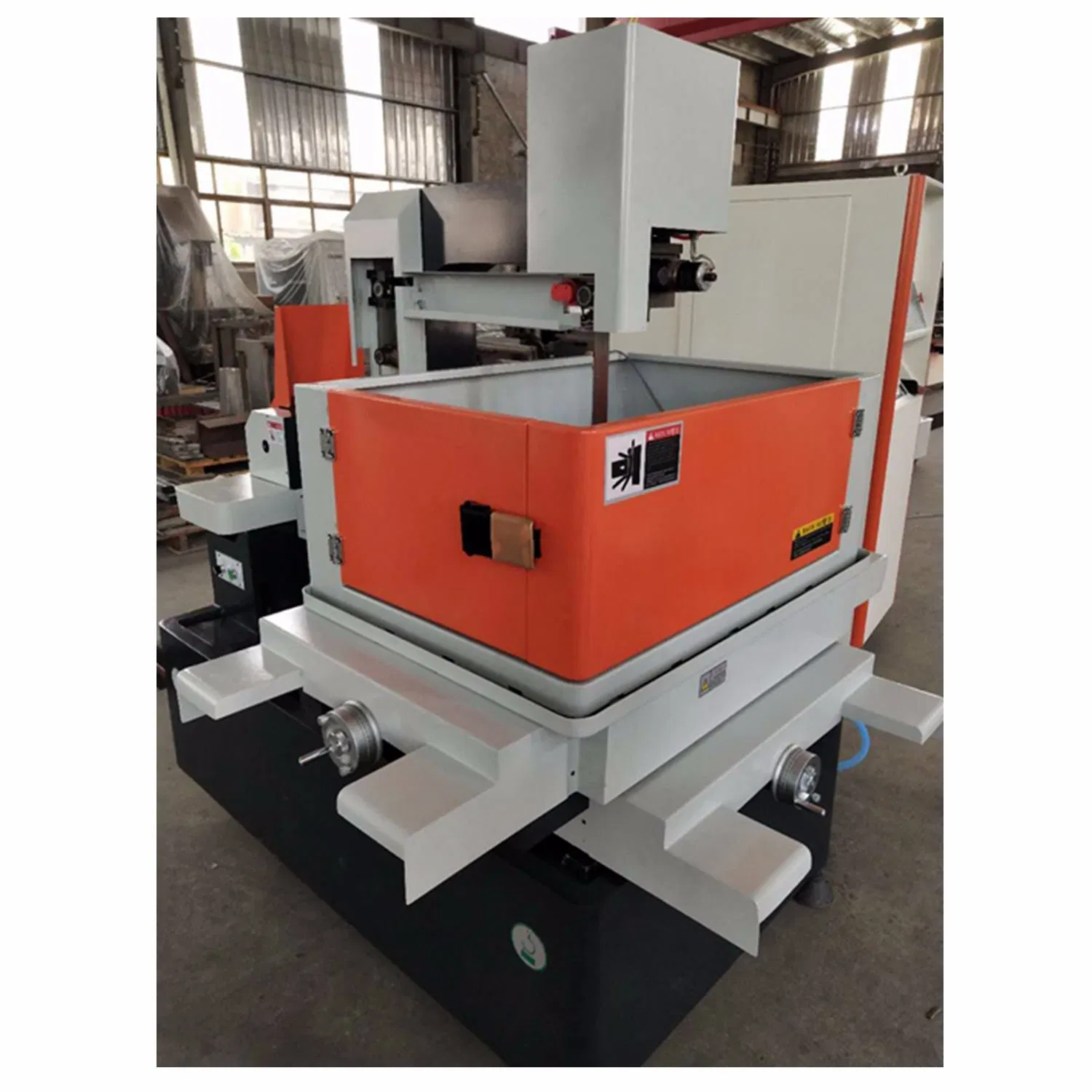

New Desinged Low Cost Wire Cut EDM Machine DK7740

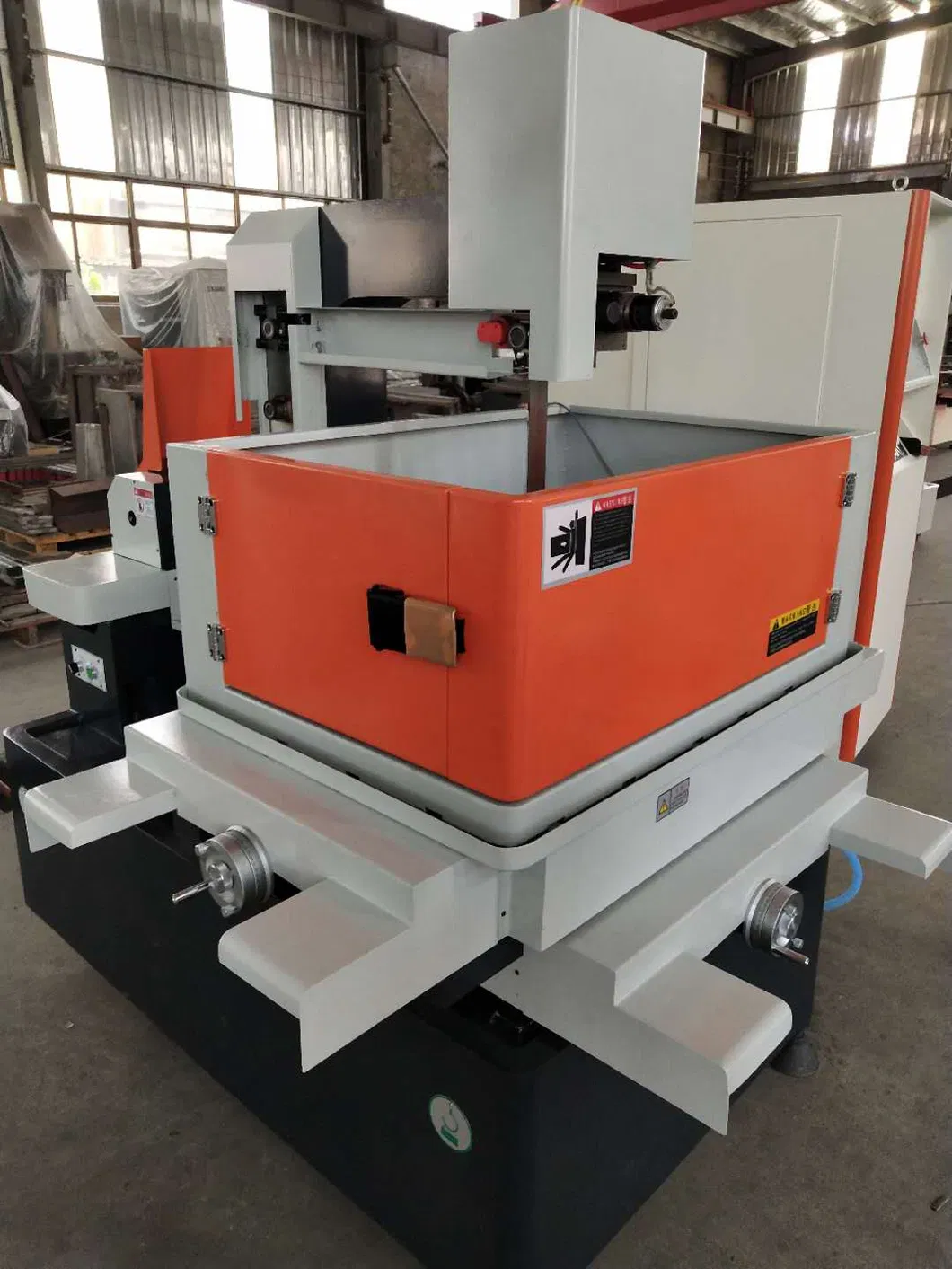

China Manufacturer Dk Serious CNC EDM Wire Cutting Machine Dk 7740 Machine Price

Standard Configuration:

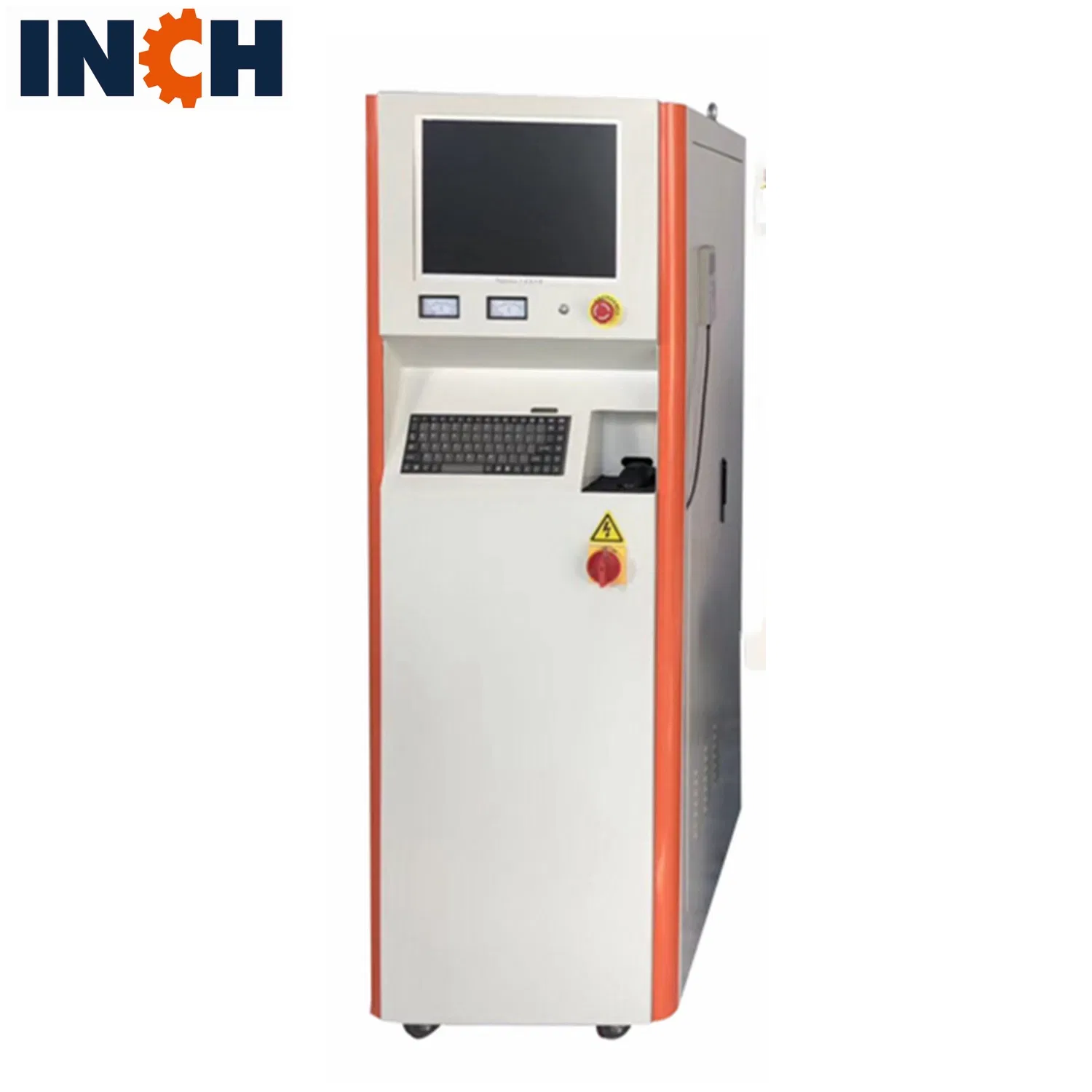

1) Window XP System with Auto-CAD software control System.
2)Inverter control wire running .
3) Standard DRO and Z axis motorized drive up and down.
4) Hiwin brand linear guide way install on XY ( P lever ).
5) BEIFANG brand ball screw install on XY ( C3 lever ).
6) Automatic center lubrication system. (Not manual ).
7) LED Inside light .
8) Automatic wire tension system.
9) Standard ±6 degree taper cutting system.(+/-15degree optional )
10) Gem water nozzle .
11) Automatic parameter generating system.
12) High pressure water tank with paper filter .

Advanced and reasonable structure
(1)The machine has a reasonable layout and good overall rigidity. According to our experience, owing to the cantilever type of upper and lower arm, it constitutes tuning fork type structure with vertical columns so that the strong or weak of the columns rigidity directly affect the stability of the wire frame and roughness and accuracy of workpiece. That is why the columns sections are designed bigger to ensure the whole rigidity.
(2)All the bearings used in the ball screw of worktable parts are specially pairing produced by professional manufacturers (Harbin bearing factory), The pairing bearing can ensure the axial gap of bearings is within 0.004mm.
(3)Upper arm is equipped with taper head, not only it can cut taper workpiece, but also it is more convenient to adjust the molybdenum wire perpendicular degree.
(4)It has a high degree of automation. The processing process is full automatic, and also has the functions of wire broken automatic protection, brown-out protection and automatic center finding.

Prameters :

Technique parameters	Unit	DK7725	DK7732	DK7740	DK7750	DK7763
Table size (WxD)	mm	400×580	440×680	540×760	640×1020	750×1140
Table travel (XxY) XY	mm	250×320	320×400	400×500	500×630	630×800
Table travel (UxV) UV	mm	70×70
Max. workpiece weight	kg	400	600	1000	1600	2400
Thickness of workpiece	mm	400			450	550
Max.taper angle		±6°/80mm
Z-axis control Z		electronic control
Z-axis guideway Z		slide guides
Diameter of cutting wire	mm	φ0.15~φ0.20mm(recommend φ0.18mm)
Feeding speed	m/sec	1~11.4/7paragraph frequency changer adjustable
Precision	mm	≤0.012
Machining speed	mm²/min	>200
Surface roughness	μm	Ra≤1.5
Motor type		X,Y,U,V stepper motor

Control axis		4 axis simultaneous

Min. control pace	mm	0.001
Power supply		3N-380V/50Hz

Max. working current	A	12
Power consumption	Kw	1
Working liquid		JA-1

Water tank	L	55
Filtering mode		filter screen

Machine weight	kg	1250	1480	1730	2500	2900
