Product Description
China Supplier Stock CNC Milling Machine With ATC Tool Change Vertical VMC
Product Description
| ITM | Item | Unit | VMC850 | VMC1060 | VMC1270 |
Travel | X axis | mm | 800 | 1000 | 1200 |
| Y axis | mm | 500 | 600 | 700 | |
| Z axis | mm | 500 | 550 | 700 | |
| Spindle nose to table | mm | 100-600 | 100-650 | 100-800 | |
| Feed | X Y Z rapid feed | m/min | 24 | 24 | 24 |
| Cutting feed | mm/min | 1-8000 | 1-10000 | 1-12000 | |
Table | Table size | mm | 1000x500 | 1200x600 | 1300x650 |
| Max.load | kg | 600 | 600 | 700 | |
| T slot | mm | 5-18 | 5-18 | 5-18 | |
| Spindle | Speed | rpm | 8000 | 8000 | 8000 |
| Spindle bore | mm | 150 | 150 | 150 | |
| Spindle taper | BT40 | BT40 | BT40 | ||
| Main motor | kw | 7.5/11 | 11/15 | 11/15 | |
| Accuracy | Positioning Accuracy | mm | 0.01/300 | 0.01/300 | 0.01/300 |
| Machine | Size( L W H) | mm | 2700x2300x2500 | 2800x2400x2500 | 3000x2600x2700 |
| Weight | kg | 4800 | 6000 | 7000 |

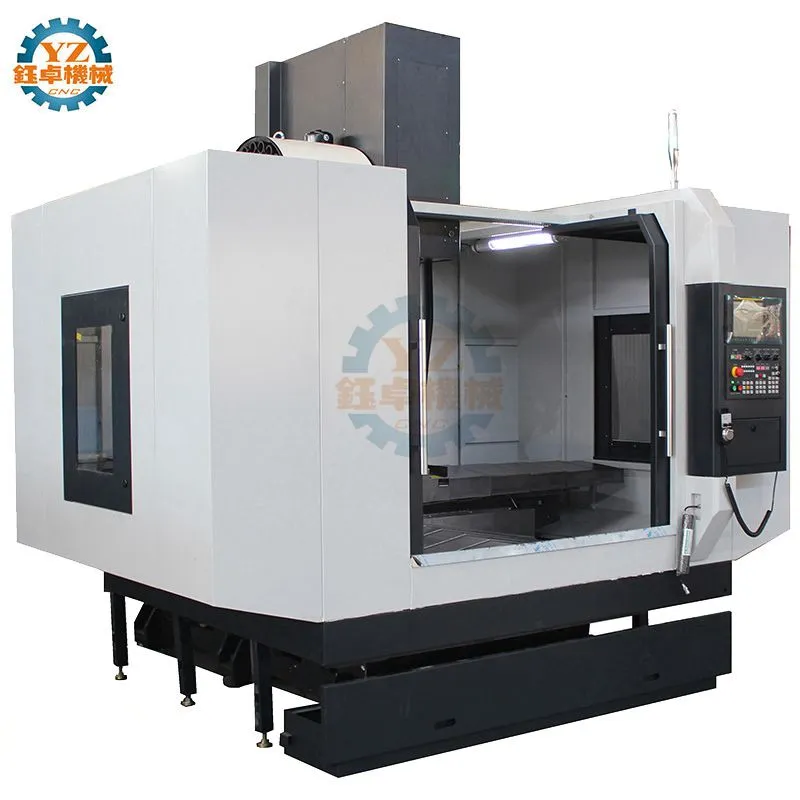

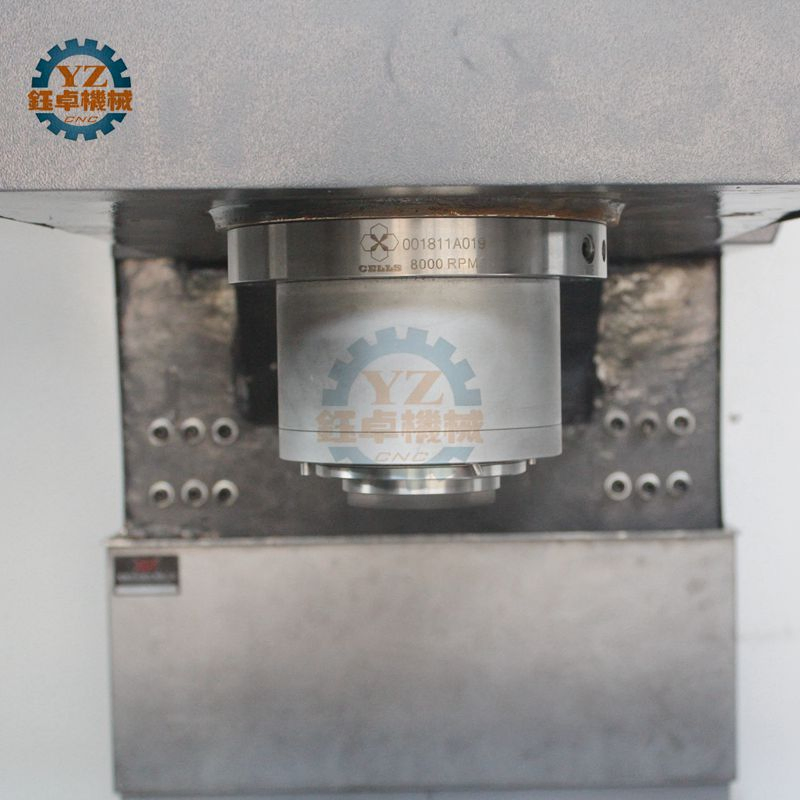

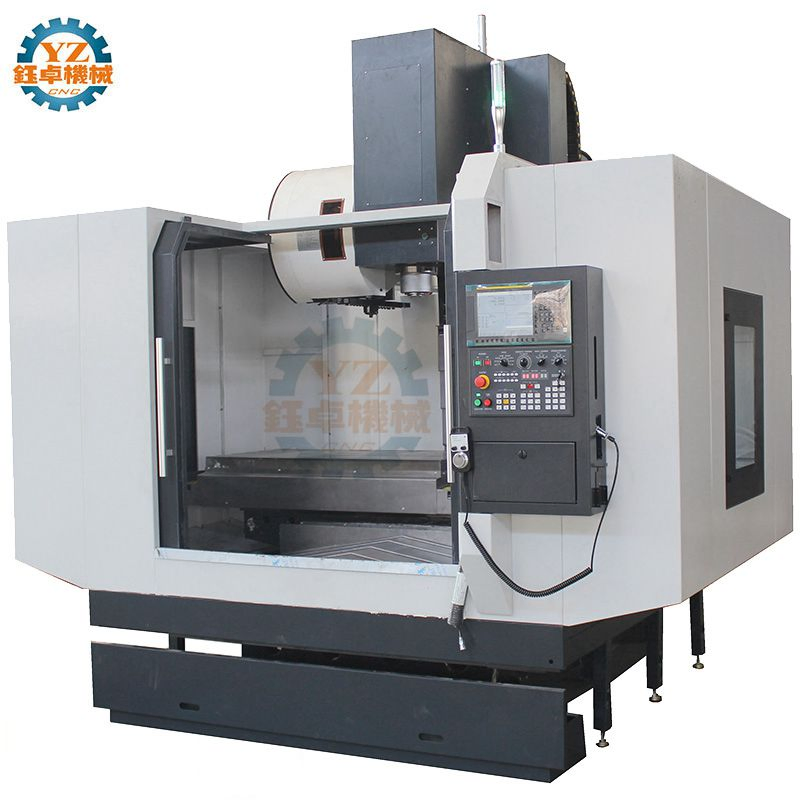

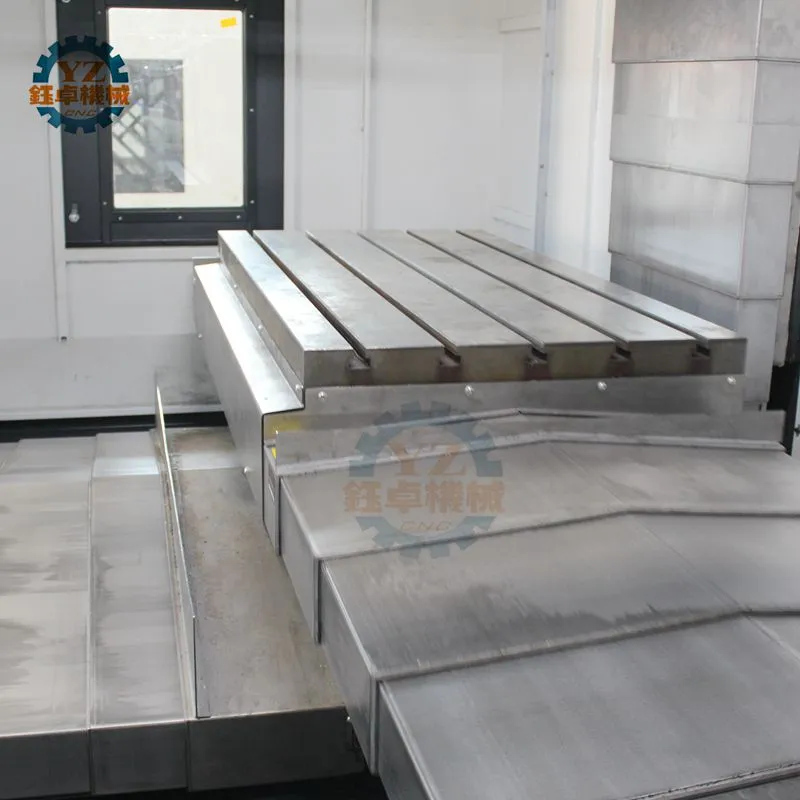

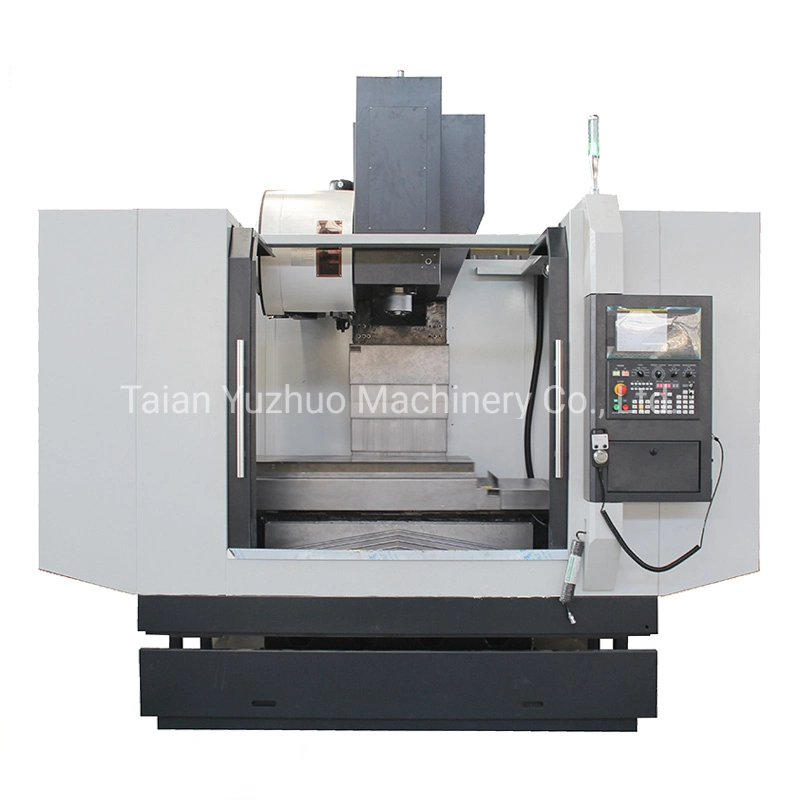

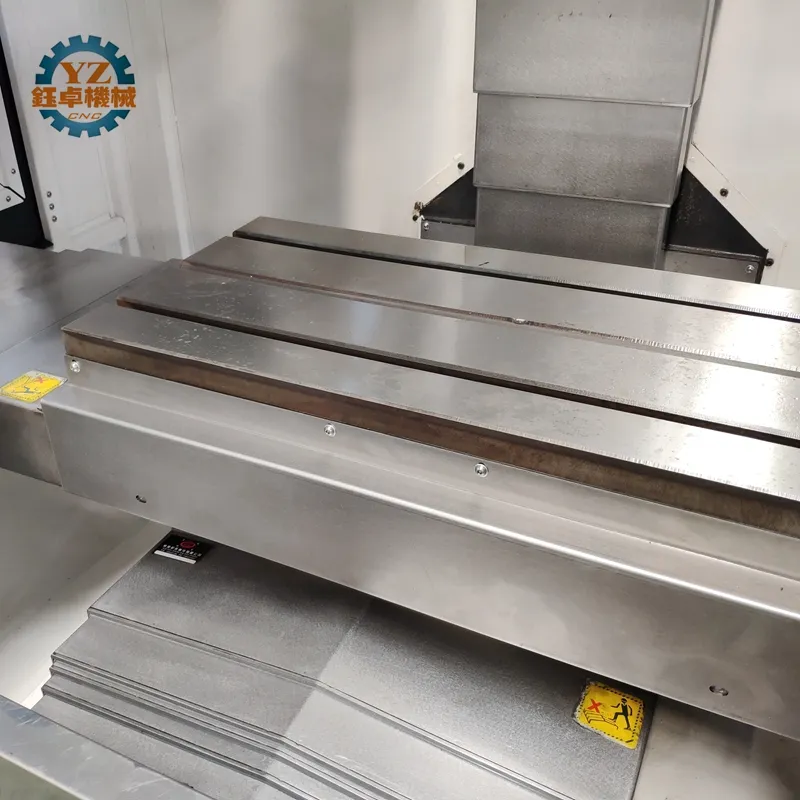

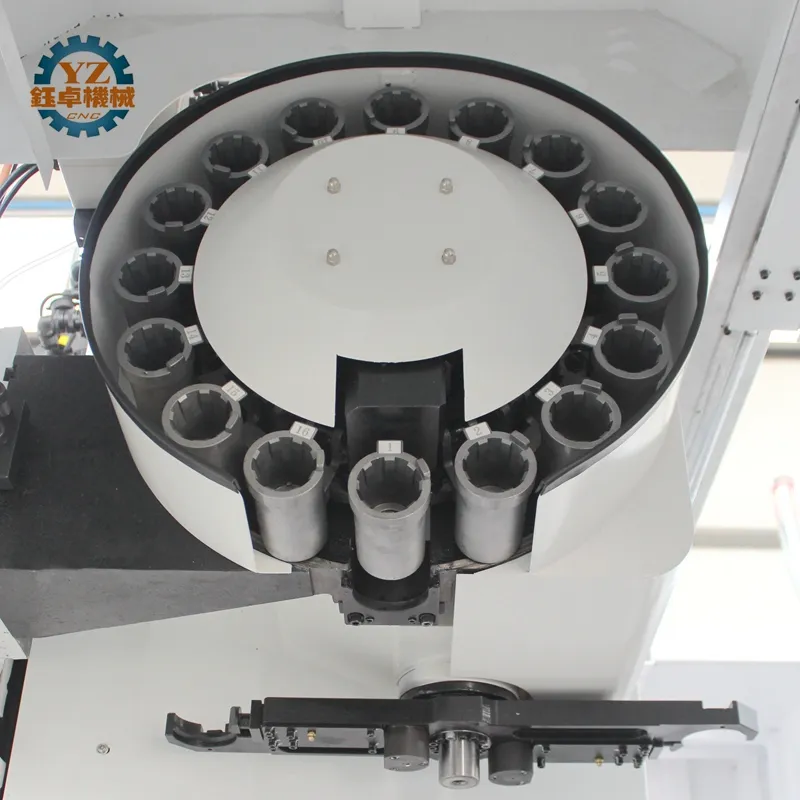

VMC1270 CNC Machining center photos

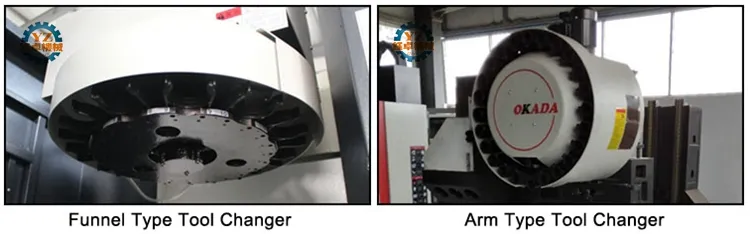

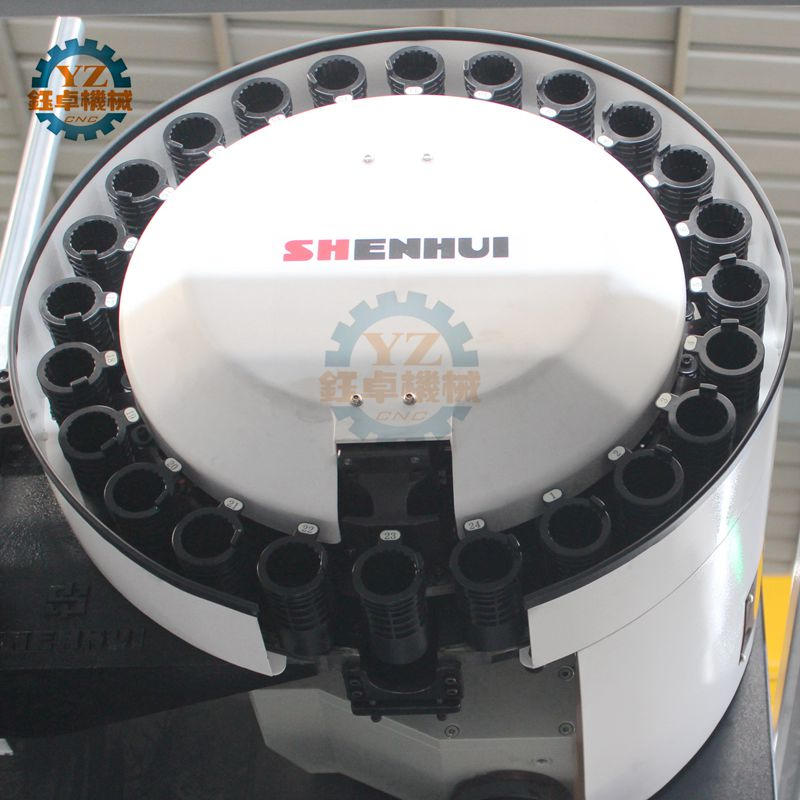

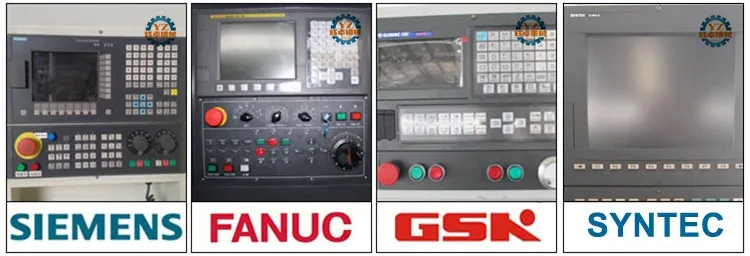

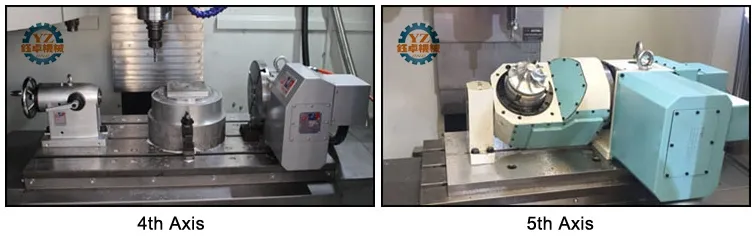

VMC Machining Center Optional Configuration
