Ck0640 Yst205 Cheap Price CNC Swiss Lathe Machine Swiss Mini Lathe
CK0640 Small CNC Lathe Mini CNC Lathe Metal Turning Lathe Small CNC Turning Lathe machineSpecificationsItemsCK0625CK0632CK0640CK0660CK0680Spindle boreΦ25mmΦ32mmΦ42mmΦ60mmΦ80mmMax. swing over bedΦ300mmMax. swing over carriageφ130mmMax length of ......
Send Inquiry
Product Description

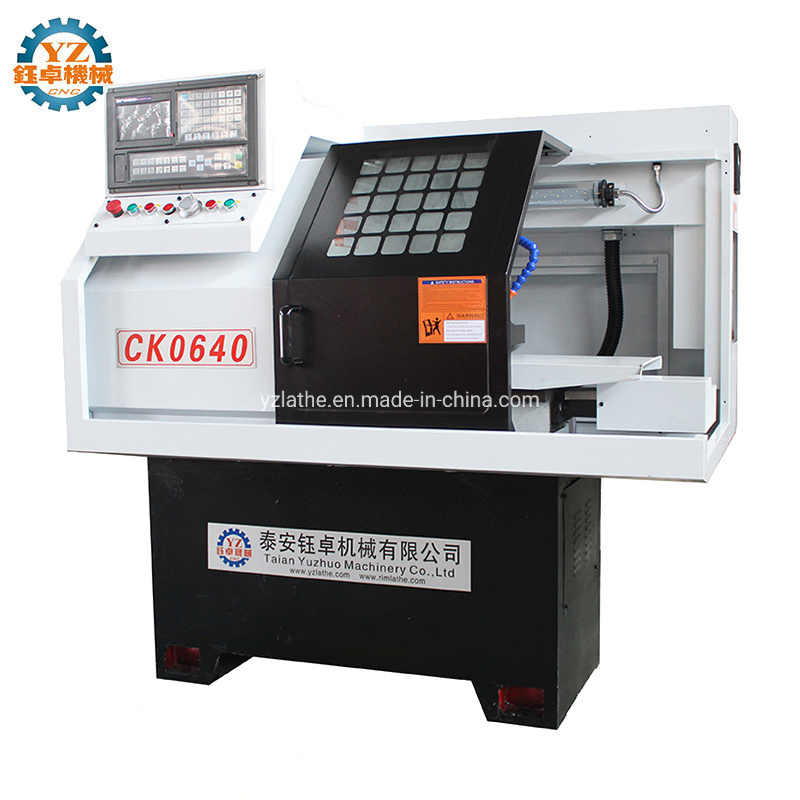

CK0640 Small CNC Lathe Mini CNC Lathe Metal Turning Lathe Small CNC Turning Lathe machine
Specifications
Machine Detailed Photos:
Standard Configuration:
1- CNC system: GSK928;
2- Pneumatic collet;
3- Gang type tool carrier;
4- Automatic lubrication system;
5- Work lighting system;
6- Turning cooling system;
7- Cast iron stand.
Optional Configuration:
1- CNC system: GSK980, KND, Siemens 808D, Fanuc, etc.;
2- Manual chuck;
3- Pneumatic chuck;
4- Hydraulic chuck (solid or hollow);
5- Manual tailstock;
6- Pneumatic tailstock;
7- Hydraulic tailstock;
8- Automatic feeder;
9- Vertical four-station turret.
After-sale Services:
Warranty is one year. We would offer the parts (quality problem) free of charge during this period.
Company Information:
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
Specifications
| Items | CK0625 | CK0632 | CK0640 | CK0660 | CK0680 |
| Spindle bore | Φ25mm | Φ32mm | Φ42mm | Φ60mm | Φ80mm |
| Max. swing over bed | Φ300mm | ||||
| Max. swing over carriage | φ130mm | ||||
| Max length of work piece | 240mm | ||||
| X- axis max motion traveling schedule | 200mm | ||||
| X-axis fast moving speed | 6000mm/min | ||||
| Z- axis fast moving speed | 8000 mm/min | ||||
| X-axis feed rates | 1~2000mm/min | ||||
| Z- axis feed rates | 1~1800mm/min | ||||
| Range of spindle speed | 50~2500rpm | ||||
| Thread machining scope (metric system) | 0.25~12mm | ||||
| Thread machining scope (British system) | 28~3 1/2 | ||||
| Stations of tool carrier | gang-type tool carrier | ||||
| Power of the main drive motor | 3KW | ||||
| Overall dimensions(L×W×H) | 1550*920*1450mm | ||||
| Net weight | 850kg | ||||

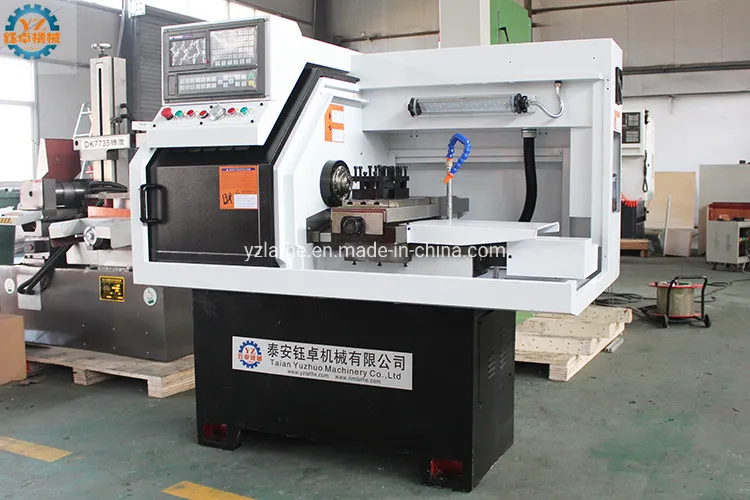

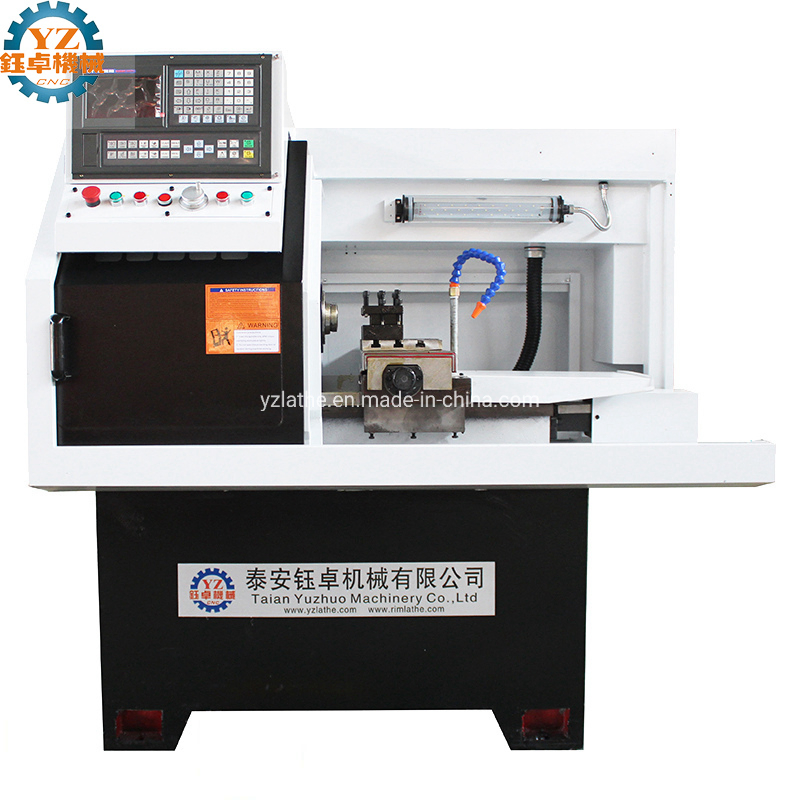

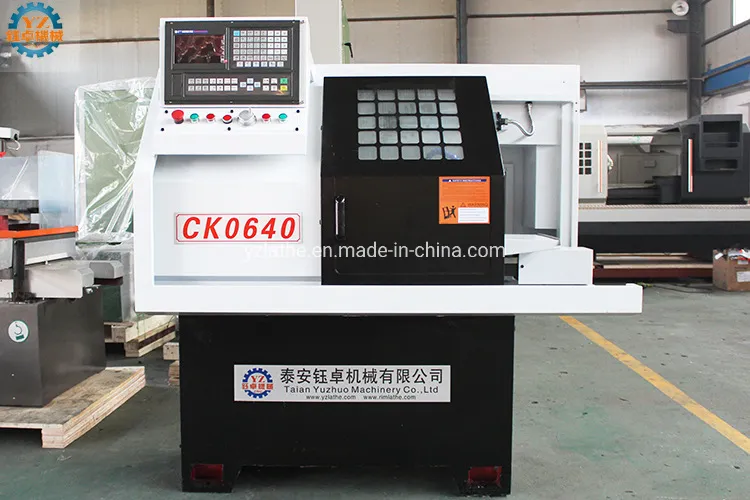

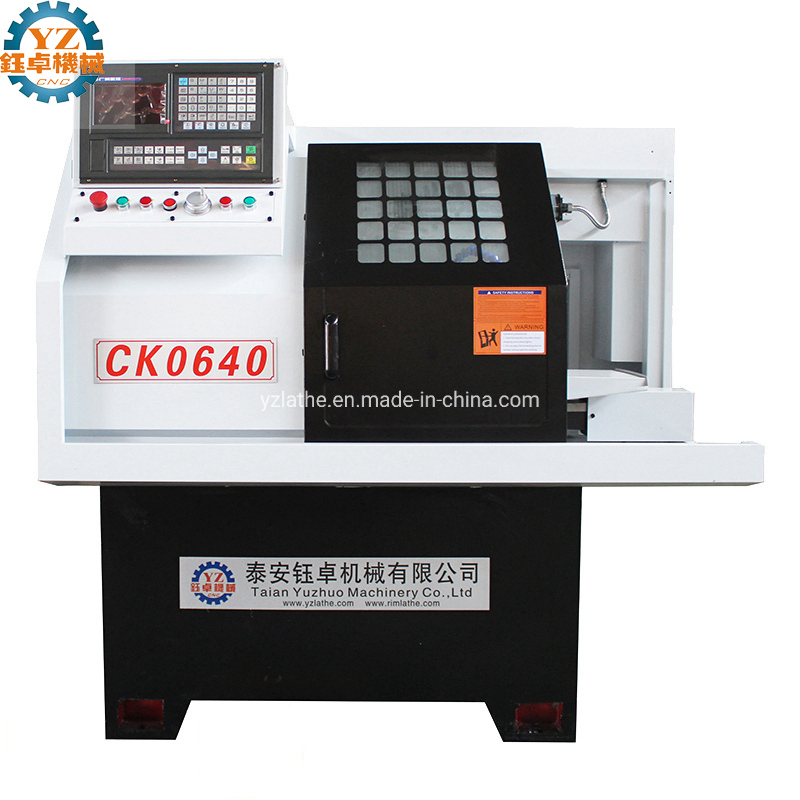

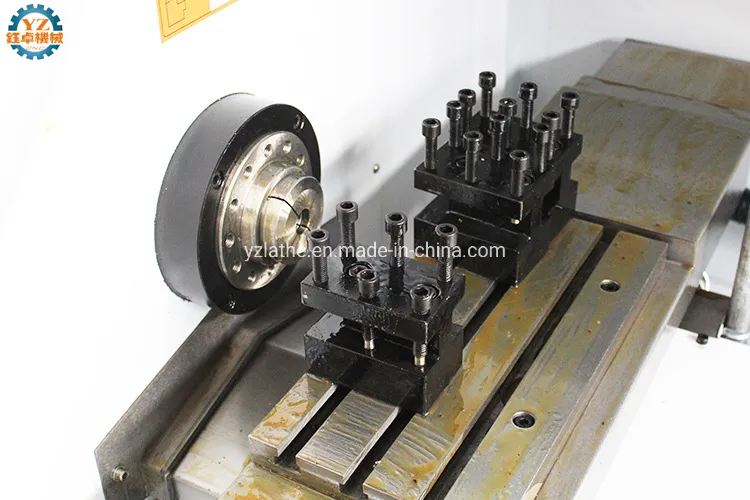

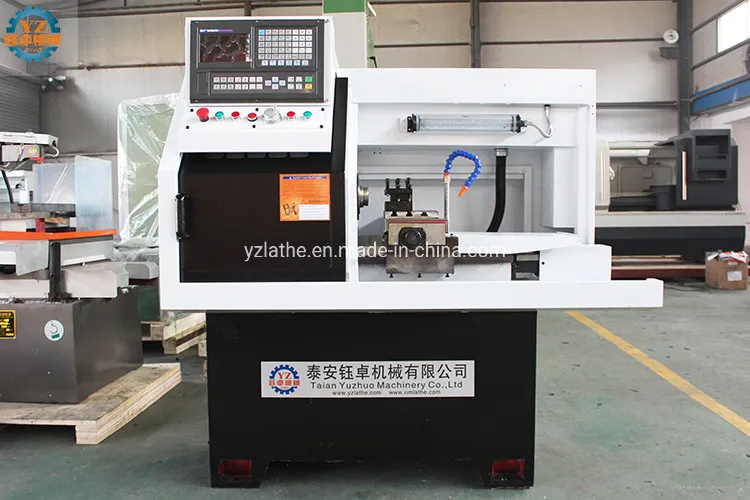

Machine Detailed Photos:
Standard Configuration:

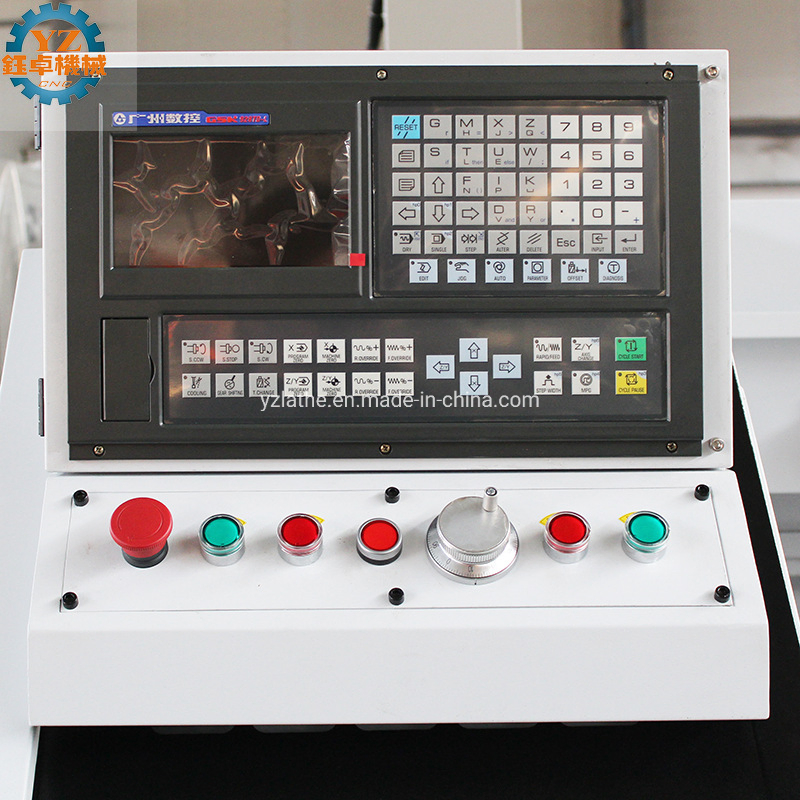

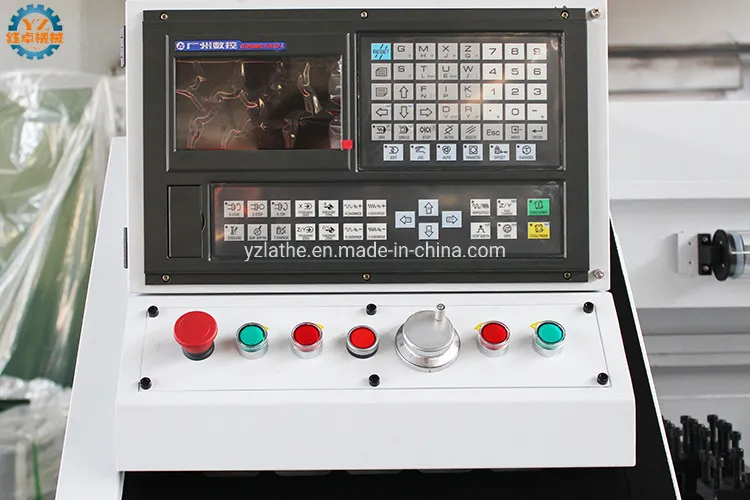

1- CNC system: GSK928;
2- Pneumatic collet;
3- Gang type tool carrier;

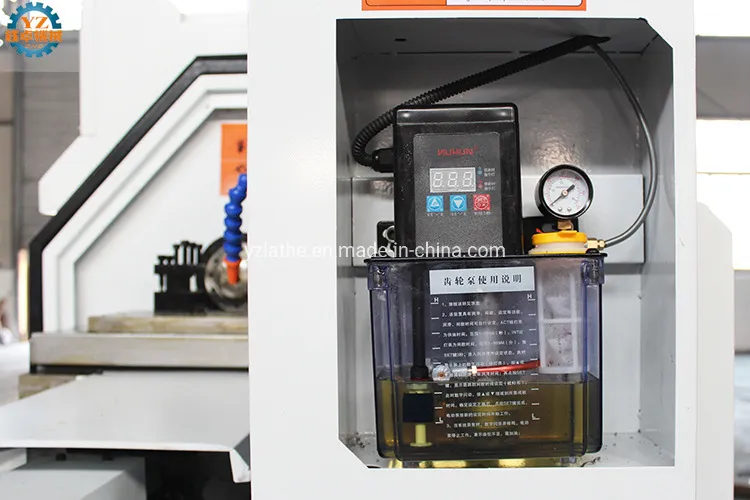

4- Automatic lubrication system;
5- Work lighting system;
6- Turning cooling system;
7- Cast iron stand.
Optional Configuration:
1- CNC system: GSK980, KND, Siemens 808D, Fanuc, etc.;
2- Manual chuck;
3- Pneumatic chuck;
4- Hydraulic chuck (solid or hollow);
5- Manual tailstock;
6- Pneumatic tailstock;
7- Hydraulic tailstock;
8- Automatic feeder;
9- Vertical four-station turret.
After-sale Services:
Warranty is one year. We would offer the parts (quality problem) free of charge during this period.
Note: GSK, Servo driven, motor and transformer, Warranty is 3 years.
Company Information:

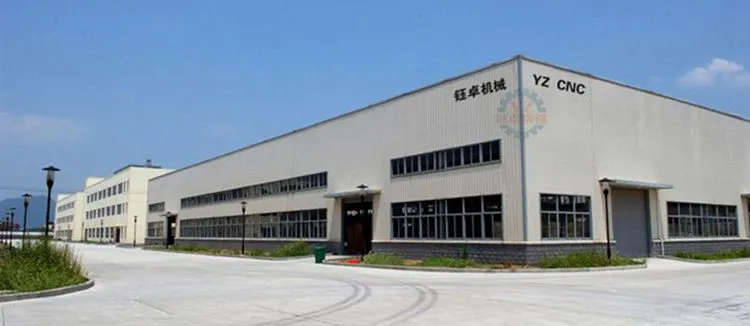

Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
