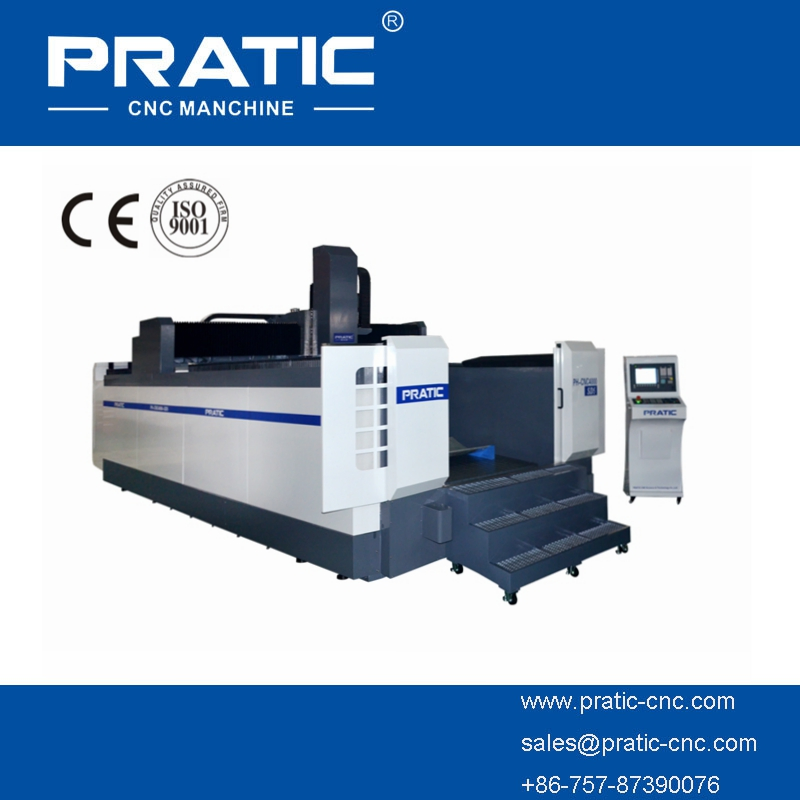

CNC 5 Axis Industry Milling Machining Center
Model:PH-CNC12000-SD5(4 axis or 5 axis)Advantages of the machine:Fixed table in combination with travelling column and beam that makes the machine suitable for macining extra large workpieces.Advanced 5-axes head is designed for any angular position.X-axis travel is transmitted through pinion/rack a......
Send Inquiry
Product Description
Model:
PH-CNC12000-SD5(4 axis or 5 axis)
Advantages of the machine:

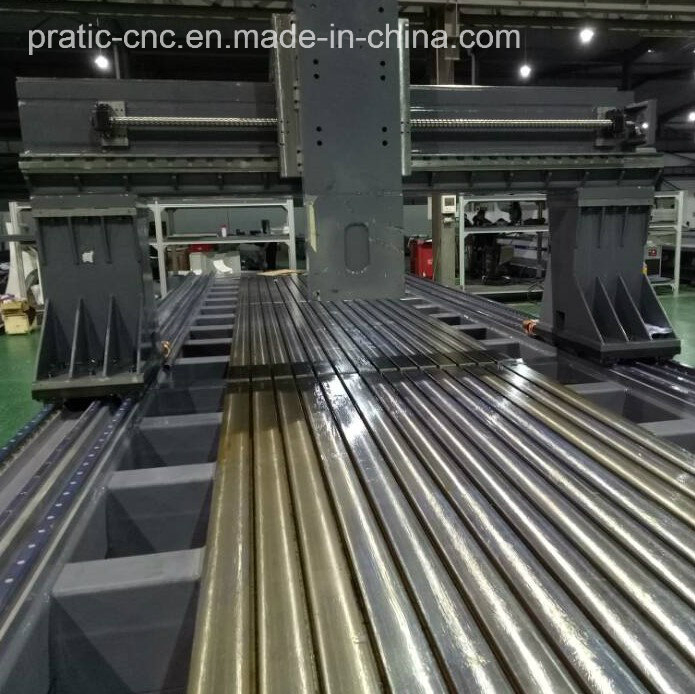

Fixed table in combination with travelling column and beam that makes the machine suitable for macining extra large workpieces.

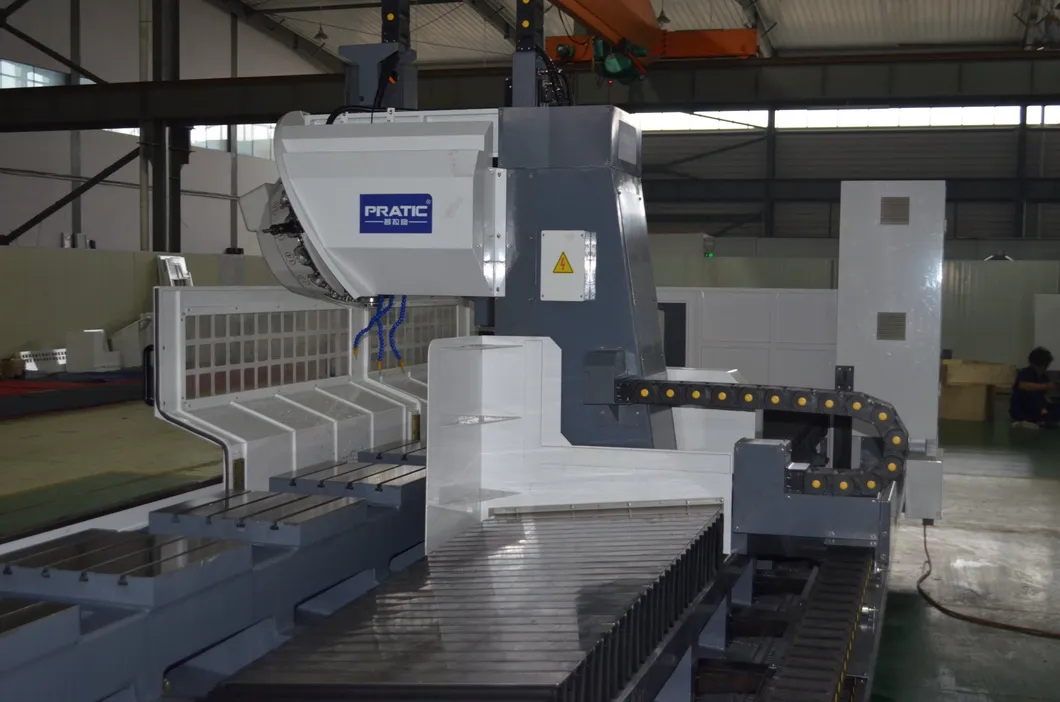

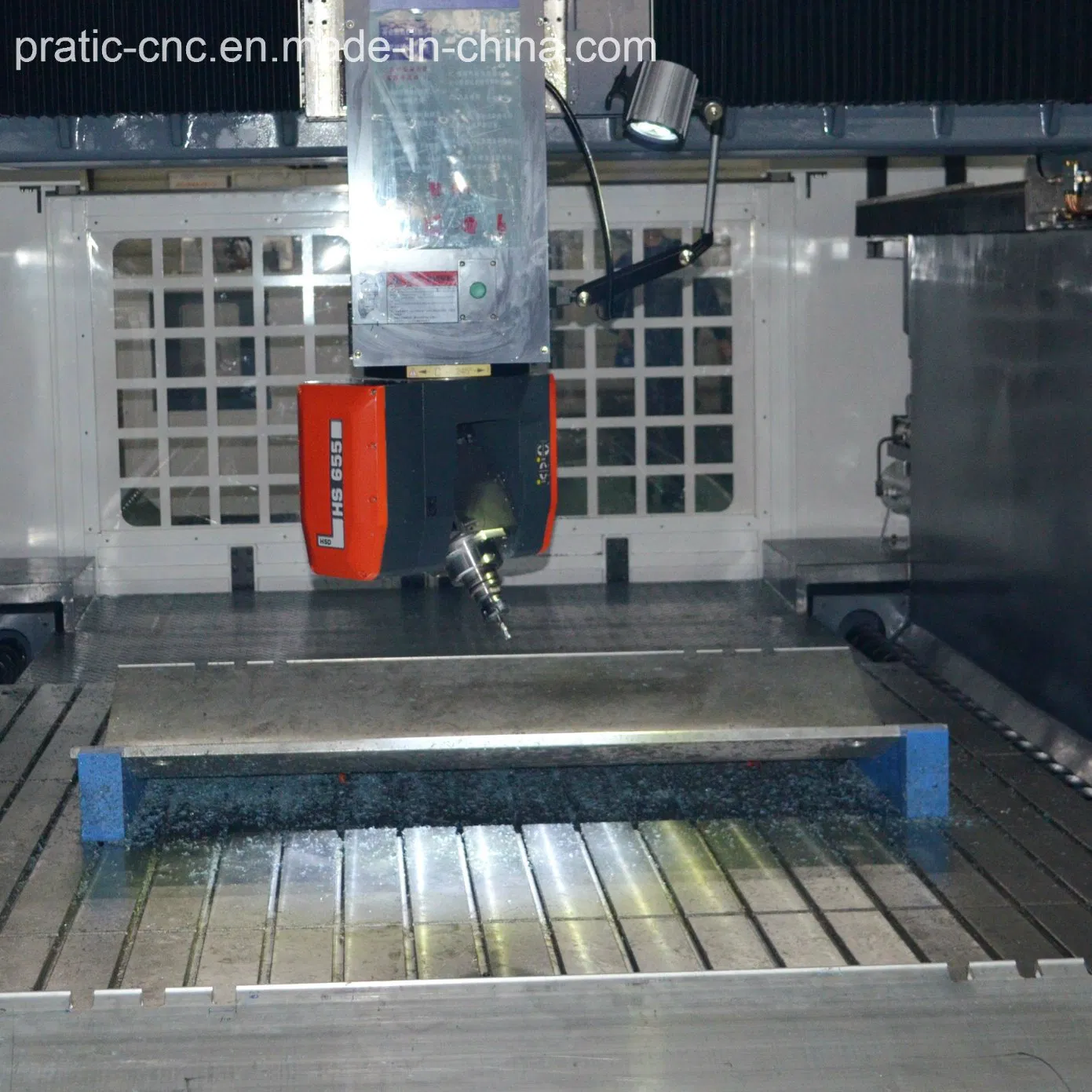

Advanced 5-axes head is designed for any angular position.
X-axis travel is transmitted through pinion/rack and driven by European-imported gearbox, featuring high torque output, no backlash and high positioning accuracy (optional).
A-axis rapid traverse rate is available for 36 M/min, 50 M/min is available too (optional)
Application

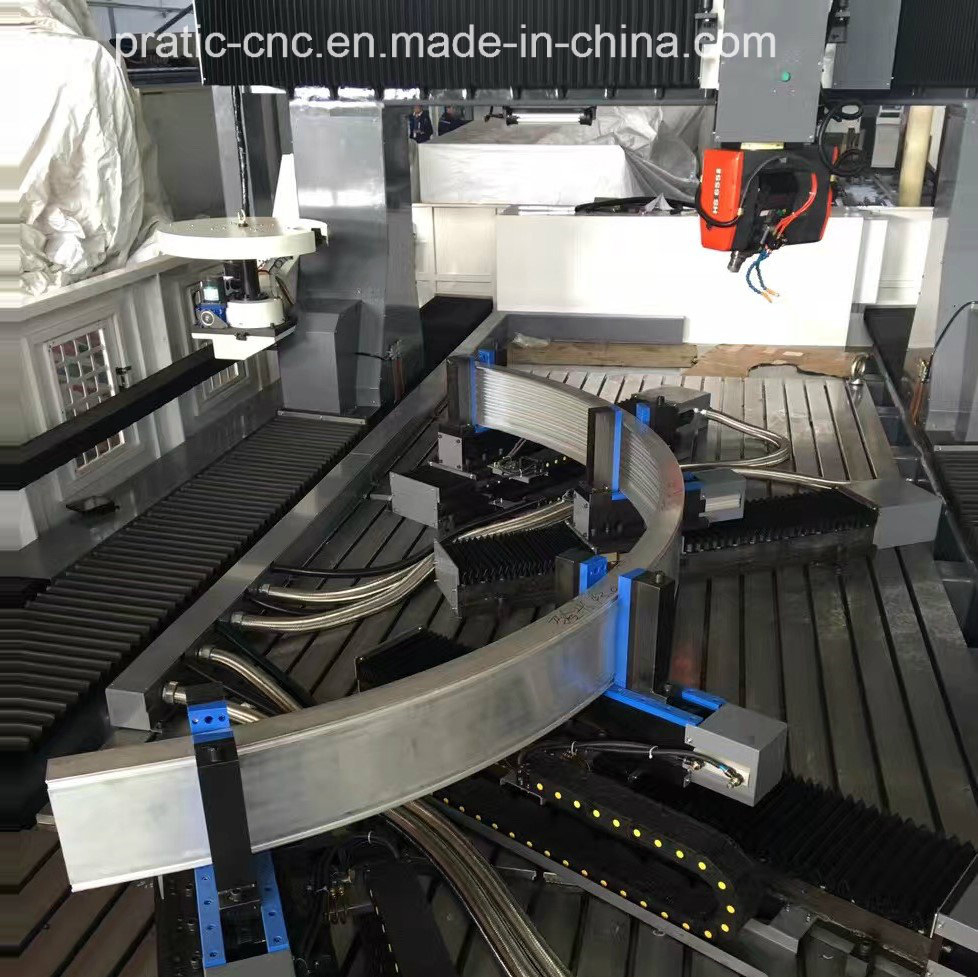

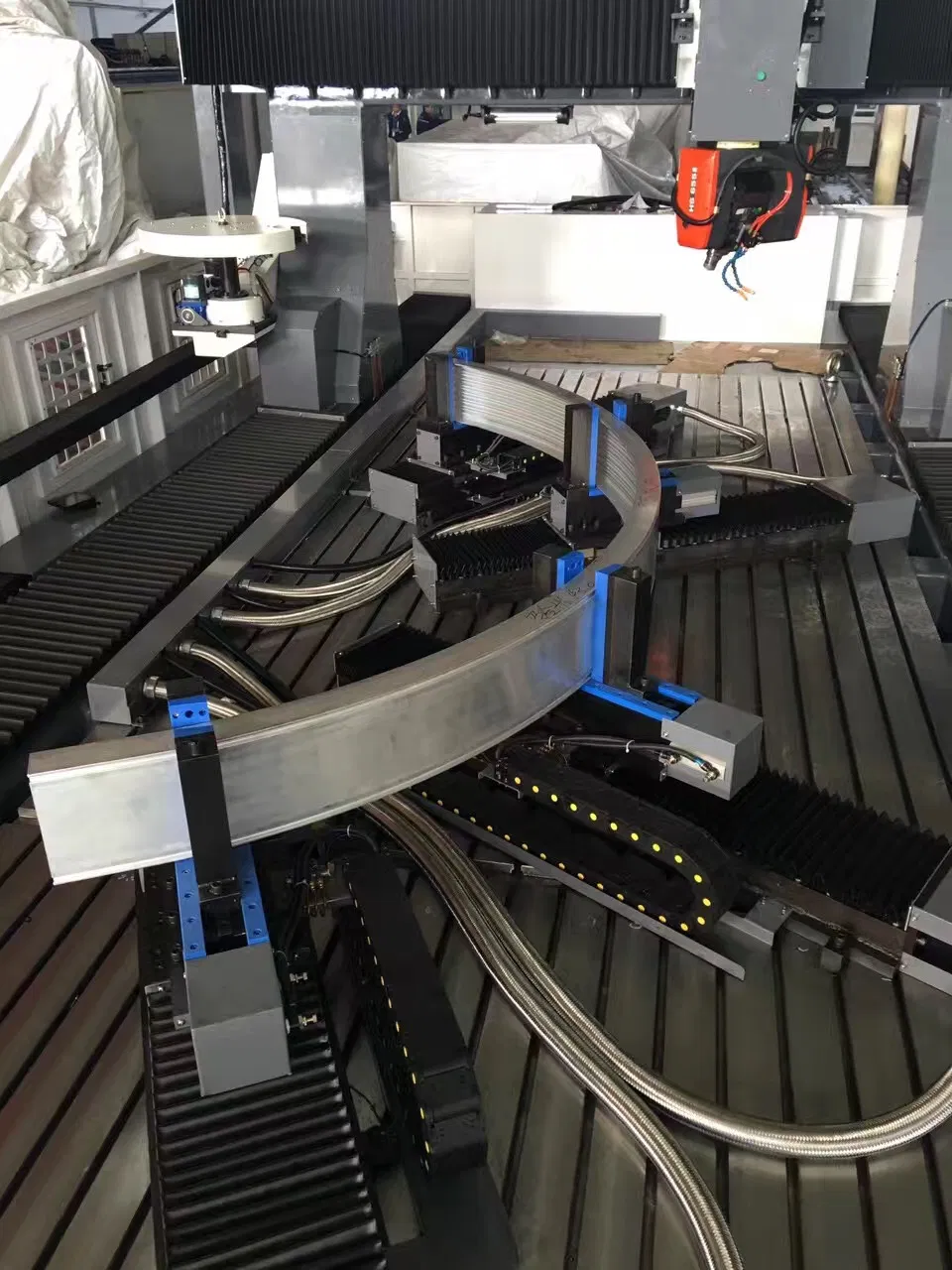

PH series CNC Profile Machining Center are suitable for curtains wall (glass wall) , extruded aluminum ,long material parts, molding carving. standard three axes are equipped with P class high precision linear guide ways .Can be choice of various controllers - Mitsubishi, Fanuc and Siemens.
Technical Date
Our PRATIC:
PRATIC CNC Science & Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.
FAQ:
1.Q: How is the delivery?
A:For standard configuration, it's usually 30 days after down payment.
2.Q:How is the after-sales service?
A: Our products has one year warranty, and a strong team of engineers to support after-sales service.
3.Q:Are you a trading company or manufacture?
A: PRATIC is a professional manufacturer, and your order will be controlled from very beginning to the last.
Solution suppiler:
PRATIC CNC SCIENCE & TECHNOLOGY CO,.LTD
Website: pratic-cnc.en.made-in-china.com
Welcome to inquire and visit our company!
We are looking forward to serving you!
PH-CNC12000-SD5(4 axis or 5 axis)
Advantages of the machine:
Fixed table in combination with travelling column and beam that makes the machine suitable for macining extra large workpieces.
Advanced 5-axes head is designed for any angular position.
X-axis travel is transmitted through pinion/rack and driven by European-imported gearbox, featuring high torque output, no backlash and high positioning accuracy (optional).
A-axis rapid traverse rate is available for 36 M/min, 50 M/min is available too (optional)
Application
PH series CNC Profile Machining Center are suitable for curtains wall (glass wall) , extruded aluminum ,long material parts, molding carving. standard three axes are equipped with P class high precision linear guide ways .Can be choice of various controllers - Mitsubishi, Fanuc and Siemens.
Technical Date
| ITEM | SPECIFICATION |
| X/Y/Z /Storke | 12000/2000/13000/600 |
| Workbench size | 4100*2000mm |
| Spindle speed | 24000rpm (Motorized Spindle ) |
| Spindle taper | HSK-A63 |
| Tool Magazine | 12T Umbrella-type |
| Tool change time | 3 sec |
| X/Y/Z moving speed | 60/28/28 m/min |
| Position precision of X/Y/Z | 0.05/0.05/0.02 mm |
| Power of spindle driven motor | 7.5 KW/15kw |
| Lubricating system | Automatic grease lubrication device |
| Cooling system | Spraying cooling |
| Operation system | FANUC/MITSUBISHI/SIEMENS |
Our PRATIC:
PRATIC CNC Science & Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.
FAQ:
1.Q: How is the delivery?
A:For standard configuration, it's usually 30 days after down payment.
2.Q:How is the after-sales service?
A: Our products has one year warranty, and a strong team of engineers to support after-sales service.
3.Q:Are you a trading company or manufacture?
A: PRATIC is a professional manufacturer, and your order will be controlled from very beginning to the last.
Solution suppiler:
PRATIC CNC SCIENCE & TECHNOLOGY CO,.LTD
Website: pratic-cnc.en.made-in-china.com
Welcome to inquire and visit our company!
We are looking forward to serving you!
