Product Description

I. Product Feature
1. Advanced angle supporting device, has obtained the national patent certificate, which improve the angle processing accuracy.
2.TBL1412, TBL1412A two sets of punches on each side, TAPM1412 three sets, can process all holes once time.
3.TBL1412A, TAPM1412 Single blade shearing, save raw material.
4. Numerical control processing, the operation is very convenient, can realize automation, high precision, many varieties, mass production.
5. Marking unit adopts closed frame with good rigidity. On the marking unit is equipped with four groups of programmable selection box.
6. With avoided shearing functions, so as to process fixed-length angles.
7. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
8. Easy programming, adopt instruction programming and lofting software. It can read. NC1 files generated by TEKLA software.

Processing precision (The allowable tolerance):
1.	Two adjacent hole deviation of the same group	±0.5mm
2.	Two not adjacent hole deviation of the same group	±0.7mm
3.	Hole deviation of two adjacent group	±1mm
4.	Stadia (Distance from central of hole to edge )	±0.7mm

Installation Preparation
1. Installation time required for one set CNC angle line: 3-7 days.
1.1 The buyer should make ready foundation of machine according to the foundation drawing sent from our side. Please note, the foundation base plates for machine are not supplied by us. The buyer should make them according to drawing requirements. 1.2 Number 46# anti-wearing hydraulic oil, appx. 800L. 1.3 Oil filter is required before infuse oil into hydraulic oil tank. 1.4 Power supply and incoming line should be 50Hz, 380V, three phase. The coming line can be cable or lead wire of 3*10²mm. And prepare earth wire of 6²mm. 1.5 Air supply is required the air compressor also required for machine. 1.6 Leveling instrument (three legs type). 1.7 Frame level meter. 1.8 Five meter length tape measure. 1.9 Straight rule of 200mm., 1.10 L-square. 1.11 Welding machine for spot weld foundation base plate. 1.12 Traveling crane or moveable forklift. 1.13 Hand drill. 1.14 Three people help to install machine.
2. Commissioning time required: 1-3 days.
2.1 Two operators, one maintainer. Arrange some people to accept training. They have to stay with our engineers during installation, commissioning and training. 2.2 Material for testing machine.
3. Training time required: 5 days.
It is better that the people who accept training can know computer and electrical knowledge.
Remark1:Water Cooling Device If the temperature of oil is too high, density of the oil becomes smaller, and affecting normal operation of machine, and even causing oil leakage, so the oil need cooling device, the best way of cooling for oil is water cooling, client just need to weld one water tank (size about: 2x1.5x1.8m, this size just for reference, picture as below:), when you welded the water tank, buy one pump (Requirements of the pump: power more than 0.5KW, pump head 10m, if bigger it's better, picture for reference as below:)

Water Tank	Water Pump
Remark2: Air Compressor Device Our machine need air pressure, so in client's factory need the air compressor, for our machine requirements of air compressor: pressure 0.8Mpa, capacity 1m³, it's ok. Picture for reference as below

Remark3: We quote the price not include the Installation, Commissioning and Training. Normally, for angle line need two engineer(Electrical and Mechanical).The buyer shall provide round trip air tickets, suitable accommodation & Airport pickup (boarding, lodging and local transport) to seller's engineers during their service abroad. In addition, the buyer shall pay $50 USD extra per day per person to seller's engineer as technical service fees during their stay at buyer's factory.

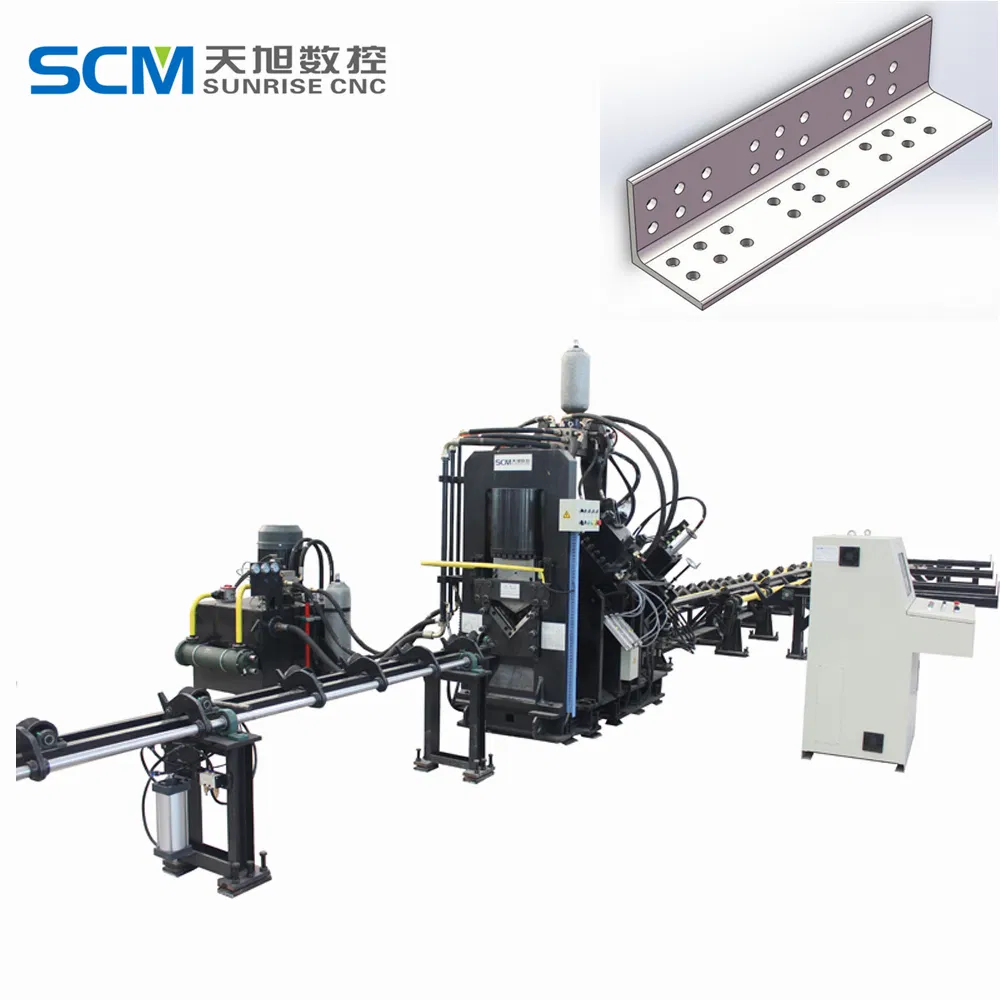

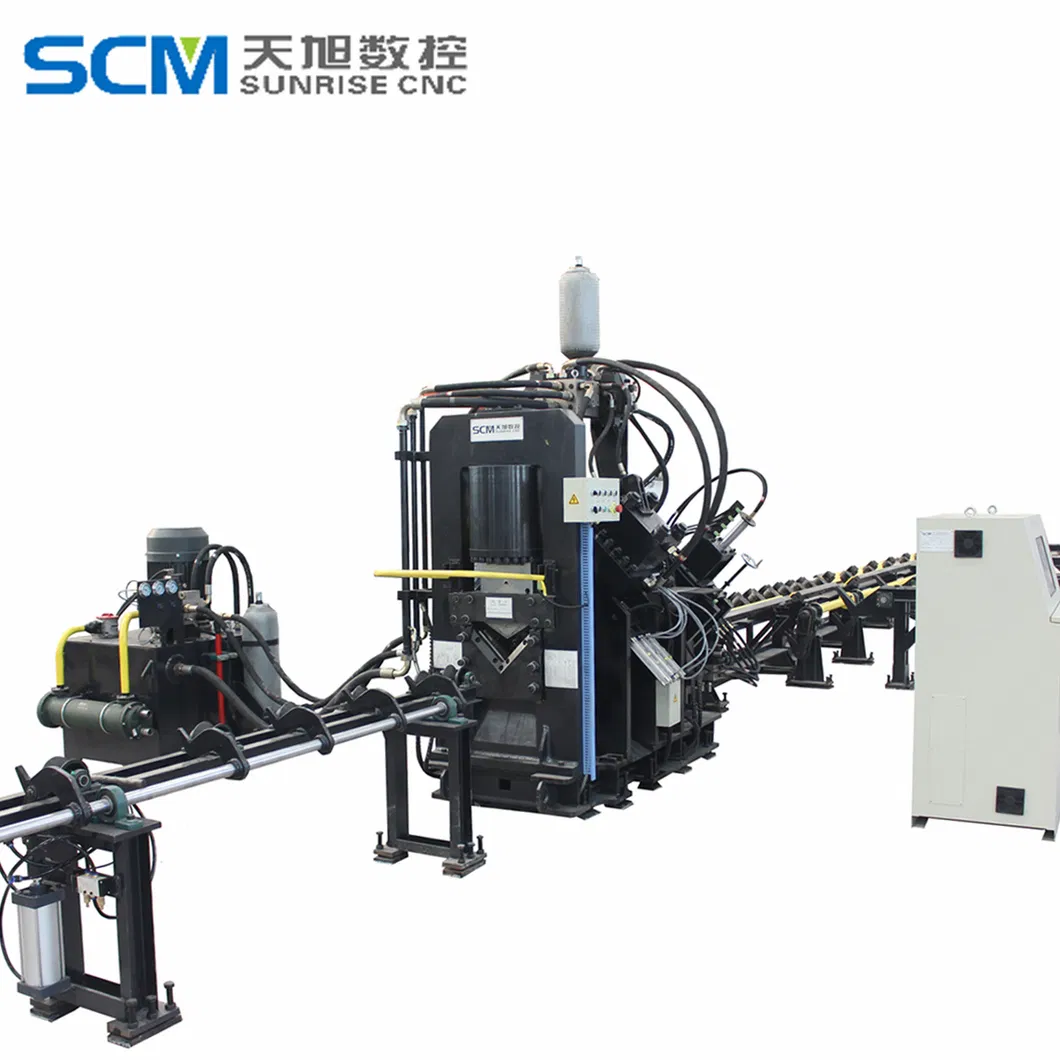

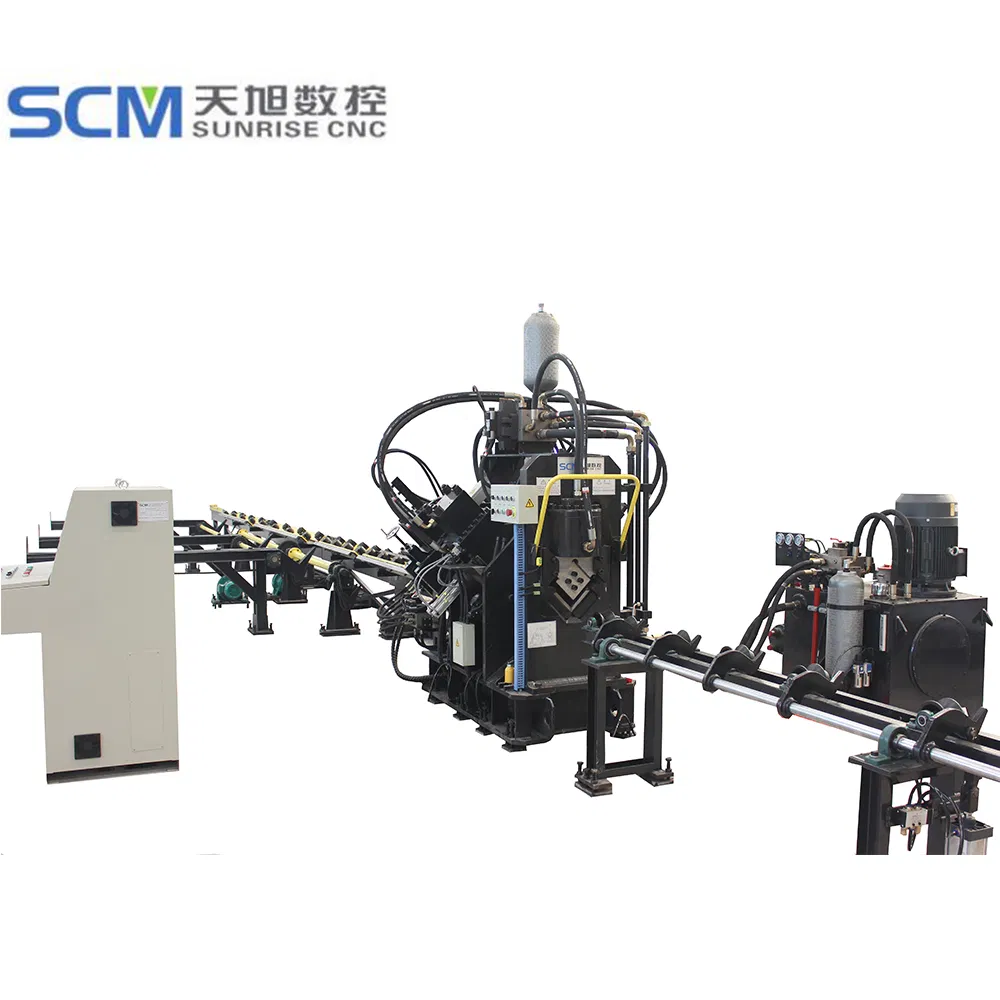

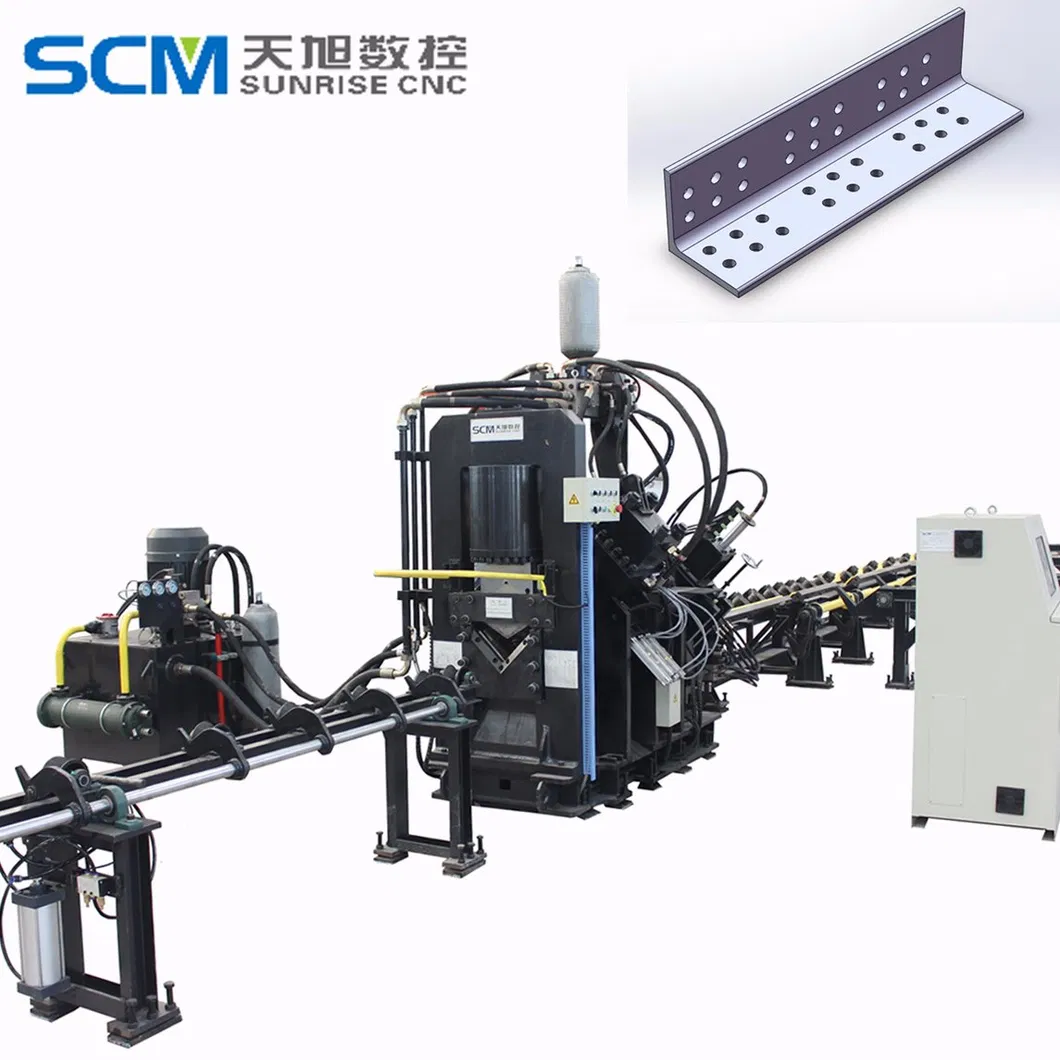

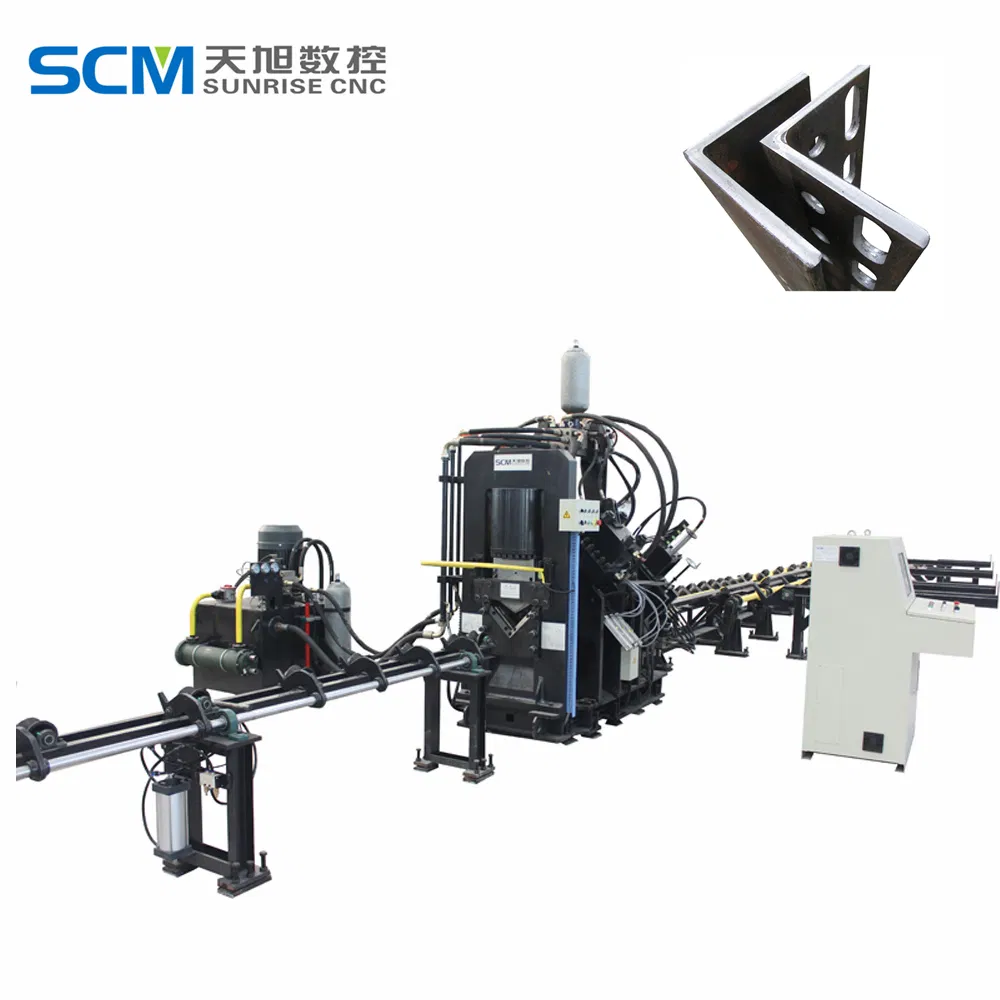

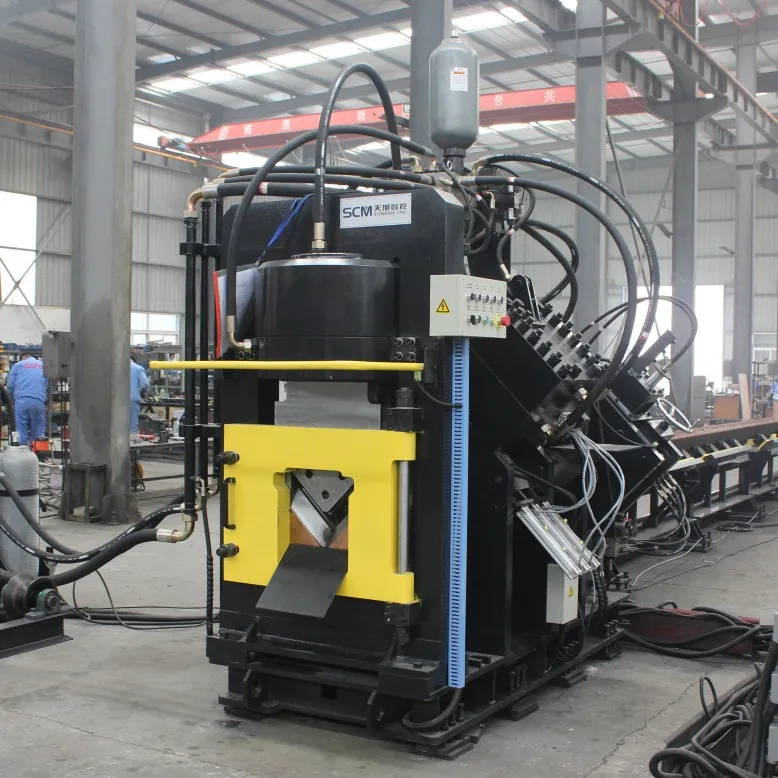

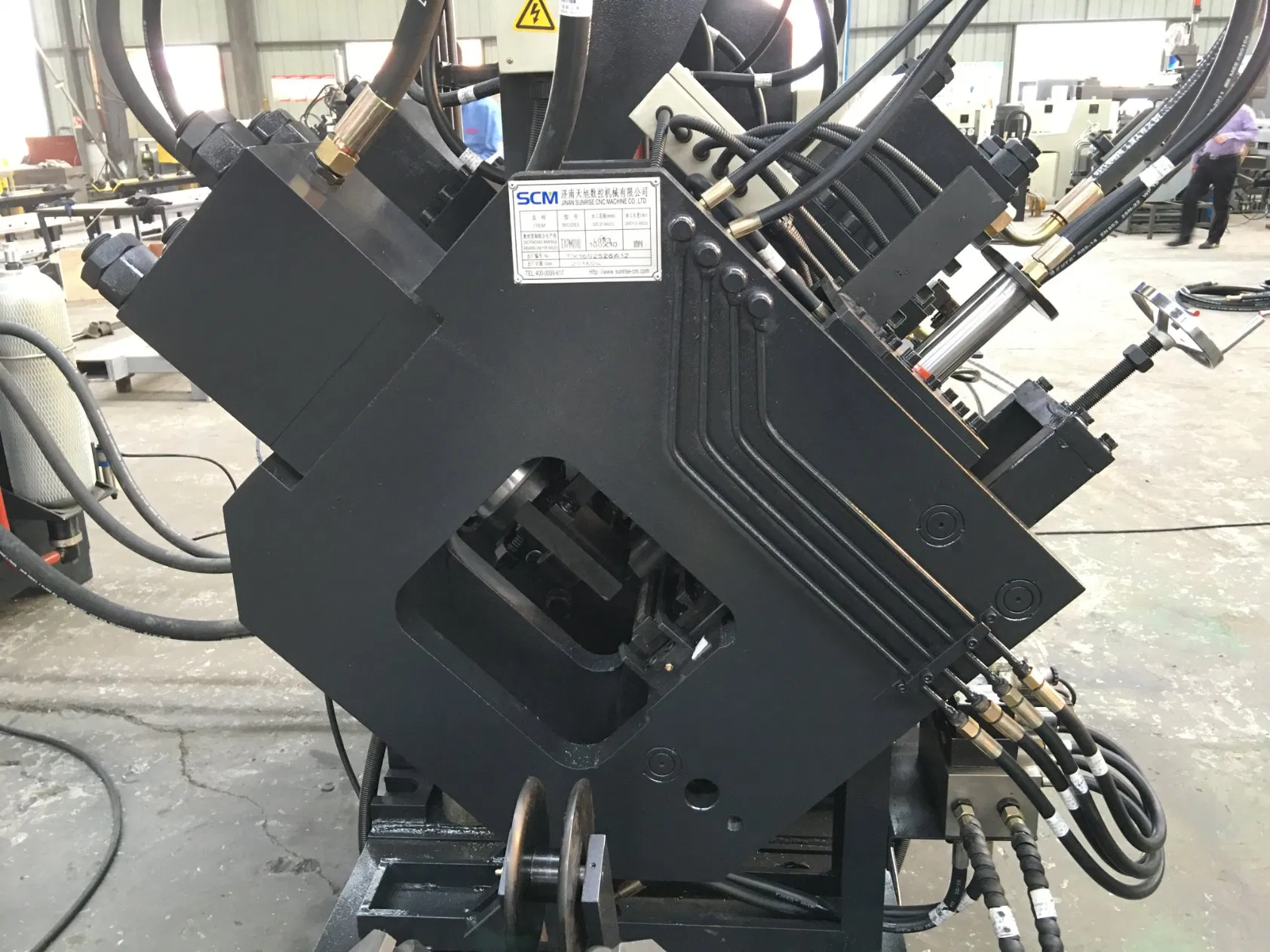

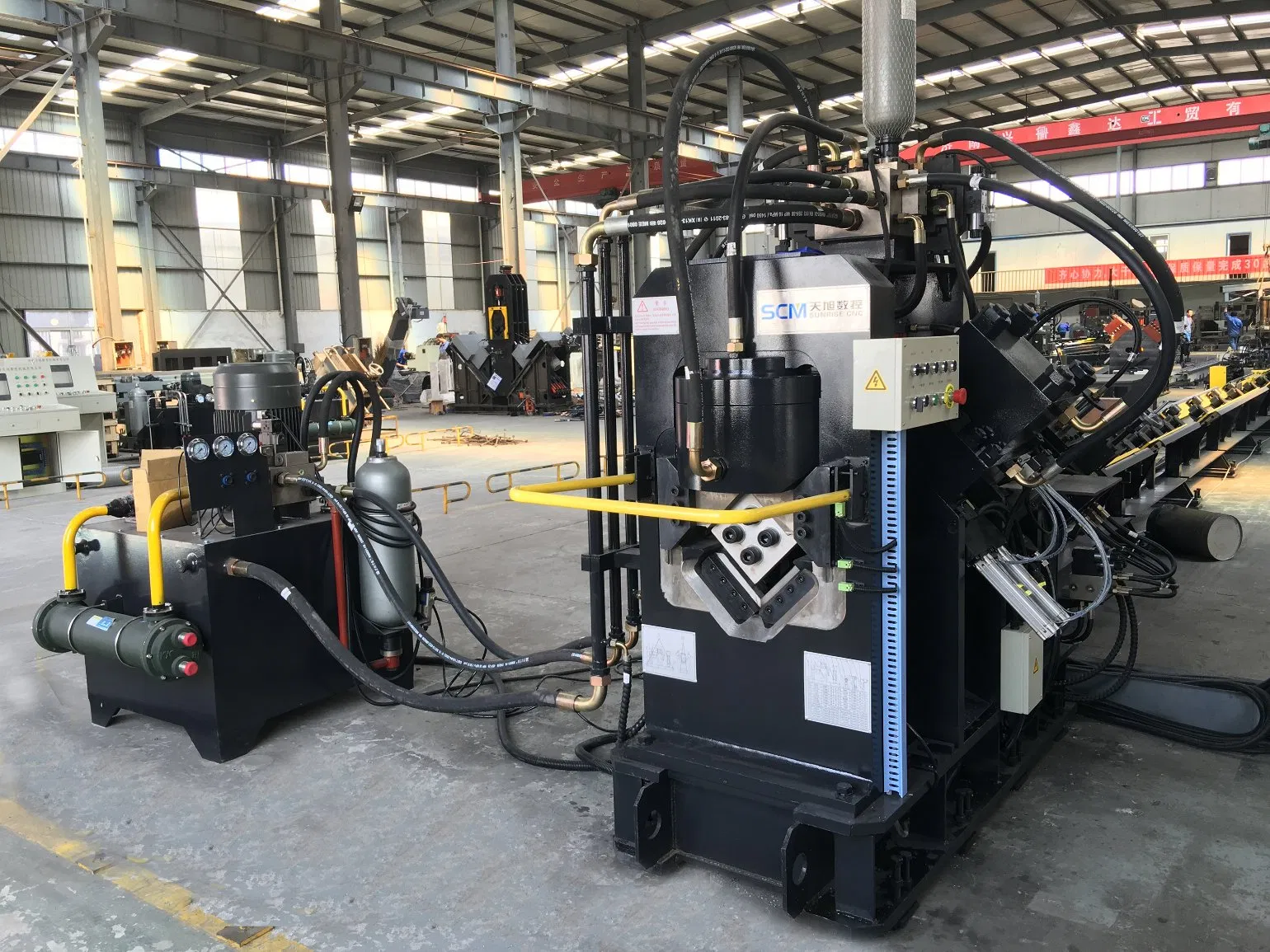

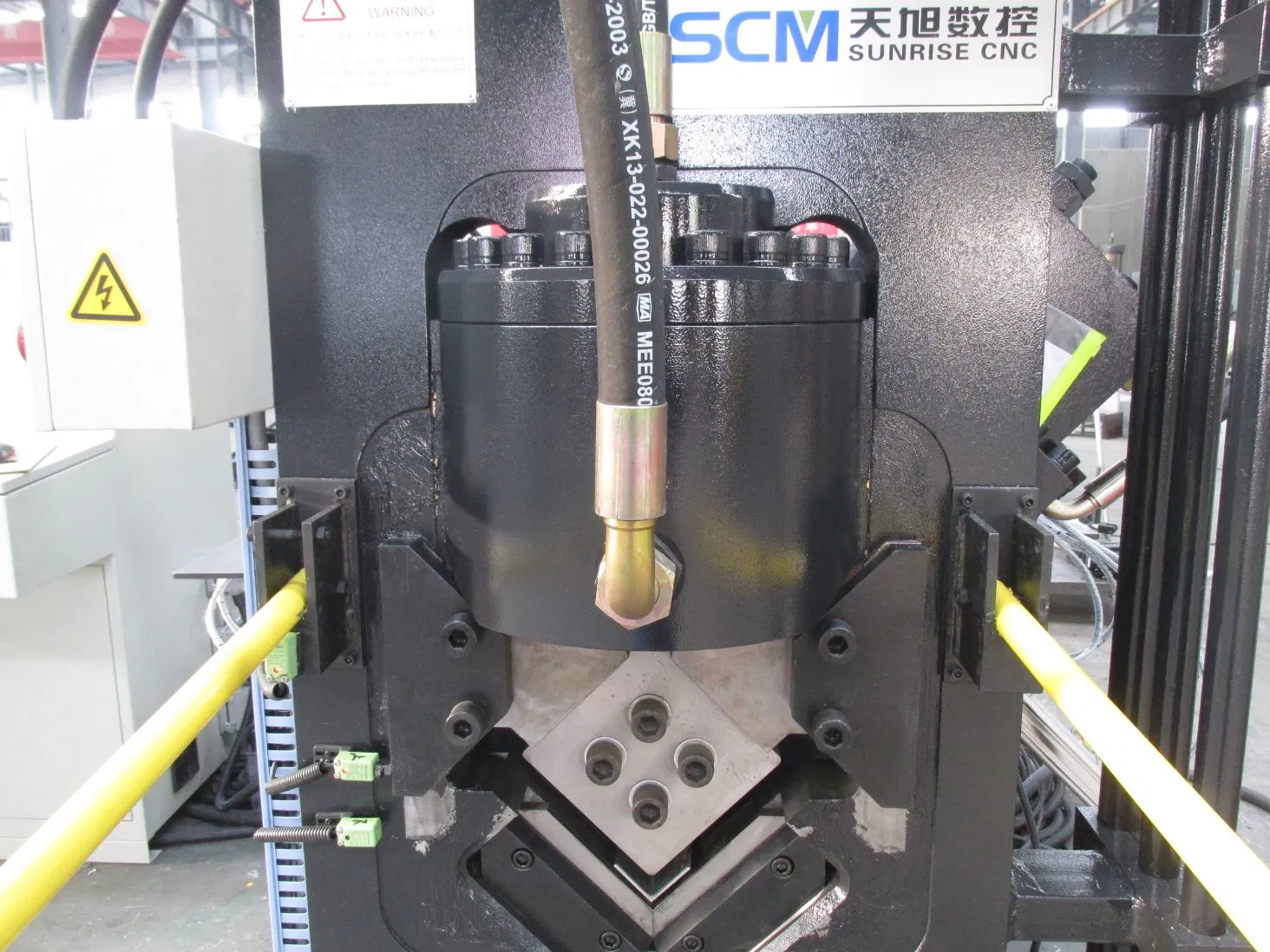

CNC Angle Punching Marking and Cutting Machine for Power Transmission Tower

Model	TAPM1412
Angle size (mm)	40x40x3~140x140x12
Max. Punching (dia. x thi.) (mm)	Φ26x12
Punching force (kN)	1000
Marking force (kN)	1030
Cutting force (kN)	1800
Max. length of blank (m)	12
Max. length of finished (m)	12
Punches per side	3
Group of Marking letters	4
Dimension of letter (mm)	14x10x19
CNC axes	3
Shearing mode	Single blade shearing
Feeding speed of angle (m/min)	80
Programming mode	Lofting software or instruction program
Overall dimensions (mm)	≈26000x7000x3000
Gross Weight of machine (kg)	≈16500
Total power (kW)	43
