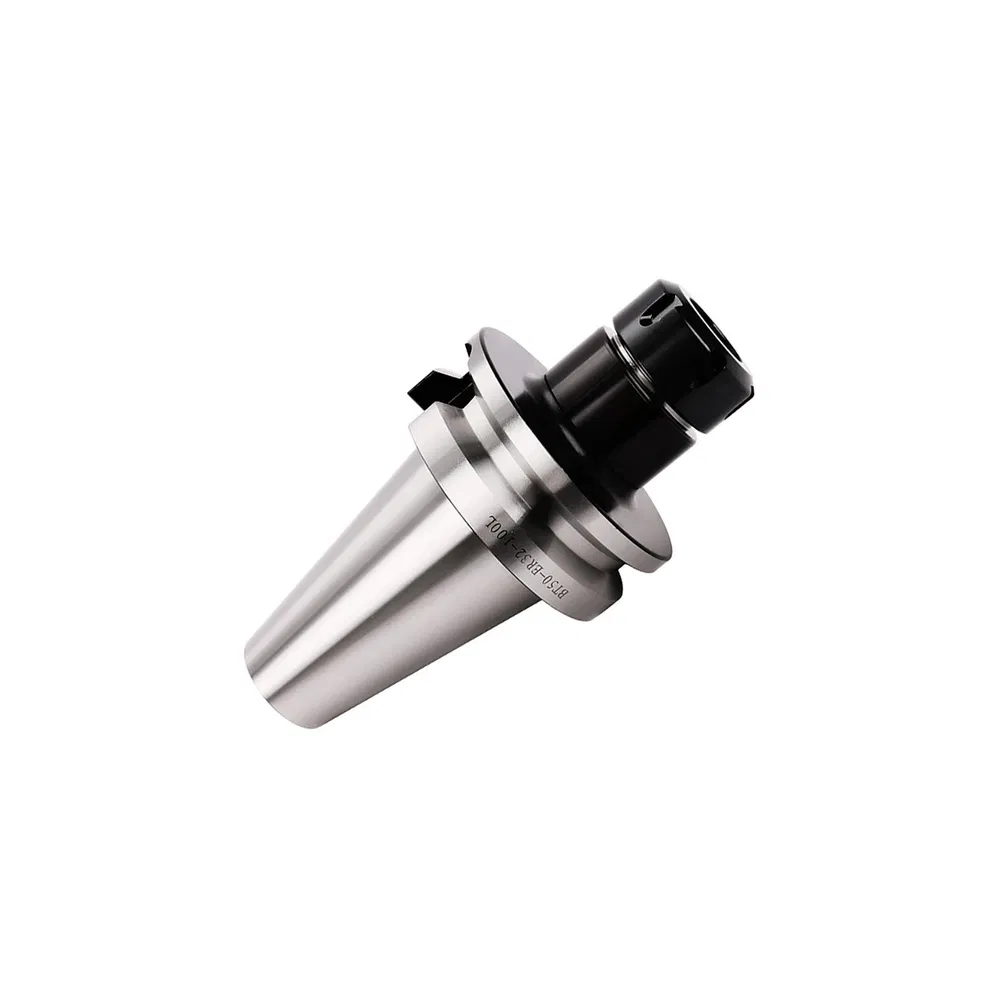

CNC Bt50 -Xma22 Lathe Chuck Turning Tool Holder Er32 Collet Chuck
SpecificationOrder NO.(BT×ER-L1)DD1Order NO.(BT×ER-L1)DD1BT30×ER16-702831.75BT45×ER32-705057.15BT30×ER20-703431.75BT45×ER32-1005057.15BT30×ER25-704231.75BT45×ER32-1205057.15BT30×ER32-705031.75BT45×ER4......
Send Inquiry
Product Description
 |  |

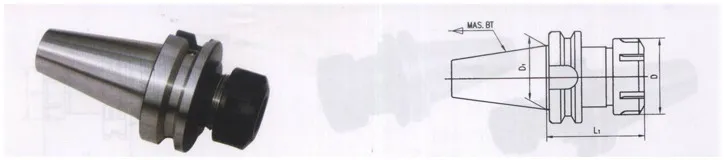

Specification
| Order NO. (BT×ER-L1) | D | D1 | Order NO. (BT×ER-L1) | D | D1 |
| BT30×ER16-70 | 28 | 31.75 | BT45×ER32-70 | 50 | 57.15 |
| BT30×ER20-70 | 34 | 31.75 | BT45×ER32-100 | 50 | 57.15 |
| BT30×ER25-70 | 42 | 31.75 | BT45×ER32-120 | 50 | 57.15 |
| BT30×ER32-70 | 50 | 31.75 | BT45×ER40-80 | 63 | 57.15 |
| BT30×ER40-80 | 63 | 31.75 | BT45×ER40-100 | 63 | 57.15 |
| BT40×ER16-70 | 28 | 44.45 | BT45×ER40-120 | 63 | 57.15 |
| BT40×ER20-70 | 34 | 44.45 | BT50×ER16-70 | 28 | 69.85 |
| BT40×ER20-100 | 34 | 44.45 | BT50×ER16-90 | 28 | 69.85 |
| BT40×ER20-150 | 34 | 44.45 | BT50×ER16-135 | 28 | 69.85 |
| BT40×ER25-60 | 42 | 44.45 | BT50×ER20-70 | 34 | 69.85 |
| BT40×ER25-70 | 42 | 44.45 | BT50×ER20-90 | 34 | 69.85 |
| BT40×ER25-90 | 42 | 44.45 | BT50×ER20-135 | 34 | 69.85 |
| BT40×ER25-100 | 42 | 44.45 | BT50×ER20-150 | 34 | 69.85 |
| BT40×ER25-150 | 42 | 44.45 | BT50×ER20-165 | 34 | 69.85 |
| BT40×ER32-70 | 50 | 44.45 | BT50×ER25-70 | 42 | 69.85 |
| BT40×ER32-100 | 50 | 44.45 | BT50×ER25-135 | 42 | 69.85 |
| BT40×ER32-150 | 50 | 44.45 | BT50×ER25-165 | 42 | 69.85 |
| BT40×ER40-70 | 63 | 44.45 | BT50×ER32-70 | 50 | 69.85 |
| BT40×ER40-80 | 63 | 44.45 | BT50×ER32-80 | 50 | 69.85 |
| BT40×ER40-120 | 63 | 44.45 | BT50×ER32-100 | 50 | 69.85 |
| BT40×ER40-150 | 63 | 44.45 | BT50×ER32-102 | 50 | 69.85 |
| BT45×ER16-70 | 28 | 57.15 | BT50×ER40-80 | 63 | 69.85 |
| BT45×ER20-70 | 34 | 57.15 | BT50×ER40-100 | 63 | 69.85 |
| BT45×ER20-100 | 34 | 57.15 | BT50×ER40-120 | 63 | 69.85 |
| BT45×ER25-70 | 42 | 57.15 | BT50×ER40-135 | 63 | 69.85 |
| BT45×ER25-90 | 42 | 57.15 | BT50×ER50-90 | 78 | 69.85 |
| BT45×ER25-100 | 42 | 57.15 | BT50×ER50-120 | 78 | 69.85 |
