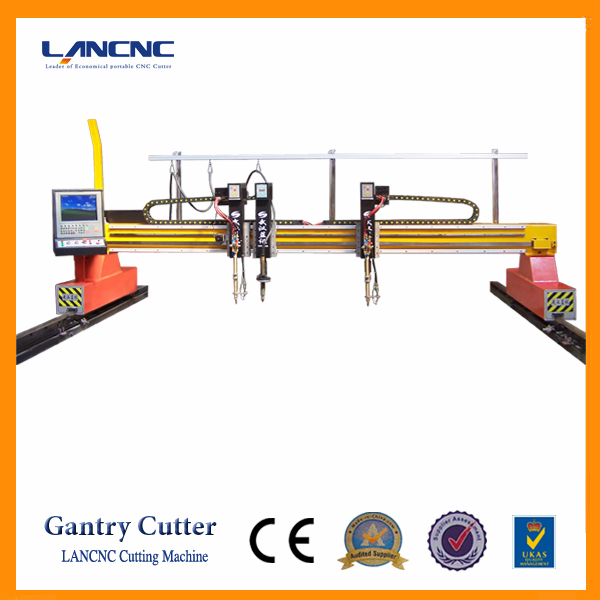

CNC Cutting Machine (ZLQ-9)
Features:This model is similar with ZLQ-4, gantry structure. Its cross beam have many specifications: 3m, 4m, 5m, 6m, etc. Both of them adopt dual drive and lineal guide. Torch quantity is optional......
Send Inquiry
Product Description
Features:
This model is similar with ZLQ-4, gantry structure. Its cross beam have many specifications: 3m, 4m, 5m, 6m, etc. Both of them adopt dual drive and lineal guide. Torch quantity is optional according to users' requirement, also can be configured as abnormity cutting and strip cutting. Control system adopts industrial computer; Draw CAD figures on the scene; Figure tracking function when cutting.
Application:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
This model is similar with ZLQ-4, gantry structure. Its cross beam have many specifications: 3m, 4m, 5m, 6m, etc. Both of them adopt dual drive and lineal guide. Torch quantity is optional according to users' requirement, also can be configured as abnormity cutting and strip cutting. Control system adopts industrial computer; Draw CAD figures on the scene; Figure tracking function when cutting.
Application:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
| Cross Beam Length(X axis) | 4m (can be lengthened according to user's demand) | |
| Longitudinal Rail Length(Y axis) | 6m (Rail can be lengthened according to user's demand) | |
| Effective Cutting Width (X axis) | 3.2m | |
| Effective Cutting Length (Y axis) | 4.8m | |
| Cutting Mode | Flame only; Plasma only; Flame and Plasma | |
| Drive Mode | Dual-side | |
| Drive Method | Rack and pinion drive for X and Y axes | |
| Flame Cutting Thickness | 5 -200mm | |
| Plasma Cutting Thickness | 1 -60mm (according to the specification of plasma power source) | |
| Cutting Speed | 0 -12000mm per minute | |
| Moving Precision | 0.01mm per step | |
| Power Source | 220V 50Hz 500-1000W | |
| Nesting Software | INTERGNPS, FASTCAM | |
| Cutting Gas | Acetylene, Propane | |
| Plasma Gas | Pressed air, Oxygen, N2 | |
| Marking Tool | ||
| Torch Height Controller (AUTO) | CHC600 | Capacitive height control for flame cutting |
| PHC330 | Arc voltage height control for plasma cutting | |
