China cnc hydraulic bending machine Zyb-63t/3200 with ce ISO9001 certification

Product Description

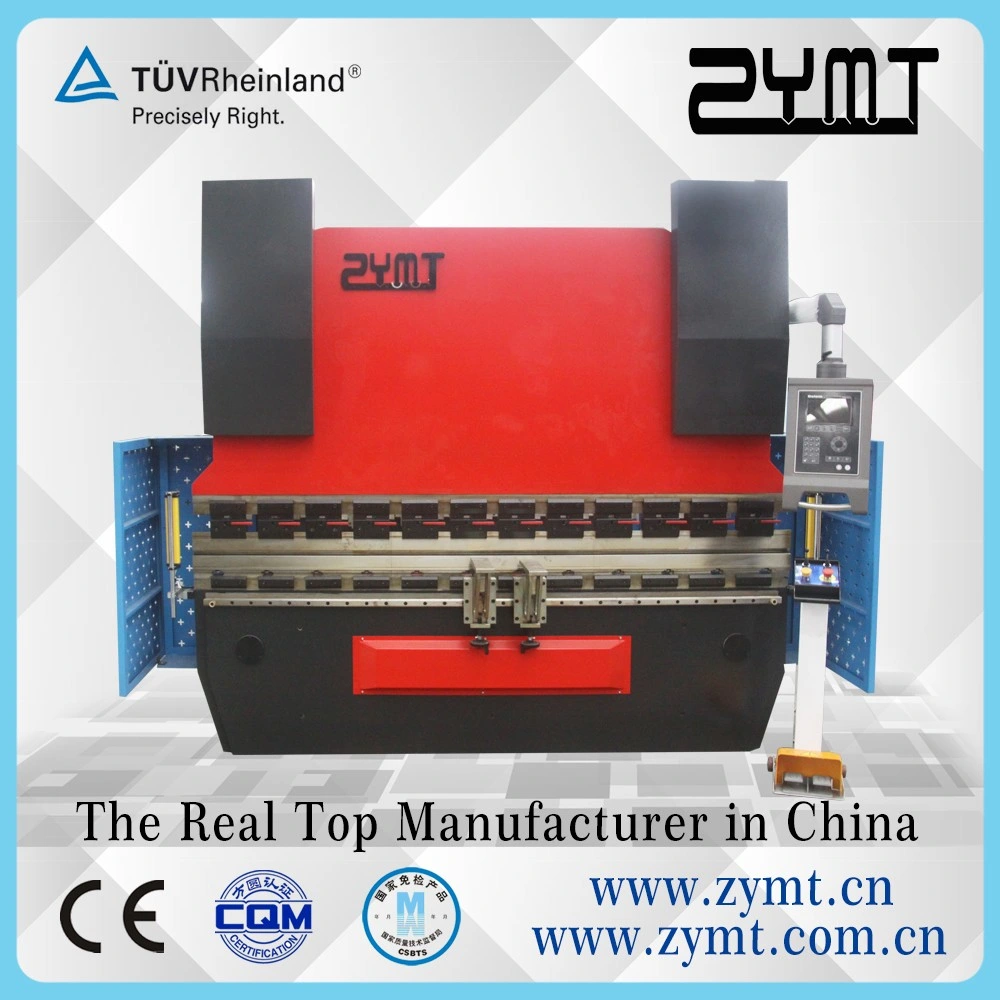

CNC Press Brake/Bending Machine ZYB-63T/3200 DA65W:

Main components of ZYB model Hydraulic Bending Machine :
(Standard)
1. Control System: DELEM DA52S
2. Servo motor and drive: Estun China
3. Hydraulic System: HOERBGER /
BOSCH Germany
4. Ball bearing lead screw:
Taiwan HIWIN
5. Straight-line guide:
Taiwan HIWIN
6. Connector: Germany EMB
7. Seal ring: Germany FIETZ or
Japanese VALQUA
8. Raster Ruler: Heidemhain Germany
9. Main electrical elements:
TE/OMROM/SIEMENS
10. Standard axes: Y 1 , Y 2 , X and V( V
for crowing table)

Optional:
1. DELEM DA56
2. DELEM DA66T
3. R/Z1/Z2-axis
4. Laser beam
5. Light beam

parameter of Hydraulic Bending Machine .

Model (ZYB-)	63T /2500	100T /3200	125T /3200	160T /3200	200T /3200	250T /3200	300T /320	400T /4000	500T /6000	600T /6000	800T /6000	800T /8000	1000T /6000	1000T /8000	1000T /1000
Nominal force(KN)	630	1000	1250	1600	2000	2500	3000	4000	5000	6000	8000	8000	10000	10000	10000
Bending length(mm)	2500	3200	3200	3200	3200	3200	3200	4000	5000	6000	6000	8000	6000	8000	10000
Vertical distance(mm)	1900	2700	2700	2700	2700	2700	2700	3500	4900	4900	4900	5900	4900	6900	8000
Throat depth(mm)	350	400	400	400	400	400	400	400	500	500	600	600	600	600	600
Stroke (mm)	170	200	200	200	200	200	200	320	320	320	400	400	400	400	400
Max. opening(mm)	380	420	420	420	420	420	420	420	600	600	600	600	600	600	600
Main power(KN)	5.5	7.5	11	11	15	15	22	30	37	45	55	55	2*37	2*37	2*37
Axes	3+1(Y1,Y2,X,V)
Compensation	Hydraulic compensation								Motorized compensation
X-travel(mm)	500								800
X-speed	200mm/s
Overall length(mm)	3100	3500	3500	3500	3500	3500	3500	4500	6500	6500	6500	8500	6500	8500	10500
Overall width(mm)	1450	1580	1580	1650	1680	1700	1800	2450	2810	2910	2950	2950	3000	3000	3000
Overall height(mm)	2050	2400	2400	2500	2550	2600	2730	3500	4500	5100	5300	5900	5600	6100	5850
Approximate weight(ton)	5.8	8.5	9.5	11	14	15.5	16.8	31	53	68	90	120	100	130	150

Features of Hydraulic Bending Machine
1:overall welded and processed structure
2:closed loop control mode composed by electric-hydraulic servo valve and measure ruler
3:ensure the highest control position, bending accuracy and repositioning accuracy are also reach to the highest level
4:back gauge mechanism can be multi-axes controlled
5:intergrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
6:worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is adjusted automatically by the CNC controller with convenient accuracy
7:CNC controller normally uses Holland Delem, Italy ESA,Swiss Cybelec, all with multi-languages.

Other standard equipments of Hydraulic Bending Machine :
Segmented upper punch die 1set
Lower die in one piece
Quick clampings 1set
Stop fingers 2
Front supporting arms 2
Emergency stop button;
Back, left and right safety fence
Foundation bolts 1set
Toolings 1set (screw driver and spanner)
Manuals and diagram 1book
