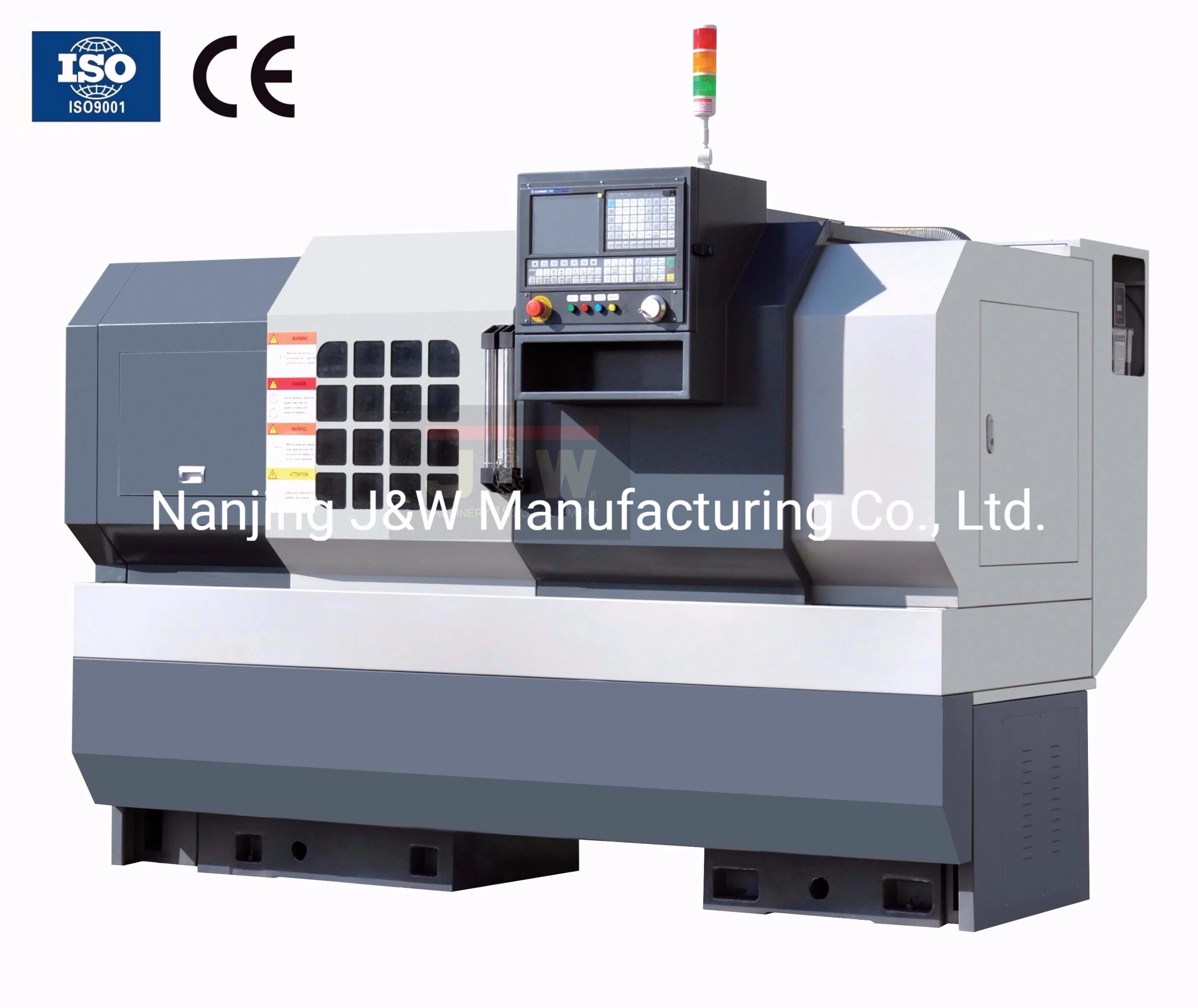

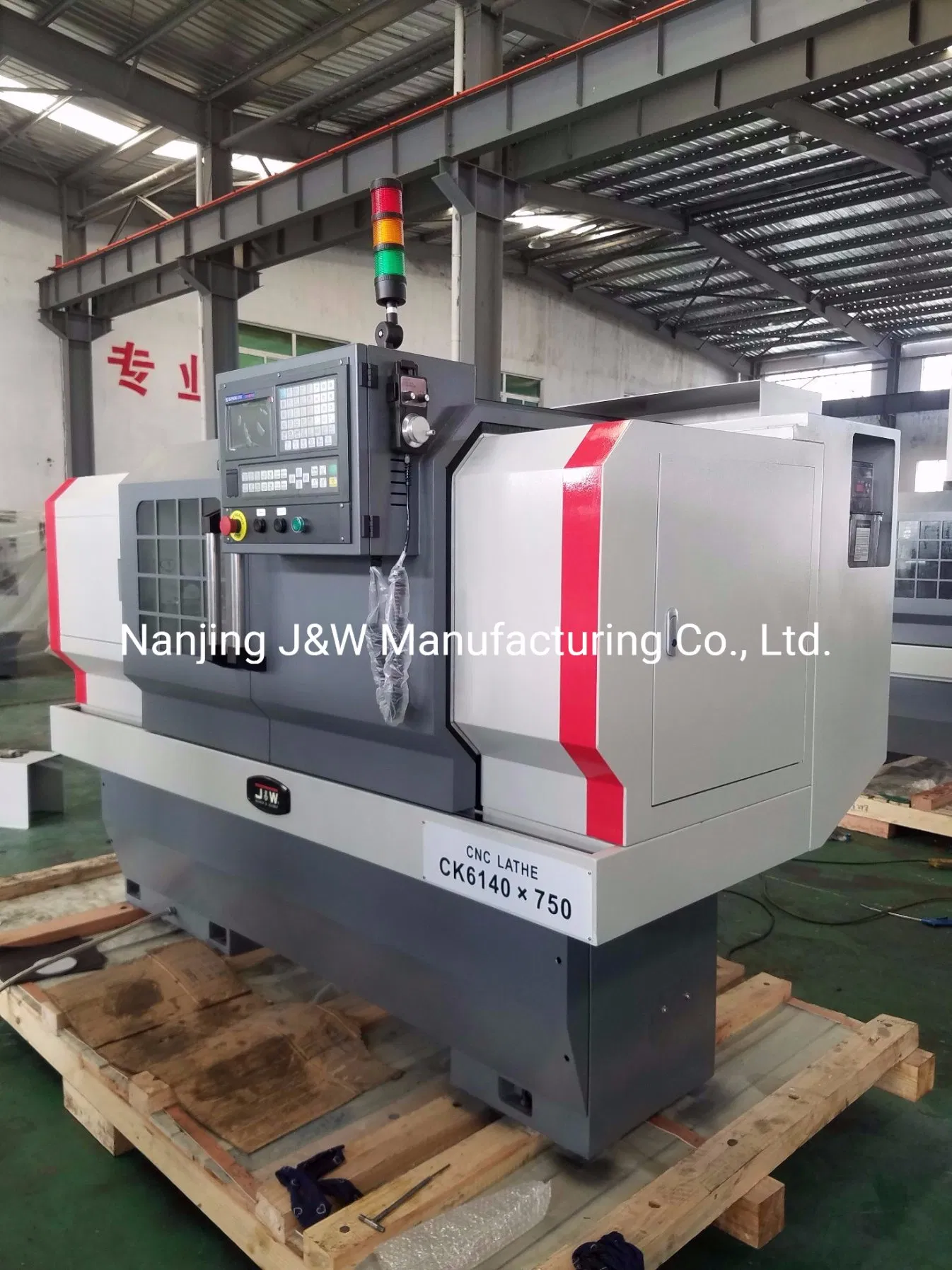

CNC Lathe CNC Torno CNC Turning Machine ( CK6140 Series)
SPECIFICATIONS: CK6132CK6436CK6140CK6150CK6156CK6166CK6180Max. swing over bed 320mm360mm400mm500mm560mm660mm800mmMax. swing over cross slide 150mm150mm240mm280mm320mm460mm540mmMax. distance between centers 500mm/750/1000mm500mm/750mm750/1000mm1000/1500mm1000/1500mm1500/2000/3000mmSpindle bore diame......
Send Inquiry
Product Description
| SPECIFICATIONS: | CK6132 | CK6436 | CK6140 | CK6150 | CK6156 | CK6166 | CK6180 |
| Max. swing over bed | 320mm | 360mm | 400mm | 500mm | 560mm | 660mm | 800mm |
| Max. swing over cross slide | 150mm | 150mm | 240mm | 280mm | 320mm | 460mm | 540mm |
| Max. distance between centers | 500mm/ 750/1000mm | 500mm/ 750mm | 750/1000mm | 1000/ 1500mm | 1000/ 1500mm | 1500/2000/3000mm | |
| Spindle bore diameter | 56mm | 60mm | 66mm | 86mm (105mm optional) | |||
| Spindle nose | A2-5 | A2-6 | A2-8 (A2-11 optional) | ||||
| Spindle taper bore | MT5 | MT6 | Metric 1:20 | ||||
| Bed width | 215mm | 260mm | 330mm | 400mm | 460mm | ||
| Spindle speed | 150~2500rpm | 30-2000rpm manual chuck 30-2500rpm hydraulic chuck | 30-1600rpm manual chuck 30-1800rpm hydraulic chuck | 30-100/100-500/150/1000rpm | |||
| Travel for X axis | 160mm | 180mm | 360mm | 500mm | 380mm | 450mm | |
| Travel for Z axis | 500mm/750mm/1000/1500/2000/3000mm | ||||||
| Tailstock quill diameter/taper | 45mm MT4 | 50mm MT4 | 55mm MT4 | 75mm MT5 | 100mm MT5 | 102mm MT5 | |
| Tailstock quill travel | 100mm | 195mm | 180mm | 305mm | |||
| No. of stations of the turret | 4(standard) 6/8(optional) | ||||||
| Section of tool holder | 16x16mm | 20x20mm | 25x25mm | 32x32mm | |||
| Main motor power | 3.7kw | 4kw | 7.5kw | 7.5kw (11kw optional) | 11kw (15kw optiona) | ||
| Coolant pump power | 120w | 180w | 200w | 250w | |||
