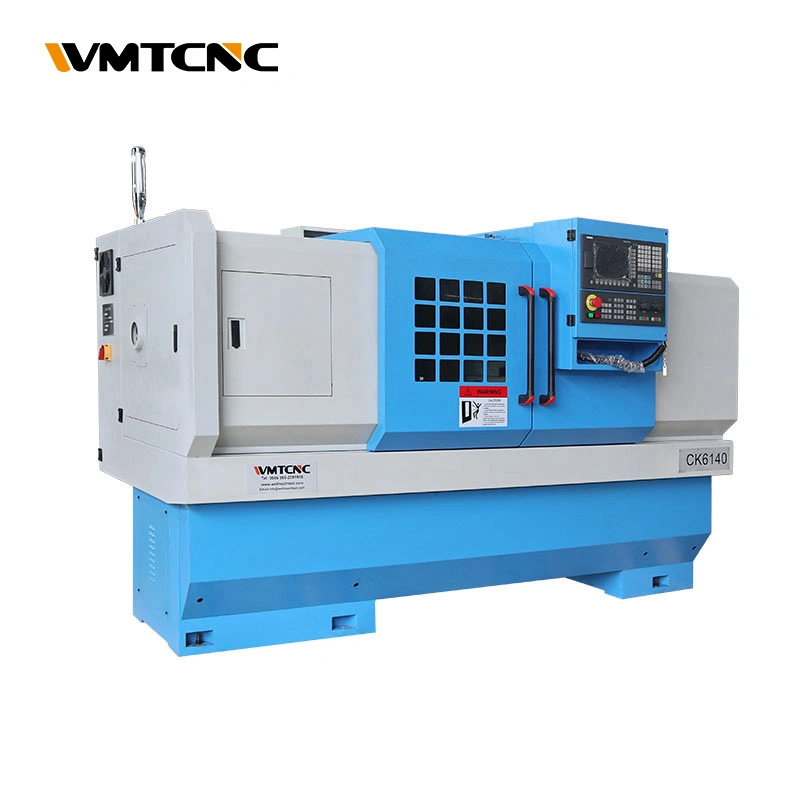

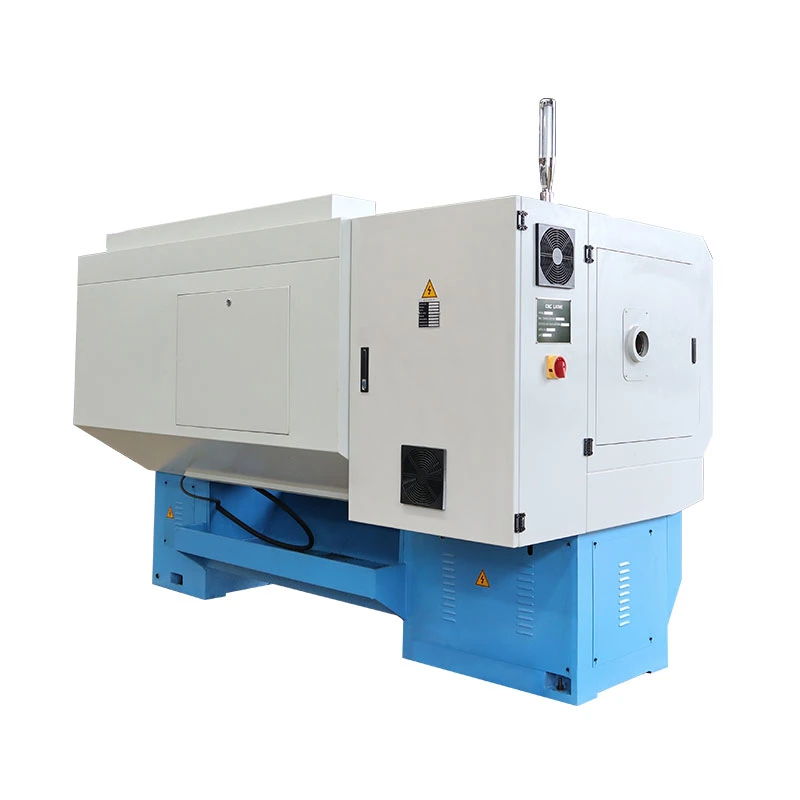

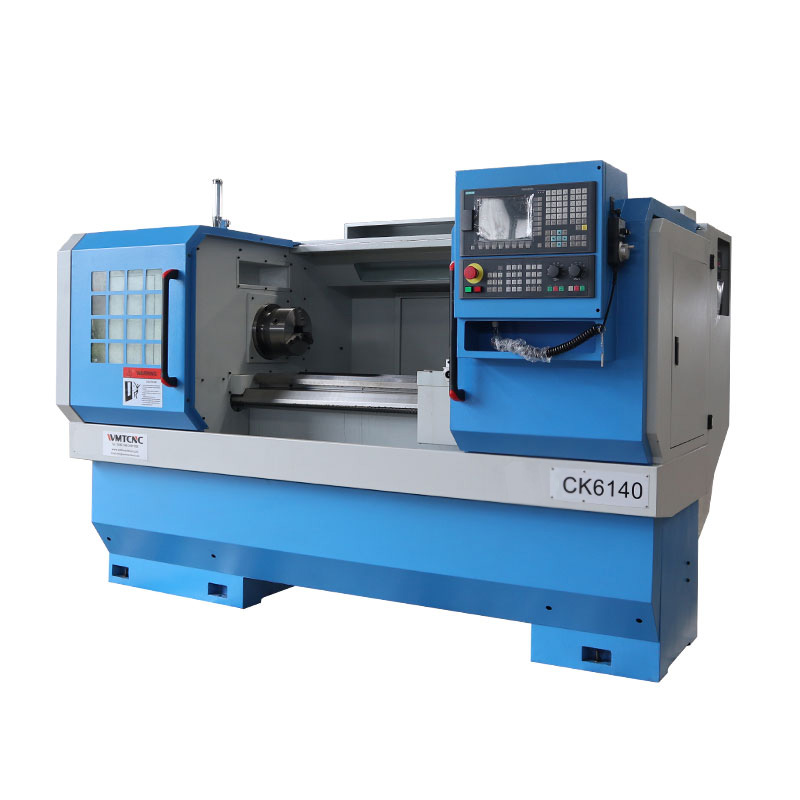

CNC Lathe Machine CK6140 for precision threads cutting
Feature for CNC Lathe Machine CK6140Full Cover Safe and easy operationHardened bedwayElectric turret and gang-tools turret for chosingAuto lubrication cnc machineMain specification or CNC Lathe CK6140Main SpecificationCK6140×750/1000/1500mmMax. swing over bedΦ400mm(16")Max. sw......
Send Inquiry

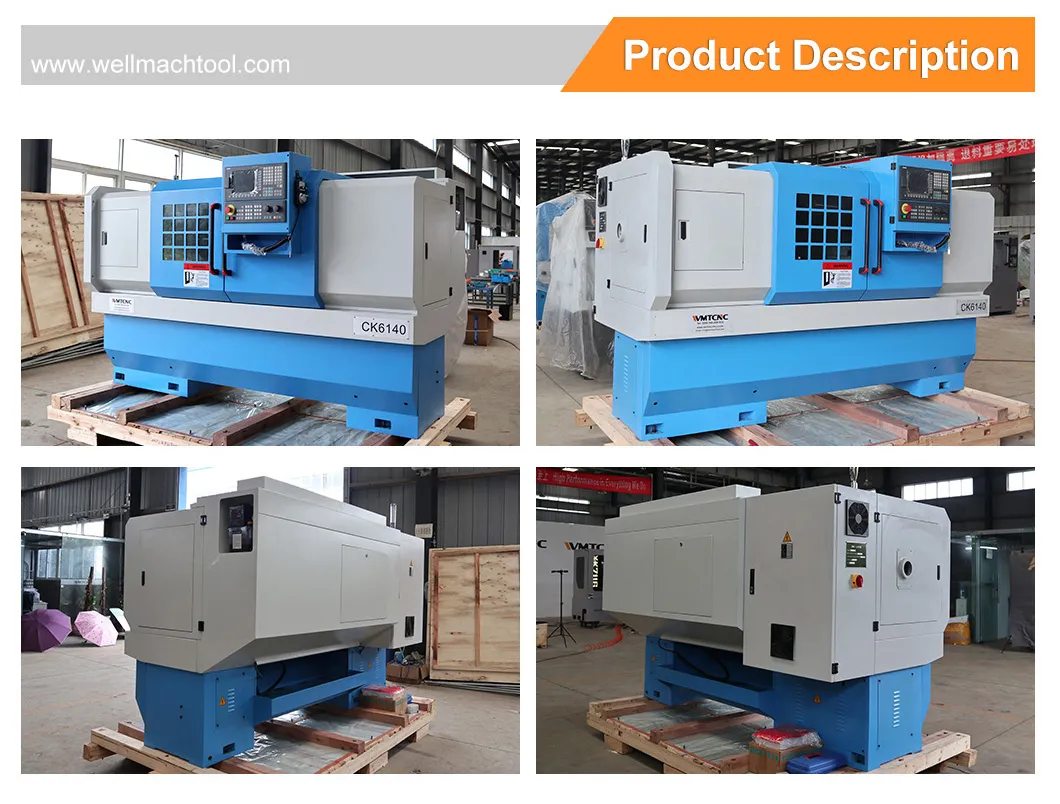

Product Description
Feature for CNC Lathe Machine CK6140
Full Cover
Safe and easy operation
Hardened bedway

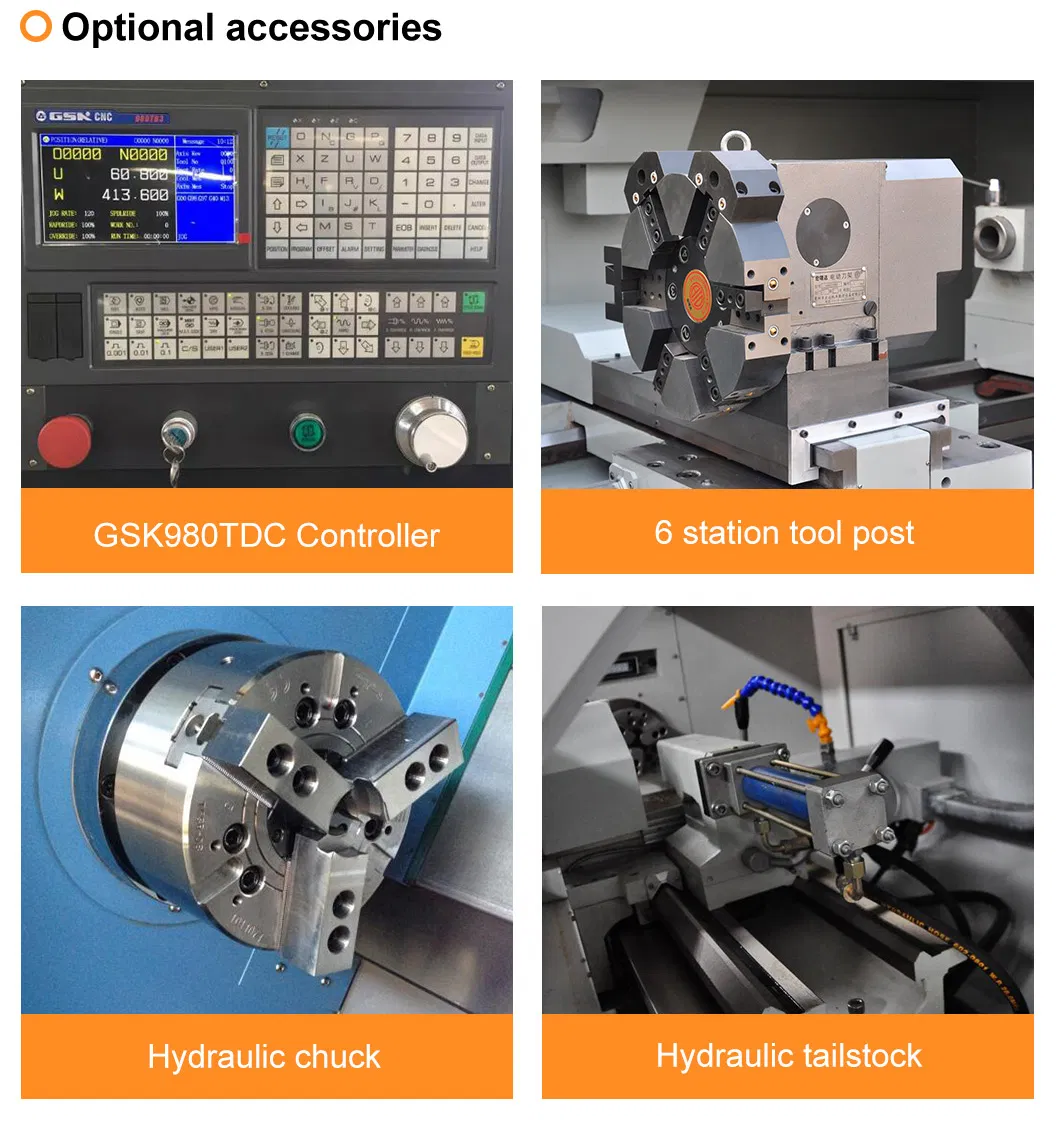

Electric turret and gang-tools turret for chosing
Auto lubrication cnc machine
Main specification or CNC Lathe CK6140

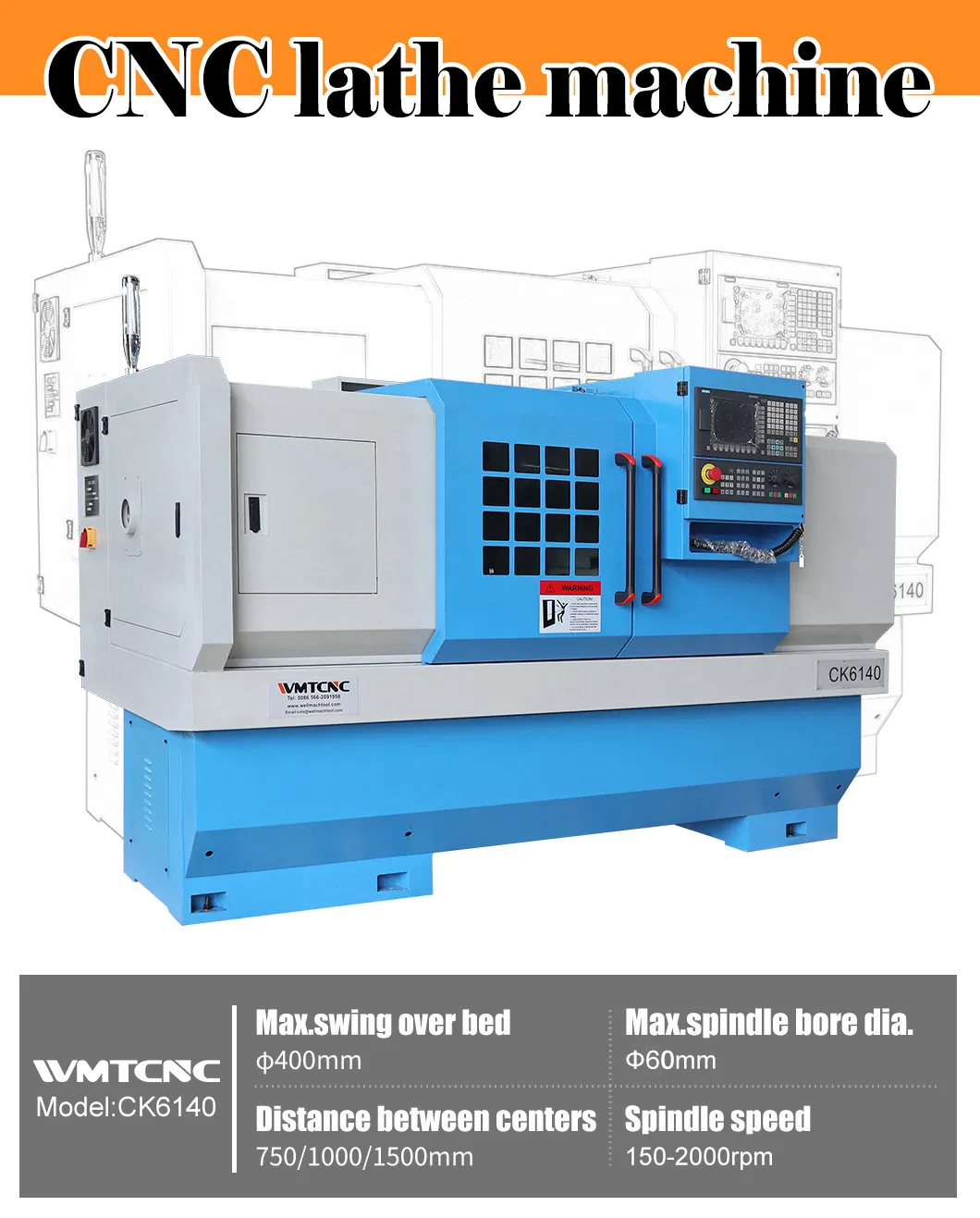

| Main Specification | CK6140×750/1000/1500mm |
| Max. swing over bed | Φ400mm(16") |
| Max. swing over carriage | Φ245mm(10") |
| Max length of work piece | 1000/1500mm |
| Range of spindle speed | 150-2000rpm |

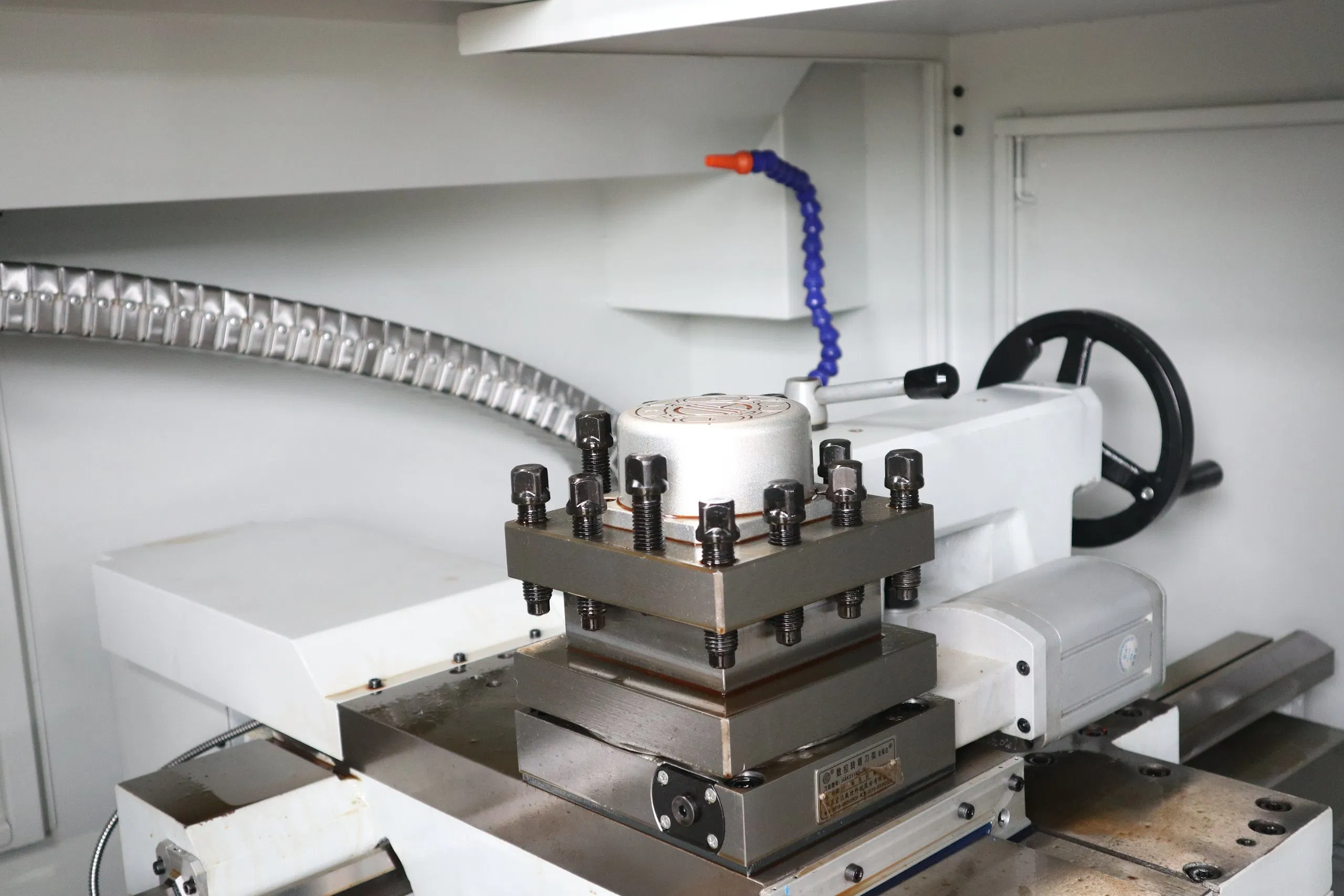

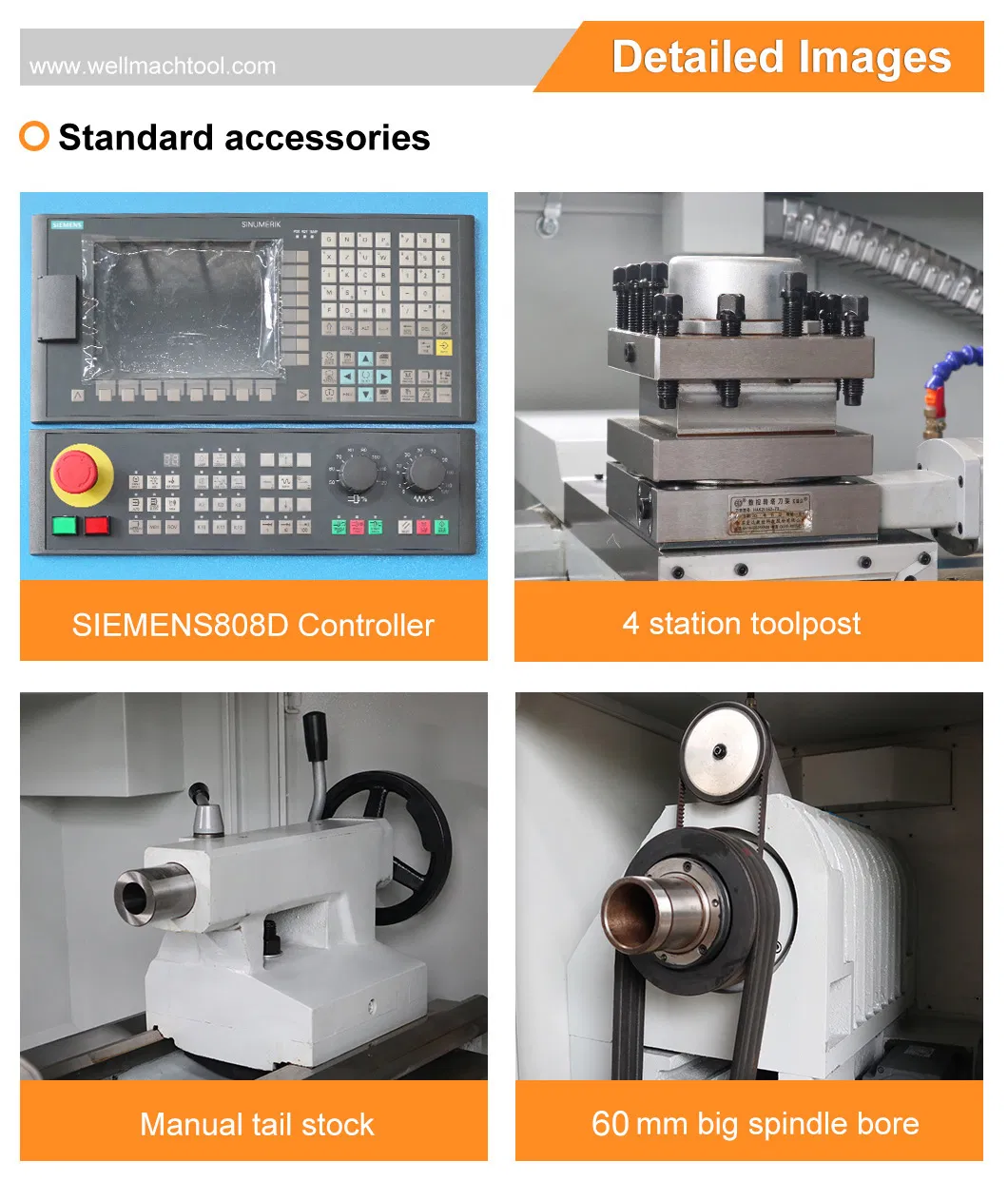

| Stations of tool post | 4/6/8 position or gang type tool holder |
| Spindle bore | Φ60mm(2-3/4") |
| Taper of spindle bore | MT6 |
| X-rapid speed | 6m/min |
| Z-rapid speed | 8m/min |
| Width of guide way | 330mm(13") |
| X-axis travel | 250mm(10") |
| Z-axis travel | 750/1000/1500mm |
| Max size of tool post | 25×25mm |
| Taper of tail stock | MT4 |
| Max range of tail stock quill | 120mm(4-3/4") |
| Power of main motor | 5.5kw |

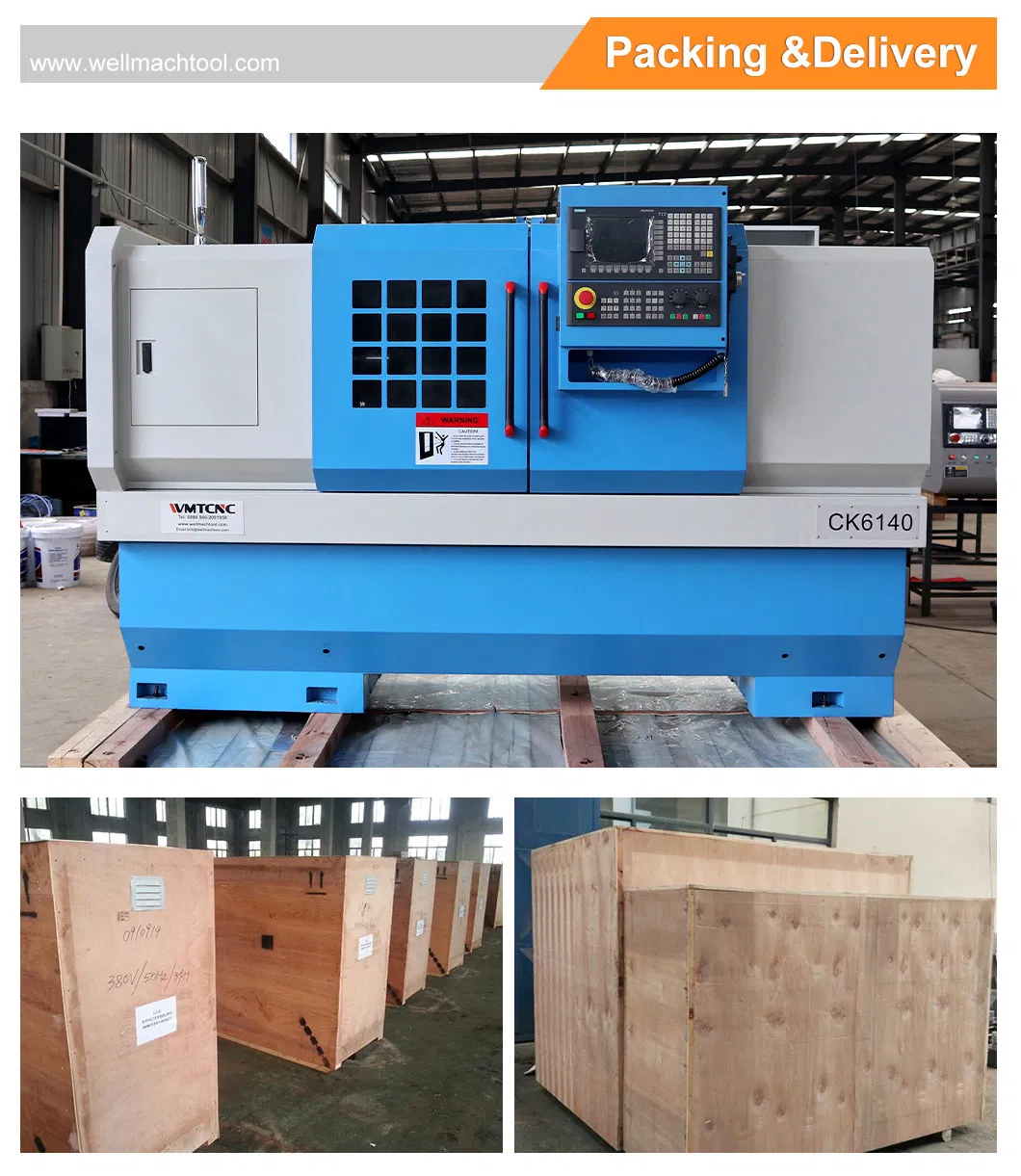

| Packing size(L×W×H) | 2740/3240×1620×2100mm |
| Net weight | 1700kg/2100kg |
Welcome to contact with us!
