CNC Lathe Machine CNC Turning Machine
CK6432 China Small CNC Machine Tool Torno CNC Metal Cutting CNC Turning Lathe MachineSpecificationsModelCK6432AMax. swing dia. over bed360mmMax. swing dia. over cross slide150mmMax. processing length450mm(Between two centers)Dia. of spindle bore60mmSpindle taperMT6Spindle speed100-2500mmTool holder4......
Send Inquiry
Product Description

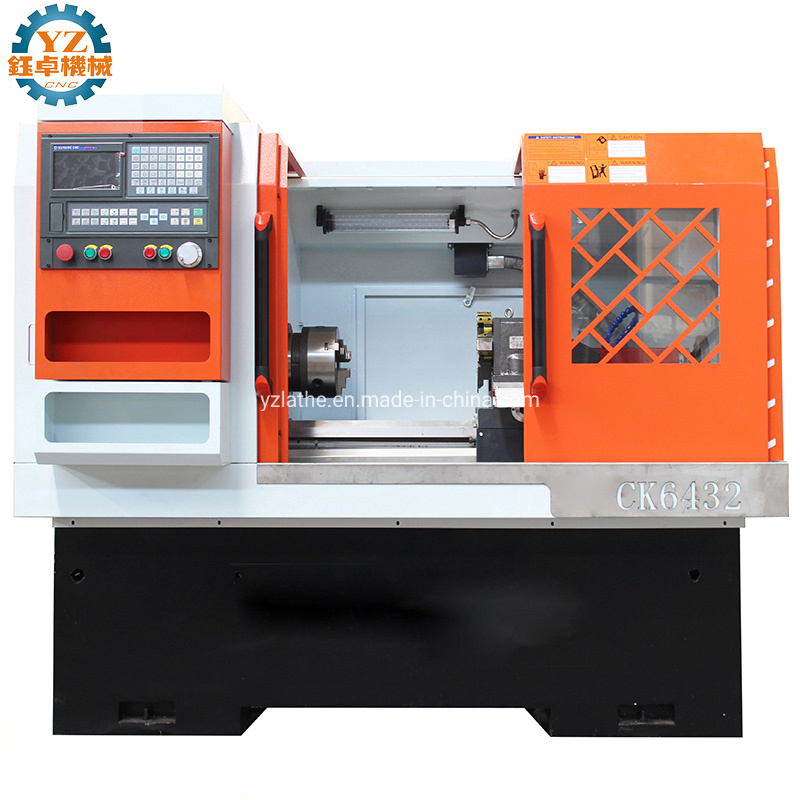

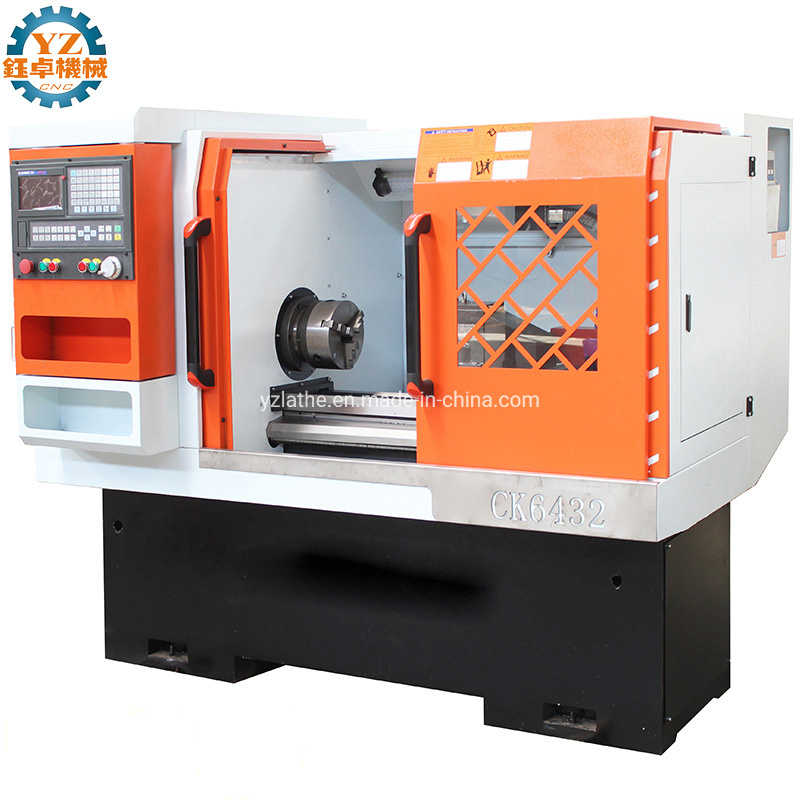

CK6432 China Small CNC Machine Tool Torno CNC Metal Cutting CNC Turning Lathe Machine
Specifications
Machine Detailed Photos
Standard Configuration:

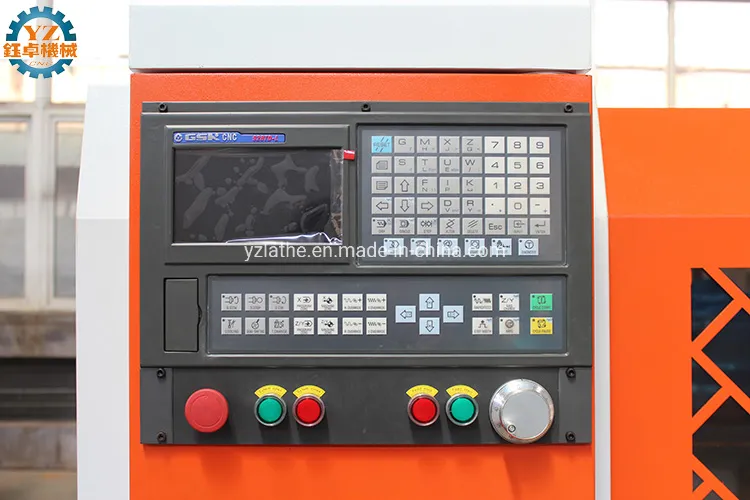

1- CNC system: GSK928;
2- Pneumatic collet;
3- Gang type tool carrier;

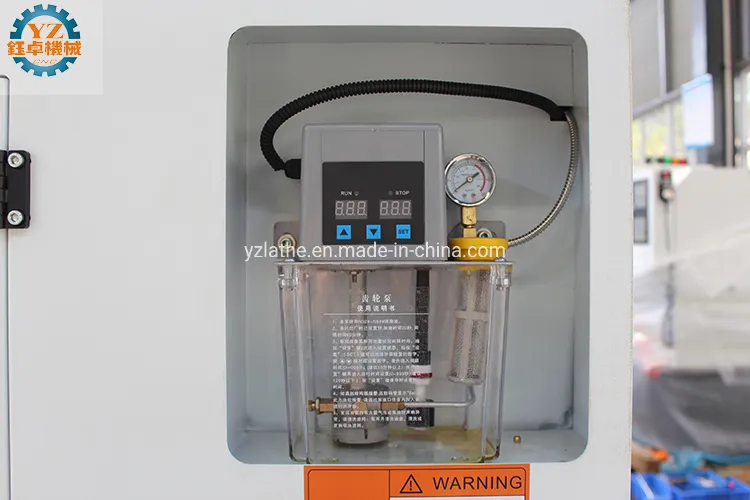

4- Automatic lubrication system;
5- Work lighting system;
6- Turning cooling system;
7- Cast iron stand.
Optional Configuration:
1- CNC system: GSK980, KND, Siemens 808D, Fanuc, etc.;

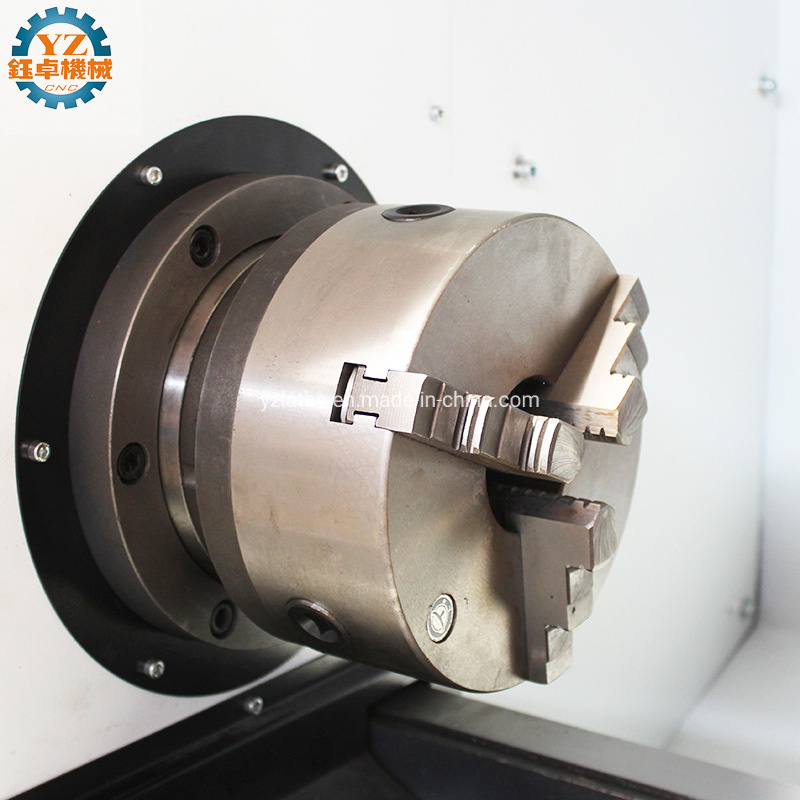

2- Manual chuck;
3- Pneumatic chuck;
4- Hydraulic chuck (solid or hollow);
5- Manual tailstock;
6- Pneumatic tailstock;
7- Hydraulic tailstock;
8- Automatic feeder;
9- Vertical four-station turret.
After-sale Services:
Warranty is one year. We would offer the parts (quality problem) free of charge during this period.
Company Information:

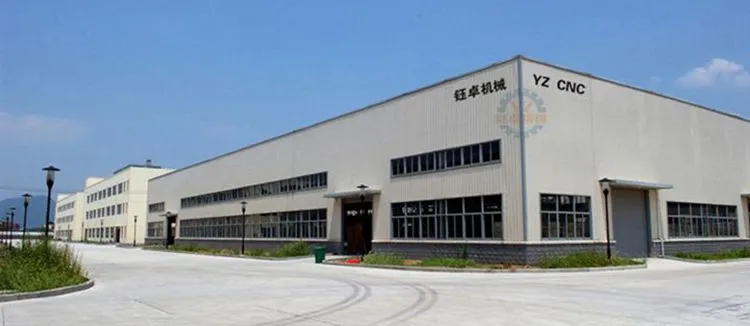

Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
Specifications
| Model | CK6432A |
| Max. swing dia. over bed | 360mm |
| Max. swing dia. over cross slide | 150mm |
| Max. processing length | 450mm(Between two centers) |
| Dia. of spindle bore | 60mm |
| Spindle taper | MT6 |
| Spindle speed | 100-2500mm |
| Tool holder | 4 station |
| Tool bar section | 20x20mm |
| Main motor power | 4kw |
| X/Z axis torque | 4/4N.M |
| X/Z axis fast feeding speed | 6/8m/min |
| Tailstock sleeve travel | 100mm |
| Tailstock taper | MT4 |
| Dimension (L*W*H) | 1660*1400*1700mm |
| Weight | 1250kg |

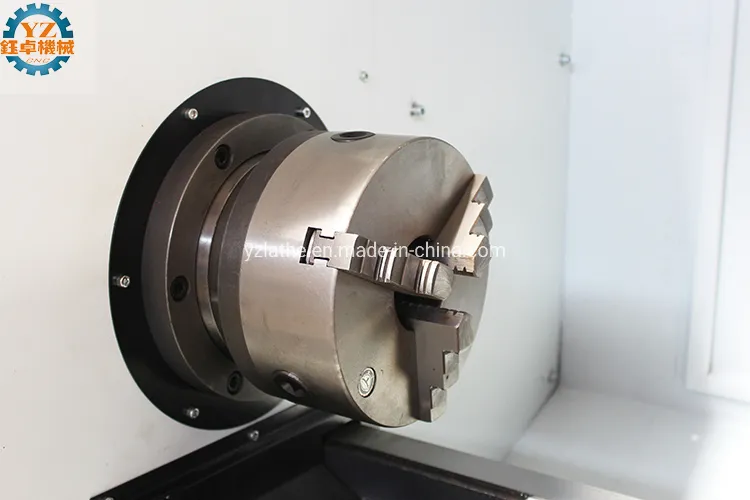

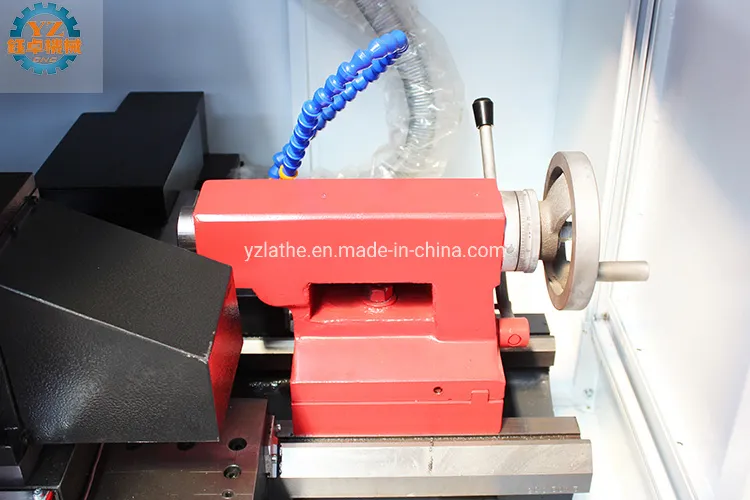

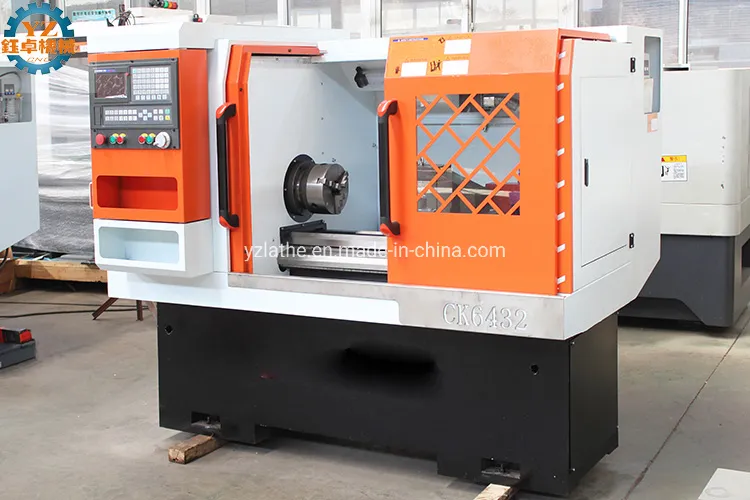

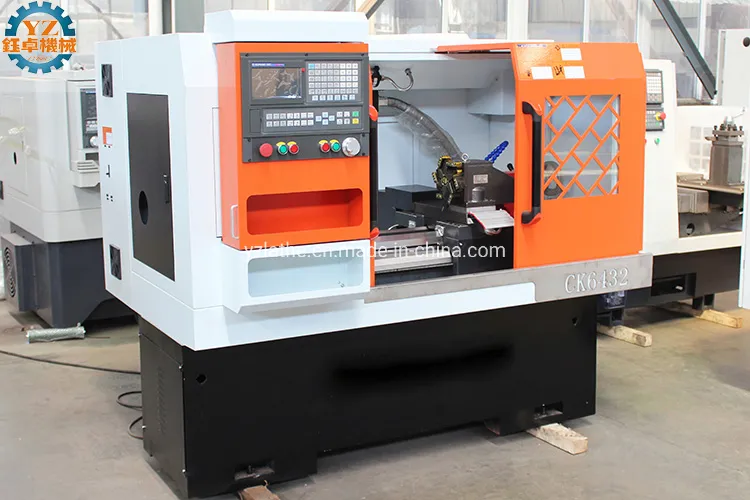

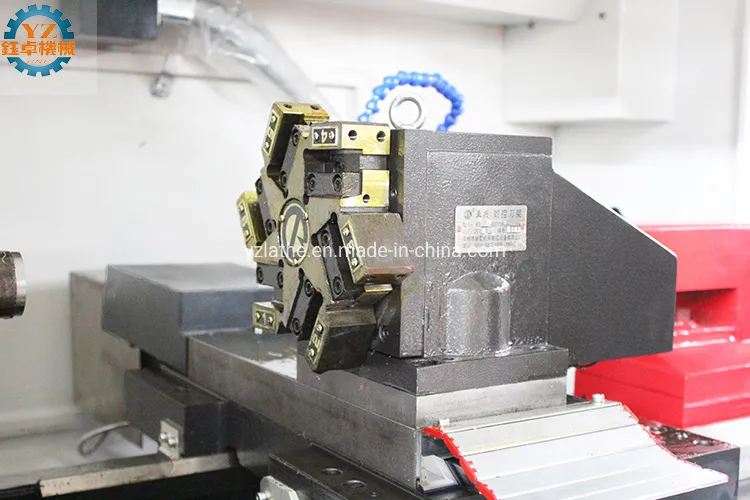

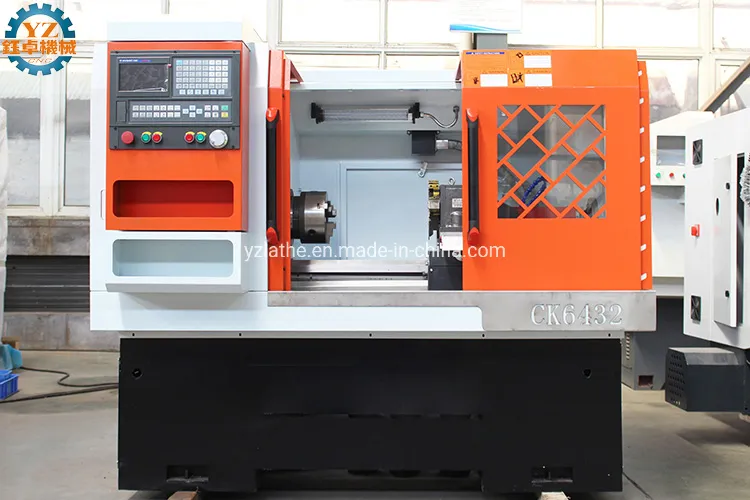

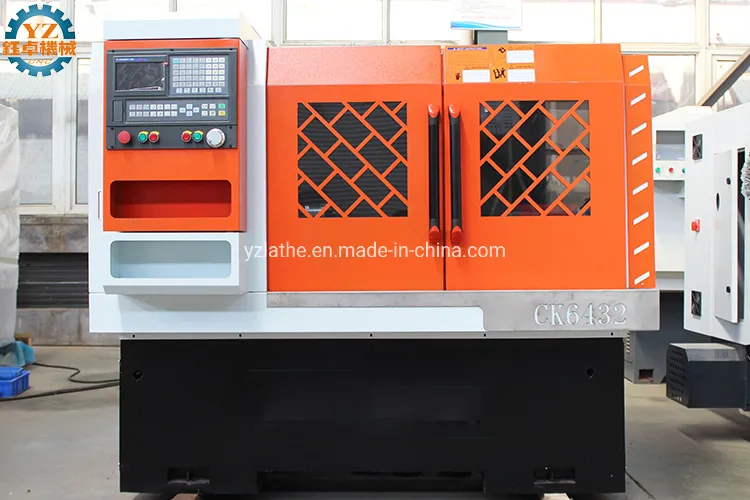

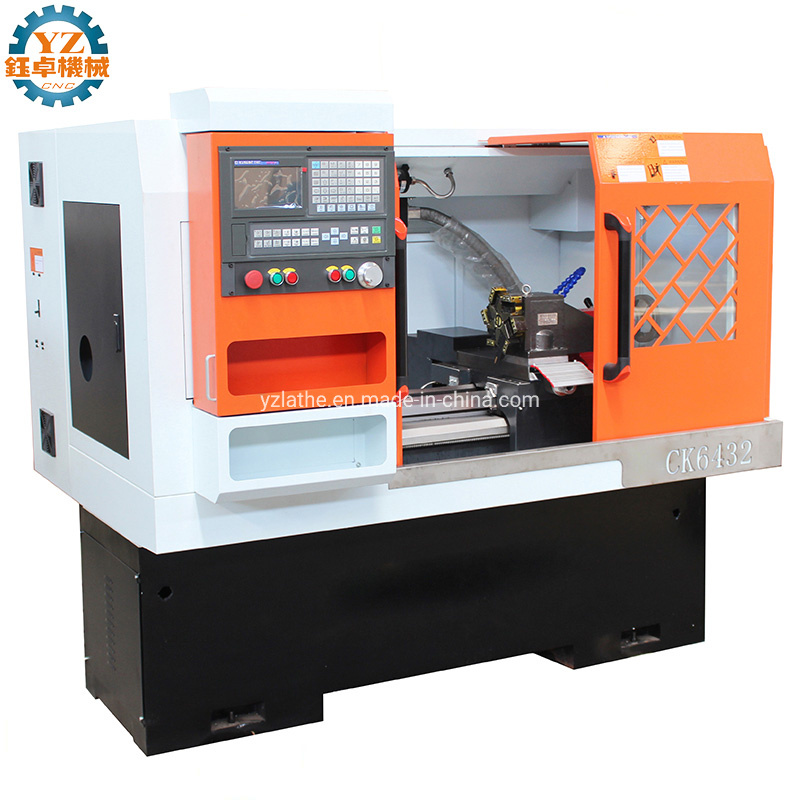

Machine Detailed Photos
Standard Configuration:
1- CNC system: GSK928;
2- Pneumatic collet;
3- Gang type tool carrier;
4- Automatic lubrication system;
5- Work lighting system;
6- Turning cooling system;
7- Cast iron stand.
Optional Configuration:
1- CNC system: GSK980, KND, Siemens 808D, Fanuc, etc.;
2- Manual chuck;
3- Pneumatic chuck;
4- Hydraulic chuck (solid or hollow);
5- Manual tailstock;
6- Pneumatic tailstock;
7- Hydraulic tailstock;
8- Automatic feeder;
9- Vertical four-station turret.
After-sale Services:
Warranty is one year. We would offer the parts (quality problem) free of charge during this period.
Note: GSK ,Servo driven, motor and transformer, Warranty is 3 years.
Company Information:
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
