CNC Milling Machine, CNC Milling Machine Mitsubishi M80 , CNC Machining Centerev1060
CNC Milling Machine, CNC Milling Machine MITSUBISHI M80 ,cnc machining centerEV1060Basic Info :Working video https://hirung.en.made-in-china.com Model NO.: EV1060 ......
Send Inquiry
Product Description
CNC Milling Machine, CNC Milling Machine MITSUBISHI M80 ,cnc machining centerEV1060
Basic Info :
Working video https://hirung.en.made-in-china.com
Model NO.: EV1060
Object: Hardware, Metal, Mould,Workpiece
Type: CNC Milling Machine
Milling Cutter Type: Vertical Milling Center
Controlling Mode: CNC
Precision: High Precision
Condition: New
Trademark: HIRUNG
Specification: CE, ISO9001
HS Code: 8459619000
Origin: China
We are China not cheap price , but we are best quality in China .
Specification:
Basic Info :
Working video https://hirung.en.made-in-china.com
Model NO.: EV1060
Object: Hardware, Metal, Mould,Workpiece
Type: CNC Milling Machine
Milling Cutter Type: Vertical Milling Center
Controlling Mode: CNC
Precision: High Precision
Condition: New
Trademark: HIRUNG
Specification: CE, ISO9001
HS Code: 8459619000
Origin: China
We are China not cheap price , but we are best quality in China .
Specification:

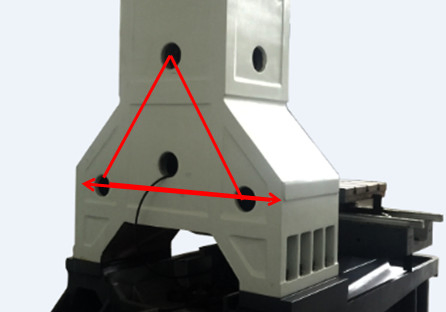

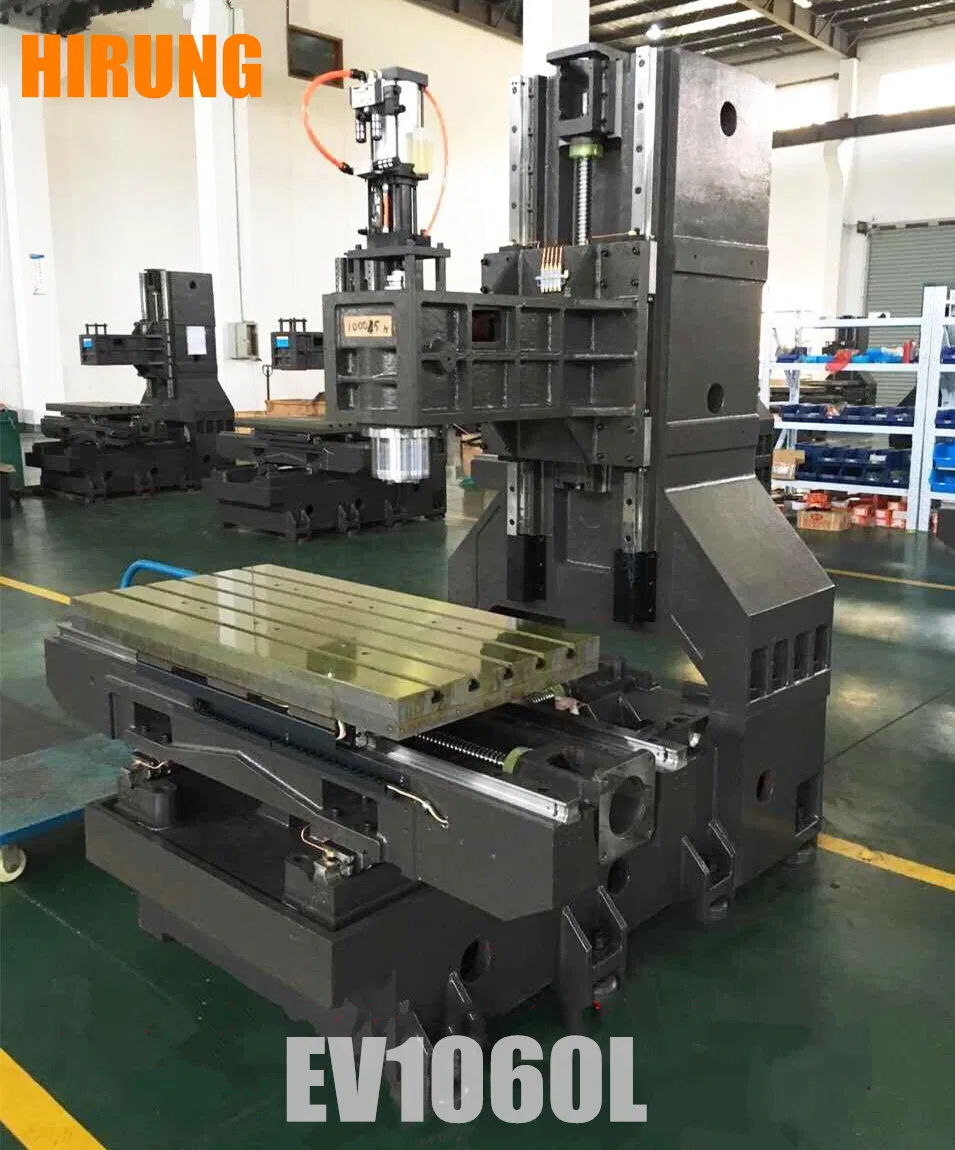

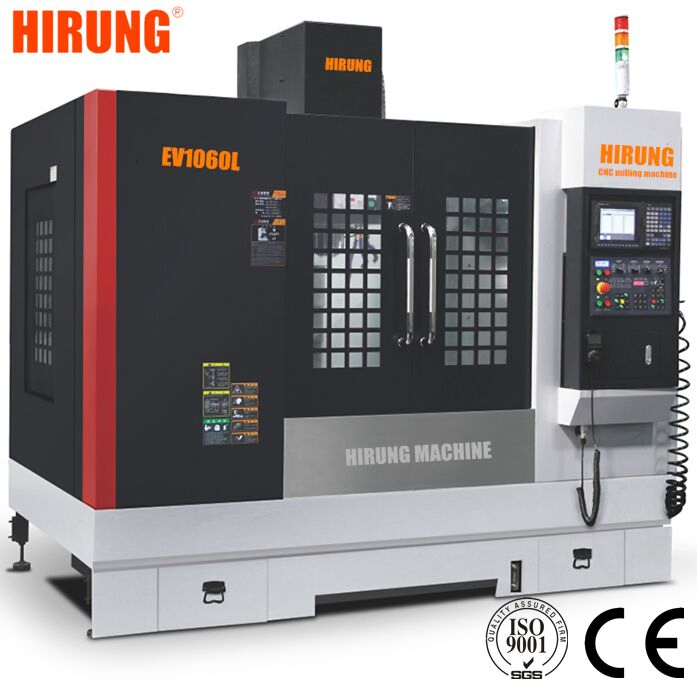

Our machine EV 1060L is fit for processing metal mould, it is high rigidity and heavy cutting
(high precision spindle)
Main Parameter
| Items | EV1060L | |
| Travel | X-axis travel | 1000mm |
| Y-axis travel | 600mm | |
| Z-axis travel | 600mm | |
| Distance from spindle nose to work table | 70-670mm | |
| Distance from spindle center to column | 655 mm | |
| Table | Table size | 600×1300 mm |
| Max. table load | 1000kg | |
| T-Slot size | 18/5 mm | |
| Spindle | BT-Type | BT-40 |
| Spindle max. speed | Belt type 8000 rpm(OP12K) | |
| Turret | Tool magazine | 24 (OP 32) |
| Tool change time | 2.2sec. | |
| Motor | Spindle power (kw) | 7.5/11 kw(OP11/15KW) |
| 3-axis power (kw) | X/Y/Z:3.0 kw | |
| Feedrate | Cutting feed rate | 0-10000mm/min |
| Rapid feed rate | X/Y:30000 mm/min Z :24000 mm/min | |
| Other | Air pressure | ≥6 kgf/cm2 |
| Net weight | 8000kg | |
| Floor space | 3300*2500*2750mm | |
| NC system | MITSUBISHI M80B | |

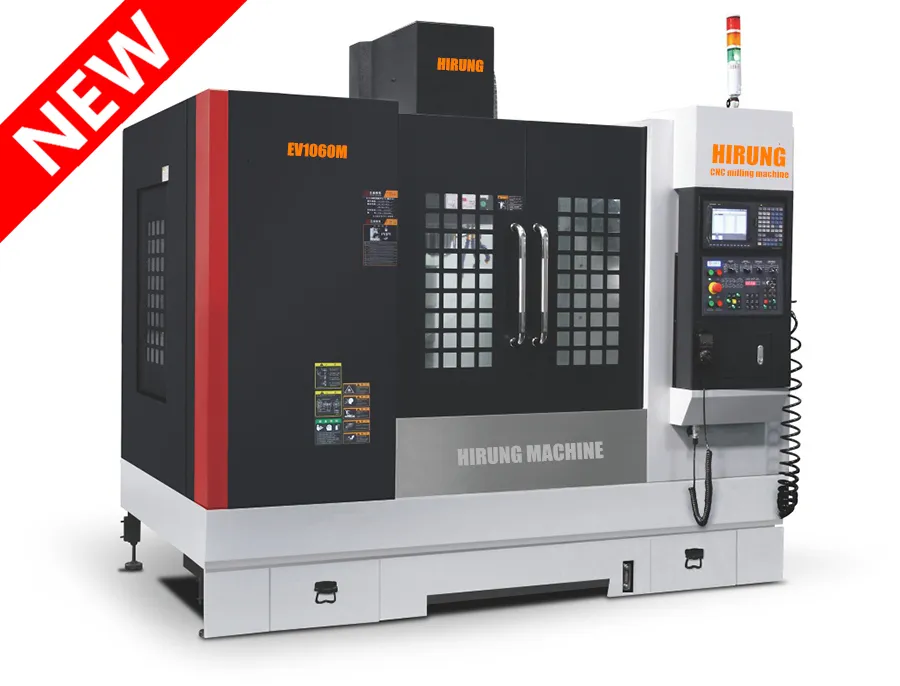

| item | unit | EV850L/M | EV1060L/M | EV1270L/M | EV1580 | EV1890 |
| X/Y/Z-axis travel | mm | 800/500/500 | 1000/600/600 | 1200/700/700 | 1500/800/700 | 1800/900/800 |
| Table size | mm | 550*1000 500*1050 | 600*1300 | 700×1360 | 800*1700 | 900*2000 |
| Max. table load | kg | 600 600kg | 1000 | 1400 | 2000 | 2000 |
| BT-Type | BT-40 | BT-40 | BT-40/50 | BT-50(OP40) | BT-50(OP40) | |
| Spindle max. speed | rpm | Belt type 8000rpm(OP10000/12000/15000) | 6000rpm | 6000rpm | ||
| Spindle power | kw | 7.5/11 | 7.5/11(OP 11/15) | 7.5/11(OP 11/15) | 11/15 | 11/15 |
| 3-axis power | kw | X/Y/Z:2.0 | X/Y/Z:3.0 | X/Y/Z:4.0 | X/Y/Z:5.0 | X/Y/Z:7.0 |
| Cutting feed rate | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-8000 | 0-8000 |
| Rapid feed rate | mm/min | L:X/Y:48000 Z :36000 M:X/Y:20000 Z :15000 | L:X/Y:30000 Z :24000 M:X/Y:20000 Z :15000 | L:X/Y/Z :30000 M:X/Y:16000 Z:14000 | X/Y:16000 Z:14000 | X/Y:16000 Z:14000 |
| Net weight | kg | L:6500 M:6000 | 8000 | 9500 | 12000 | 15500 |
| Floor space | mm | L:2700*2500*2730 M:2700*2400*2600 | L:3300*2500*2750 M:3350*2500*2800 | 3700*3000*3000 | 4100*3200*3250 | 4500*3500*3500 |
| NC System | MITSUBISHI M80 / SIEMENS 828D(PPU240)8.4''/FANUC 0IMF | |||||

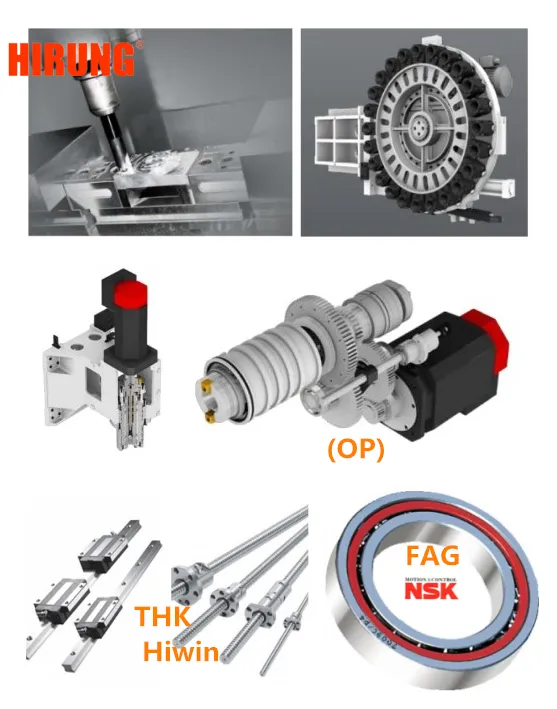

Standard Configuration
1,Total Splash Guard
2,24 Arm Type ATC 24 Tools
3, 8000rpm Belt Type Spindle
4,Cutting Coolant System
5, Automatic Centralized Lubrication System
6, Heat Exchanger for Electric Cabinet
7, Manual Pulse Generator
8,RS232 RS232 Interface
9, Working Light
10, Tricolor Caution Light
11 Basic toolbox
12 Leveling Bolts and Blocks
:Optional Configuration
1: Spindle Oil Cooler Devices
2: Auto Spiral Type Chip Conveyor
3: Hinge(Scraper) Type Chip Conveyor
4: (10-75Par)) Coolant Through Spindle Device
5: Air Conditioning Device in the Electric Box
6: Auto-measurement System for Tool Length and Diameter
7: Measuring System of Workpiece
8: Non-contact Measuring System of Tool Length and Diameter
9: Full Closed-loop System of the Linear Scale
10: (BT40) Spindle Speed (BT40) 10000/12000/15000rpm
10000/12000/15000rpm
11: NCRotary Table of the Forth(Fifth) Axis
1,Total Splash Guard
2,24 Arm Type ATC 24 Tools
3, 8000rpm Belt Type Spindle
4,Cutting Coolant System
5, Automatic Centralized Lubrication System
6, Heat Exchanger for Electric Cabinet
7, Manual Pulse Generator
8,RS232 RS232 Interface
9, Working Light
10, Tricolor Caution Light
11 Basic toolbox
12 Leveling Bolts and Blocks
:Optional Configuration
1: Spindle Oil Cooler Devices
2: Auto Spiral Type Chip Conveyor
3: Hinge(Scraper) Type Chip Conveyor
4: (10-75Par)) Coolant Through Spindle Device
5: Air Conditioning Device in the Electric Box
6: Auto-measurement System for Tool Length and Diameter
7: Measuring System of Workpiece
8: Non-contact Measuring System of Tool Length and Diameter
9: Full Closed-loop System of the Linear Scale
10: (BT40) Spindle Speed (BT40) 10000/12000/15000rpm
10000/12000/15000rpm
11: NCRotary Table of the Forth(Fifth) Axis
Packing & Delivery
Packing Details : To be packed in wooden cases,suitable for export.
Delivery Details : 25~35 days after receipt of deposit

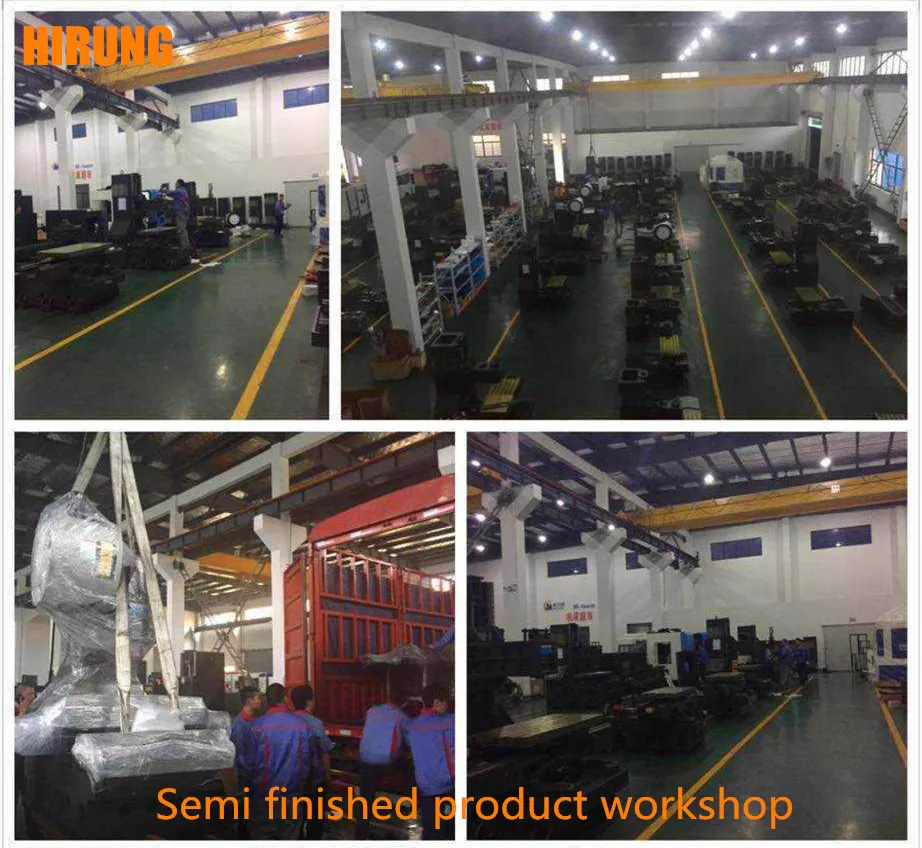

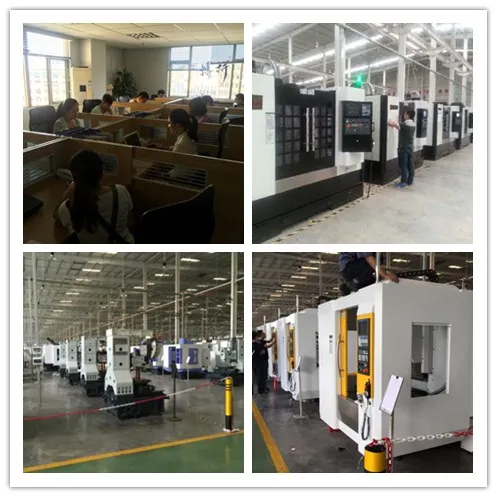

COMPANY PROFILE
Hirung Enterprise Co., Ltd. CNC began machine tools business in 2001, in the beginning , CNC equipment is our flagship product, after the industry 2.0 and 3.0, we have ushered in a new
industry 4.0.
In 2014 we set up Hirung Precision Machinery Co., Ltd. in Dongguan City, in July 2015 we setup branch office in Indonesia, in August 2015 we set up branch office in Bangladesh under
our global brand marketing strategy. Currently our company is in the line of CNC machine
tools, CNC automation tools, we provide good equipment and good after-sales service for the customers. Our goal is to make"HIRUNG" CNC machine tools one of China's most professional automation brands.
Why choose us:
1.Reliable Trademark Company.
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine According to Customer's Requirement.
4.CE approved and One year warranty,provide whole-life technology support.
5.High quality with competitive price.
6.We supply professional solution to you based on your own process one by one.
7.We supply one years Warranty for whole machine.
8.7*24 hours Email or phone service.
9.China s best machine -HIRUNG
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 35 days , it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: NO.
Q: What is your terms of payment ?
A: T/T 30% with the order, the rest 70% of total amount T/T before.
