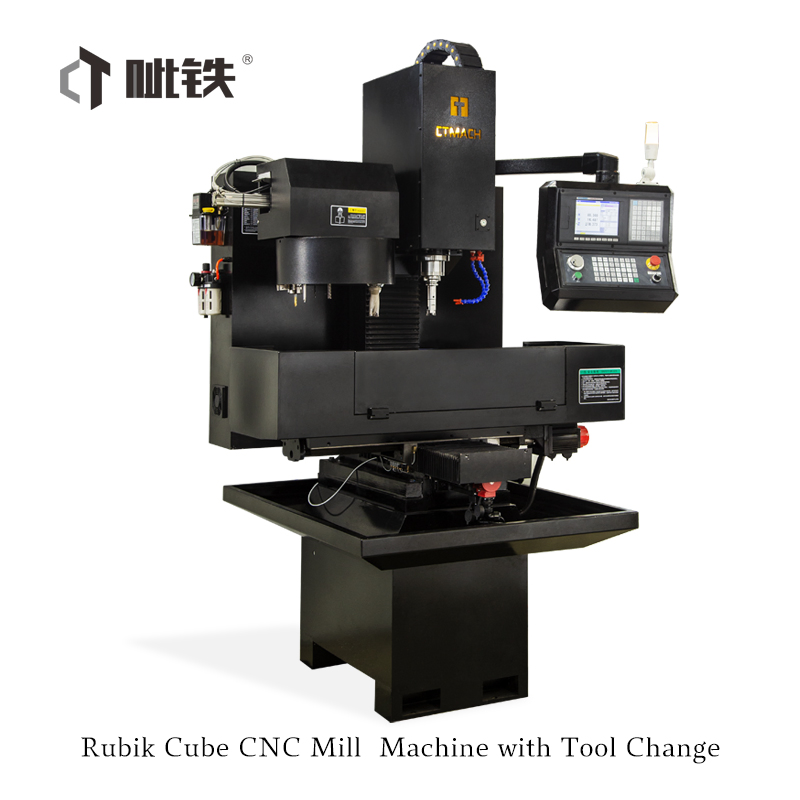

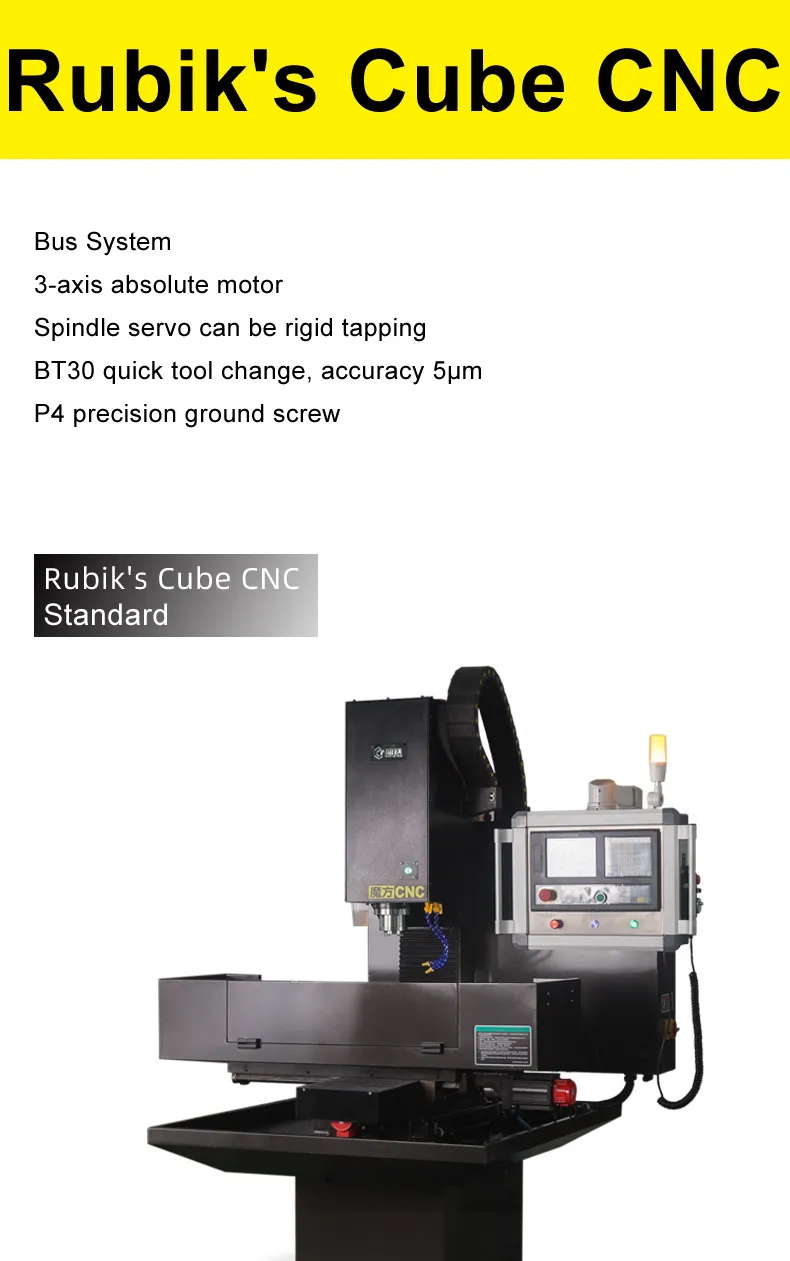

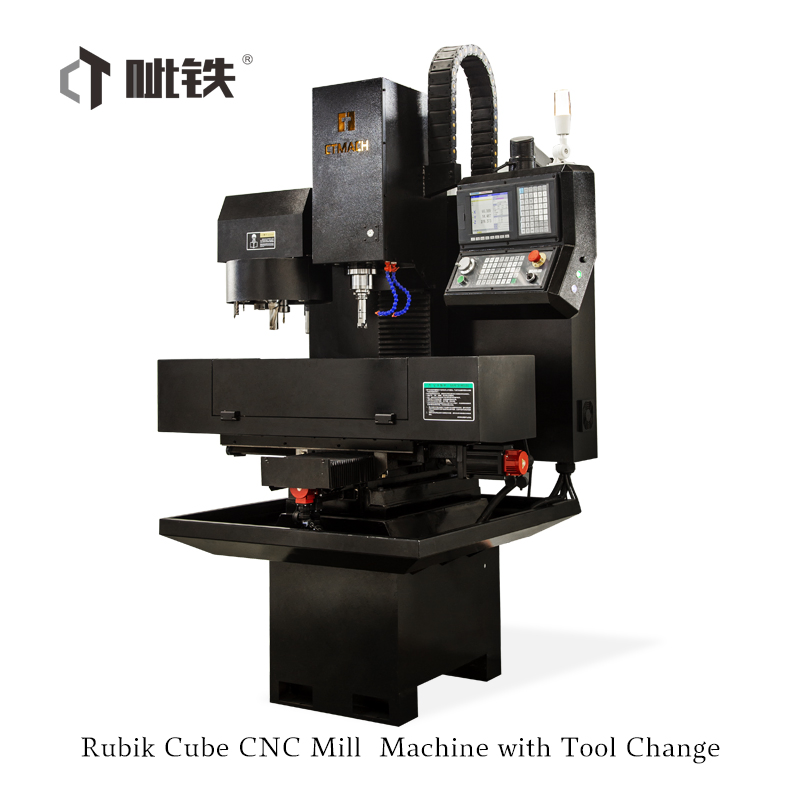

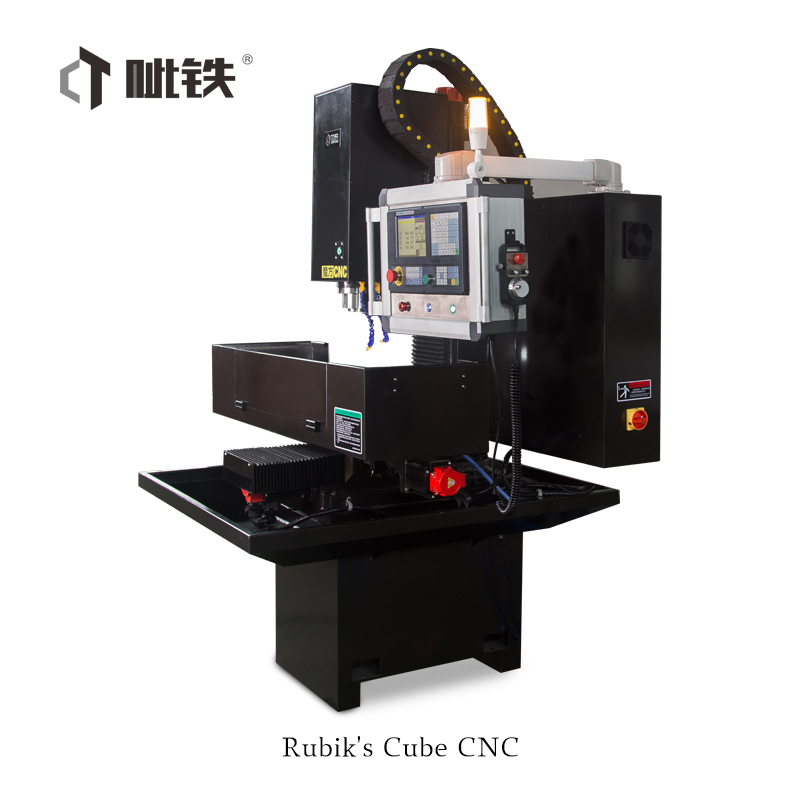

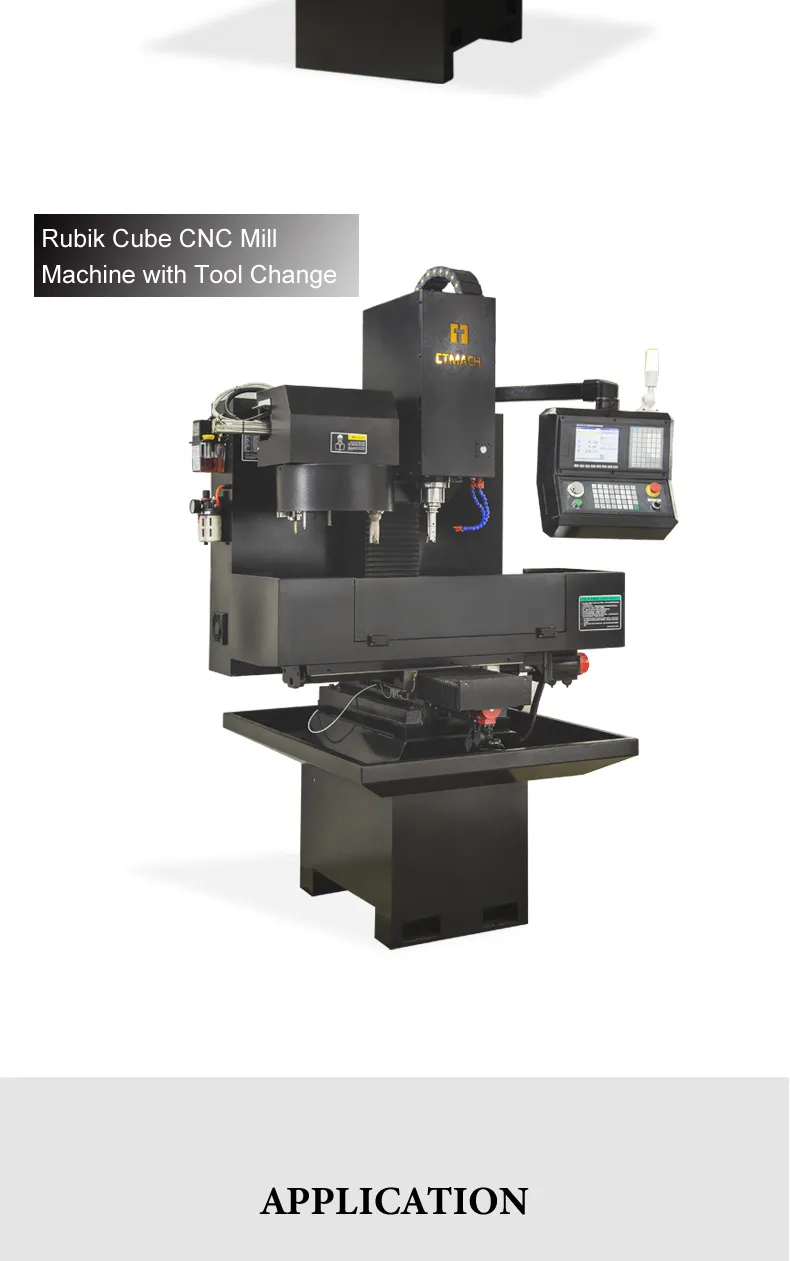

CNC Milling Machine Drilling Machine
Table size 800x240mmTool change methodPneumatic tool changeX spindle travel 425mmY spindle travel 245mmZ spindle travel530mmXYZ fast move10000mm/minSpindle taper BT30Distance from spindle end to table surface 105-635mmSpindle speed range6000RPMX axis motor1.2KW Absolute servoY axis motor1.2KW Absolu......
Send Inquiry

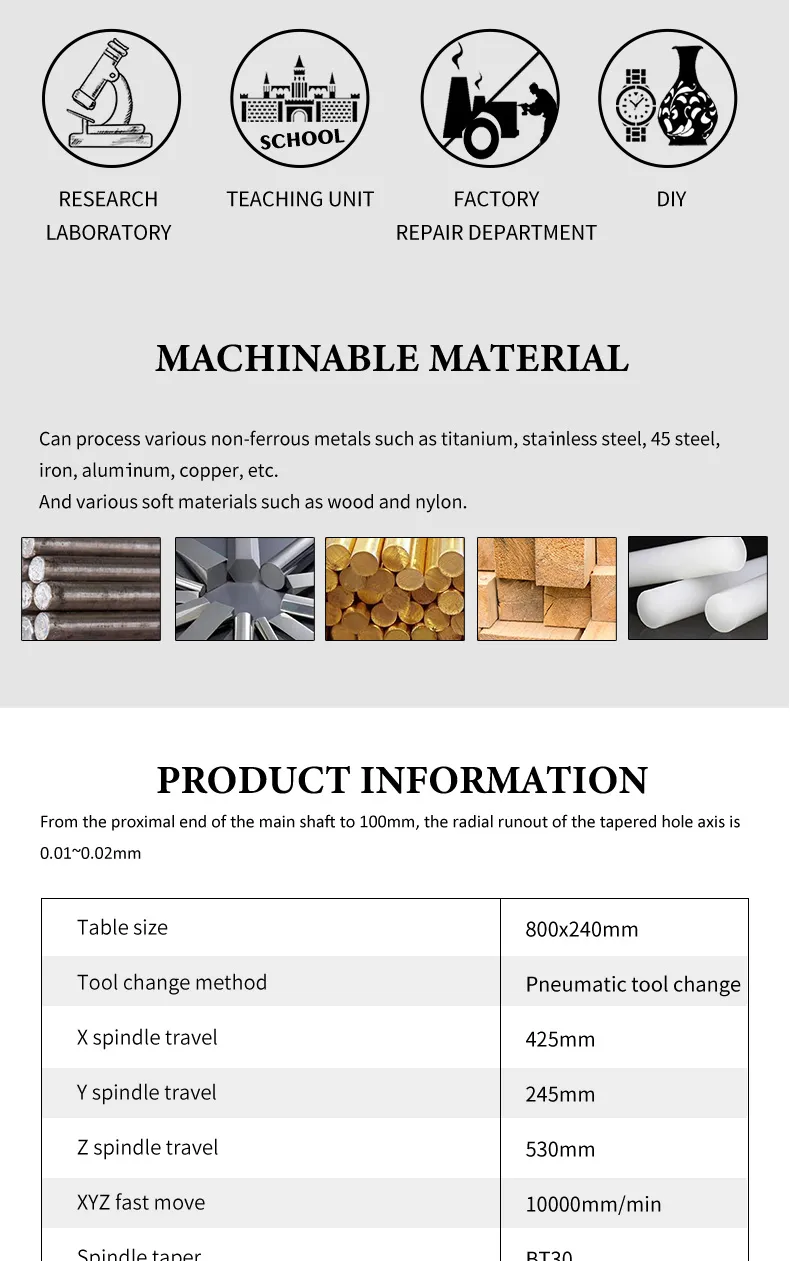

Product Description

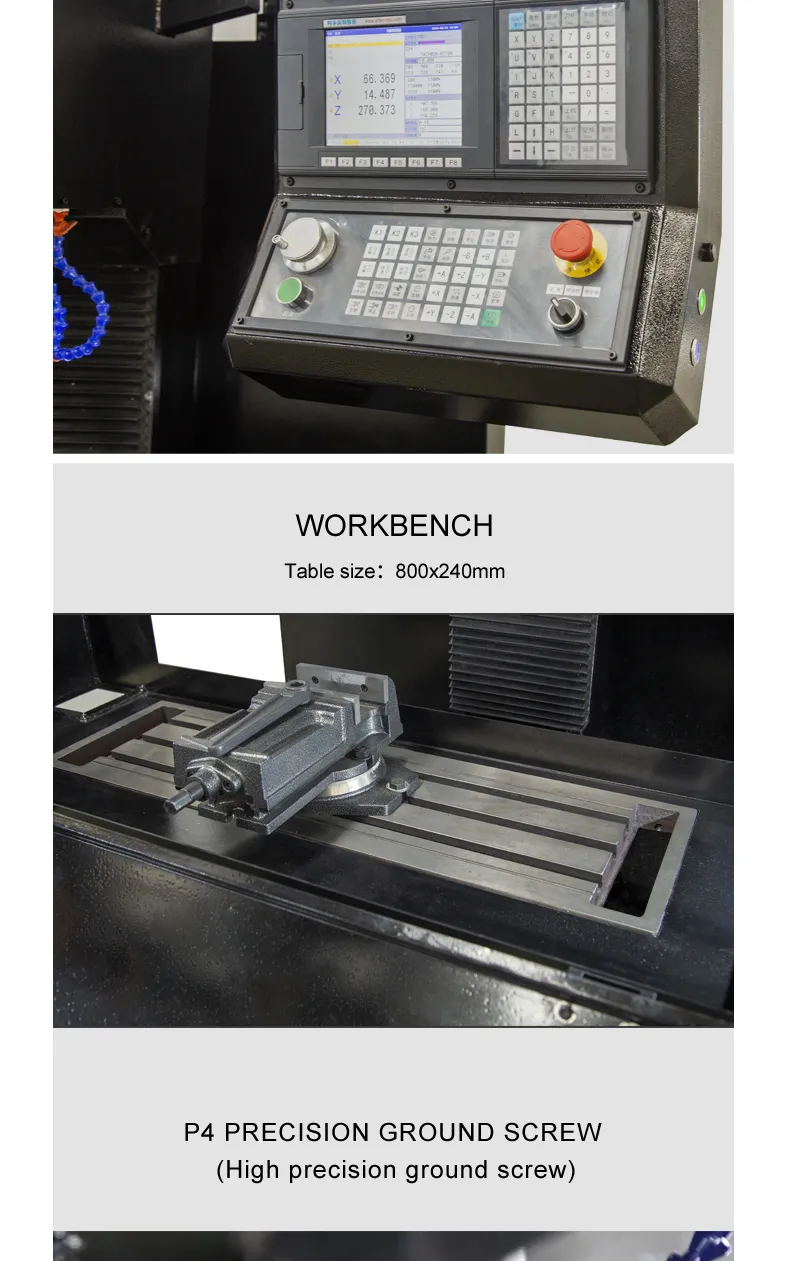

| Table size | 800x240mm |

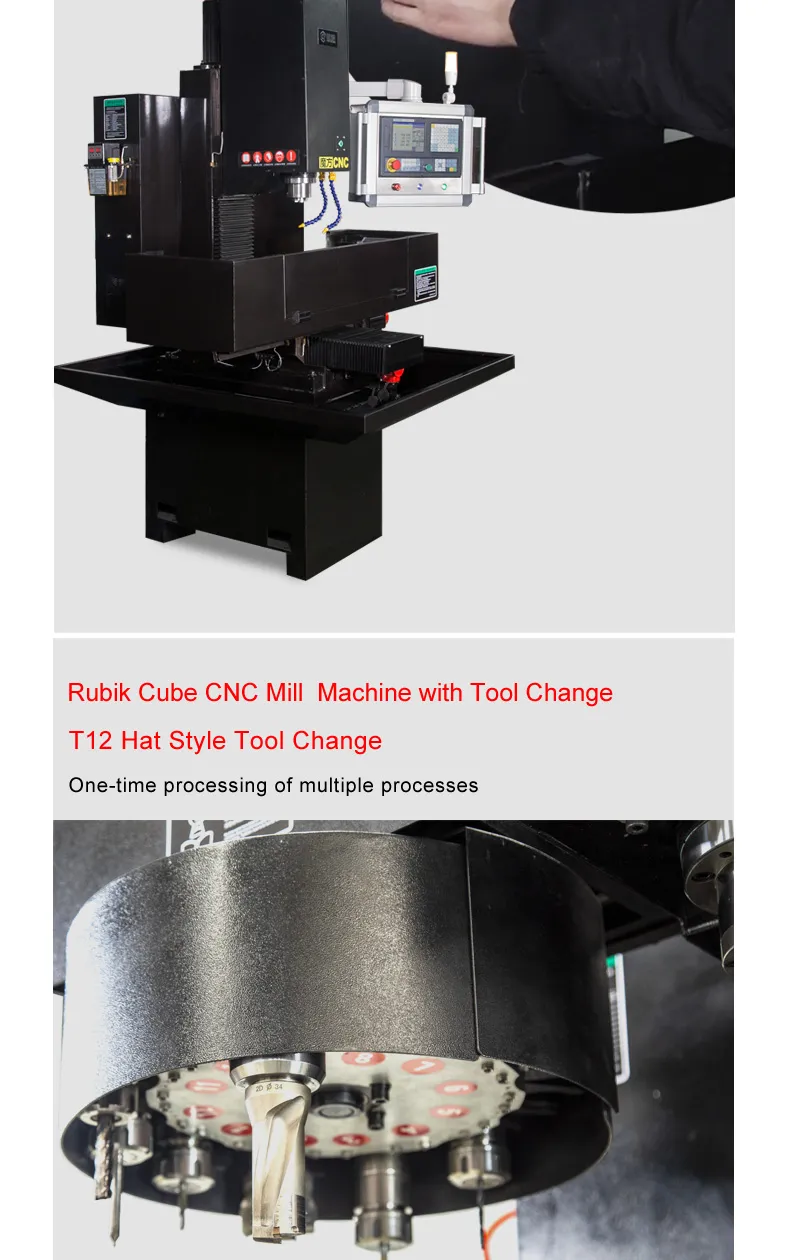

| Tool change method | Pneumatic tool change |
| X spindle travel | 425mm |
| Y spindle travel | 245mm |
| Z spindle travel | 530mm |
| XYZ fast move | 10000mm/min |

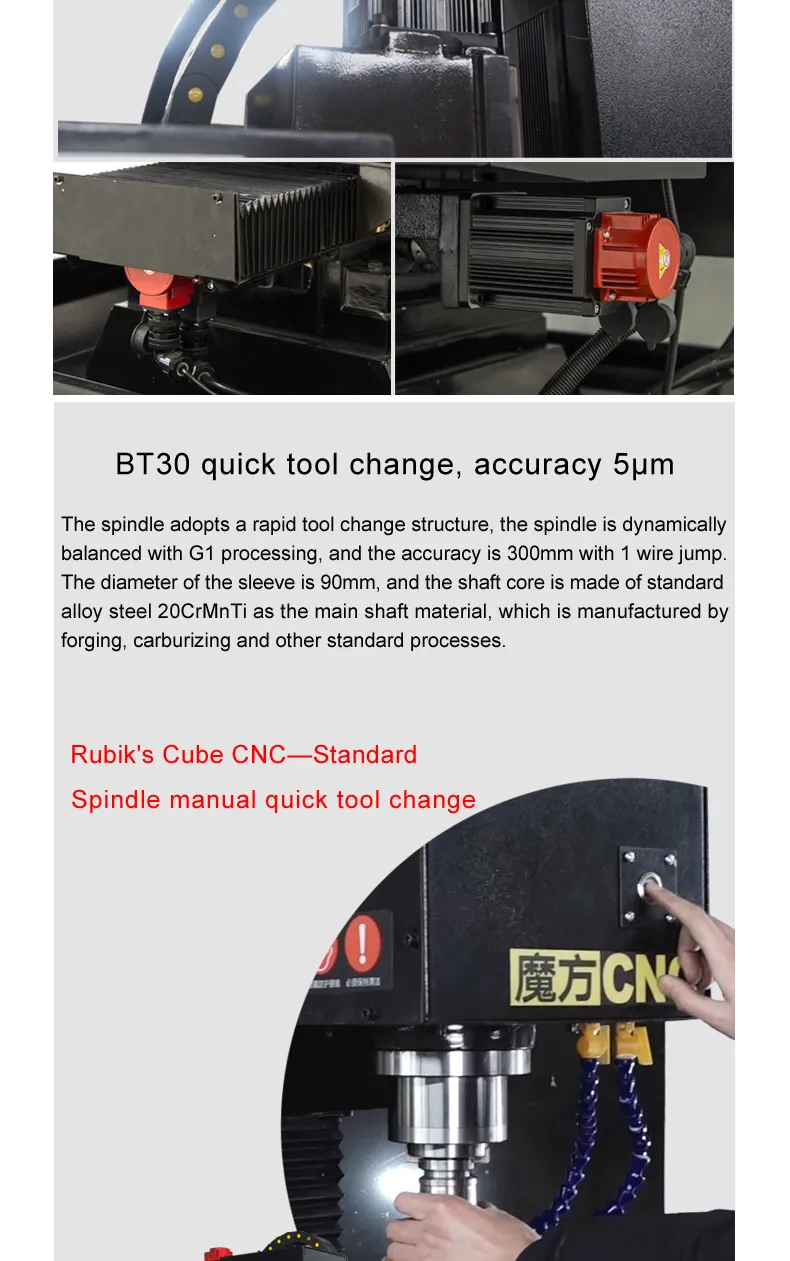

| Spindle taper | BT30 |

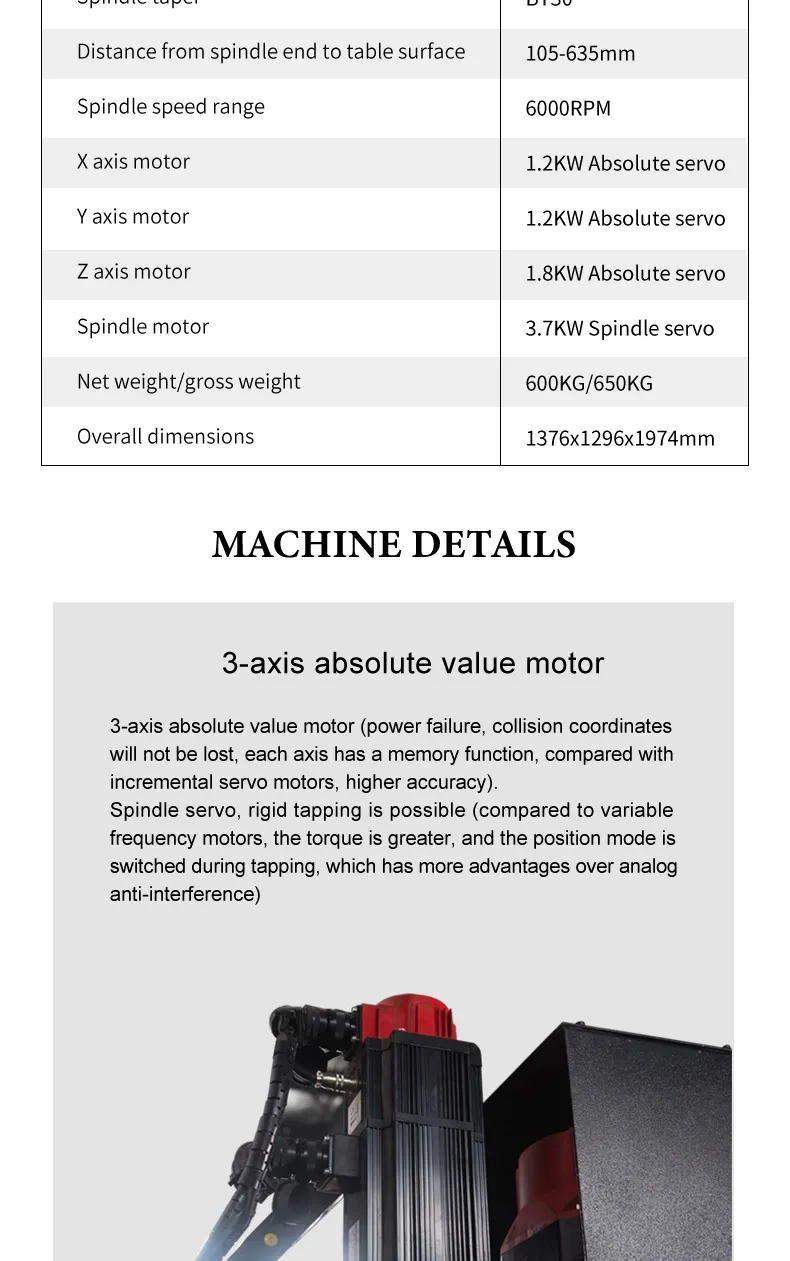

| Distance from spindle end to table surface | 105-635mm |
| Spindle speed range | 6000RPM |
| X axis motor | 1.2KW Absolute servo |
| Y axis motor | 1.2KW Absolute servo |
| Z axis motor | 1.8KW Absolute servo |
| Spindle motor | 3.7KW Spindle servo |
| Net weight/Gross weight | 600KG/650KG |

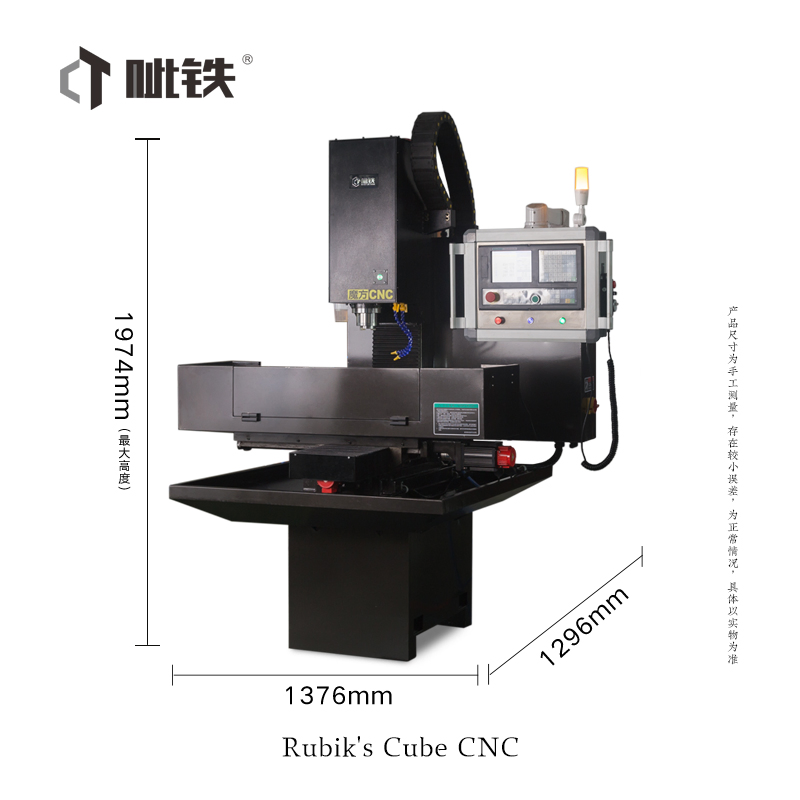

| Overall dimensions | 1376x1296x1974mm |
