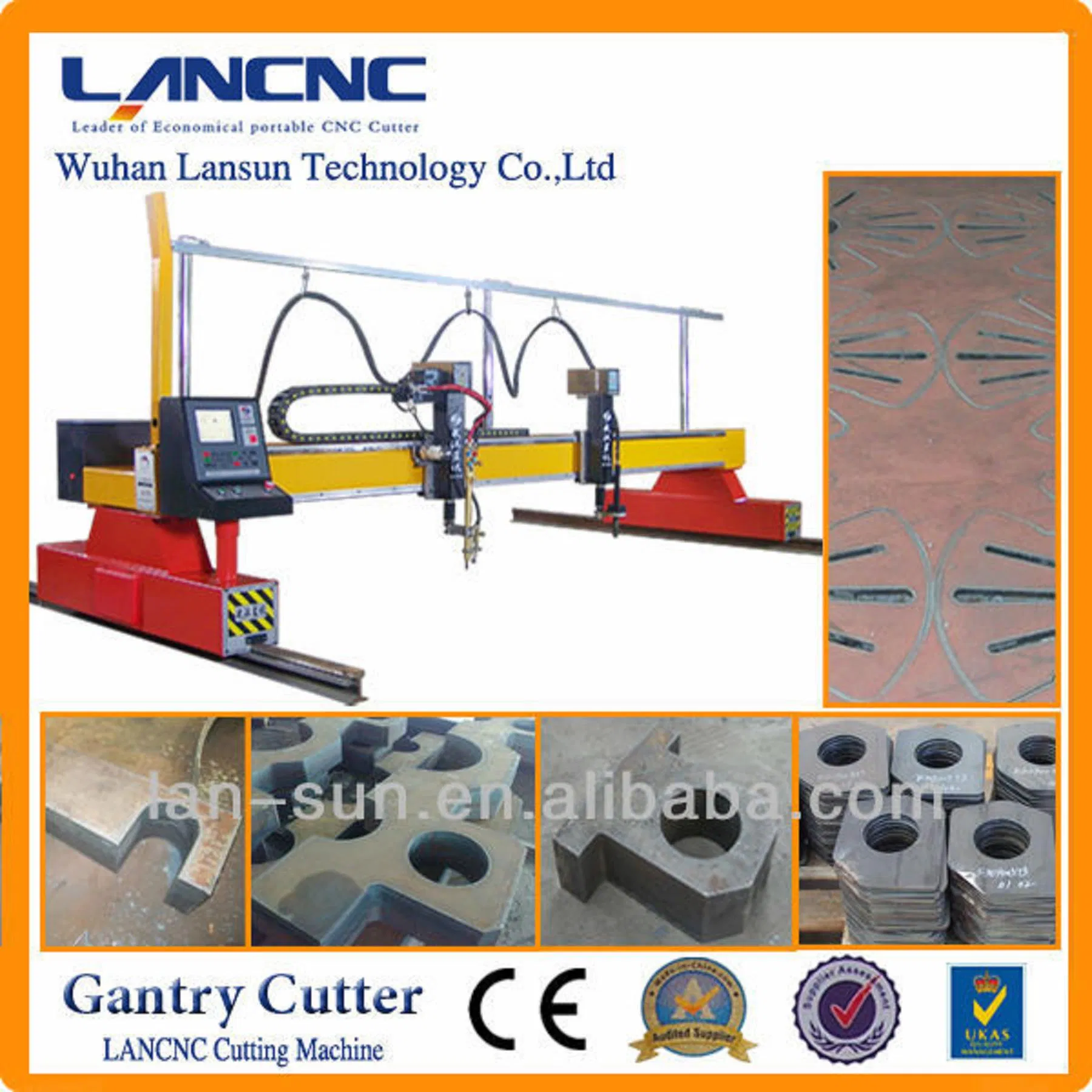

CNC Plasma Cutting Machine for Metal Sheet

China Shandong Advertising CNC Plasma Cutting Machine with High Precision

CNC plasma/flame cutting machine main features and technical parameter:
1. The CNC cutting machine adopt gantry structure, good stability and durability;
2. Adopted Panasonic high-precision AC servo motor, high-precision running more smoothly and evenly;
3. The CNC system is based on Windows system which can use your AutoCAD drawing to cut any kinds of complicated shape;
4. With automatic ignition system and automatic torch hight adjustment system, make the operation more convenient;
5.15-inch liquid crystal display and entire Chinese/English menu, the whole touch screen keyboard closed;
6. CNC system has strong memory capacity, users are free to store as many as 40G programs;
7. CNC Nesting parts containing graphics database enable to program easier, more efficient operation;
8. USB interface support information transmission between the machine and portable hard drive;
9. Remote control network interface, support remote fault diagnosis, remote upgrade;
10. Can be allocated in accordance with customer requirements, such as plasma power.
11. Cutting tolerance: 0.5mm;
12. Cutting precision: Ra12.5;
14. Cuttng speed: 80-1000mm/min;
15. Cutting thickness: 4-150mm(flame cutting), plasma cutting thickness depands on plasma power source(4-70mm);
16. Cutting material: Mild steel, carbon steel(flame cutting), SS, HCS, HSS, copper, aluminium and other non-ferrous etc (plasma cutting);
17. Cutting mode: Flame or plasma;
18. Moving precision: 0.1mm per step;
19. Flame cutting or plasma cutting according to customer's requirement.
