Product Description

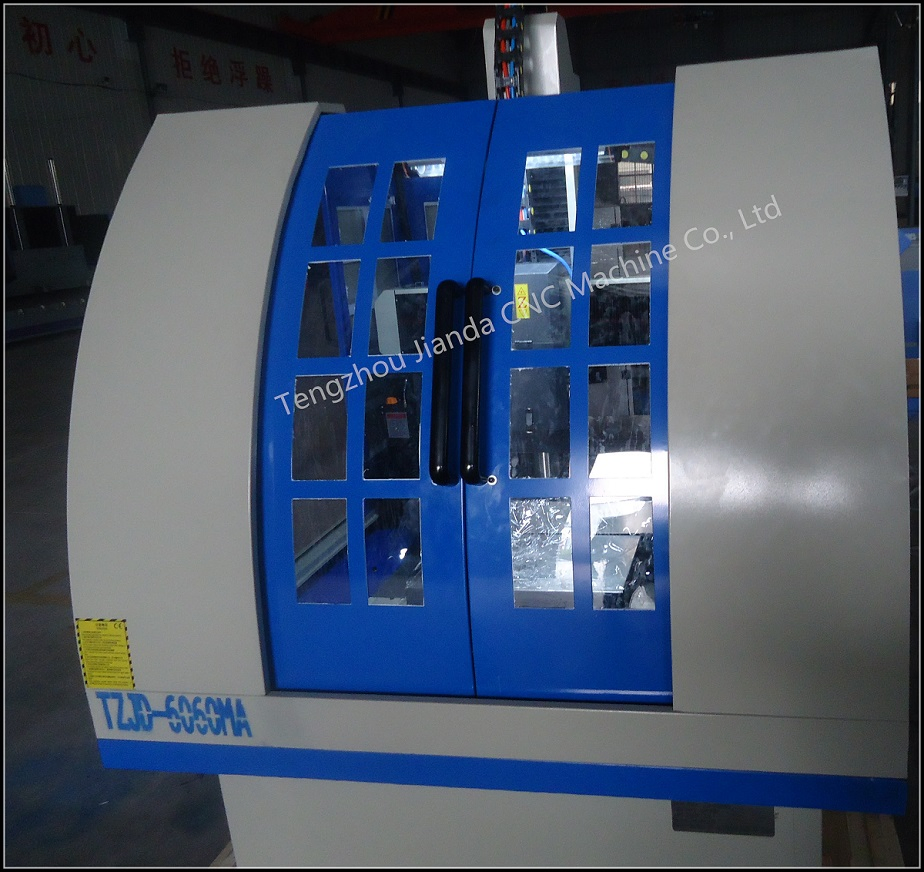

CNC Router for Metal Engraving Carving Milling machine TZJD-6060MA
Specification Parameter
Applicable materials:
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,
PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.
Product Features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power.
Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.
Specification Parameter
| Description | Parameter |
| TZJD-6060MA | |
| Working Area (X*Y*Zmm) | 600mm*600mm*300mm |
| Platform size(X*Y) | 640mm*640mm |
| Max Engraving Speed | 8000mm/min |
| Max running speed | 12000mm/min |
| Machine whole Frame | Integral cast iron |
| Spindle power(KW) | 2.2KW/3.0KW/4.5KW/5.5KW/6.0KW permenent torque spindle |
| Max. Power Consumption(Without spindle) | 3KW |
| Spindle Speed | 24000rpm |
| Resolution | 0.005mm |
| Repeatability | 0.01mm |
| Voltage | AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
| Drive motor | Stepper motor(option: Servo motor) |
| Working Dictate | G Code*.u00*.mmg*.plt |
| Operating system | Ncstudio control system(option: SYNTEC/LNC/DSP) |
| Software environment | Windows98/2000/xp/7 |
| Interface | USB |
| Flash memory | 128M(U Disk) |
| Software Compatability | Original Type3 Software, Artcam, Ucancam |
| Diamerer of cutter | Ф12, ф14, ф16, ф18, ф20, ф3.175, ф6mm, ф12.7mm, ф2,ф1, etc. |
| Running Environemt | Temperature: 0ºC~45ºC |
| Relative humidity: 30%~75% | |
| Machine necessary | Cast heavy thickness steel structure, high precision HIWIN Square linear; large control cabinet, spindle cover, Auto-oiling system, Tool-sensor, water chiller system, spray cooling system, Dust proof for whole body. |
| Table Max Load | 100kg |
| Dimension L*W*H | 2.5m*1.6m*2.16m |
| Weight | 850kg |
| Packaging | Fumigating wooden case |
Applicable materials:
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,
PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.
Product Features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power.
Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.
