CNC Vertical Machining Center ( VMC850 CNC Milling Machine Center)
Hercules Vertical Milling CenterModel: HM-V8Performence Features:1. High Accuracy performance2. Standard VMC850 casting frame3. Taiwan HIWIN or PMT linear guideway and lead screw4. Taiwan spindle, speed range 0~8000rpm5. Umbrella 16 tools ATC or Arm type 24 tools ATC optional6. GSK or Syntech contr......
Send Inquiry
Product Description

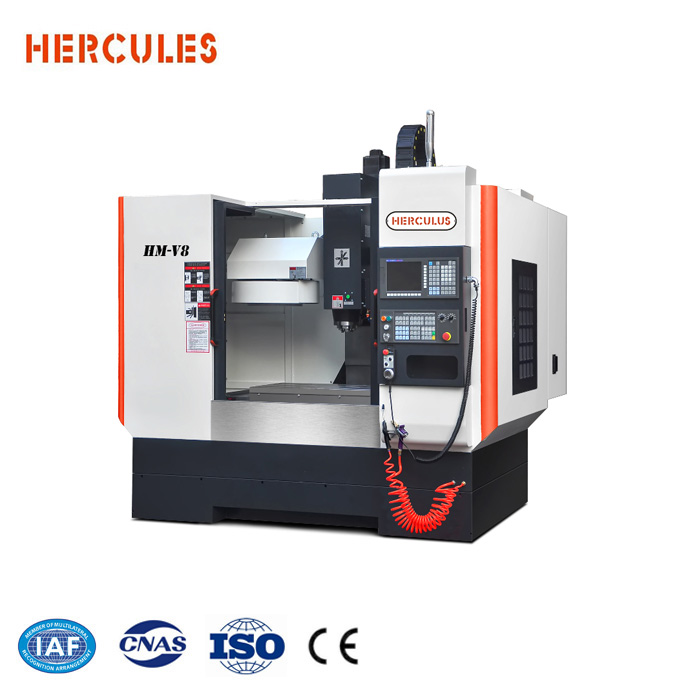

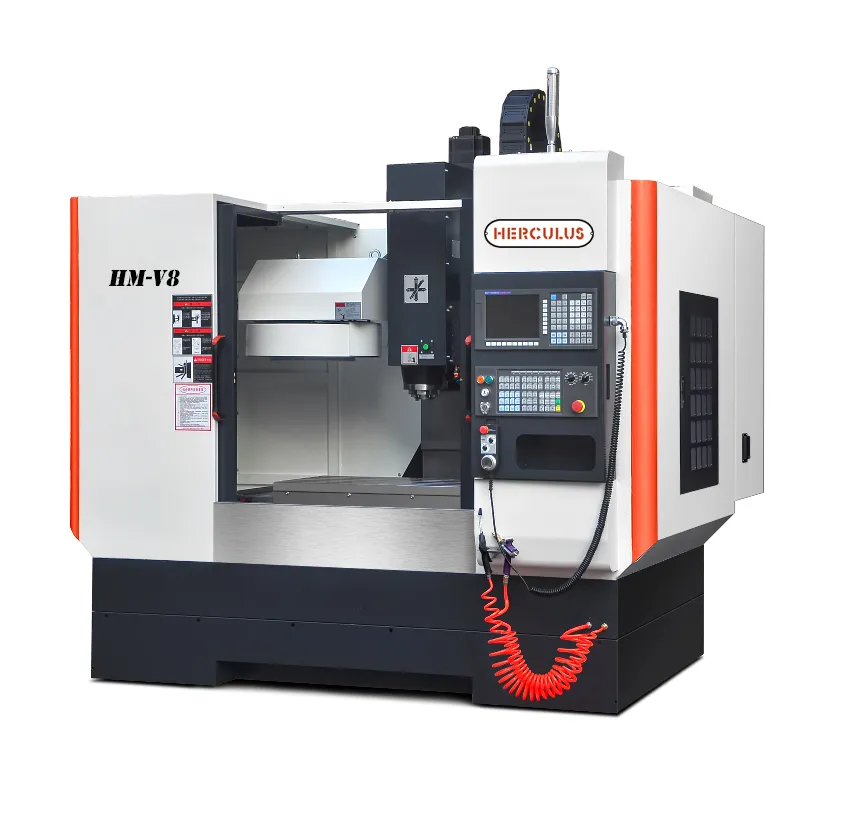

Hercules Vertical Milling Center
Model: HM-V8
Performence Features:
1. High Accuracy performance
2. Standard VMC850 casting frame
3. Taiwan HIWIN or PMT linear guideway and lead screw
4. Taiwan spindle, speed range 0~8000rpm
5. Umbrella 16 tools ATC or Arm type 24 tools ATC optional
6. GSK or Syntech control system
Standard Accessories:
GSK or SYNTECH CNC control system
RS232 interface
Taiwan Tools magazine,
Taiwan BT40 8000rpm spindle unit,
3-Axis linear guideway,
Taiwan Hiwin leadscrew,
Full-cover protection,
Heat exchanger
Worklight,
Coolant system,
Auto-lubrication,
Air gun
MPG
Optional accessories:
CNC the 4th axis
Auto chip conveyor
Air conditionor in cabinet
Specification
Model: HM-V8
Performence Features:
1. High Accuracy performance
2. Standard VMC850 casting frame
3. Taiwan HIWIN or PMT linear guideway and lead screw
4. Taiwan spindle, speed range 0~8000rpm
5. Umbrella 16 tools ATC or Arm type 24 tools ATC optional
6. GSK or Syntech control system
Standard Accessories:
GSK or SYNTECH CNC control system
RS232 interface
Taiwan Tools magazine,
Taiwan BT40 8000rpm spindle unit,
3-Axis linear guideway,
Taiwan Hiwin leadscrew,
Full-cover protection,
Heat exchanger
Worklight,
Coolant system,
Auto-lubrication,
Air gun
MPG
Optional accessories:
CNC the 4th axis
Auto chip conveyor
Air conditionor in cabinet
Specification
| Technical specification | HM-V8 16tools | HM-V8 24tools | |
| 1 | Working stroke X/Y/Z | 800*500*500mm | |
| 2 | Table size | 1000*500mm | |
| 3 | Table T groove | T Slot width 18mm - spacing 85mm * 5 | |
| 4 | Maximum weight | 500kg | |
| 5 | Fast moving speed | X, Y, Z 32m / min | |
| 6 | Feed motor torque | X/Y axis 15N/M Z axis 22N/M | |
| 7 | Feed motor power | X/Yaxis 2.4kw Z axis 3.5kw | |
| 8 | Positioning accuracy X, Y, Z | ±0.005/300mm | |
| 9 | Repeat positioning accuracy X, Y, Z | ±0.003mm | |
| 10 | Spindle speed | Max. Up to 8000 rpm | |
| 11 | Spindle taper | BT40 | |
| 12 | Spindle diameter | φ140 | |
| 13 | Radial runout of spindle | 0.002mm | |
| 14 | main motor power | 5.5kw | |
| 15 | Spindle center to column distance | 556mm | |
| 16 | Spindle nose to table distance | 120~620mm | |
| 17 | Shift mode | Variable speed | |
| 18 | Maximum drilling capacity | φ50mm(U drilling ) | |
| 19 | Maximum tapping ability | M18 | |
| 20 | Tool magazine type | Umbrella type ATC 16T | Arm type ATC 24T |
| 21 | Tool change time | 10 seconds (tool to tool) | 1.8 seconds( tool to tool) |
| 22 | Number of tool magazines | 16 tools | 24 tools |
| 23 | Maximum tool diameter | φ100 | |
| 24 | protecting mask | Full shield cover | |
| 25 | Programming mode | Computer/manual | |
| 26 | File transfer method | USB/network cable | |
| 27 | cool down | 450W waterproof water pump | |
| 28 | Lubrication system | 2L automatic lubrication pump with oid-free alarm system | |
| 29 | Dimensions | L2530*B2360*H2520mm | |
| 30 | Mechanical weight | ≈4250kg | |
| 31 | using electric | 3PH AC380V/AC220 | |
| 32 | Gas source | 0.5~0.8.MPA | |
| 33 | Total power | 17.5kw | |
| Key parts | |||

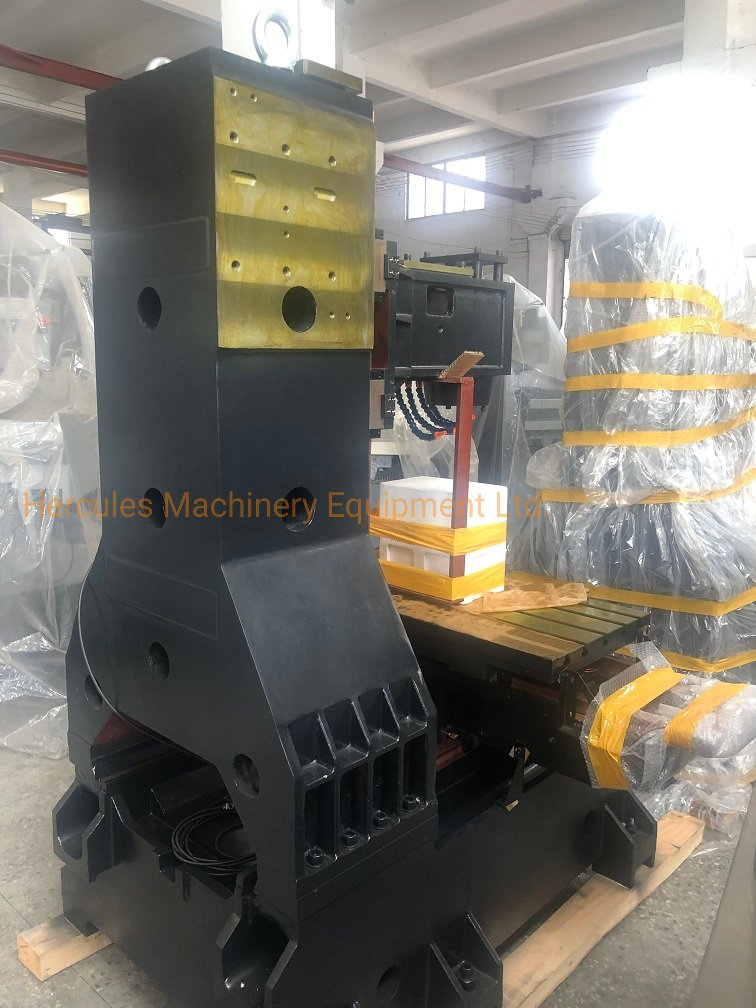

| 1 | bed frame | Standard VMC casting frame | |
| 2 | Spinde | BT40 belt type quill of dia.140mm TAIWAN | |
| 3 | Tool magazine | 16T Umbrella type ATC | 24T Arm type ATC |
| 4 | Ball screw rod | HIWIN OR PMI TAIWAN BRAND 4016 lead screw (Dia.40mm* pitch 16mm) | |
| 5 | Linear guide | HIWIN OR PMI TAIWAN brand linear guideway width :35mm | |
| 6 | operating system | GSK25iMB-H | |
| 7 | Servo motor X, Y | 130SJT-M150B | |
| 8 | Servo motor Z | 175SJT-MZ220B | |
| 9 | Spindle motor (servo) | GR3050-LA2-ZJY208A-5.5BHB5A2 | |
| 10 | Pneumatic Components | Brand :AirTAC | |
