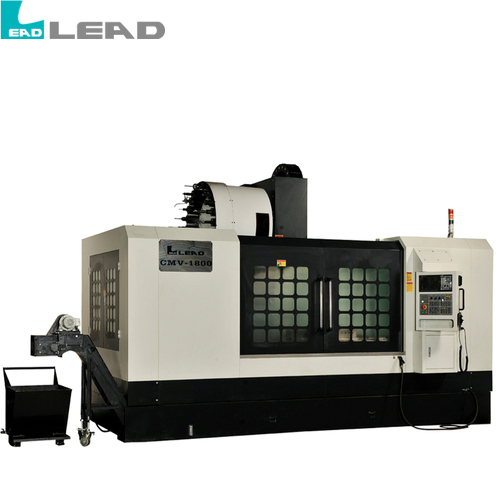

CNC Vertical Machining Center Cmv1890
Unit Features:1. Increase width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining.2. Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coa......
Send Inquiry
Product Description
Unit Features:
1. Increase width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining.
2. Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped.
3. Extra wide slide ways and distance between slide ways eliminate sticking problems at low speed travel while ensuring high stability.
4. The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum.
Standard Accessories
Spindle oil cooler unit
Full splash guard
Cutting coolant unit
Heat exchanger in control box
Auto power off
Auto lubrication system
Air blast through spindle
Work lamp
Tool box and tools
Rigid tapping
Mechanical, electrical operating manuals
RS-232 Interface
Transformer
1. Increase width on the column bottom, combined with box type structure, greatly upgrades rigidity and stability during machining.
2. Box slide ways on the 3 axes are high frequency hardened. Way surfaces are coated with Turcite-B and precision scraped.
3. Extra wide slide ways and distance between slide ways eliminate sticking problems at low speed travel while ensuring high stability.
4. The major structures are manufactured from Meehanite cast iron with scientific rib reinforcement. This reduces structural deformation to a minimum.
Standard Accessories
Spindle oil cooler unit
Full splash guard
Cutting coolant unit
Heat exchanger in control box
Auto power off
Auto lubrication system
Air blast through spindle
Work lamp
Tool box and tools
Rigid tapping
Mechanical, electrical operating manuals
RS-232 Interface
Transformer
| ITEM | UNIT | CMV-1890 | |
| 3AXES TRAVEL | BOX GUIDWAY SERIES | ||
| TABLE TRAVEL (X AXIS) | mm | 1800 | |
| TABLE TRAVEL (Y AXIS) | mm | 900 | |
| TABLE TRAVEL (Z AXIS) | mm | 750 | |
| TABLE TO SPINDLE NOSE | mm | 150-900 | |
| WORK TABLE | |||
| L*W | mm | 1970*1000 | |
| MAX. LOAD OF TABLE | kgs | 2500 | |
| T-solt | mm | 7*18*120 | |
| SPINDLE | |||
| TYPE | type | BT-50 | |
| SPEED | rpm | 4000/6000 | |
| DRIVE | type | GEAR BOX / BULT | |
| MOTOR | kw | 15/18.5 | |
| COOLER | type | MAIN AXIS OIL COOLER | |
| FEED RATE | |||
| RAPID MOVE(X,Y axes) | m/min | 15 | |
| RAPID MOVE(Z axes) | m/min | 12 | |
| CUTTING FEED RATE | mm/min | 1-5000 | |
| 3 AXES MOTOR OUTPUT | kw | 4.5/7/4.5 | |
| A.T.C. | |||
| MAGAZINE TYPE | type | ARM TYPE | |
| TOOL MAGAZINE CAPACITY | pcs | 24/32 | |
| MAX. TOOL DIAMETER | mm | 128/200 | |
| MAX.TOOL LENGTH | mm | 300 | |
| MAX. TOOL WEIGHT | kgs | 15 | |
| TOOL SELECTION | type | RANDOM | |
| OTHERS | |||
| POWER CONSUMPTION | kva | 40 | |
| FLOOR SPACE (L*W*H) | mm | 4700*3500*300 | |
| MACHINE WEIGHT | kgs | 17500 | |
