Dalian 45 Degree Slanted-bed Fanuc Controller CNC Lathe 8 Inch Chuck Torno
Slanted Bed CNC Lathe DL-20MH Main Specifications: SpecificationUnitDL-20MHMax swing over bedmmΦ430Max turning diameter (shaft/disc)mmΦ260/Φ380Max turning lengthmmΦ500Chuck sizeinchΦ8Type of spindle nose A2-6Spindle speed rangerpm4000Spindle boremmΦ......
Send Inquiry
Product Description

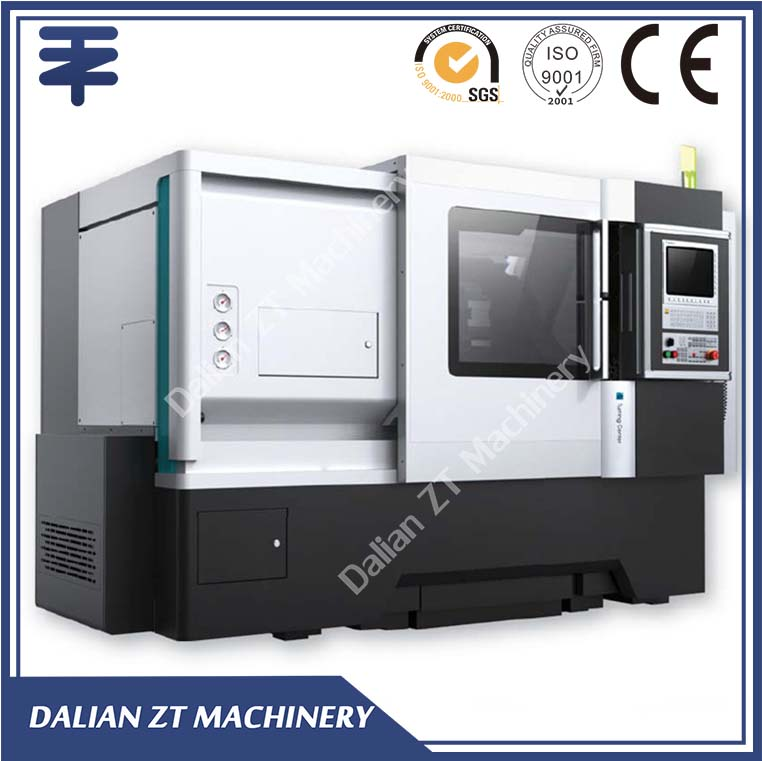

Slanted Bed CNC Lathe DL-20MH
Main Specifications:
Standard features
Optional accessories (extra cost)
FAQ:
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
Main Specifications:
| Specification | Unit | DL-20MH |
| Max swing over bed | mm | Φ430 |
| Max turning diameter (shaft/disc) | mm | Φ260/Φ380 |
| Max turning length | mm | Φ500 |
| Chuck size | inch | Φ8 |
| Type of spindle nose | A2-6 | |
| Spindle speed range | rpm | 4000 |
| Spindle bore | mm | Φ76 |
| Max bar capacity | mm | Φ65 |
| Spindle motor power | kW | 11/15 |
| Max travel of X axis | mm | 265 |
| Max travel of Z axis | mm | 540 |
| Rapid traverse of X/Z axis | m/min | 24/24 |
| Turret type and number of tools | 12-position live tool turret | |
| Tool shank size | mm | 25x25 |
| Indexing time (adjacent/farthest) | s | 0.58/0.97 |
| Diameter of tailstock quill | mm | Φ85 |
| Tailstock quill stroke | mm | 139 |
| CNC Controller | Fanuc 0i-TF | |
| Guideway type | Linear guideway | |
| Machine dimension (LxWxH) | mm | 3900x1910x1880 |
| Machine weight | kg | 4000 |
Standard features
- Italy 12-position live tool turret
- NSK spindle bearings and X/Z axis bearings
- X/Z THK ball screws & THK linear guideways
- Taiwan non-through-hole hydraulic chuck
- Hydraulic tailstock
- Heat exchanger
- Chain type chip conveyor
- Automatic lubrication system
- Axial and radial power tool holder (one each)
Optional accessories (extra cost)
- Air conditioner
- High-flow wter pump
- METRAL or RENISHAW tool presetter
- Taiwan through-hole hydraulic chuck and cylinder
- Bar feeder and parts catcher
- Domestic hydraulic steady rest
- German hydraulic steady rest
- Rotary mandrel tailstock
- Automatic door
FAQ:
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.
3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.
6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
