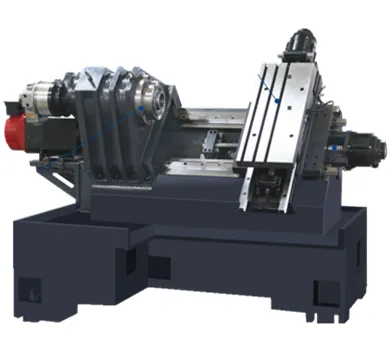

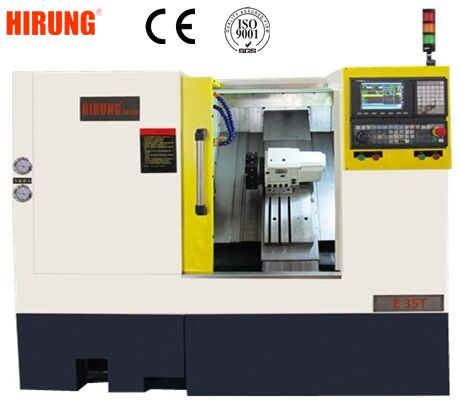

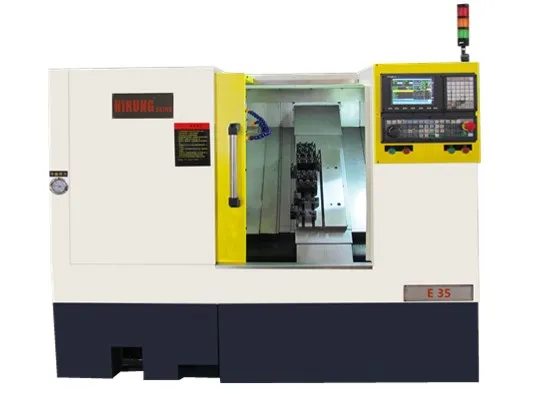

Economical High Speed Low Noise Slant Bed CNC Lathe Machine ( E35 )
mini Household lathe , mini lathe for office and home work E35Product Description:ItemNameUnitE-35CapacitySwing over bedmm380 Distance from worktable to spindle centermm63 Hole through passedmm32/35 Max. work-piece lengthmm120/150SpindleServo motor power kw3.7 Spindle RPMr/min50-5000 Spindle borem......
Send Inquiry
Product Description
mini Household lathe , mini lathe for office and home work E35
Product Description:
Structural Features
About us
COMPANY PROFILE
Hirung Enterprise Co., Ltd. CNC began machine tools business in 2001, in the beginning , CNC equipment is our flagship product, after the industry 2.0 and 3.0, we have ushered in a new industry 4.0.
In 2014 we set up Hirung Precision Machinery Co., Ltd. in Dongguan City, in July 2015 we set up branch office in Indonesia, in August 2015 we set up branch office in Bangladesh under our global brand marketing strategy. Currently our company is in the line of CNC machine
tools, CNC automation tools, we provide good equipment and good after-sales service for the customers. Our goal is to make"HIRUNG" CNC machine tools one of China's most professional automation brands.
WHY CHOOSE US:
1.Reliable Trademark Company.
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine According to Customer's Requirement.
4.CE approved and One year warranty, provide whole-life technology support.
5.High quality with competitive price.
6.We supply professional solution to you based on your own process one by one.
7.We supply one years Warranty for whole machine.
8.7*24 hours Email or phone service.
Product Description:
Item | Name | Unit | E-35 |
Capacity | Swing over bed | mm | 380 |
| Distance from worktable to spindle center | mm | 63 | |
| Hole through passed | mm | 32/35 | |
| Max. work-piece length | mm | 120/150 | |
Spindle | Servo motor power | kw | 3.7 |
| Spindle RPM | r/min | 50-5000 | |
| Spindle bore | mm | 43 | |
| Nose type | A2-4 | ||
Axes | X feeding range | mm | 730 |
| Z feeding range | mm | 245 | |
| X/Z Servo motor power | kw | 1.3 | |
| Positioning accuracy | μm | ±0.0015 | |
| Repeat positioning acc. | μm | ±0.001 | |
| X/Z axis | m/min | 22/22 | |
Turret | Worktable ( L*W) | mm | 580*240 |
| Max .tool | 8 | ||
| Tool shank | mm | 20 | |
Others | Average machine power | Kw/h | 7.2 |
| Actual consume | Kw/h | 2.0 | |
| Gross weight | kg | 2100 | |
| Dimension | mm | 1900*1500*1800 |
Structural Features
- Adopts integrated-style design with bed and 45°base to improve the rigidity.
- Optimize the permutation of steel by finite element method to decrease the thermal deformation.
- Achieve low installation work by low center of gravity and short distance.
