Engine Valve Guide & Set Machine
Technical Data:DescriptionTechnical ParametersWorking Table Dimensions (L * W)1245 * 410 mmFixture Body Dimensions (L * W * H)1245 * 232 * 228 mmMax. Length of Cylinder Head Clamped1220 mmMax. Width of Cylinder Head Clamped400 mmMax. Travel of Machine Spindle175 mmSwing Angle of Spindle -12°......
Send Inquiry
Product Description
Technical Data:
| Description | Technical Parameters |
| Working Table Dimensions (L * W) | 1245 * 410 mm |
| Fixture Body Dimensions (L * W * H) | 1245 * 232 * 228 mm |
| Max. Length of Cylinder Head Clamped | 1220 mm |
| Max. Width of Cylinder Head Clamped | 400 mm |
| Max. Travel of Machine Spindle | 175 mm |
| Swing Angle of Spindle | -12° ~ 12° |
| Rotating Angle of Cylinder Head Fixture | 0 ~ 360° |
| Conical Hole on Spindle | 30° |
| Spindle Speed (Infinitely Variable Speeds) | 50 ~ 380 rpm |
| Main Motor (Converter Motor) | Speed 3000 rpm(forward and reverse) 0.75 kW fundamental frequency 50 or 60 Hz |
| Sharpener Motor | 0.18 kW |
| Sharpener Motor Speed | 2800 rpm |
| Vacuum Generator | 0.6 ≤ p ≤ 0.8 Mpa |
| Working Pressure | 0.6 ≤ p ≤ 0.8 Mpa |
| Machine Weight (Net) | 700 kg |
| Machine Weight (Gross) | 950 kg |
| Machine External Dimensions (L * W * H) | 184 * 75 * 195 cm |
| Machine Packing Dimensions (L * W * H) | 184 * 75 * 195 cm |

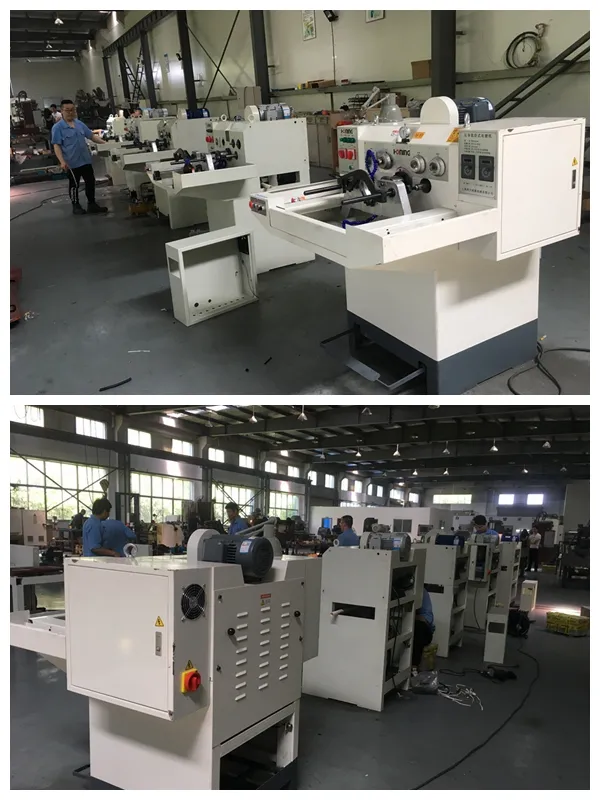

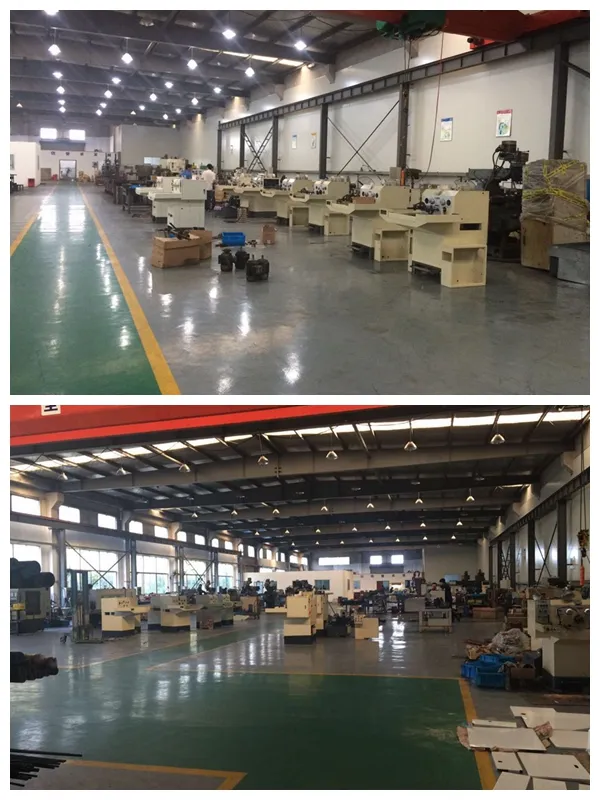

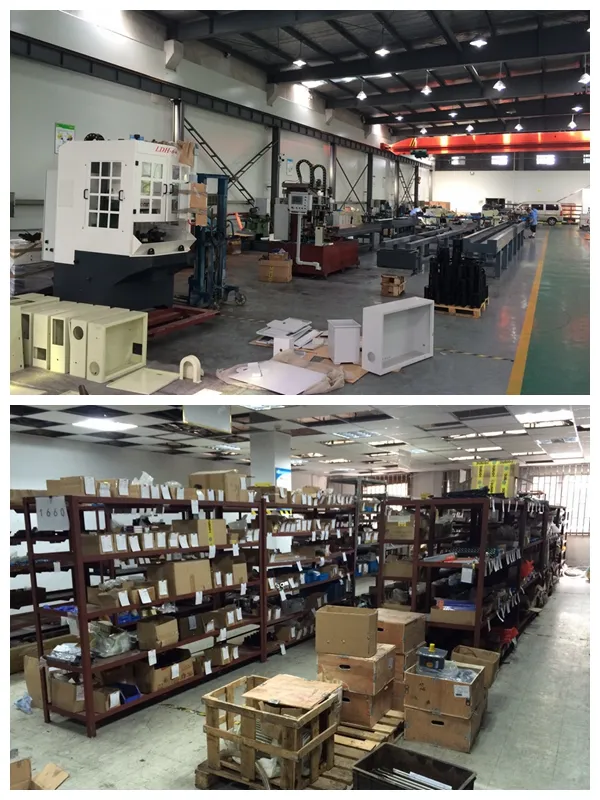

Factory View
Founded in 2006, SHANGHAI HONING MACHINERY CO.,LTD is a specialized company devote to the invention , produce, sale and service of the honing products
Our main products include the honing machine, honing tools and honing stones ect. In addition to providing professional honing solutions based on customer's requirements .
At present, we have won a number of invention patents , and also have passed the ISO ,CE certification . Our products enjoy high reputation not only in Chinese market, and exported to the United States , Western Europe , and many other developed countries , with stable quality and excellent service is the consistent favor of international customer.
In 2016 year , SHANGHAI HONING has a new factory in YIXING city , we develop our business better and better . Also we are waiting for more good partners to cooperate with us in the future
Q1 , Do you have experience in international business
A: We manufacture honing machines and tools from 2006 year , and we Start international business from 2009 year , we have many customers cooperate with us for long time .
Q2, Do you supply all accessories of honing machine ?
A: We supply a ccessories of honing machine . like the adapter, mandrel, stone , sleeve, bushing ,honing oil ....And our tools can be used in SUNNEN honing machines .
Q3, How about your quality ?
A: We have rich experience in honing , all machines are tested before shipping . We will show video of testing to customers to check .
And this series machine are sold for 5 years to abroad and China , we don't go abroad to reapir the machine now ! The machines work well !
Q4, Where do you sell ?
A: Our main market are Europe and Russia. We have distributors in Italy and USA, if you want our products , can contact with them .
We sell to Russian area directly now .
Q5, How about the after-sell service ?
A: We supply one year warranty , including the electric and machanical parts .
Video support for any machine problems .
Techinical support of honing for your processing work .
We are looking for distributors , welcome to contact with us !
