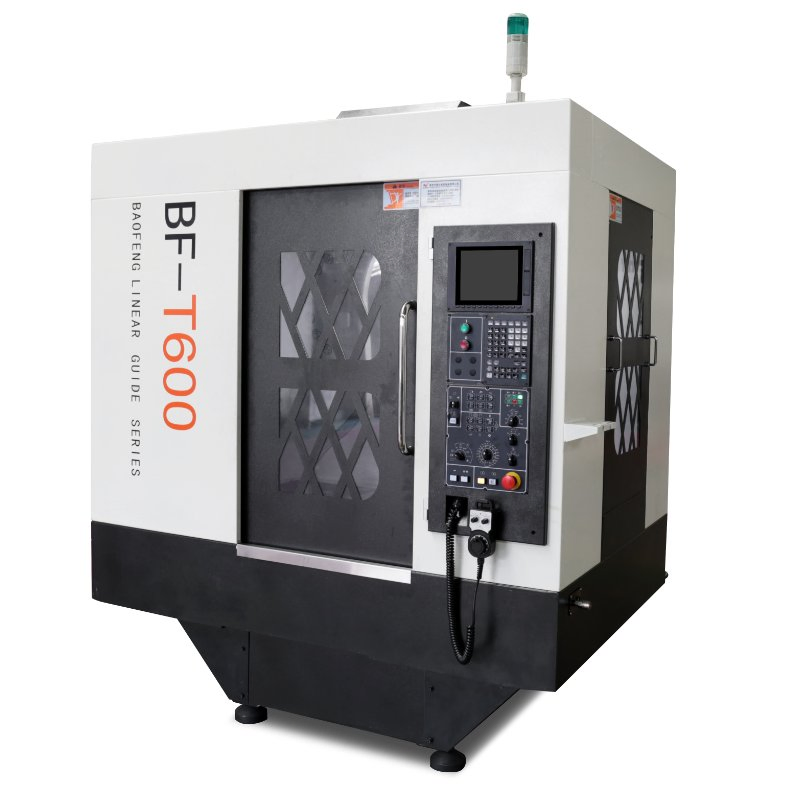

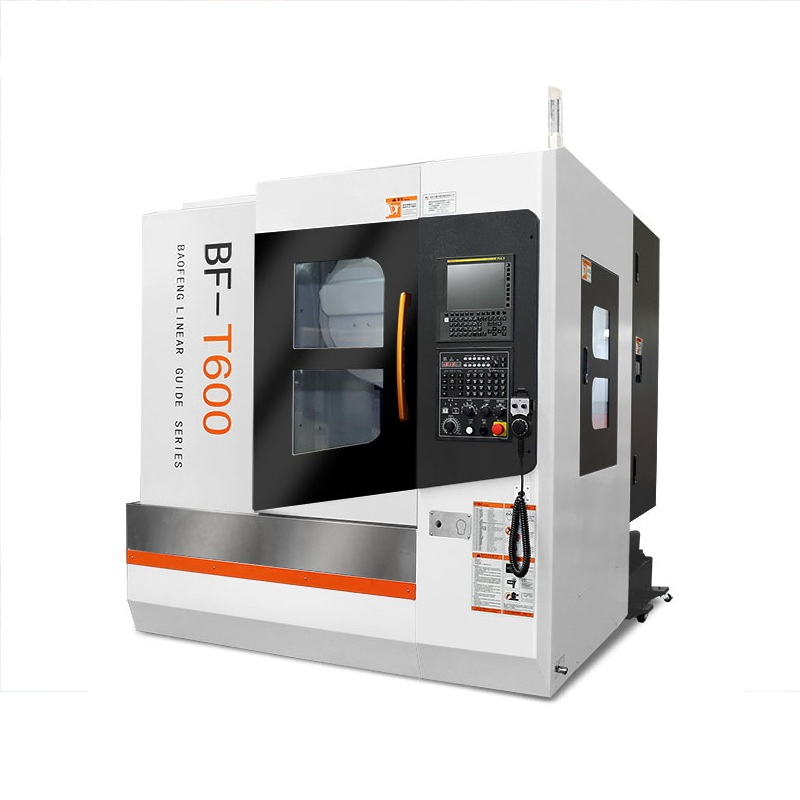

    Factory Direct Sales Vertical Machine Controlled Machining Center for Metal Processing
    • Factory Direct Sales Vertical Machine Controlled Machining Center for Metal ProcessingFactory Direct Sales Vertical Machine Controlled Machining Center for Metal Processing
    • Factory Direct Sales Vertical Machine Controlled Machining Center for Metal ProcessingFactory Direct Sales Vertical Machine Controlled Machining Center for Metal Processing
    • Factory Direct Sales Vertical Machine Controlled Machining Center for Metal ProcessingFactory Direct Sales Vertical Machine Controlled Machining Center for Metal Processing
    • Factory Direct Sales Vertical Machine Controlled Machining Center for Metal ProcessingFactory Direct Sales Vertical Machine Controlled Machining Center for Metal Processing

    Factory Direct Sales Vertical Machine Controlled Machining Center for Metal Processing

    Specification: ModelUnitBF-T600Working tableTable sizemm700*420Max. Load of tablekg400T slotpcs-mm-mm3-16-125TravelX/Y/Z axismm600/420/350Spindle nose to tablemm150-480Spindle center to columnmm456AccuracyPositioning accuracymm0.003/300Repeated accuracymm0.002/300SpindleSpindle rotation speedrpm2000......

    Send Inquiry

    Product Description

    Specification:

    ModelUnitBF-T600
    Working tableTable sizemm700*420
    Max. Load of tablekg400
    T slotpcs-mm-mm3-16-125
    TravelX/Y/Z axismm600/420/350
    Spindle nose to tablemm150-480
    Spindle center to columnmm456
    AccuracyPositioning accuracymm0.003/300
    Repeated accuracymm0.002/300
    SpindleSpindle rotation speedrpm20000
    Spindle motorkw5.5kw
    Spindle taper BT30
    Rapid feedX/Y/Z axism/min48m/min
    3 axis motorX/Y/Z axiskw2.5/2.5/2.7
    Air pressureKg/cm²6-7 bar
    Weight of machineKg3700
    Dimensionmm1860*2500*2700
           Factory Direct Sales Vertical Machine Controlled Machining Center for Metal ProcessingFactory Direct Sales Vertical Machine Controlled Machining Center for Metal ProcessingFactory Direct Sales Vertical Machine Controlled Machining Center for Metal ProcessingFactory Direct Sales Vertical Machine Controlled Machining Center for Metal Processing
