Product Description

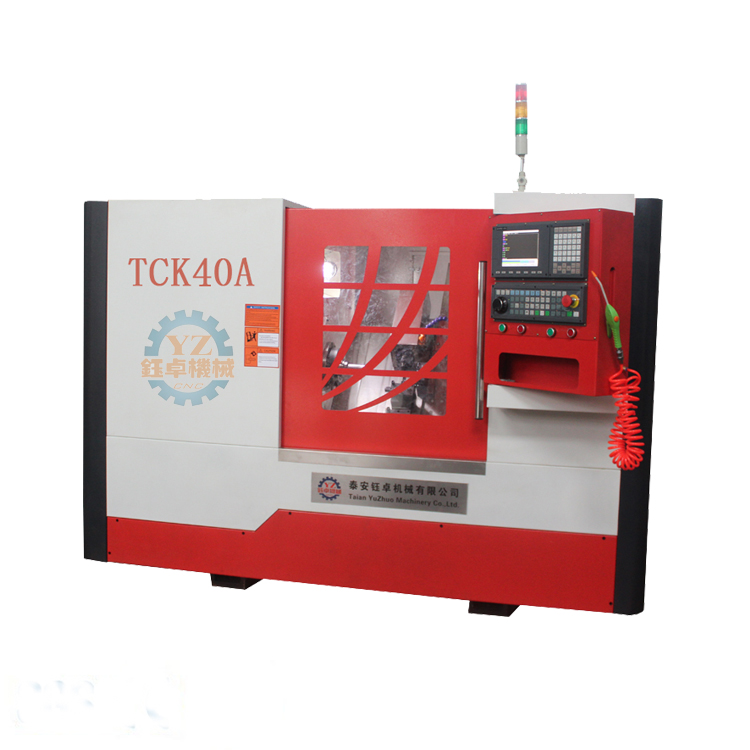

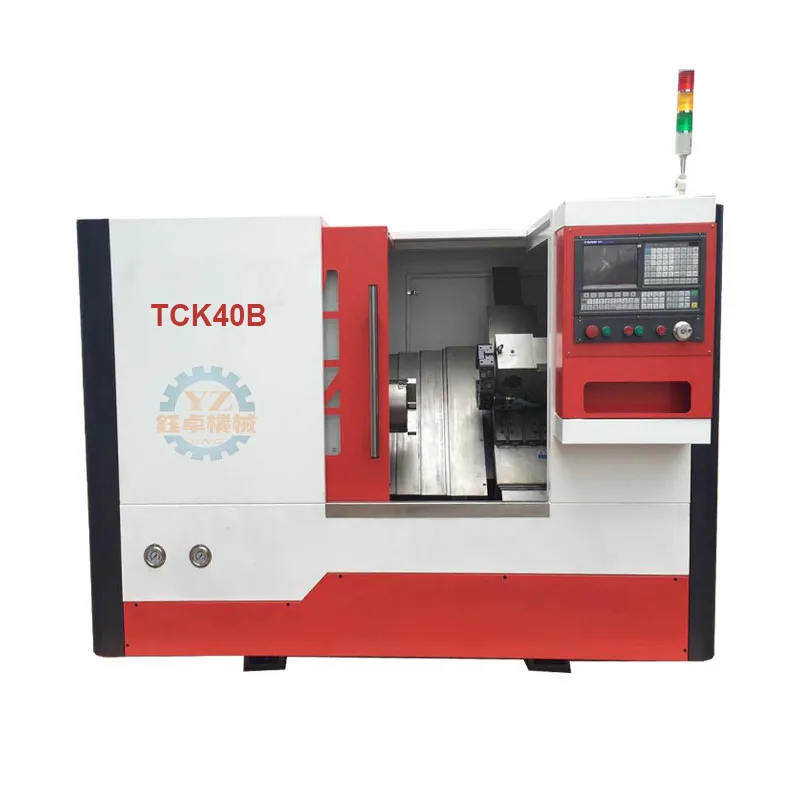

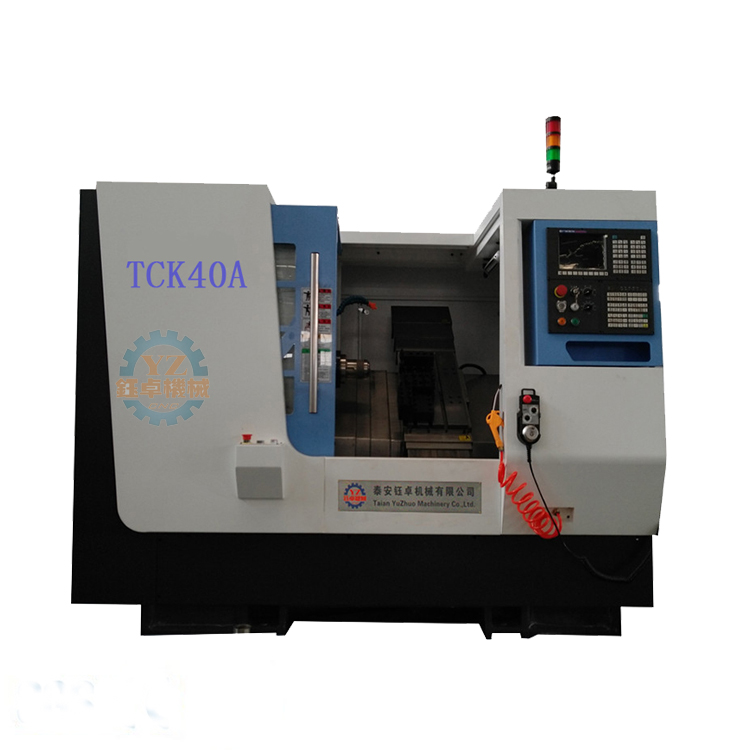

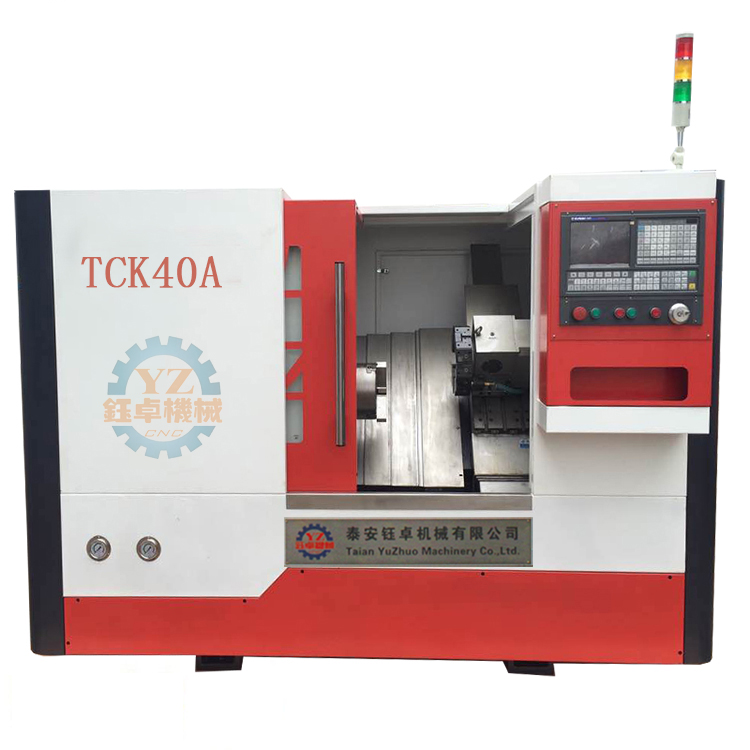

Factory Supply CNC Lathe With Milling CNC Turning Center
CNC series CNC turning center is a professional processing: Bearing; motor cover; gear economical, practical machine tools, a fixture all types of both ends of the plate parts molding process; it is the largest amount of domestic use, the most extensive coverage of a CNC machine tools, machining widely used in the automobile, petroleum, military and other industries. machine complete varieties and specifications in the series, you can achieve internal and external surface of the disk type and short shaft type parts, conical, arc, thread, boring, reaming, can also be achieved non-circular curve processing. According to the needs of users, optional CNC systems and accessories.
| Model | Unit | TCK42A | TCK42B | TCK42C |
| Max swim over bed diameter | Mm | 420 | ||
| Max swiming diameter over slide | mm | 160 | ||
Travel | mm | X:240 | X:240 | X:220 |
| Z:300 | Z:400 | Z:700 | ||
| Linear guide width | mm | 30 | 30 | 45 |
| Spindle Head Model | A2-5 | A2-6 | A2-6 | |
| Turret Type | gang type tool carrier | |||
| Spindle bore | mm | 56 | 62 | 62 |
| Spindle speed | rpm | 4000rpm | ||
| Motor power | kw | 5.5 | 7.5 | 7.5 |
| Cutting speed | mm/min | 1-4000 | ||
| Positioning accuracy | mm | 0.008/300 | ||
| CNC Controller | Siemens 808D | |||
| Cooling system | MC-4000/ACP-251A | |||
| Automatic system | 2232X | |||
| Lighting system | LED | |||
| Machine size | mm | 2000x1400x1700 | ||
| Weight | kgs | 1950kg | ||
| Standard Configuration |

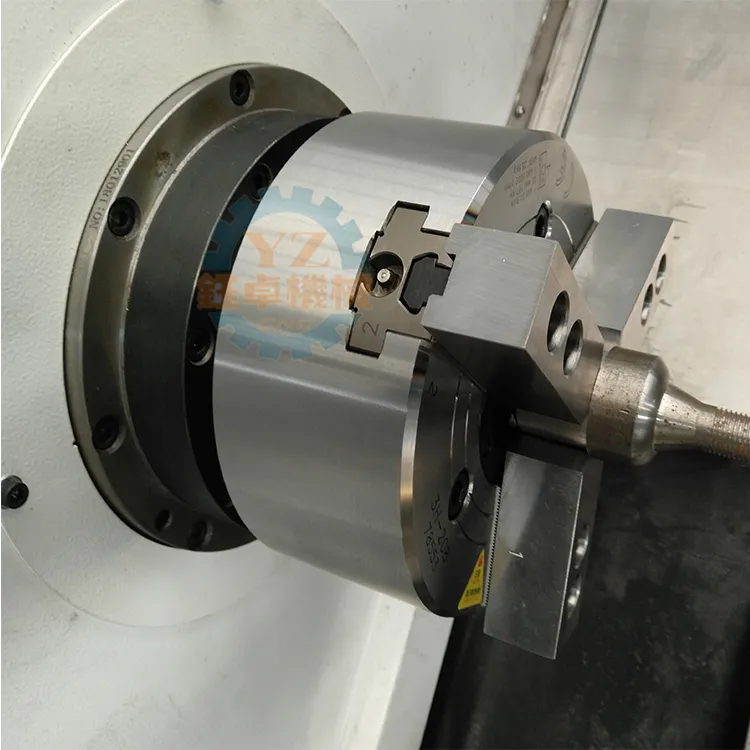

| 1.CNC system :Siemens 808D 2.Gang type tool carrier 3.Automatic lubrication pump 4.Manual 3-jaw chuck 5,Slant Bed Type 6.Auto lubrication system,coolant system,lighting system 7.Standard tools box 8.Standard packing list 9.Operational manual 10.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance) |
| Select configure CNC system:KND, Siemens, Fanuc, etc., Hydraulic chuck (solid and hollow), pneumatic chuck, Hydraulic tailstock, pneumatic tailstock, Automatic feeder, Horizontal six-station turret, eight-station turret, tool row, The spindle center height increase. |
CNC series CNC turning center is a professional processing: Bearing; motor cover; gear economical, practical machine tools, a fixture all types of both ends of the plate parts molding process; it is the largest amount of domestic use, the most extensive coverage of a CNC machine tools, machining widely used in the automobile, petroleum, military and other industries. machine complete varieties and specifications in the series, you can achieve internal and external surface of the disk type and short shaft type parts, conical, arc, thread, boring, reaming, can also be achieved non-circular curve processing. According to the needs of users, optional CNC systems and accessories.
