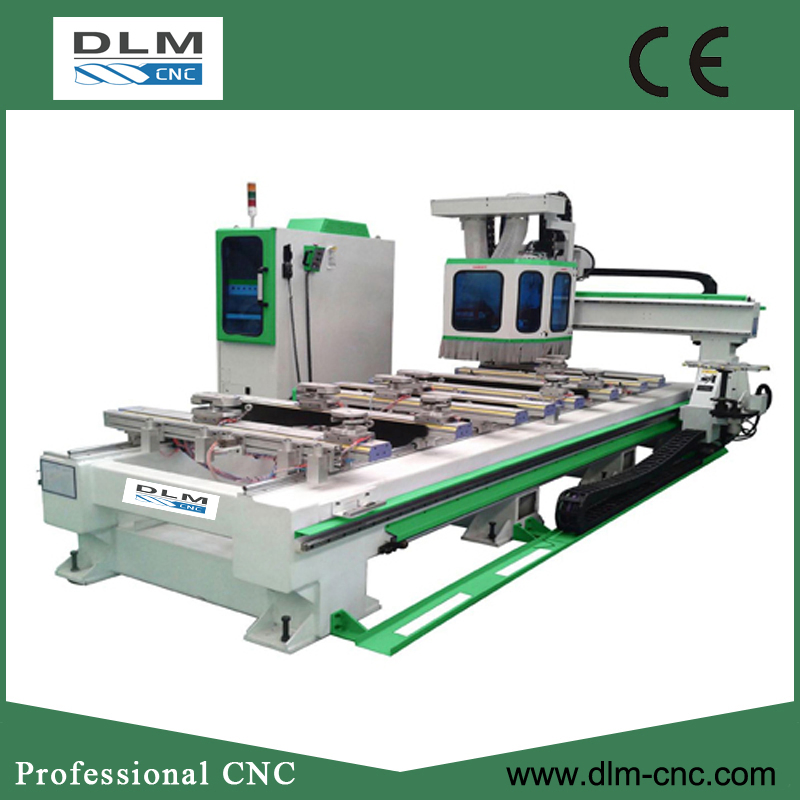

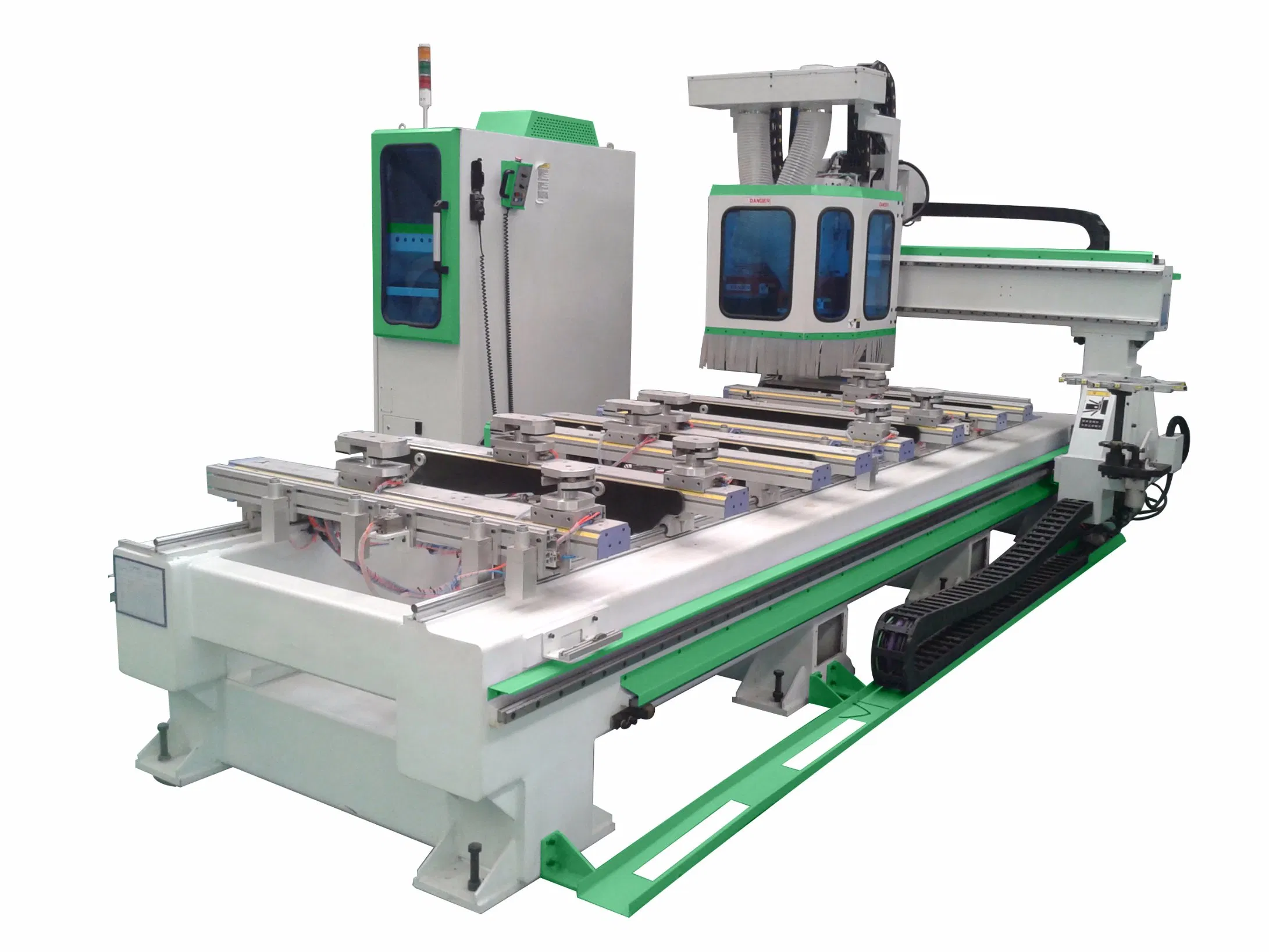

Hard Wood Door Making CNC Router PA-3713
Specifications 1.wood work machine cnc PA-37132.production process of milling,sawing,drilling can finish inside moldling,hole Wood Work Machine CNC PA-3713 Parameters of Wood Work Machine CNC - Rails1300mm - Pads 135x135x50mm-Fixed135x100x50mm-Fixed135x75x50mm-Rotary135x50x50mm-Rotary - Posit......
Send Inquiry
Product Description
Specifications
1.wood work machine cnc PA-3713
2.production process of milling,sawing,drilling can finish inside moldling,hole
Wood Work Machine CNC PA-3713
Parameters of Wood Work Machine CNC
1.wood work machine cnc PA-3713
2.production process of milling,sawing,drilling can finish inside moldling,hole
Wood Work Machine CNC PA-3713
Parameters of Wood Work Machine CNC

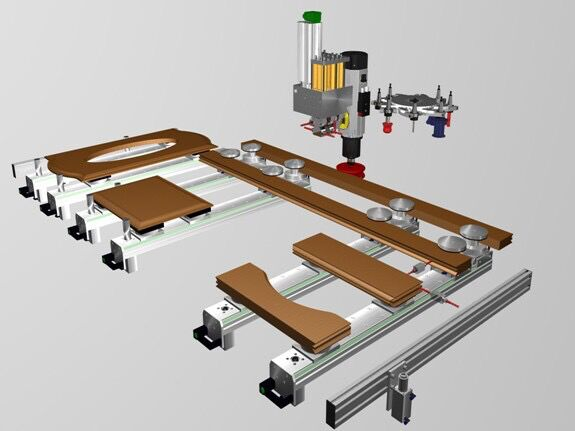

| - Rails | 1300mm | ||||
| - Pads | 135x135x50mm-Fixed | ||||
| 135x100x50mm-Fixed | |||||
| 135x75x50mm-Rotary | |||||
| 135x50x50mm-Rotary | |||||
| - Positioning air cylinder | 65mm-Fixed | ||||
| 65mm-Movable | |||||
| - Pneumatic clamp set | 40~75mm | ||||
| - Panel lifting blades | 55mm | ||||
| - Max. working Area | 3700×1300mm | ||||
| - Stroke | X&Xg Axis | 4000mm | |||
| Y Axis | 1700mm | ||||
| Z1&Z2 Axis | 300mm | ||||
| - Working height | 200 mm | ||||
| - Rapid speed | X&Y Axis | 80 M/min. | |||
| Z Axis | 20 M/min. | ||||
| - Tool change mode&capacity | DRUM type ATC, 8 tools | ||||
| Aluminum Alloy | |||||
| - Spindle power | 16 HP (12kw)/HSK-63F | ||||
| - Spindle speed | 1000- 24000rpm/min | ||||
| - Vacuum pump power | 7.5HP(5.5kw)-160m³/h | ||||
| - CNC controller | OSAI-PC | ||||
| - Boring head | 7V2H | ||||
