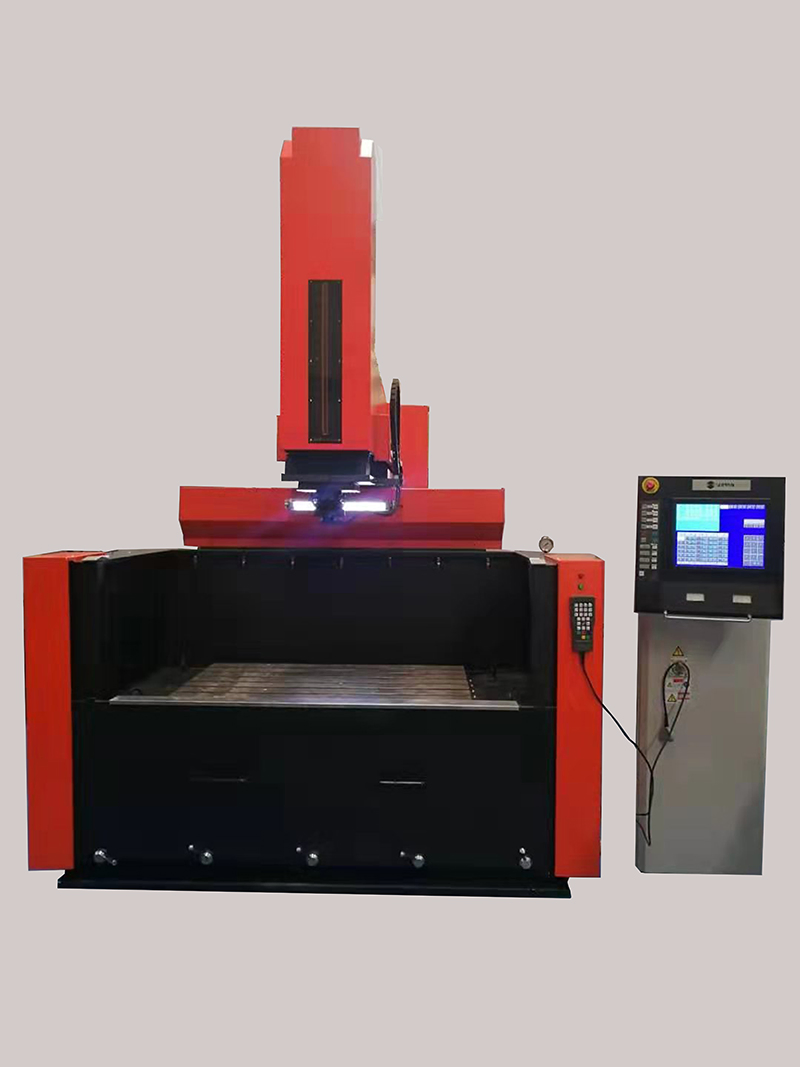

High-Precision Bull Head EDM Machine
Description Electrical Discharge Machine(EDM), Die-sinking EDM, also called cavity type EDM or volume EDM, consists of an electrode and workpiece submerged in an insulating liquid such as, more typically, oil or, less frequently, other dielectric fluids. The electrode and workpiece are connected to ......
Send Inquiry
Product Description
Description
Electrical Discharge Machine(EDM), Die-sinking EDM, also called cavity type EDM or volume EDM, consists of an electrode and workpiece submerged in an insulating liquid such as, more typically, oil or, less frequently, other dielectric fluids. The electrode and workpiece are connected to a suitable power supply. The power supply generates an electrical potential between the two parts. As the electrode approaches the workpiece, dielectric breakdown occurs in the fluid, forming a plasma channel, and a small spark jumps.

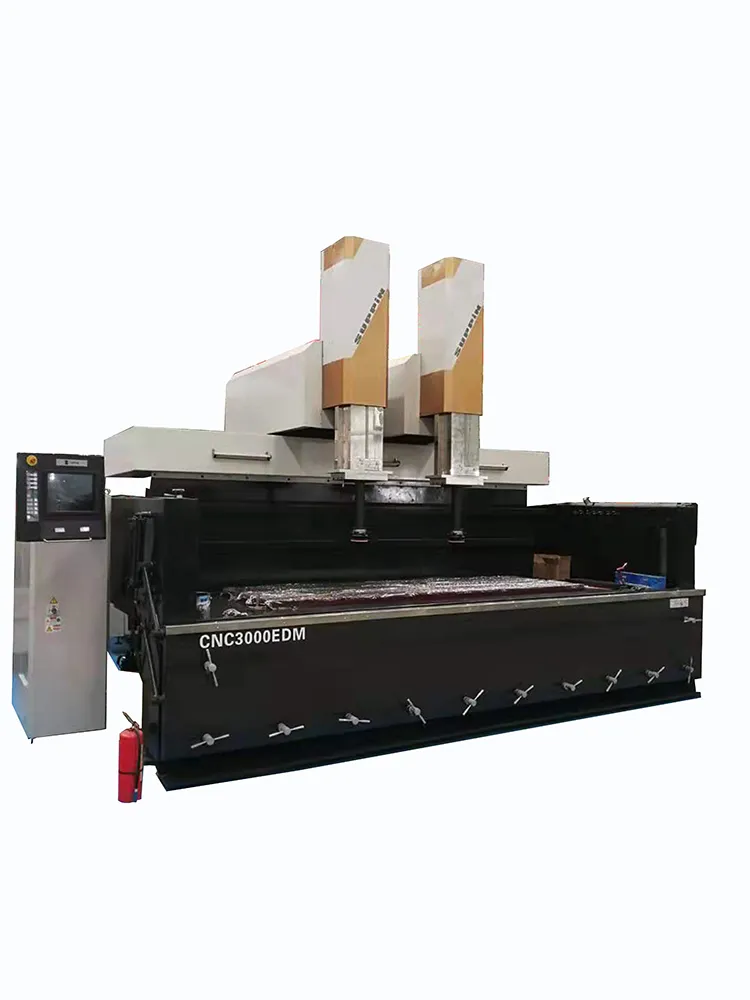

The twin-spindle spark machine is also called the double bull head spark machine, which is mainly a machine tool for large mold processing. Such as TV shell mold, refrigerator mold, automobile instrument panel mold, automobile bumper mold, etc.
3060 machine tool is mainly developed for automotive bumper molds, with high product accuracy and fast processing speed.
Specification
| Specification for machine unit: |
| Model | Unit | 860P |
| Table travel(X axis) | mm | 800 |
| Table travel(Y axis) | mm | 600 |
| Quill travel(Z1 axis) | mm | 500 |
| Work head travel(Z2 axis) | mm | |
| Work table dimensions(LxW) | mm | 800x600 |
| Distance between plate and table | mm | 350-950 |
| Work tank inner dimensions(WxDxH) | mm | 1000x800x500 |
| Max. capacity of dielectric fluid | Liter | 550 |
| Max. electrode weight | kg | 150 |
| Max. workpiece weight | kg | 3000 |
| Machine unit dimensions(WxDxH) | mm | 1600x1300x2750 |
| Machine unit weight | kg | 8000 |
