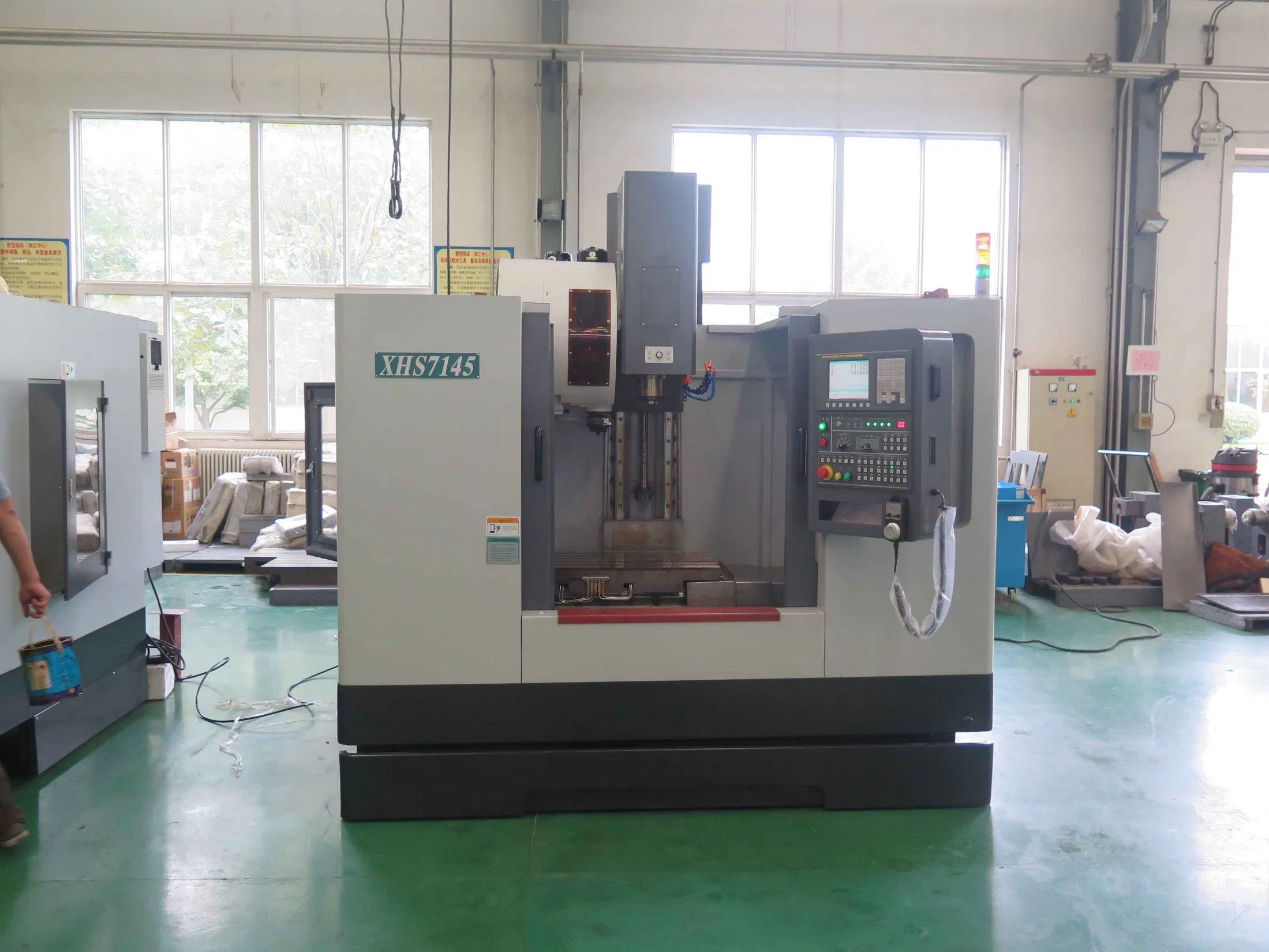

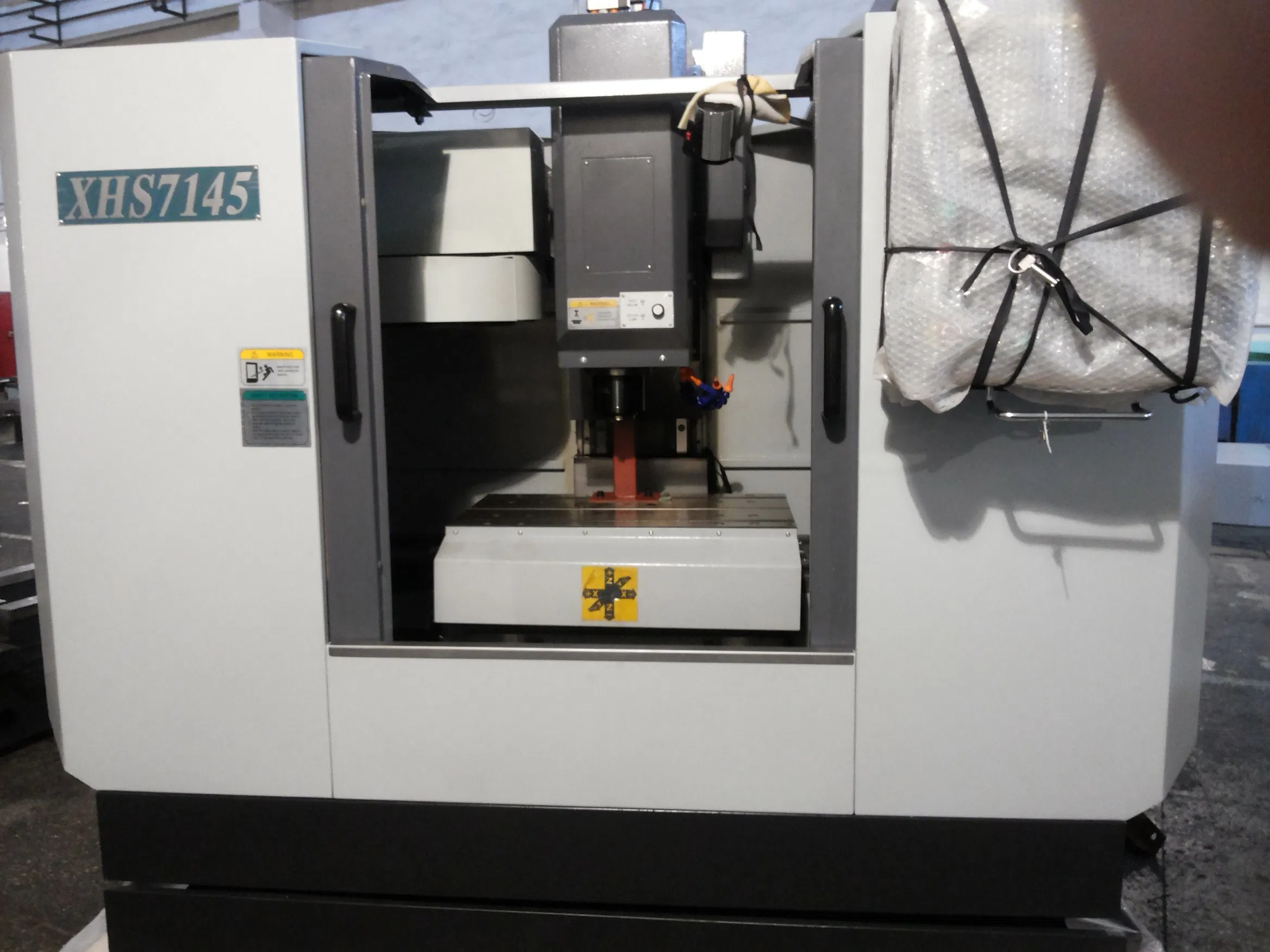

High Precision CNC Vertical Milling Machining Center
Parameters ItemSpecificationsUnitCNC control systemFANUC 0i-mate MD TravelX,Y,Z-Axis600x450x500mmDistance between spindle center and column485mmDistance between spindle and table130~630mmTableTable dimension1000×450mmT-slot dimension5×18×80mmMax weight of workpiece500kg......
Send Inquiry
Product Description
| Parameters Item | Specifications | Unit | |
| CNC control system | FANUC 0i-mate MD | ||
| Travel | X,Y,Z-Axis | 600x450x500 | mm |
| Distance between spindle center and column | 485 | mm | |
| Distance between spindle and table | 130~630 | mm | |
| Table | Table dimension | 1000×450 | mm |
| T-slot dimension | 5×18×80 | mm | |
| Max weight of workpiece | 500 | kg | |
| Spindle motor | 5.5kw | ||
| Spindle speed | 80~8000 | rpm | |
| Spindle taper | BT40 | ||
| Feed | Rapid feed rate | X,Y,24000 Z :18000 | mm |
| Cutting feed rate | 1~5000 | mm | |
| Guide way | Type | Liner guide way | |
| Accuracy | Positioning accuracy | 0.025 | mm |
| Repeatibility Accuracy | 0.015 | mm | |
| Overall dimension | Total weight | 3500 | kg |
| Overall dimension | 2500×2000×2450 | mm | |
Pre-sales service:
We are providing customized service for our customer,our engineer will design according to your require.
Machine drawings are available.
Configuration is optional.
technical support every day.
View our factory.
Selling service:
We will send to you pictures or documents to you. Including production,test,packaging,loading.
Sending all the documents to you ASAP.
After-sale service:
24-hours technical support by email or on line.
use friendly english manual for machine operating and maintaining.
engineer available to service machinery overseas.
Welcome to our factory to have training for customer.

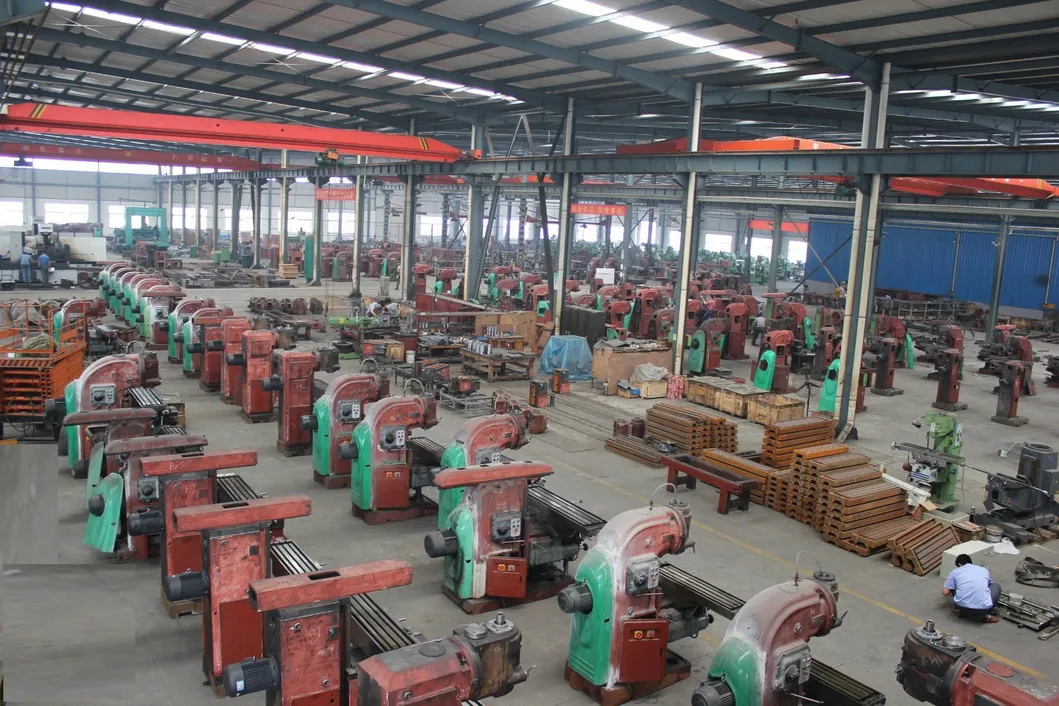

Tengzhou Hising Machine Tools Co., Ltd. is one leading manufacturer and exporter for machine tools and accessories in the south of shandong province. The main products have developed to 5 series in recent years, CNC machine center, CNC lathe, milling machine series, milling/drilling machine series, Machine tools, and Press brake & Shears altogether more than 60 specifications. With stable capability & Realiable quality, the products are good sell well at home and abroad. The machines are widely exported to more than 70 countries regions.
The corporation purpose and the quality strategy is to establish famous and high grade brand. Strict management, honest attitude and timely service is our eternal policy. At the same time, we have good relation and connection with over 100 manufacturers in China, we can help and provide most of the machine tools and accessories.
Tengzhou Hising Machine Tools Co., Ltd. Wishes to cooperate sincerely with friends at home and abroad to realize mutual development!
