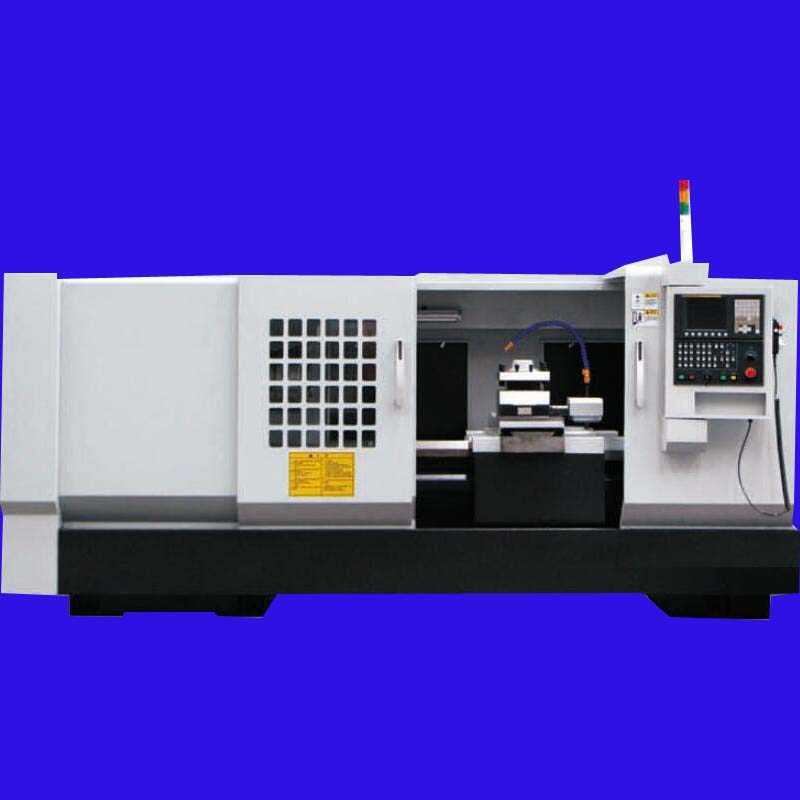

High Quality CNC Horizontal Lathe, Ck6163/ 6180 /6110
Supply popular model of CK6163/6180/6110 Full-Function CNC horizontal Lathe Machine (500/600 guideway)1.Product introduction and use:This machine is a standard automatic CNC lathe for metal processing, suitable to cut internal and external cylindrical surface,conical surface ,rotating surfaces and v......
Send Inquiry
Product Description
Supply popular model of CK6163/6180/6110 Full-Function CNC horizontal Lathe Machine (500/600 guideway)
1.Product introduction and use:
This machine is a standard automatic CNC lathe for metal processing, suitable to cut internal and external cylindrical surface,conical surface ,rotating surfaces and various types of threads.
2.Features:
-- Unitary bed is made of high strength iron to ensure the good rigidity and high precision.
-- The surface of guide rail is quenched by ultra audio frequency, with high precision, high hardness and long service life.
3.Optional accessories:
Fanuc or other brand CNC system,hydraulic or power turret,pneumatic or hydraulic chuck,hydraulic tailstock,full-shield.
4. Main technical parameters
1.Product introduction and use:
This machine is a standard automatic CNC lathe for metal processing, suitable to cut internal and external cylindrical surface,conical surface ,rotating surfaces and various types of threads.
2.Features:
-- Unitary bed is made of high strength iron to ensure the good rigidity and high precision.
-- The surface of guide rail is quenched by ultra audio frequency, with high precision, high hardness and long service life.
3.Optional accessories:
Fanuc or other brand CNC system,hydraulic or power turret,pneumatic or hydraulic chuck,hydraulic tailstock,full-shield.
4. Main technical parameters
| Specification | CK6163 | CK6180(550) | |||
| (Manual) | (Hydraulic) | (Manual) | (Hydraulic) | ||
| Capacity | Swing over bed | 630mm | 800mm | ||
| Swing over cross slide | 350mm | 520mm | |||
| Distance between centers | 1000/1500/2000/3000/4000/5000/6000mm | 1000/1500/2000/3000/4000/5000/6000mm | |||
| Guideway width | 550mm | 550mm | |||
| Max.load capacity of the guidway | 3 Ton | 3 Ton | |||
| Spindle | Spindle bore | 104mm | 104mm | ||
| Spindle bore taper | ø120/MT5 | ø120/MT5 | |||
| Spindle nose type | C11 | C11 | |||
| Spindle speed steps | VF.3 steps | HYD.4 steps | VF.3 steps | HYD.4 steps | |
| Spindle speed range | 10-1000mm | 17-1000mm | 10-1000mm | 17-1000mm | |
| Chuck | ø315 3-jaw manual | ø315 3-jaw manual | |||
| Turret | Toolpost | NC turret 4 position | NC turret 4 position | ||
| Tool shank size | 32x32mm | 32x32mm | |||
| Feed | X-Axis travel | 320mm | 420mm | ||
| Z-Axis travel | 850/1350/1850/2850/3850/7850/5850mm | 850/1350/1850/2850/3850/7850/5850mm | |||
| X-Axis fast feed | 4000rpm | 4000rpm | |||
| Z-Axis fast feed | 6000rpm | 6000rpm | |||
| Tailstock | Tailstock quill diameter | ø100 | ø100 | ||
| Tailstock quill taper | MT5 | MT5 | |||
| Tailstock quill travel | 250mm | 250mm | |||
| Motor | Main spindle motor | 11kw | 11kw | ||
| Coolant pump motor | 0.125kw | 0.125kw | |||
| Dimension | Widthxheight | 1750x1850mm | 1850x1900mm | ||
| Length | 3300/3800/4300/5300/6300/7300/8300mm | 3300/3800/4300/5300/6300/7300/8300mm | |||
| Weight | Net weight | 3.7/4.1/4.5/5.3/6.1/6.9/7.7 Ton | 3.9/4.3/4.7/5.5/6.3/7.1/7.9 Ton | ||
