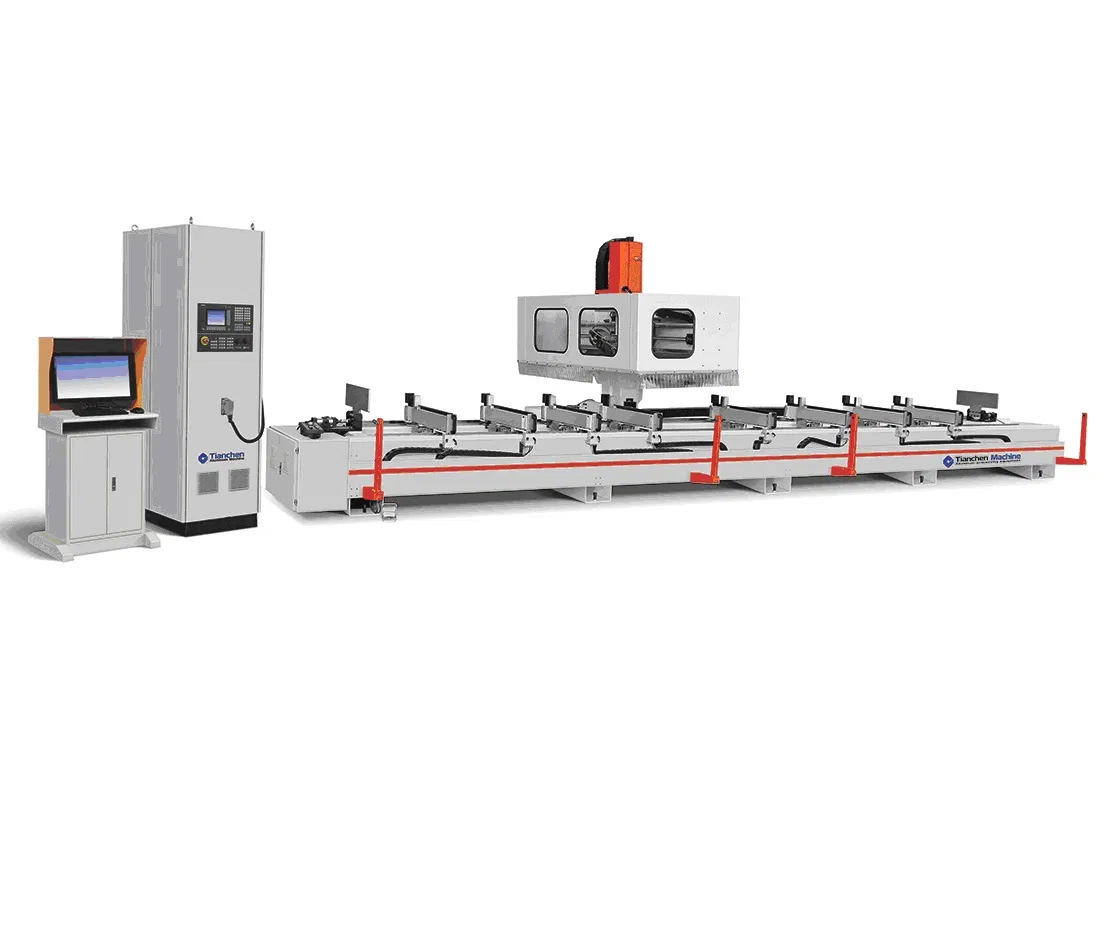

High Speed CNC Machining Center for Aluminum Profile (4 CNC axis)
Product features1. This machine is designed for taping, milling, processing launders, and mounting holes, lock holes and other special slots for diversified curtain wall profile and aluminum door and window profile.2. It adopts the original Italy imported high-speed electric spindle, and it can work......
Send Inquiry
Product Description
Product features
1. This machine is designed for taping, milling, processing launders, and mounting holes, lock holes and other special slots for diversified curtain wall profile and aluminum door and window profile.
2. It adopts the original Italy imported high-speed electric spindle, and it can work at any angle within ± 900, with high efficiency.

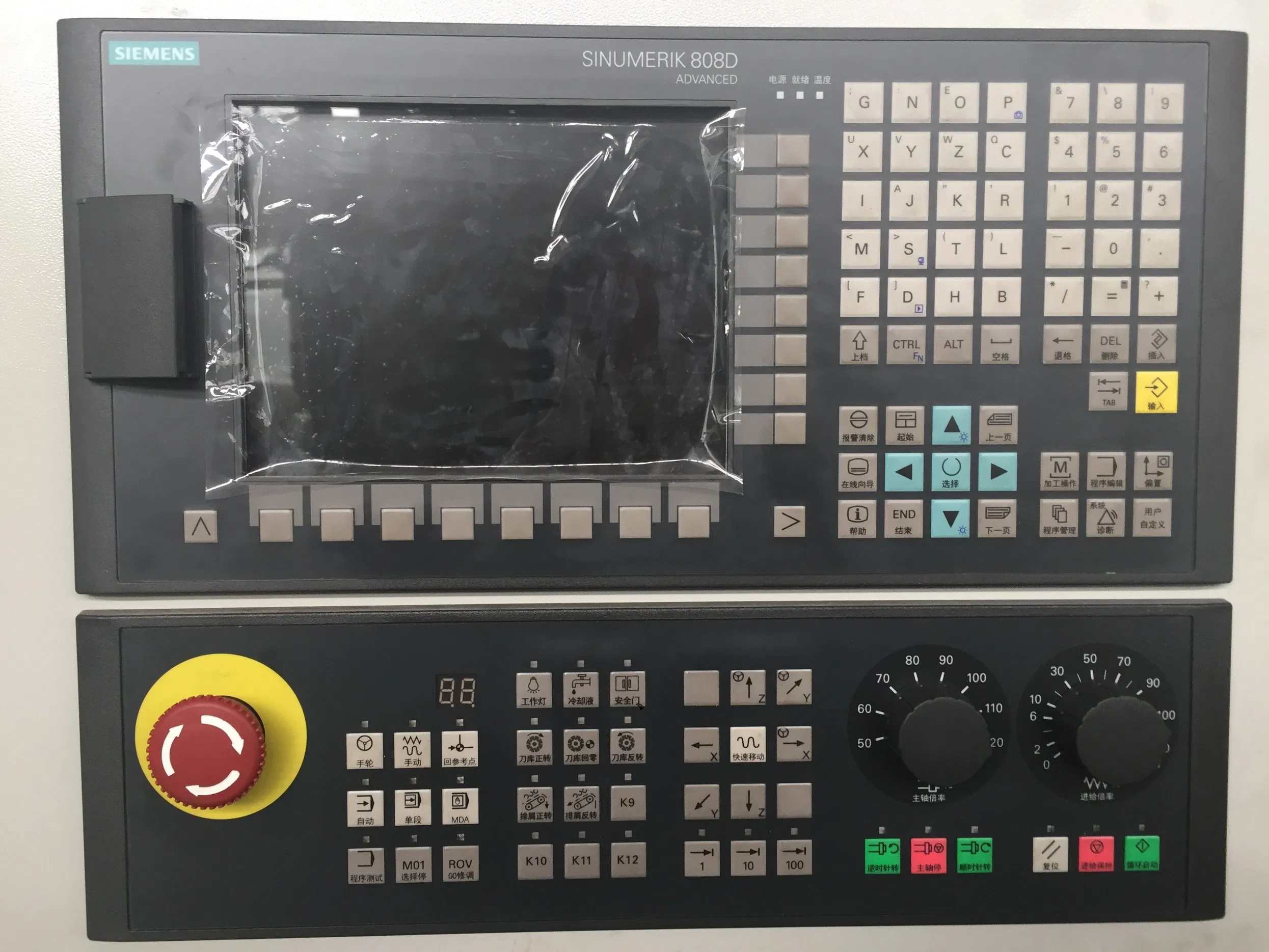

3. It adopts high-quality exclusive industrial computer control system with good user operating interface, graphic programming and machining tracing interface. This processing interface can show the related dates directly.
4. It adopts original imported control system and servo-motor and high quality ball screw, linear guide rail pair and bearing to insure the high precision.
5. The cutter storage has12 cutter positions, cutter change automatically.

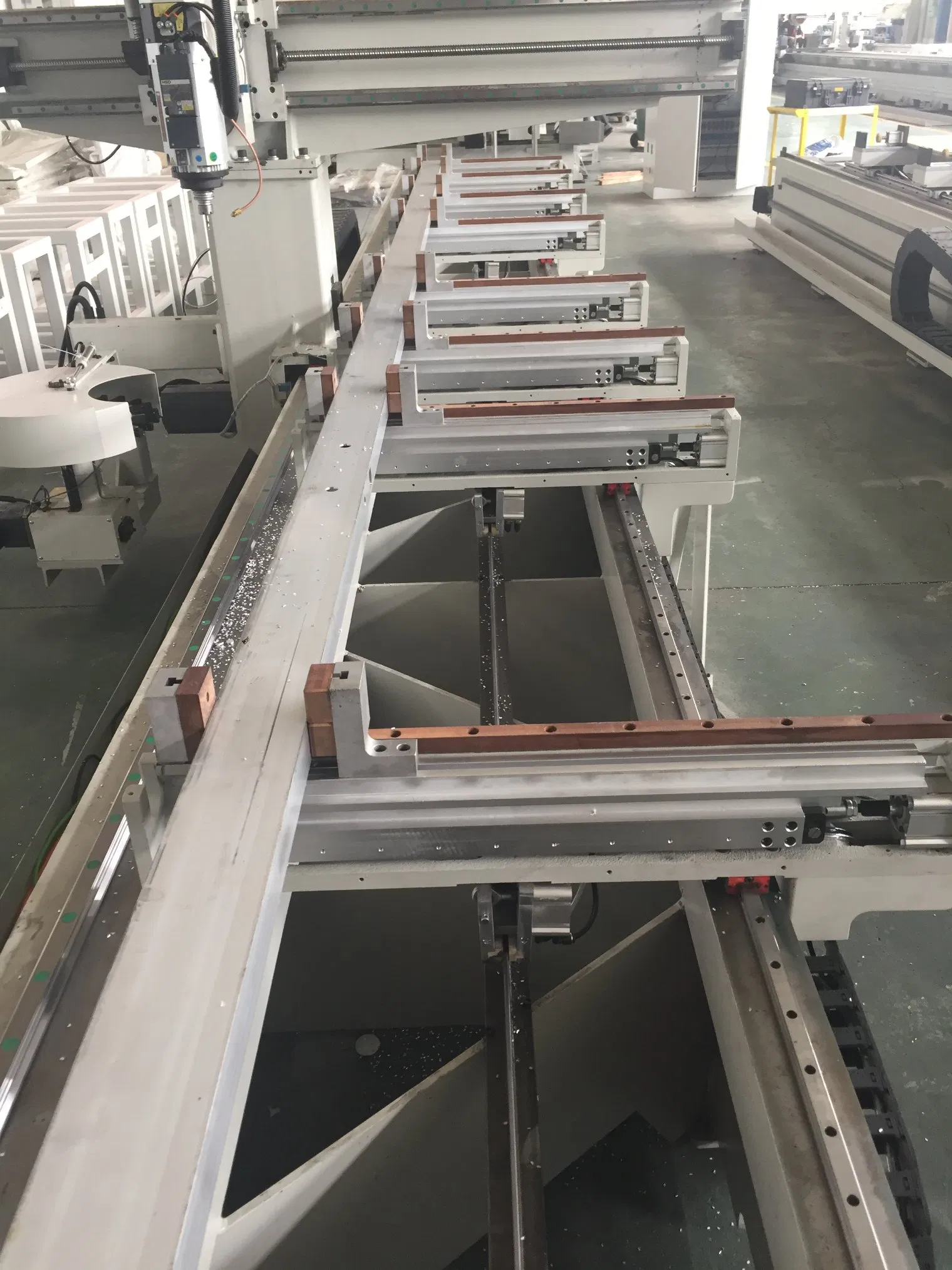

6. The fixture position can be adjusted freely.
7. The double working benches allow to process two workpieces or two kinds of profiles at the same time.
8. With half-close safeguard device to insure the personal safety of the operator.
7. The position of clamping device can put freely.
1. This machine is designed for taping, milling, processing launders, and mounting holes, lock holes and other special slots for diversified curtain wall profile and aluminum door and window profile.
2. It adopts the original Italy imported high-speed electric spindle, and it can work at any angle within ± 900, with high efficiency.
3. It adopts high-quality exclusive industrial computer control system with good user operating interface, graphic programming and machining tracing interface. This processing interface can show the related dates directly.
4. It adopts original imported control system and servo-motor and high quality ball screw, linear guide rail pair and bearing to insure the high precision.
5. The cutter storage has12 cutter positions, cutter change automatically.
6. The fixture position can be adjusted freely.
7. The double working benches allow to process two workpieces or two kinds of profiles at the same time.
8. With half-close safeguard device to insure the personal safety of the operator.
7. The position of clamping device can put freely.
| X-way range | 7000mm |
| Y-way range | 1400mm |
| Z-way range | 600mm |
| X-way speed | 0~60m/min |
| Y-way speed | 0~30m/min |
| Z-way speed | 0~20m/min |
| Main shaft rev./power | 0~18000rpm/5.5kw |
| Gyrating range | -90~0~+90 |
| Cutter magazine | 12 cutter positions, cutter auto-change is available in the program |
| Cutter max length | 165mm |
| Saw blade diameter | 80-150mm |
| Pneumatic pressure | 0.5-0.8MPa |
| Power supply | 380V/50Hz |
| Total power | 10kw |
| Quantity of clamps | 8 sets |
| Lubricating & cooling | auto lubricating spray cooling |
| Work area(W×H×L) | 650×500×7000mm |
| Contour Dimension(W×H×L) | 1130×2350×2550mm |
| Machine net Weight | 4500kg |
| Repeat locating accuracy | ±0.02mm |
| Processing accuracy | ±0.1mm |
| Cutting surface roughness | Ra12.5 µm |
