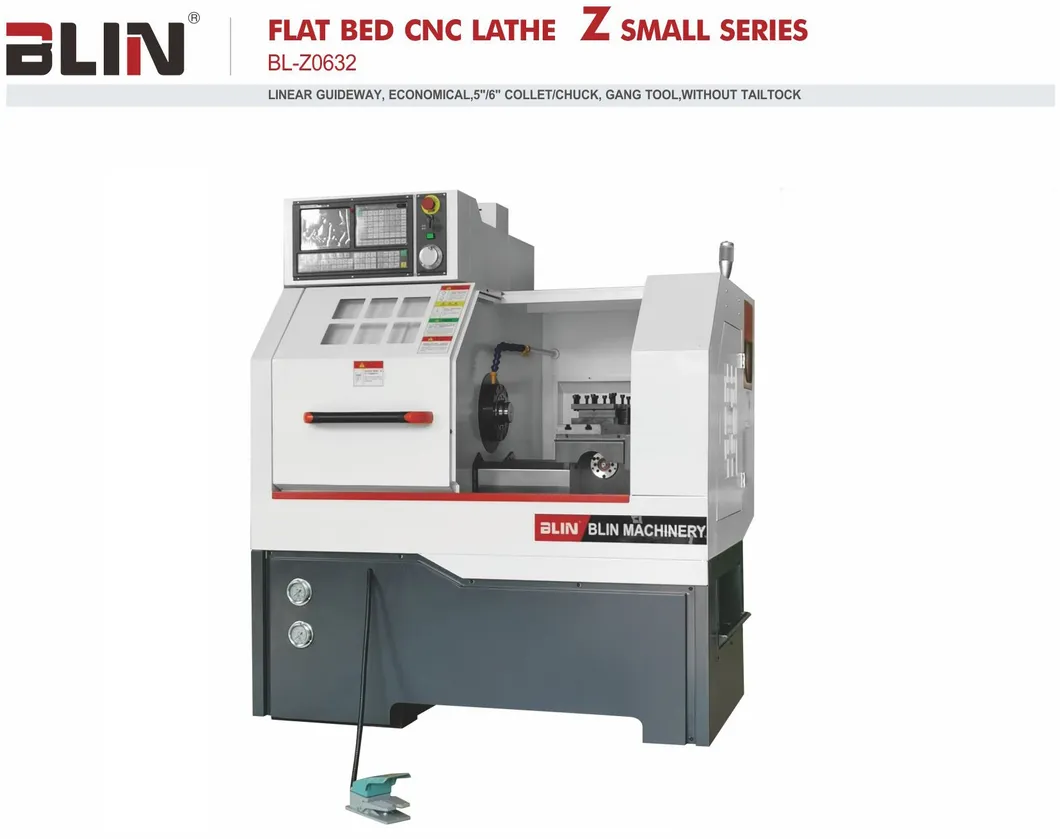

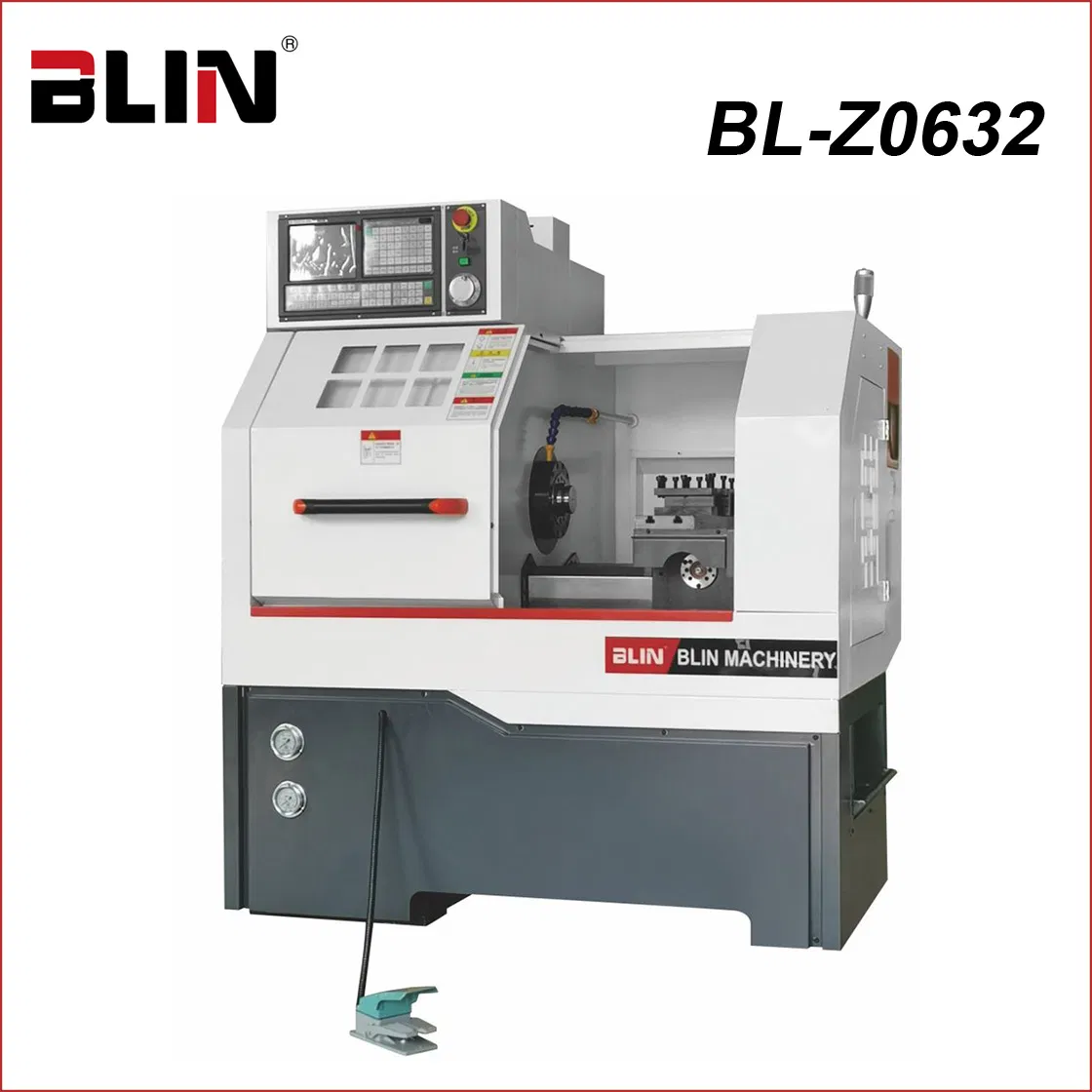

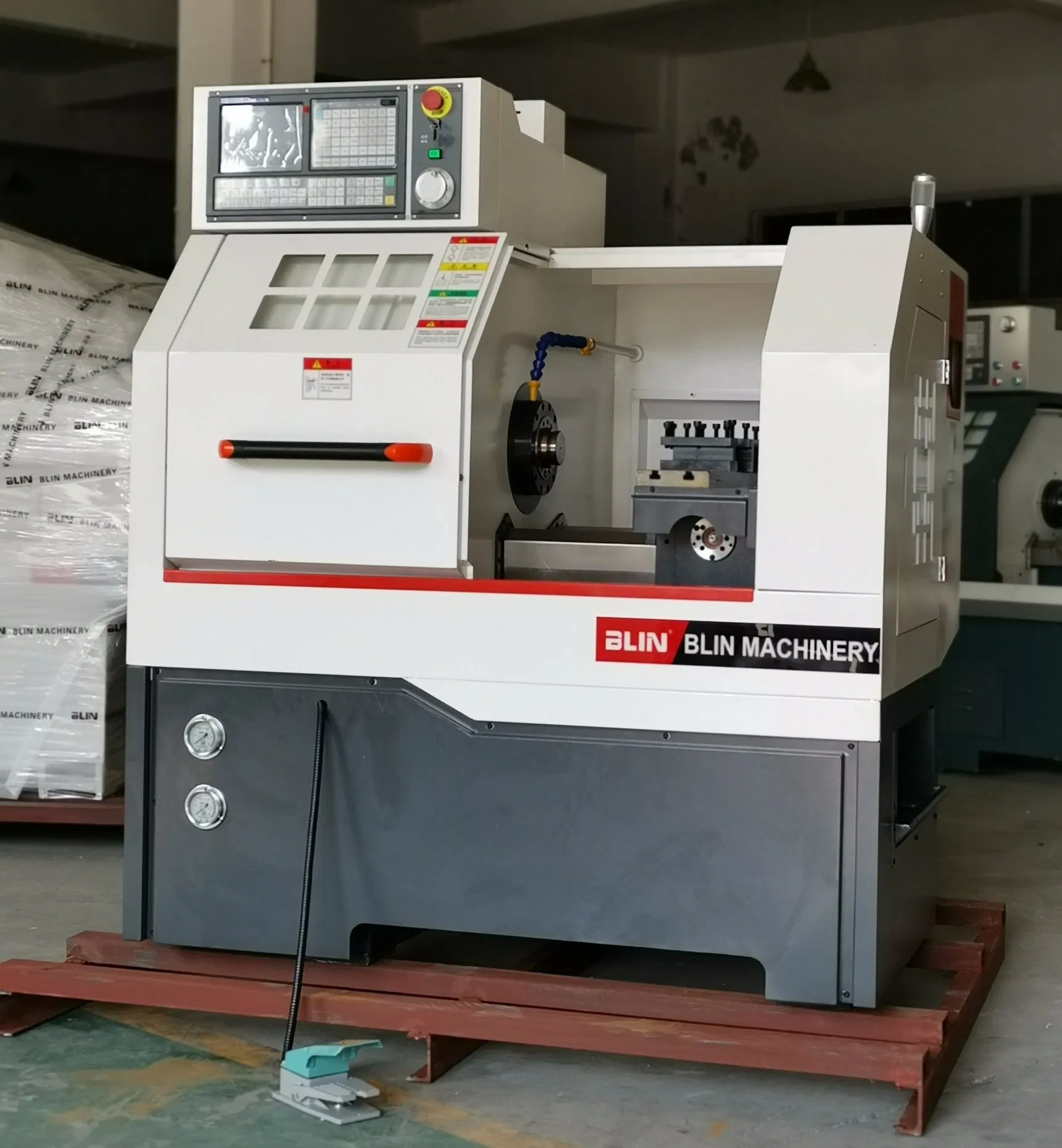

High Speed Mini Metal Lathe with Ce Certificated (BL- Z0632 )
-TAIWAN PMI linear guideway and ball screw -Independent spindle unit -Super high performance-price ratioDetails:ItemSpecificationUnitBL-Z0632CapacityChuck size /5''/6''Max. swing dia. over bedmmΦ300Max. swing dia. over slidemmΦ80Max. turning lengthmm200Slide board si......
Send Inquiry
Product Description
-TAIWAN PMI linear guideway and ball screw

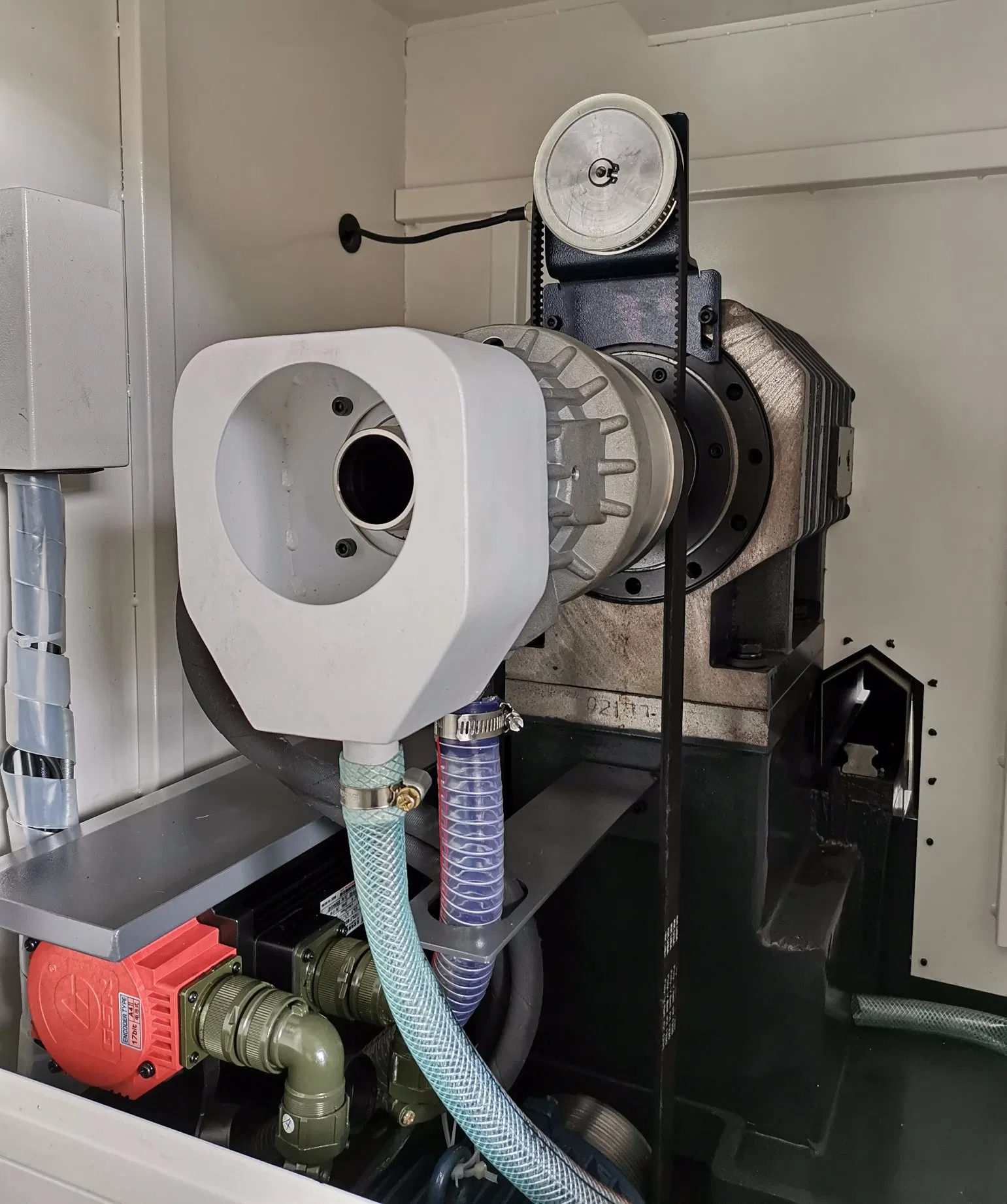

-Independent spindle unit
-Super high performance-price ratio
Details:
| Item | Specification | Unit | BL-Z0632 | |
| Capacity | Chuck size | / | 5''/6'' | |
| Max. swing dia. over bed | mm | Φ300 | ||
| Max. swing dia. over slide | mm | Φ80 | ||
| Max. turning length | mm | 200 | ||
| Slide board size | mm | 500×160 | ||
| Spindle | Spindle speed | rpm | 3500 | |
| Spindle type | / | A2-5 | ||
| Spindle bore | mm | Φ48.5 | ||
| Spindle motor | kw | 3 | ||
| Clamping device | / | Hydraulic collet/Hydraulic chuck | ||
| X/Z axes | X/Z axes travel | mm | 240/260 | |
| X/Z axes servo motor | N.m | 4/4 | ||
| X/Z axes rapid move speed | m/min. | 20/20 | ||
| X,Z ball screw O.D./pitch | mm | Φ25/8,Φ32/10 | ||
| X/Z linear guideway width | mm | 25 | ||
| X/Z repeatability accuracy | mm | 0.004/0.005 | ||
| Tool post | Tool post | / | Gang tool/4T tool turret | |
| Toolshank size | mm | 16×16, Φ20 | ||
| Tailstock | Tailstock | / | N/A | |
| Machining Accuracy | Finish turning dia. uniformity | mm | ±0.006 | |
| Finish turning roundness | mm | ≤0.003 | ||
| Finish turning flatness | mm | Φ300mm, Inner concave surface ≤0.025 | ||
| Finish turning roughness | mm | Ra0.8 | ||
| Machining Capacity | Steel Φ40 1400rpm | / | F 0.1mm/r semidiameter cutting depth 2mm | |
| Brass Φ60 1500rpm | / | F 0.1mm/r semidiameter cutting depth 2mm | ||
| Aluminium Φ60 1500rpm | / | F 0.1mm/r semidiameter cutting depth 2mm | ||
| Stainless steel Φ40 1200rpm | / | F 0.1mm/r semidiameter cutting depth 1.5mm | ||
| Others | Overall size | mm | 1560×1280×1750 | |
| N.W. | kg | 1200 | ||

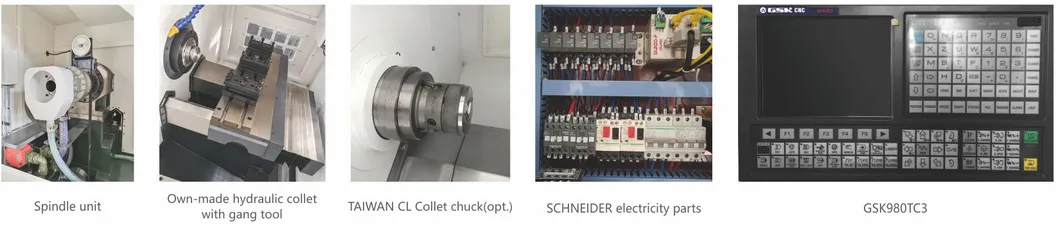

Main parts list:
| Item | Brand |
| Bearings | CHINA top |
| Ball screw | TAIWAN-PMI |
| Linear guideway | TAIWAN-PMI |
| Spindle unit | CHINA well-known |
| Chuck& cylinder | TAIWAN-AUTOGRIP |
| Main electric parts | FRANCE-SCHNEIDER |
Standard configuration:
-GSK980TC3 CNC Controller
-Hydraulic collet
-Gang tool
Optional configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-4 station ELECTRIC tool turret

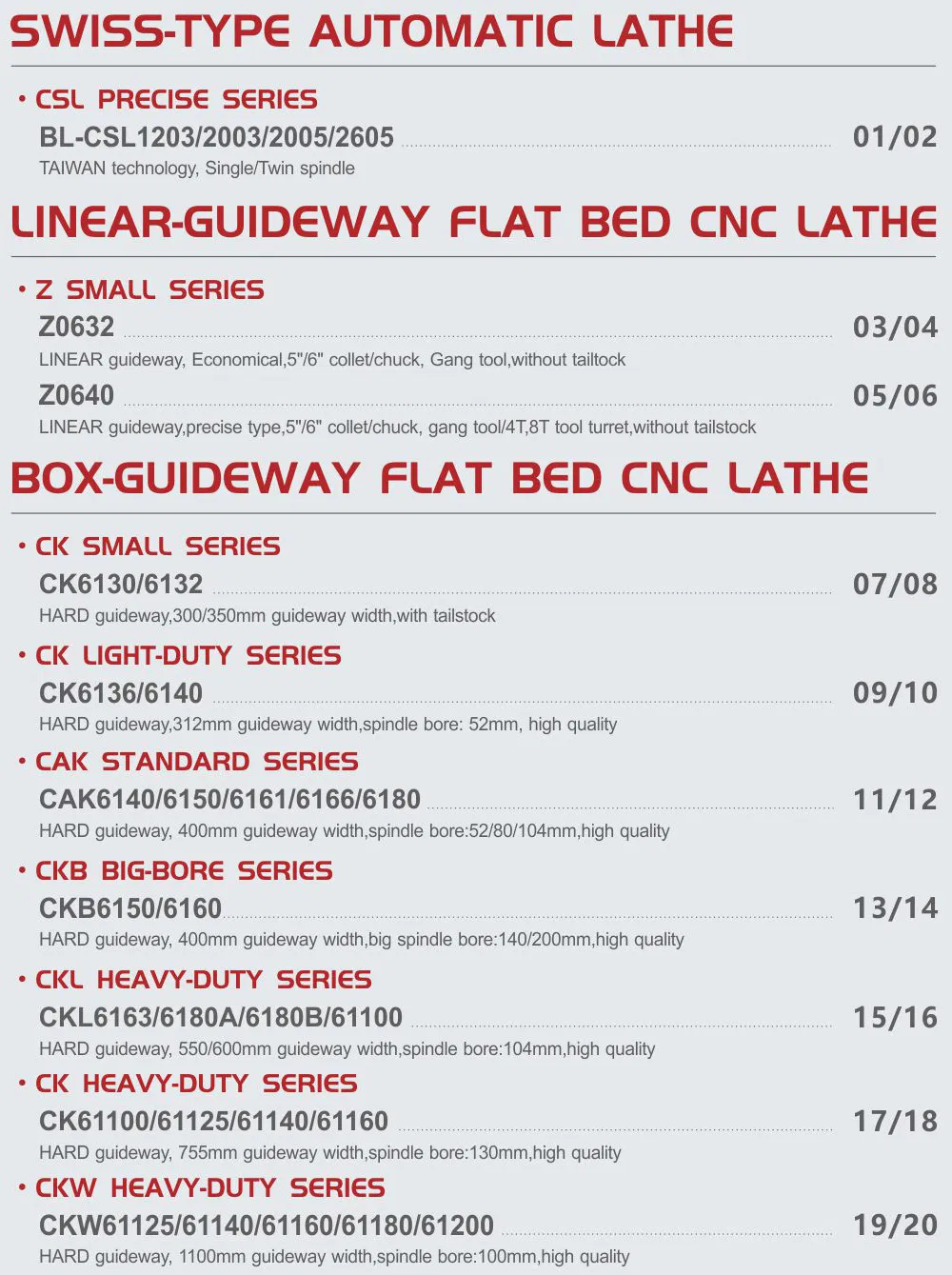

Other models choice:
