Product Description

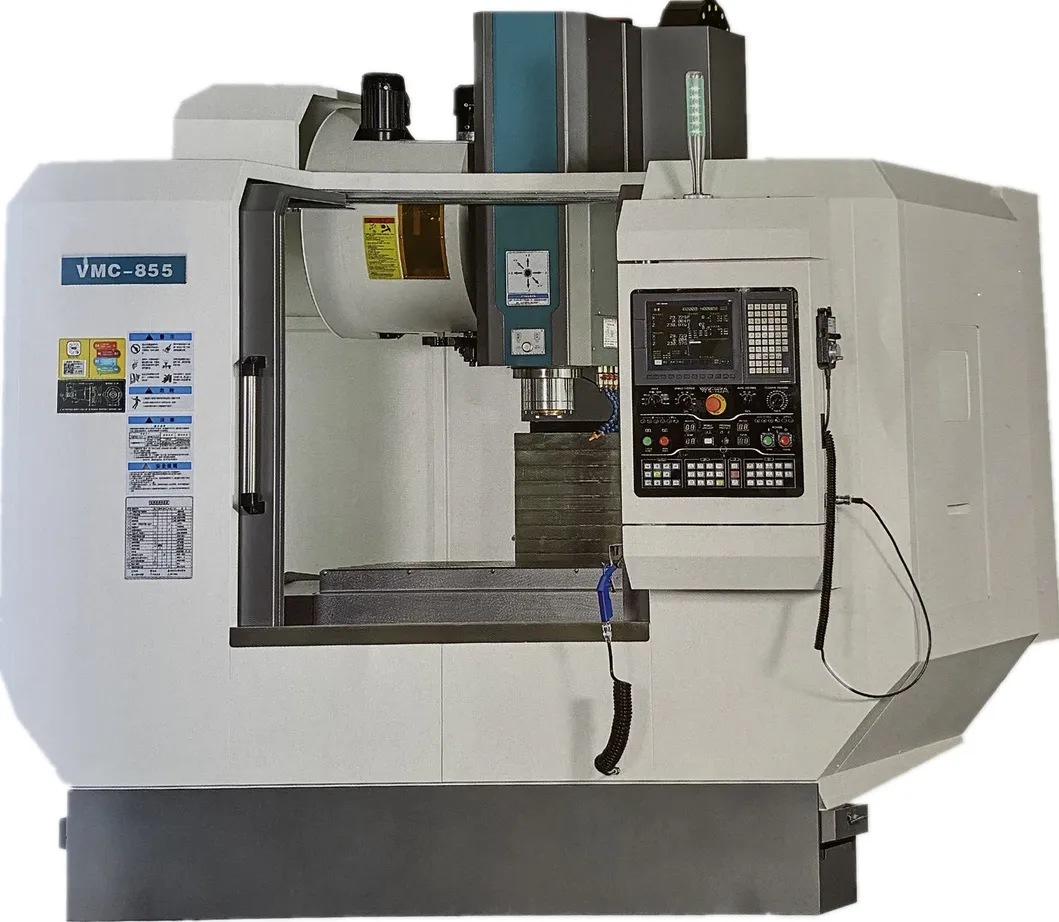

VMC855 CNC Vertical Machining Center Milling Machines

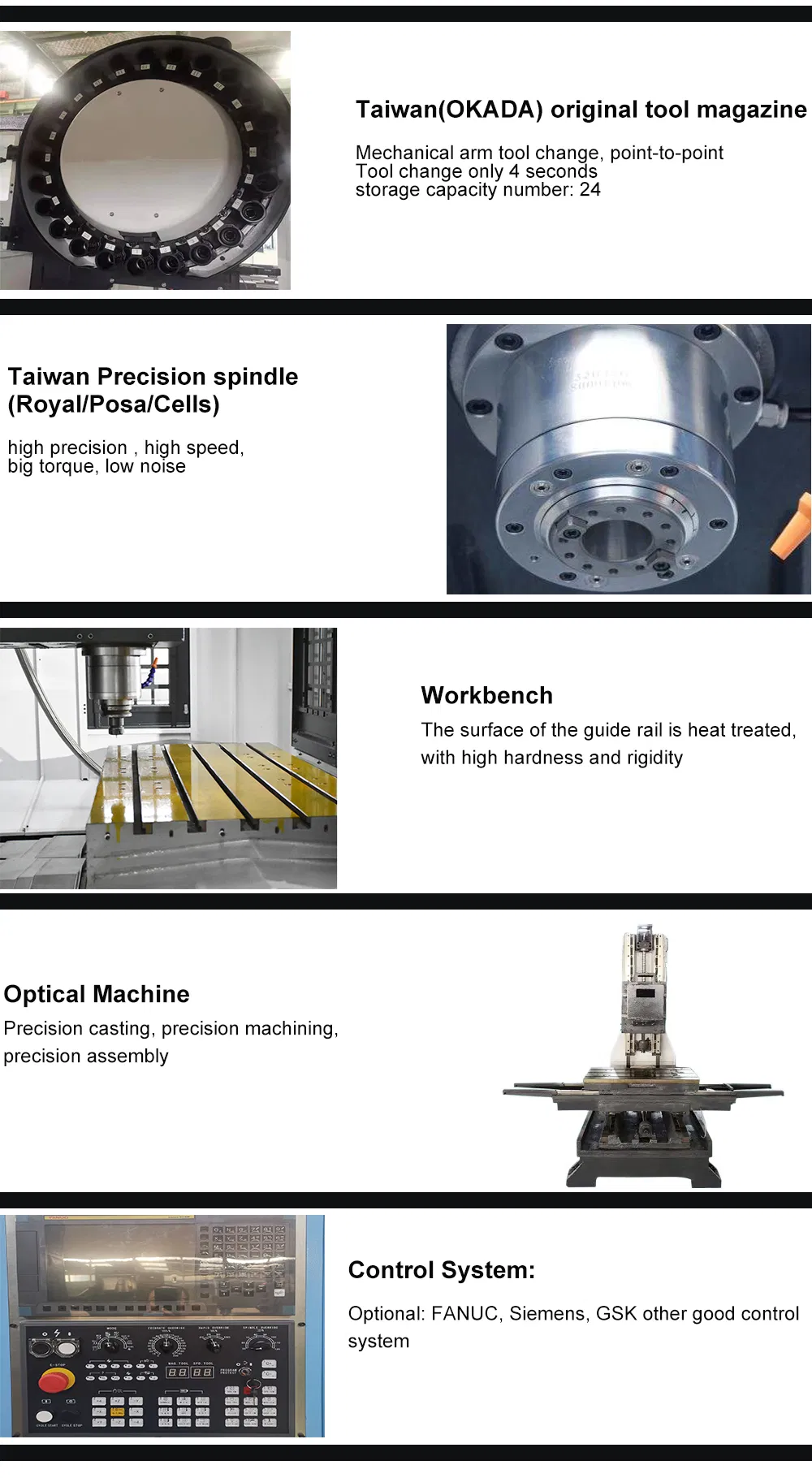

vmc 855 vertical milling machine is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.
| Specifications | unit | VMC855 |
| X/Y/Z travel | mm | 800/550/550 |
| Distance from spindle nose to table surface | mm | 150-700 |
| Distance from spindle center to column guideway | mm | 610 |
| Spindle motor Power | kw | 11/15 |
| Spindle speed range | rpm | 40-6000 |
| Spindle Taper | BT40 | |
| Positioning Accuracy | mm | ±0.005/300 JIS |
| Repeat Positioning Accuracy | mm | ±0.003/300 JIS |
| Table Size | mm | 1000x550 |
| Max.Table loading | kg | 500 |
| T-Slot | 5-18-90 | |
| X/Y/Z rapid speed | M/min | 30/30/24 |
| Feed Speed | mm/min | 1-10000 |
| Tool magazine capability | pcs | 24 |
| Max. weight of tool | kg | 8 |
| Max. dimension of tool | mm | Φ130x300 |
| Min.time of tool change | sec | 1.75 |
| Air | Mpa | 0.5-0.7 |
| Power | 380V/220V/415V/50(60)Hz/3ph | |
| Ambient Temperature | 0ºC-42ºC | |
| Relative humidity | ≤80% | |
| Machine Net Weight | kg | 5000 |

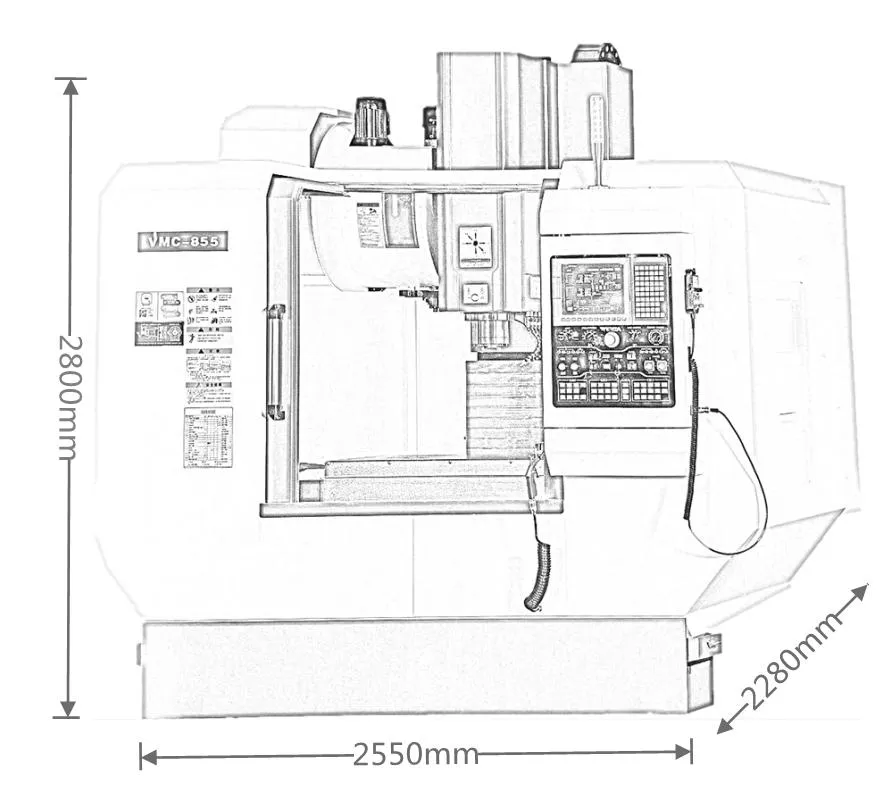

| Overall Dimension | mm | 2550x2280x2800 |
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there?
Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
