Hmc500 CNC Double Positions Horizontal Machining Center

Product Description

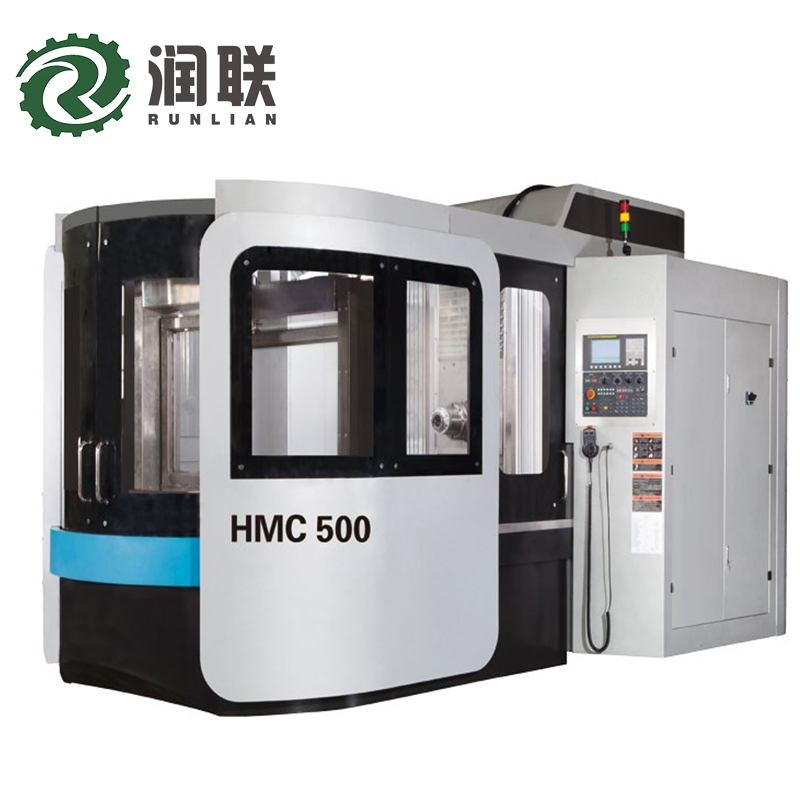

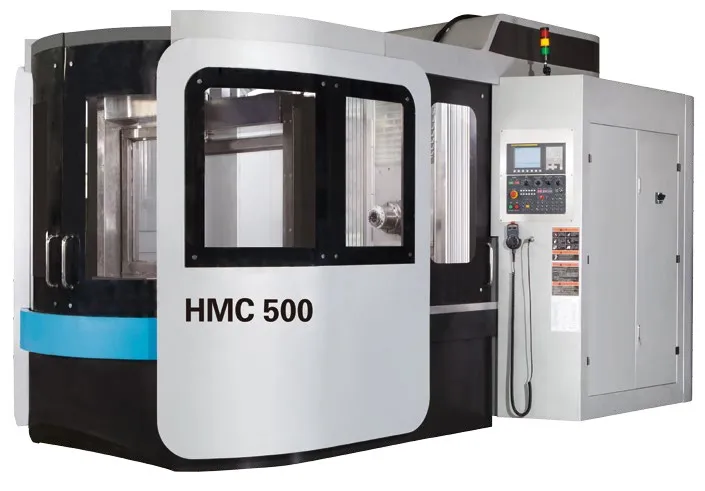

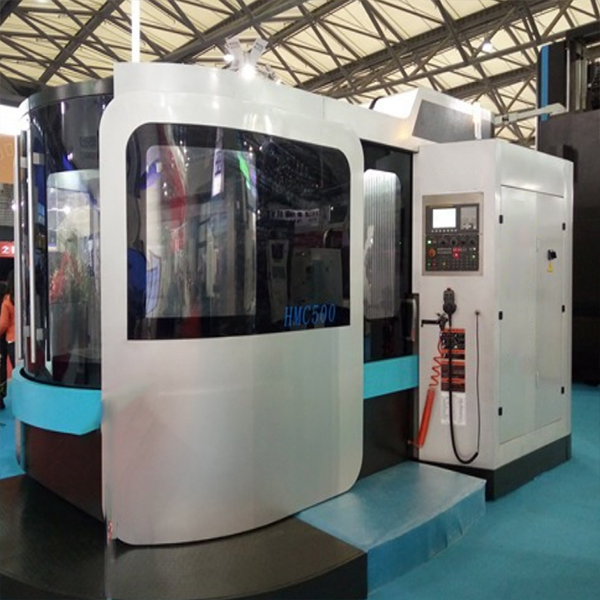

HMC500 CNC Double Positions Horizontal Machining Center

Performance Characteristics

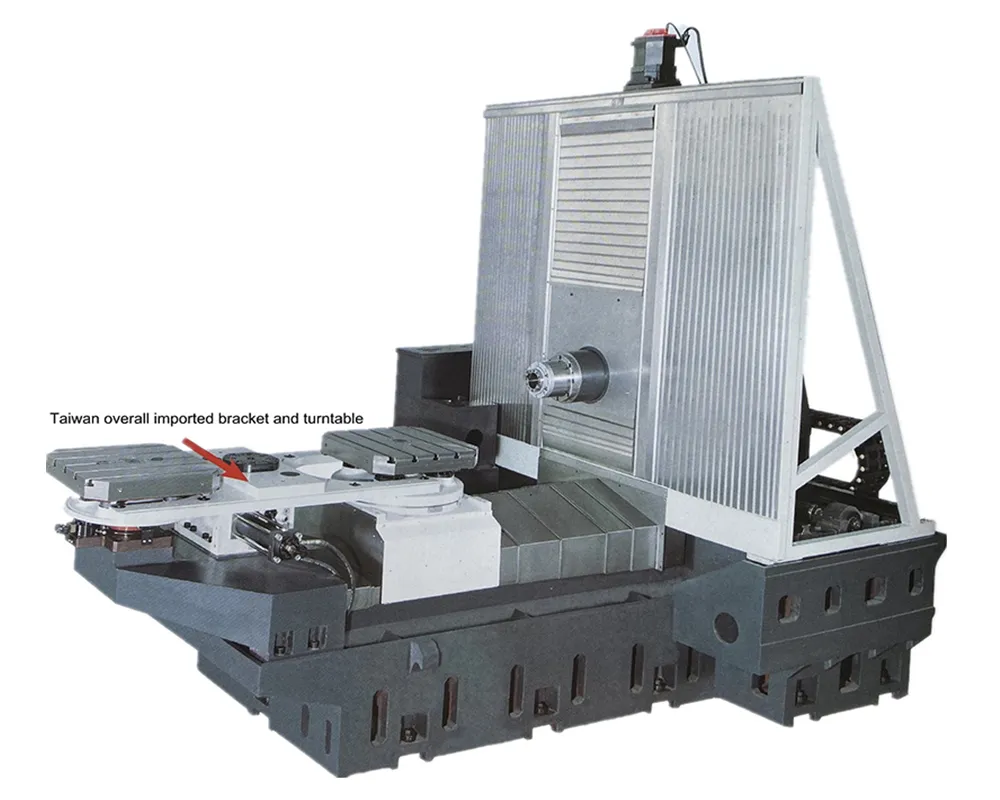

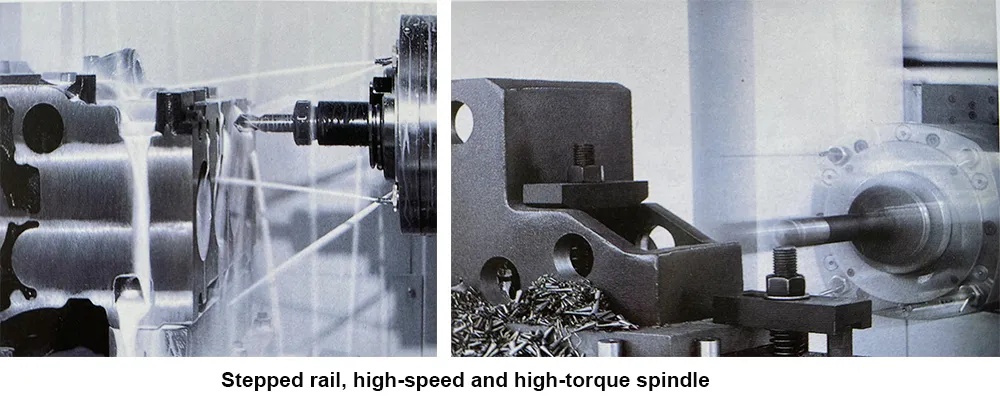

Horizontal machining center has high spindle speed, strong rigidity and large torque. The spindle is equipped with a cooling circulation system. The double tables automatically rotate and exchange, reducing the auxiliary time and improving the efficiency. This series of machine tools has perfect performance and stable precision. It is suitable for processing various types of box parts and two-dimensional and three-dimensional surfaces. It is a key equipment for machining box-type parts in machinery, automobiles, ships, textile machinery, printing machinery, agricultural machinery and other industries.

Model	unit	HMC500
Table travel (X.Y.Z)	mm	800X650X800
Table size	mm	500x500
Max.load of worktable	kg	500
Worktable indexing		1°x360°
Worktable positioning accuracy		10"
Repid feed speed	m/min	32
Spindle speed	rpm	30-3000
Torque of spindle	N.m	235
Tool shank type		BT50
Main motor power	kw	15/18.5
Tool magazine capability	qty	24 (arm type)
Tool weight	kg	25
Positioning accuracy(X.Y.Z)	MM	±0.005/300 JIS
Repeat positioning accuracy (X.Y.Z)	MM	±0.003/300 JIS
Machine weight	kg	10000

Hmc500 CNC Double Positions Horizontal Machining Center

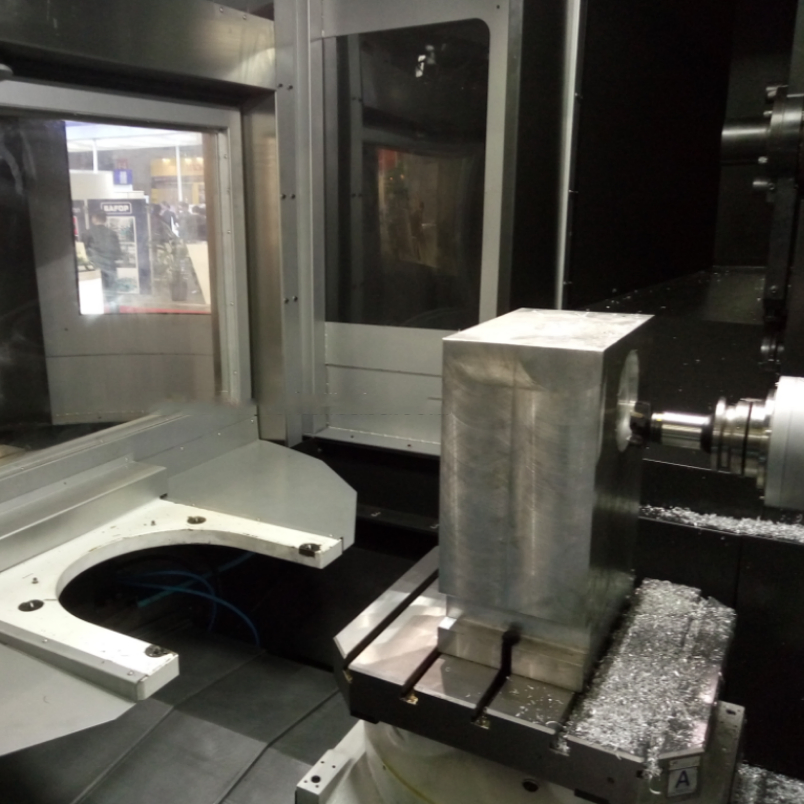

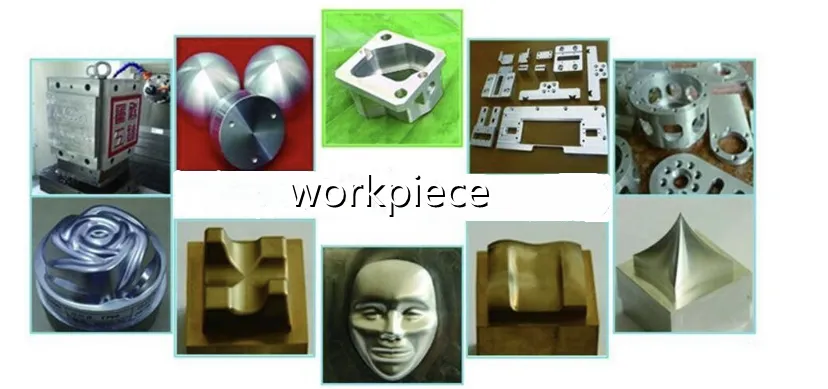

Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.

Hmc500 CNC Double Positions Horizontal Machining Center

Q1. What is the payment Terms ?
A1 : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

Q2. What is your trade terms?
A2 : FOB, CFR and CIF all acceptable.

Q3.When is the delivery time?
A3: If the machine you will order is standard machine, we can ready the machine within 60days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

Q4. What is your trade terms?
A4 : FOB, CFR,CIF or others terms are all acceptable.

Q5. What is your minimum order quantity?
A5: MOQ is one set,

Q6.What kind of packaging?
A6: We use plywood boxes to ensure the packaging quality durable, fully protect the safety of the cabinet, the appearance of bright and clean, smooth and beautiful, durable, low cost, heavy load, fear of the sun and rain without moths and so on.

Q7: what is your warranty for the machine?
A7: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
