Product Description

Product Description

Products Description

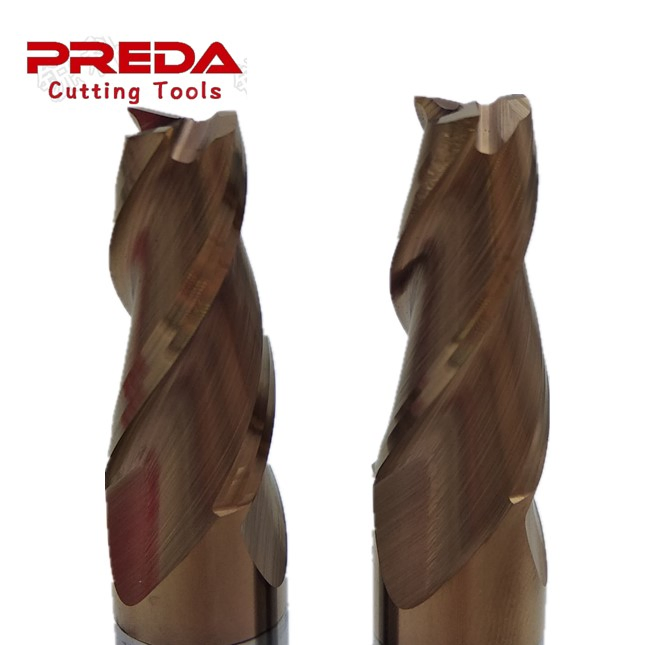

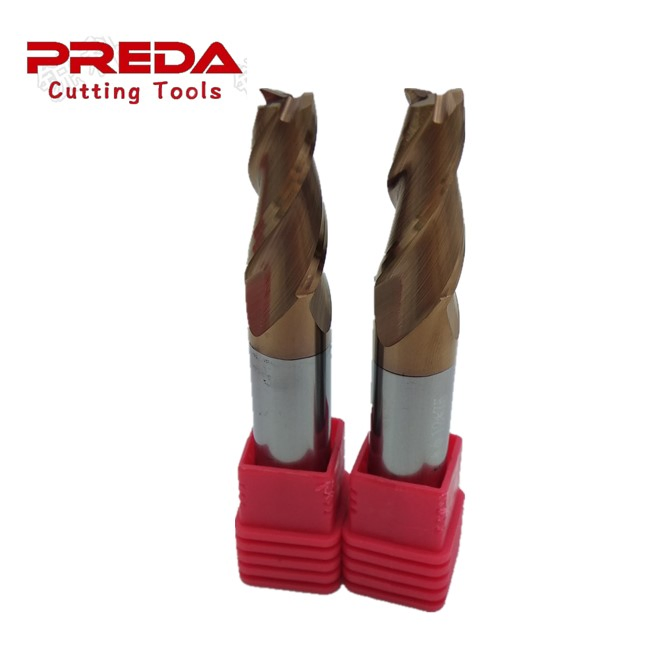

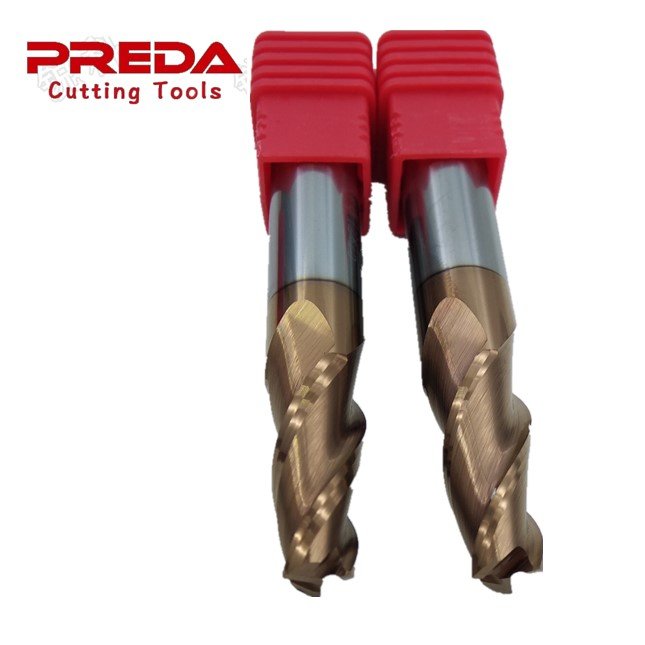

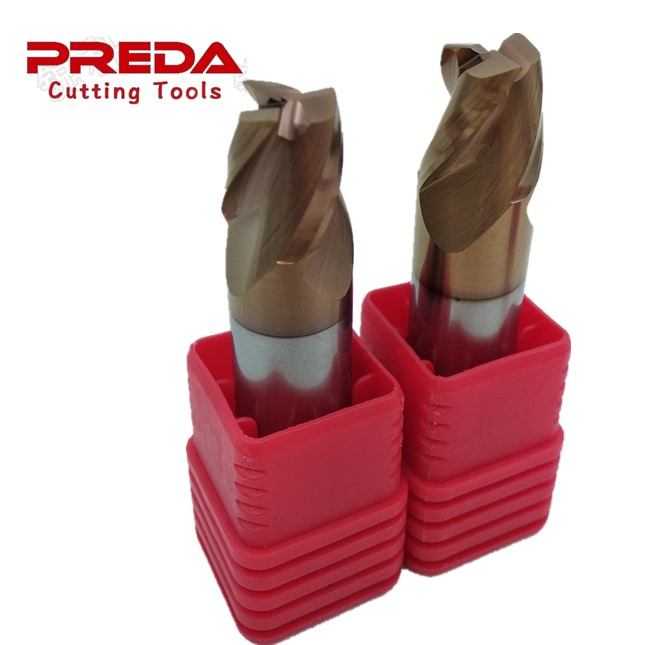

1 HRC55 3 Flutes Concial Taper End Mills tools
2 Work piece for woodworking
3 Good price
4 Fast delivery
5 High quality for CNC Metal working

Products specification
SurfaceTiCN/TiN/TiAlN/Uncoated
Flexural Strength2500-4000N/mm2
Controling ModeCNC
UsageMetal
Chemical Composition6%-12%Co-WC
Density14.45-14.90g/cm3

Coating Classifying and Advantage
Item	Coating Type	AlTin	Tialn	TiSin	Naco
Characteristic	Hardness(HV)	3200	2800	3600	42(GPA)
	Thickness(UM)	2.5-3	2.5-3	3	3
	Oxidation Temp.(ºC)	900	800	1000	1200
	Friction Coefficient	0.3	0.3	0.45	0.4
	Color	Black	Violet	Copper	Blue

HRC55 3 Flutes Concial Taper End Mills tools

1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.

Specifications:

roduct code	Flute dia	Flute length	angle	Overall length	Shank dia
XDD2T0505L10	0.5	10.0	0.5	50	4
XDD2T0510L10			1
XDD2T0515L10			1.5
XDD2T0520L10			2
XDD2T0530L10			2.5
XDD2T0540L10			3
XDD2T0550L10			5
XDD2T0570L10			7
XDD2T05100L10			10		6
XDD2T07505L10	0.8	10.0	0.5		4
XDD2T07510L10			1
XDD2T07515L10			1.5
XDD2T07520L10			2
XDD2T07530L10			2.5
XDD2T07540L10			3
XDD2T07550L10			5
XDD2T07570L10			7
XDD2T075100L10			10		6
XDD2T1005L13	1.0	13.0	0.5		4
XDD2T1010L13			1
XDD2T1015L13			1.5
XDD2T1020L13			2
XDD2T1030L13			2.5
XDD2T1040L13			3
XDD2T1050L13			5		6
XDD2T1070L13			7		6
XDD2T10130L13			10		8
XDD2T12505L15	1.25	15.0	0.5		4
XDD2T12510L15			1
XDD2T12515L15			1.5
XDD2T12520L15			2
XDD2T12530L15			2.5
XDD2T12540L15			3		6
XDD2T12550L15			5
XDD2T12570L15			7
XDD2T125150L15			10	60	8
XDD2T1505L20	1.5	20.0	0.5	50	4
XDD2T1510L20			1
XDD2T1515L20			1.5
XDD2T1520L20			2		6
XDD2T1530L20			2.5
XDD2T1540L20			3
XDD2T1550L20			5	60	8
XDD2T1570L20			7	60	8
XDD2T15200L20			10	75	10

HRC55 3 Flutes Concial Taper End Mills tools

FAQ:

1.  Are you manufacturer? Do you have factory?
---We are Professional manufacturer ,we have more than 15 years experience in this field.

2.  Does free shipping is possible?
----We don't offer free shipping service, but we will give you some discount if you buy large quantity products.

3.  Can you send products to our Forwarder in China?
----Yes, if you have forwarder in China, i will glad to send products to him/her.

4.  Do you make OEM?
----Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.

5.  How about the delivery time?
----According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.

6. Can you produce carbide Special Tool ?
--- Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample
