Product Description

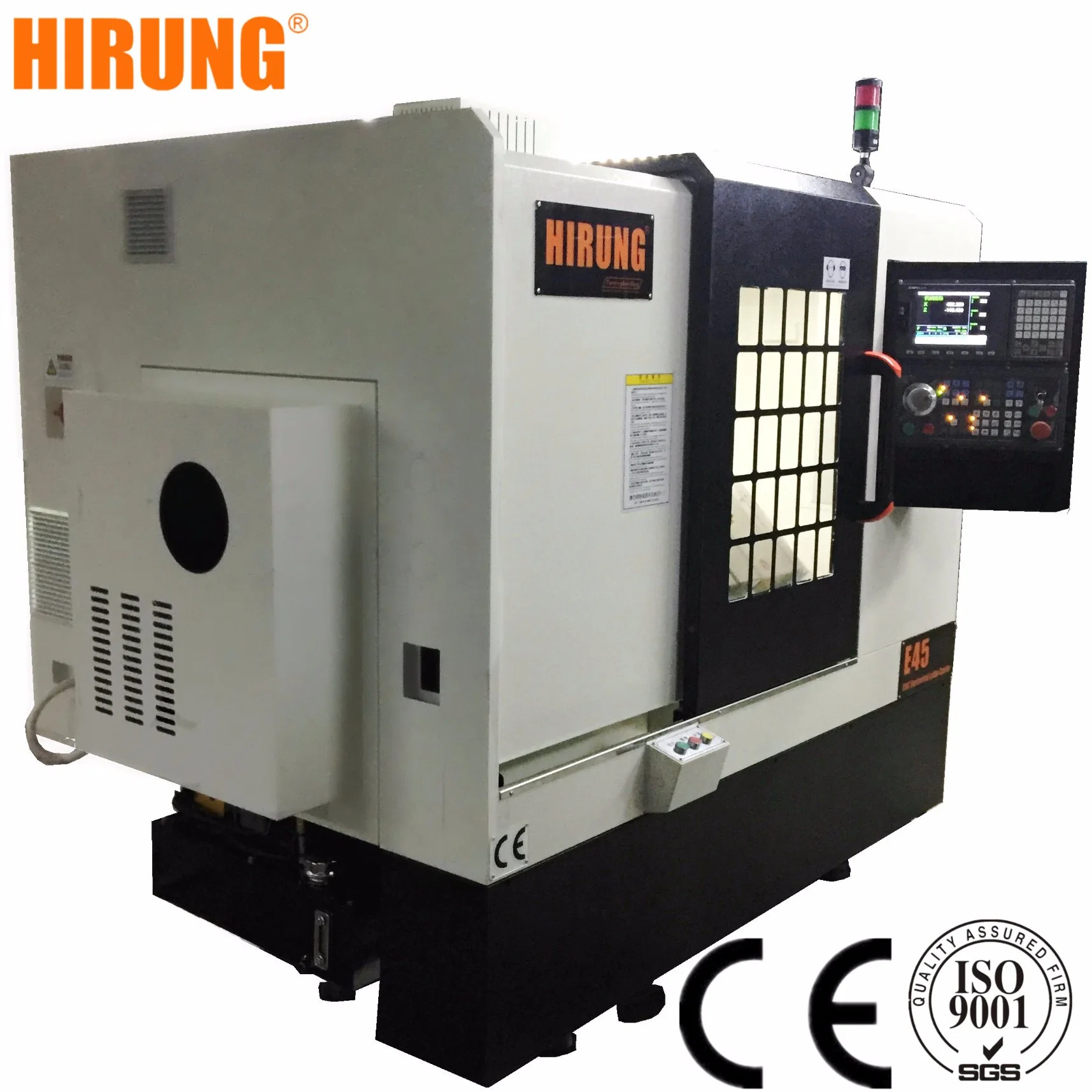

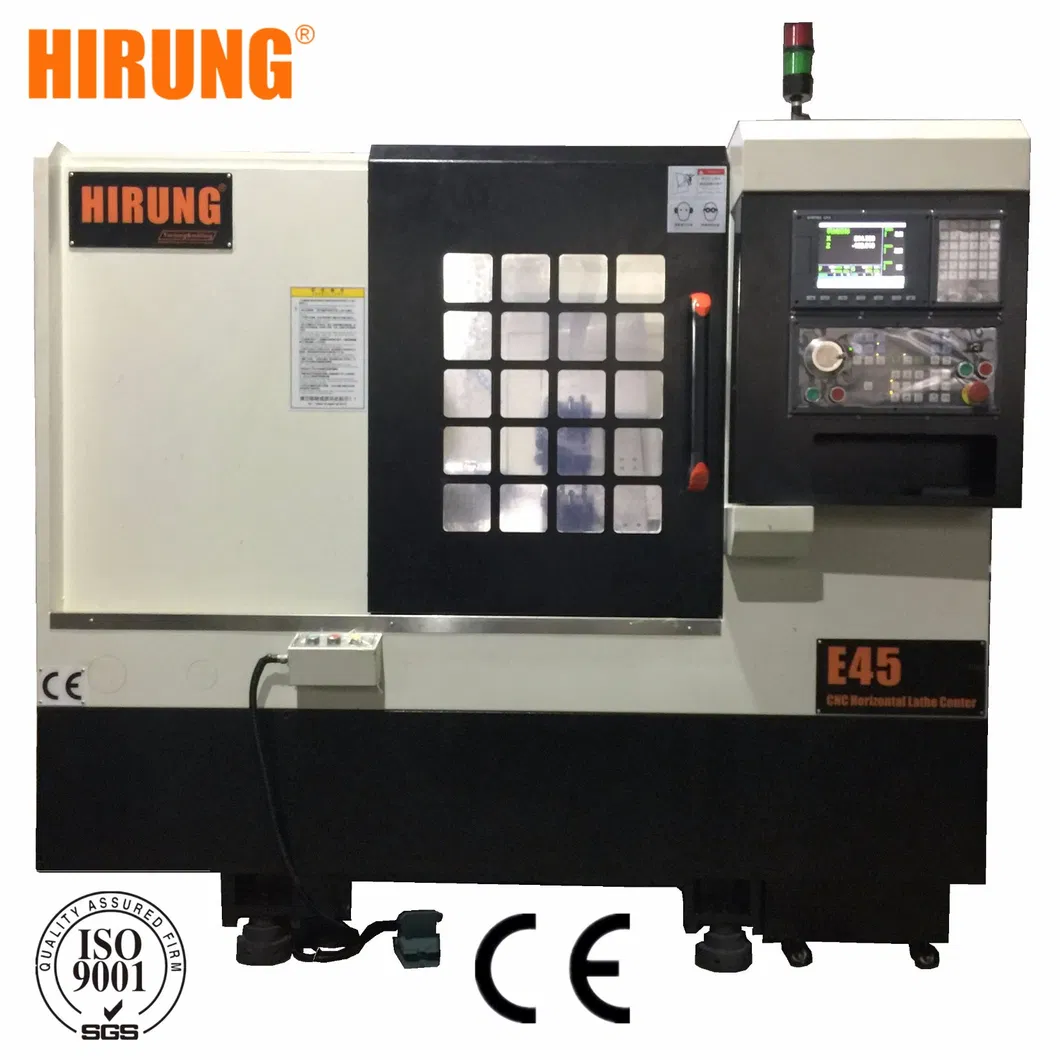

Hydraulic Chuck CNC Lathe (E35/E45)
Product Description
Structural Features
1. Adopts integrated-style design with bed and 45°base to improve the rigidity.
2. Optimize the permutation of steel by finite element method to decrease the thermal deformation.
3. Achieve low installation work by low center of gravity and short distance.

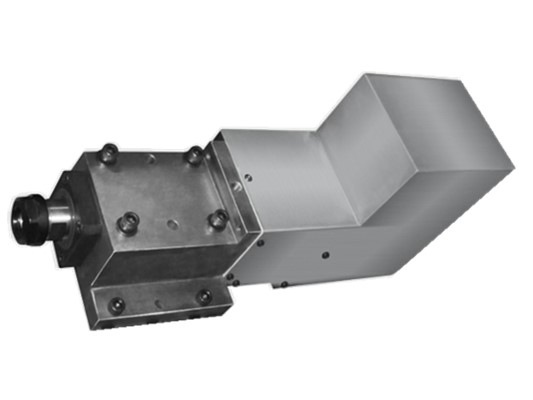

Spindle Features
1. Made in Taiwan, custom made telescope-feed spindle, accuracy<2μm;
2. Made in Taiwan, high speed oil tank, improve the high speed performance of spindle;
3. Dynamically balance to extend the stability and life cycle.

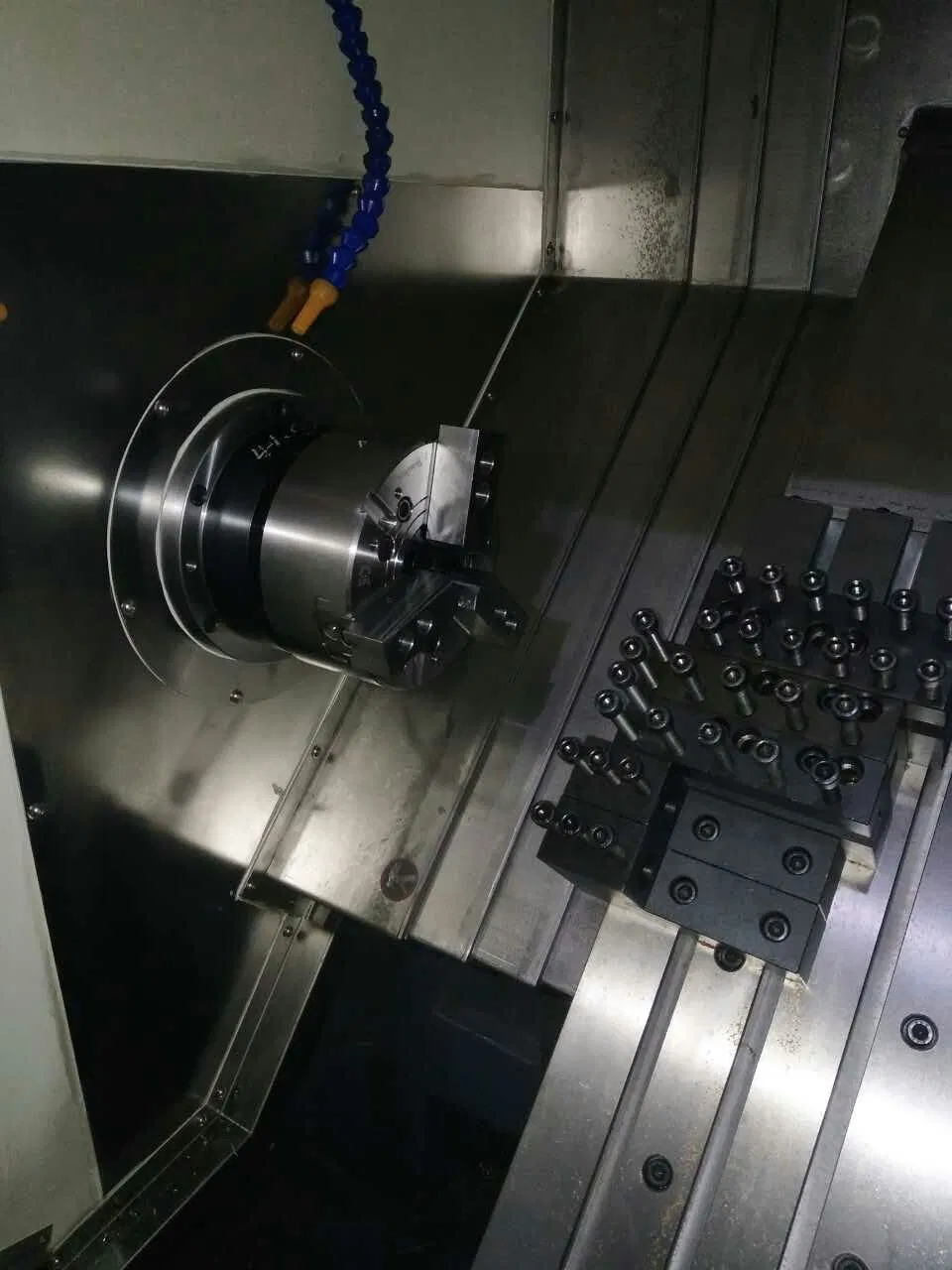

Tool Post Features
Long stroke gang tool type design of 730mm for X axle and min.error of exchanging tools X-axis travel 730mm big row of knife design, tool ATC error is minimized, tool change speed accurately, maintenance costs.
(the machine's casting structure)
Technical Specifications,alo have other specifications :
About us

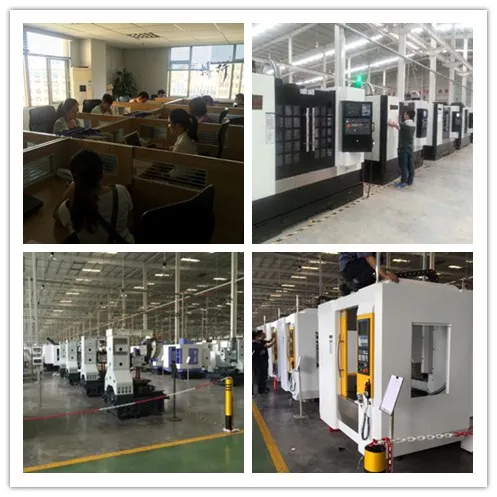

Dongguan HiRung Precision Machinery Co., Ltd is a Sino-German joint venture. The company is specialized in producing and selling CNC machining center, CNC lathe machine and automation devices. The sales center of our company is located at Dongguan--the largest manufacturing city in China. The production base is in the hi-tech industrial park of Shaoguan city, the factory covers an area of 100 acres. From the original design to the production of the machine are under strict quality control system, which guarantees that our customers will receive the most stable products.
Now we are expanding our overseas market, in July 2015 we set up branch office in Indonesia, in August 2015 we set up branch office in Bangladesh under our global brand marketing strategy. Currently our company is focused on the business of CNC machine tools and CNC automation tools. Products for export account for 80% of our business. We are dedicated to provide the costumers with good equipment and good after-sales service. Our goal is to make "HIRUNG" CNC machine tools one of China's most professional automation brands.
Why Choose US
1.Reliable Trademark Company.
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine according to Customer's Requirement.
4.CE approved and One year warranty, provide whole-life technology support.
5.High quality with competitive price.
6. We supply professional solution to you based on your own process one by one.
7. 7*24 hours Email or phone service.
Product Description
Structural Features
1. Adopts integrated-style design with bed and 45°base to improve the rigidity.
2. Optimize the permutation of steel by finite element method to decrease the thermal deformation.
3. Achieve low installation work by low center of gravity and short distance.
Spindle Features
1. Made in Taiwan, custom made telescope-feed spindle, accuracy<2μm;
2. Made in Taiwan, high speed oil tank, improve the high speed performance of spindle;
3. Dynamically balance to extend the stability and life cycle.
Tool Post Features
Long stroke gang tool type design of 730mm for X axle and min.error of exchanging tools X-axis travel 730mm big row of knife design, tool ATC error is minimized, tool change speed accurately, maintenance costs.

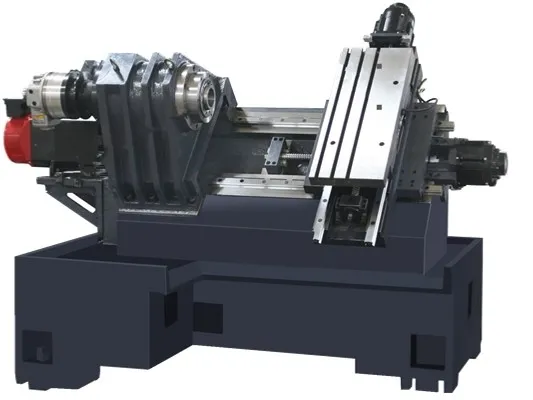

(the machine's casting structure)
Technical Specifications,alo have other specifications :
| Item | Name | Unit | E-45 |
| Capacity | Swing over bed | mm | 380 |
| Distance from worktable to spindle center | mm | 63 | |
| Hole through passed | mm | 42/45 | |
| Max. work-piece length | mm | 120/150 | |
| Spindle | Servo motor power | kw | 5.5 |
| Spindle RPM | r/min | 50-5000 | |
| Spindle bore | mm | 56 | |
| Nose type | A2-5 | ||
| Axes | X feeding range | mm | 730 |
| Z feeding range | mm | 245 | |
| Servo motor power | kw | 1.3 | |
| Positioning accuracy | μm | ±0.0015 | |
| Repeat positioning accuracy | μm | ±0.001 | |
| X/Z axis fast moving speed | m/min | 22/22 | |
| Turret | Worktable ( L*W) | mm | 580*240 |
| Max .tool | -- | ||
| Tool shank | mm | 20 | |
| Others | Average machine power | Kw/h | About 9 |
| Actual consume | Kw/h | About 2.5 | |
| Gross weight | kg | About 2200 | |
| Machine Dimension | mm | 2100*1500*1800 | |
| NC system | SYNTEC |
