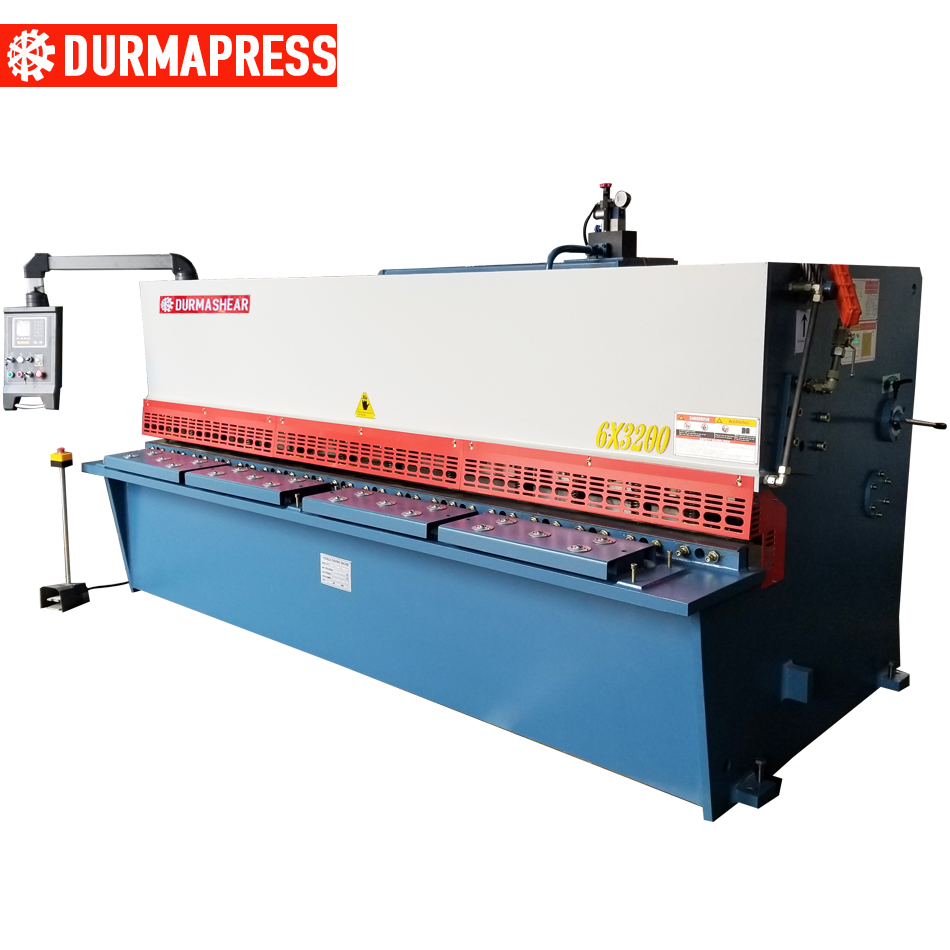

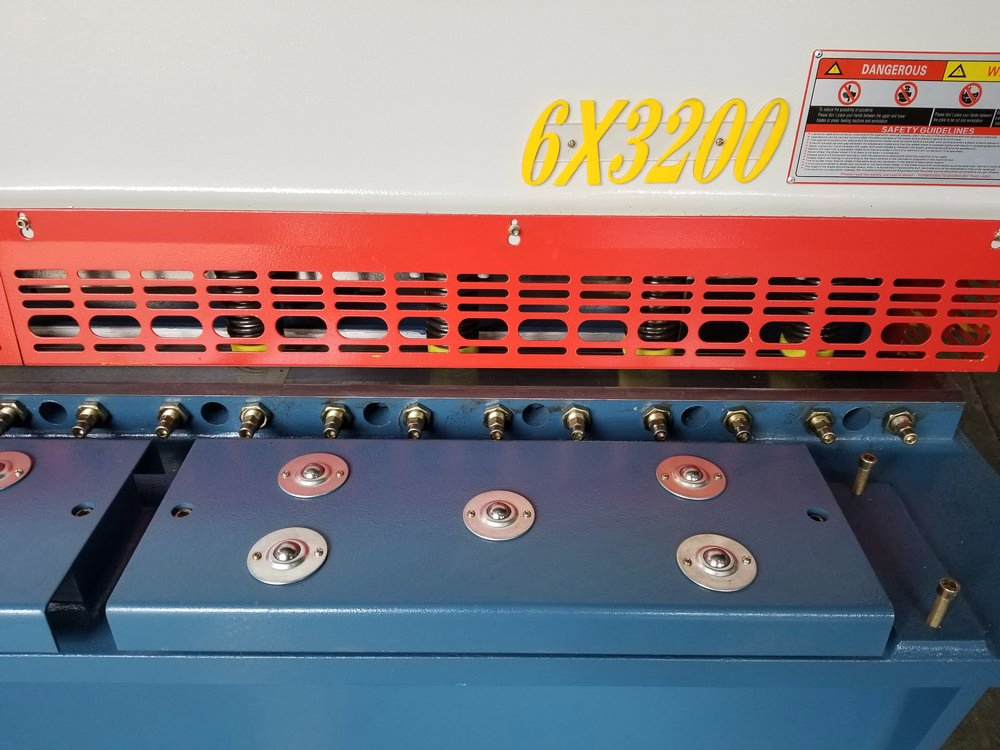

Hydraulic CNC Shearing Machine QC12y-6*3200

Product Description

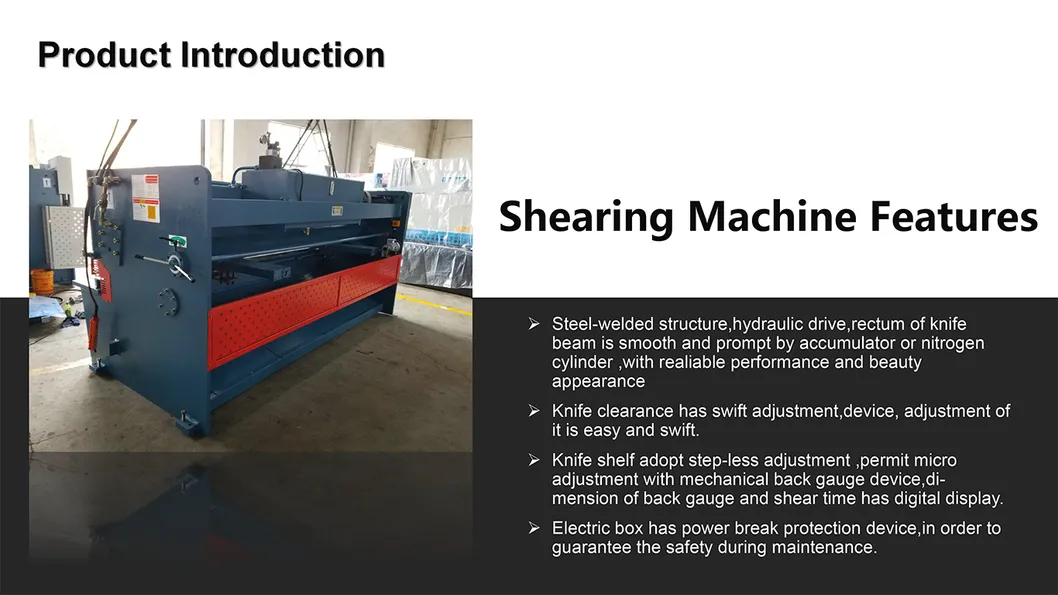

Features and Specifications

1. The mainframe is fitted with numeric-control system special for shearing machines.

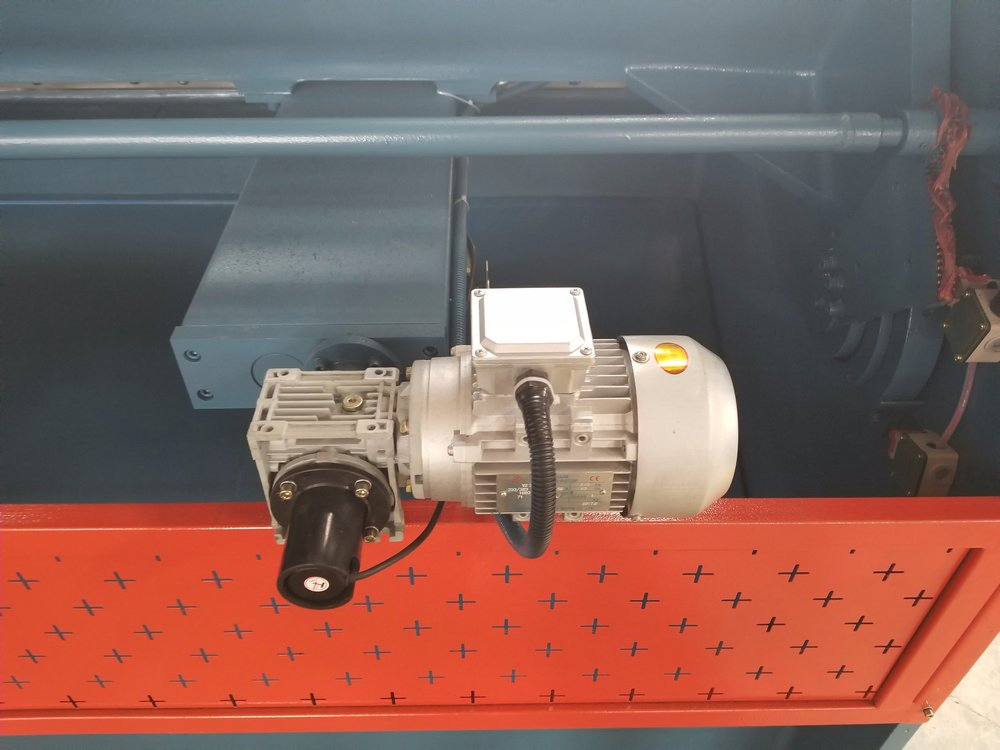

2. The position of rear stopper is displayed in a real-time manner.
3. Multistage programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
4. It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures and parameters.
5. Imported ball bearing lead screw and liner guide rail are used to ensure the positioning precision, so that the processing precision of machine is higher.
Hydraulic CNC Shearing Machine QC12y-6*3200

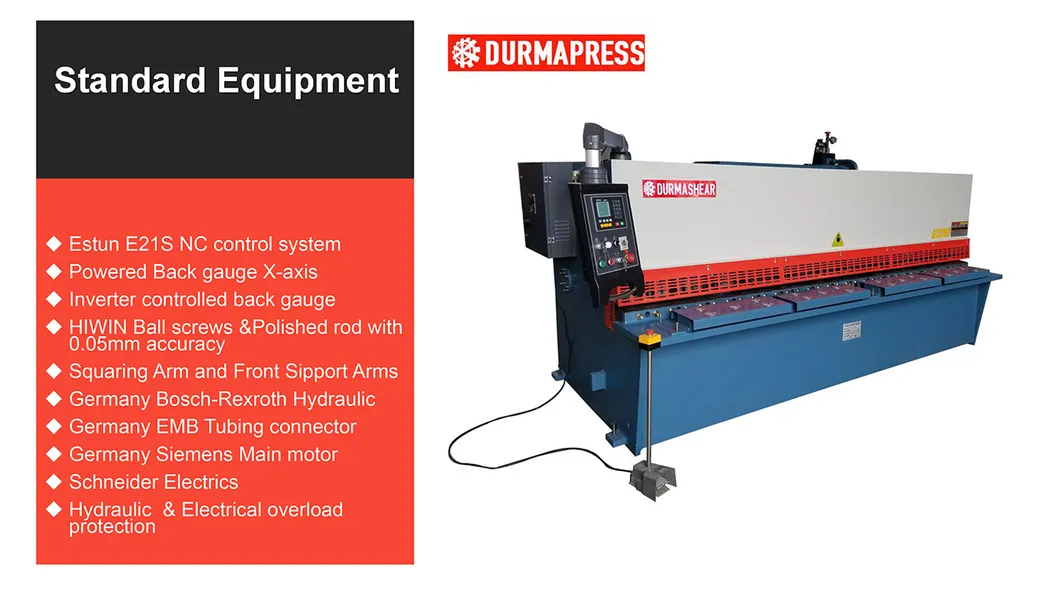

Main Deployment:
1. Main motor: Siemens Germany
2. Major Low voltage electrical: Schneider France
3. Gear pump: Bosch Rexroth Germany
4. Seal ring: Valqua Japan
5. Hydraulic system: Bosch Rexroth Germany
6. CNC Controller: Delem Holland
7. Ball screw, linear guide: HIWIN Taiwan
8. Servo Motor: YASKAWA Japan

Type	Cutting Thickness (mm)	Cutting Length (mm)	Cutting Angel (°)	Material Strength (KN/CM)	Stopper Adjust Range (mm)	Travel Times	Power (kw)	Dimension L×W×H (mm)
4×2500	4	2500	1°30′	≤450	20-500	16	5.5	3040×1550×1550
4×3200	4	3200	1°30′	≤450	20-500	13	5.5	3840×1550×1550
4×4000	4	4000	1°30′	≤450	20-600	10	5.5	4600×1700×1700
4×6000	4	6000	1°30′	≤450	20-800	5	7.5	6460×2100×3200
6×2500	6	2500	1°30′	≤450	20-500	15	7.5	3040×1710×1620
6×3200	6	3200	1°30′	≤450	20-500	12	7.5	3840×1710×1620
6×4000	6	4000	1°30′	≤450	20-600	9	7.5	4620×1850×1700
6×5000	6	5000	1°30′	≤450	20-600	8	7.5	3140×1710×1620
6×6000	6	6000	1°30′	≤450	20-800	5	11	6480×2100×2300
8×2500	8	2500	1°30′	≤450	20-500	11	11	3040×1700×1700
8×3200	8	3200	1°30′	≤450	20-500	8	11	3860×1700×1700
8×4000	8	4000	1°30′	≤450	20-600	8	11	4640×1700×1700
8×5000	8	5000	1°30′	≤450	20-600	8	11	5400×2400×2000
8×6000	8	6000	1°30′	≤450	20-800	8	15	6480×2100×2350
10×2500	10	2500	1°30′	≤450	20-500	10	15	3040×1800×1700
10×3200	10	3200	1°30′	≤450	20-500	10	15	3860×2000×1700
10×4000	10	4000	1°30′	≤450	20-600	10	15	4650×2100×2000
10×6000	10	6000	1°30′	≤450	20-800	10	18.5	6500×2100×2300
12×2500	12	2500	2°	≤450	20-600	12	18.5	3140×2050×2000
12×3200	12	3200	2°	≤450	20-600	10	18.5	3880×2150×2000
12×4000	12	4000	2°	≤450	20-600	10	22	4680×2150×2100
12×5000	12	5000	2°	≤450	20-600	6	22	3245×1900×1900

Convenient working and person security protection(Optional)

1. The machine can be equipped with full closed back side door to prevent any careless inside when cutting.
2. The machine can be equipped with cutted lift out declined platform under the backgauge for convenient operation.
3. Light curtain can be equipped also for security standard needs.

NC/CNC System and advance touch screen funtion
Hydraulic CNC Shearing Machine QC12y-6*3200

1.Installation Service
We dispatch technician to customer's factory for installation and preoperation of machines. (Customers only need to pay for the airfare and hotel expense.)

2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. ( Customers only need to pay for the airfare and hotel expense.)

3.Quality Guarantee
We arrange a final test before shipment. We will make shipments after making sure machine is in the best performance.Machine warranty is 2 years.
