Iron, Steel, Aluminum Sheets, Galvanized Sheets Gantry Plasma Cutting Machine
Zlq-10A Strip Oxy Acetylene CNC Cutter With Flame Cutting TorchFeatures:Technical specification:Cross Beam Length(X axis)3m (can be lengthened to 3.5m max)Longitudinal Rail Length(Y axis)3m ( can be customi......
Send Inquiry
Product Description

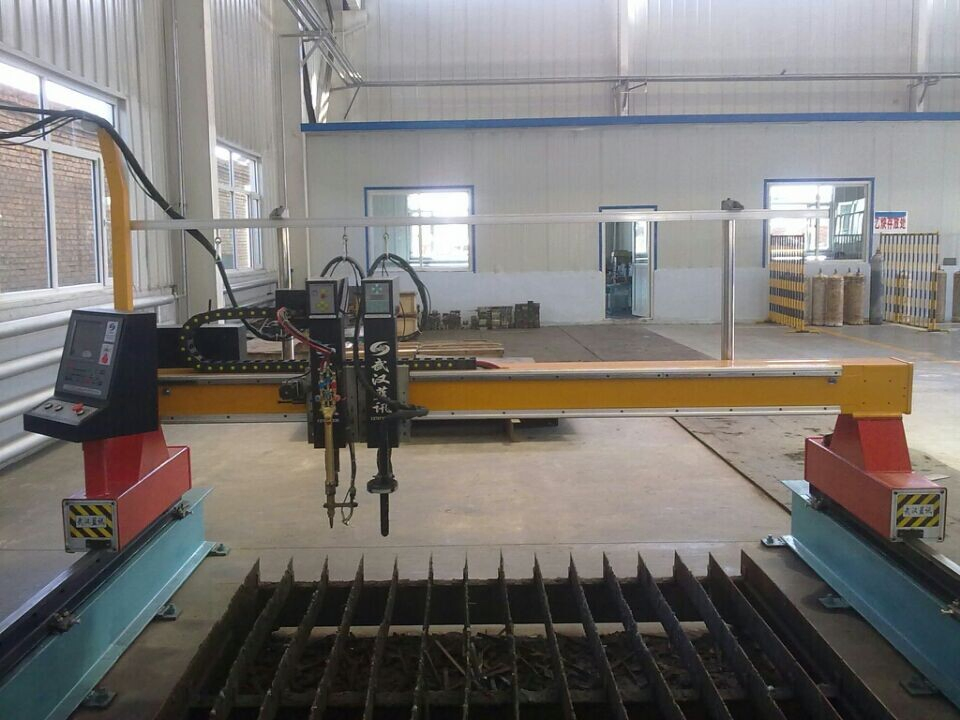

Zlq-10A Strip Oxy Acetylene CNC Cutter With Flame Cutting Torch
Features:
1. Small Gantry structure, span from 2000mm to 3500mm, longitudinal rail can be lengthened.
2. Dual drive for stable performance.
3. Cross beam adopts optical axis linear guide to assure cutting accuracy.
4. Multiple configuration for choice, flame only, plasma only, strip, plasma & flame.
5. Auto height control system.
6. Multiple CNC systems are available in options.
7. Can import data via USB flash disk.
8. Easy operation for workers.
9. Simple control panel is above the cutting torch for moving torch easier.
10. CE & ISO approved.
Application:
Zlq-10A Strip Oxy Acetylene CNC Cutter With Flame Cutting Torch is widely applied in industries such as machinery, automobile, ship building, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive, metal cutting service, stainless steel cutting service, carbon steel cutting service, CNC plasma cutting service, CNC flame cutting service, etc.
Flame cutting is suitable for mild steel, high carbon steel plate.
Plasma cutting is suitable for stainless steel, aluminum, copper and other non-ferrous metal plate.
After-sale service and Guarantee:
1. After-sale service and maintenance
User can contact our after-sale department via phone or web (E-mail, MSN, Skype, etc), we ensure giving feedback within 24 hours. If problem can not be solved, we will send our engineers to solve on the scene.
2. Quality warranty.
The warranty is within 12 months after Zlq-10A Strip Oxy Acetylene CNC Cutter With Flame Cutting Torch
Finish fitting and start running, during warranty, we provide free solution for problems caused by normal use, such as product quality, process precision, cannot cut normal material, etc After 12 months, we also supply the maintenance and just collect some basic fees.
Features:
| Technical specification: | ||
| Cross Beam Length(X axis) | 3m (can be lengthened to 3.5m max) | |
| Longitudinal Rail Length(Y axis) | 3m ( can be customized) | |
| Effective Cutting Width (X axis) | 2.2m | |
| Effective Cutting Length (Y axis) | 1.5m | |
| Cutting Mode | Flame only; Plasma only; Flame and Plasma | |
| Drive Mode | Bilateral-side | |
| Drive Method | Rack and pinion drive for X and Y axes | |
| Flame Cutting Thickness | 5-200mm | |
| Plasma Cutting Thickness | 1-60mm (according to the specification of plasma power source) | |
| Cutting Speed | Flame: 0-3500mm per minute; Plasma: 0-8000mm per minute | |
| Moving Precision | 0.01mm per step | |
| Power Source (option) | 220V 50Hz 500-1000W | |
| Nesting Software (option) | INTERGNPS, FASTCAM | |
| Cutting Gas | Acetylene, Propane | |
| Plasma Gas | Pressed air, Oxygen, N2 | |
| Automatic Torch Height Controller(option) | CHC600 | Capacitive height controller for flame cutting |
| PHC330 | Arc voltage height controller for plasma cutting | |
1. Small Gantry structure, span from 2000mm to 3500mm, longitudinal rail can be lengthened.
2. Dual drive for stable performance.
3. Cross beam adopts optical axis linear guide to assure cutting accuracy.
4. Multiple configuration for choice, flame only, plasma only, strip, plasma & flame.
5. Auto height control system.
6. Multiple CNC systems are available in options.
7. Can import data via USB flash disk.
8. Easy operation for workers.
9. Simple control panel is above the cutting torch for moving torch easier.
10. CE & ISO approved.
Application:
Zlq-10A Strip Oxy Acetylene CNC Cutter With Flame Cutting Torch is widely applied in industries such as machinery, automobile, ship building, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive, metal cutting service, stainless steel cutting service, carbon steel cutting service, CNC plasma cutting service, CNC flame cutting service, etc.
Flame cutting is suitable for mild steel, high carbon steel plate.
Plasma cutting is suitable for stainless steel, aluminum, copper and other non-ferrous metal plate.
After-sale service and Guarantee:
1. After-sale service and maintenance
User can contact our after-sale department via phone or web (E-mail, MSN, Skype, etc), we ensure giving feedback within 24 hours. If problem can not be solved, we will send our engineers to solve on the scene.
2. Quality warranty.
The warranty is within 12 months after Zlq-10A Strip Oxy Acetylene CNC Cutter With Flame Cutting Torch
Finish fitting and start running, during warranty, we provide free solution for problems caused by normal use, such as product quality, process precision, cannot cut normal material, etc After 12 months, we also supply the maintenance and just collect some basic fees.
