China Large Travel Wire Cutting EDM with 5 Axis Digital Display Bq1612

Product Description

Machine Features :

1. The whole system adopts dual CPU design, DSP is responsible for servo control, X86 is responsible for display function and human-computer interaction.

2.Display CPU board uses industrial-grade motherboard, embedded Win10 operation system, SSD solid-state electronic disk, which can turn off at any time, the system never crashes.

3. The system adopts advanced pulse power and anti-electrolysis power technology to improve the dimension accuracy and cutting accuracy of the parts.

4.Users can choose to install grating scale to achieve closed-loop control.

5.The cast of machine body adopt the resin-sand technology with twice high temperature heat treatment, which effectively prevents deformation of the machine.

6. The high precision linear guide, ball screw, are from PMI/HIWIN, and super quality bearings are from Germany, the high configuration makes the mechanical precision maintain for long lifetime.

7.Great move and fast jump features.

8. X,Y, axis are driven by Mitsubishi servo and linear motor, U/V are hybrid motor(servo motor is optional), equipped with 5-axis MPG, which makes the move of the machine fast and smart.

9.The controller adopts X,Y,U,V,Z 5-axis numerical control, with the function of automatic edge finding, automatic center finding, etc.

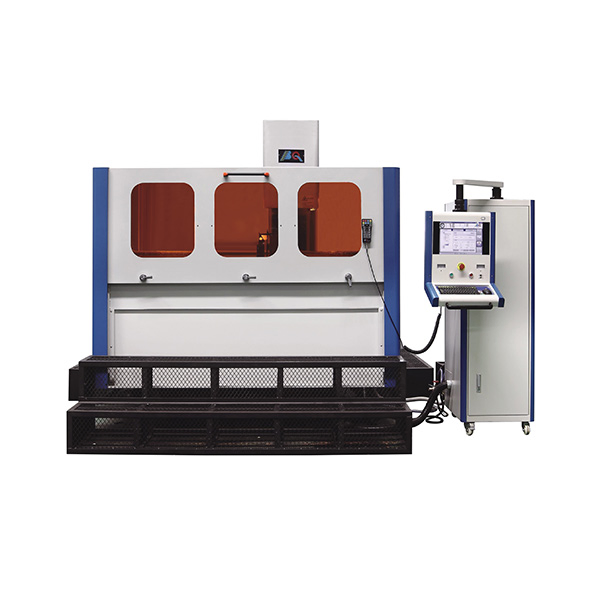

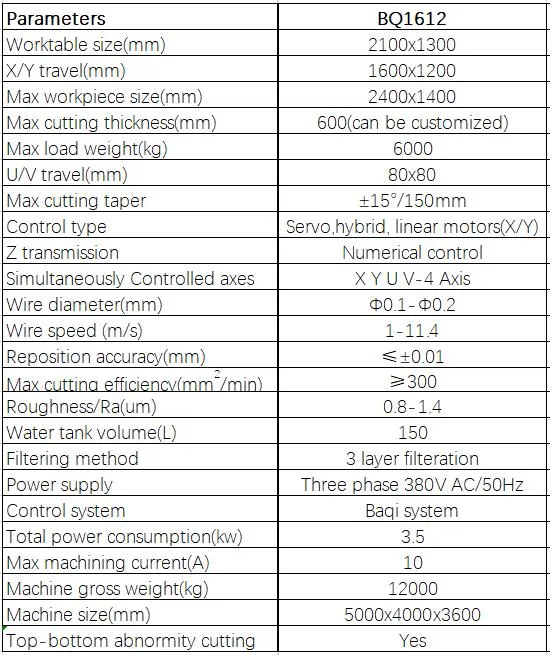

Large Travel Wire Cutting EDM with 5 Axis Digital Display Bq1612

System functions:

1. The whole system adopts dual CPU design, DSP is responsible for servo control, X86 is responsible for display function and human-computer interaction.
2. Display CPU board uses industrial-grade motherboard, embedded Win10 operation system, SSD solid-state electronic disk, which can turn off at any time, the system never crashes.

3. BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selection and control. It is programmed with internationally universal ISO code.The main system functions are as following:

mirror machining	proportionally scaling
conventional taper cutting	top-bottom abnormality cutting
single-stage machining	4 axis simultaneously cutting
program editing	automatic wire radius compensation
automatically machining condition convert	simulation check
return halfway	pitch compensation
automatic edge finding	automatic center finding
wire alignment	graphic real time tracking and check
subprogram calling	unmanned processing(power-off after finishing)
back to the origin point and suspension point	wire feeding speed adjustment

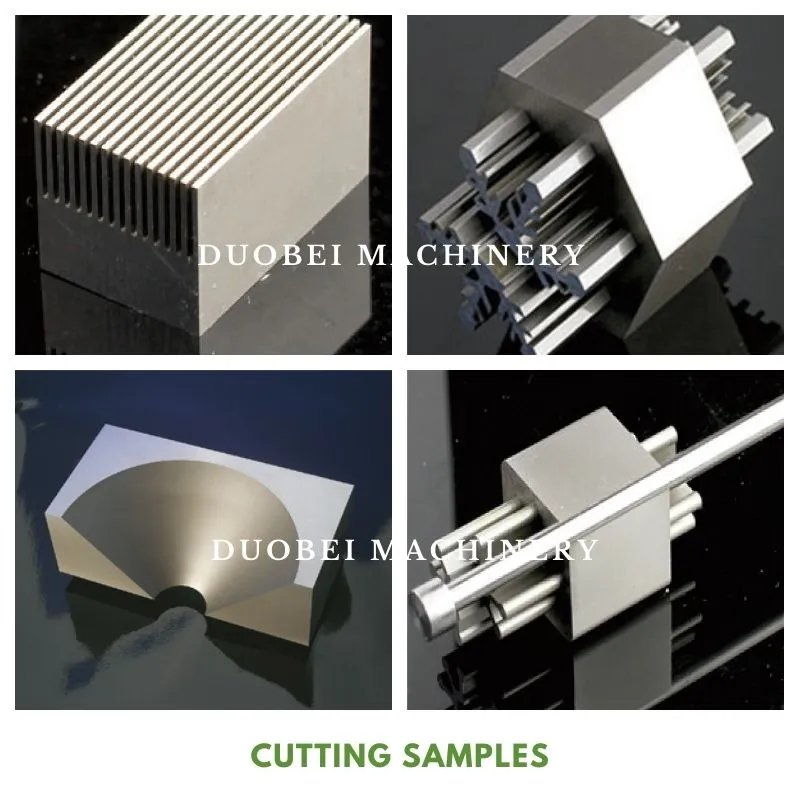

BQ 1612 WIRE EDM machine adopts split structure with fixed worktable design to maintain high accuracy, it can load for MAX 6000KG workpiece. More details ,please contact us now.

Large Travel Wire Cutting EDM with 5 Axis Digital Display Bq1612
