Product Description
Latest Customized Design Plc Control System Vertical Metal Milling Machine Cnc 3 Axis

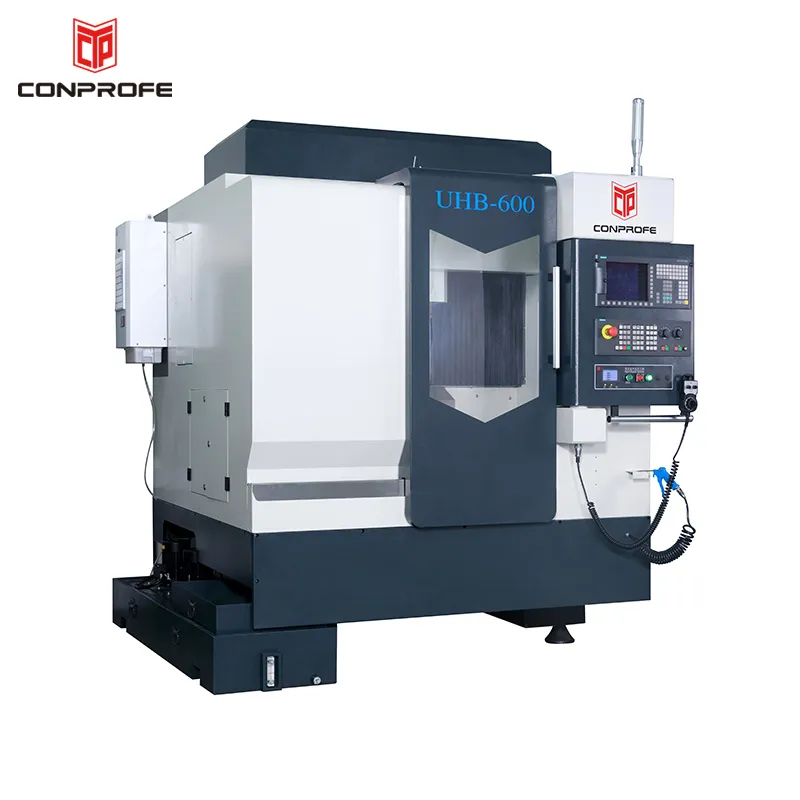

UHB 600 Specifications | ||
| System | SIEMENS 828D-280 | |
| Product Name | Conprofe High Precision Ultrasonic Machining Cente | |
| Work table | Dimension | 620x560 |
| Max.Load | 300 | |
| Travels | Max.Travel in X-/Y-/Z-axis | 600x500x300mm |
| FeedRate | Rapid Traverse in X-/Y-/Z-axis | 15/15/12m/min |
| Spindle | Diameter | 120mm |
| Power Rating | 7.5kW | |
| Max.Speed | 30000rpm | |
| Magazine | Tool Capacity | 13Positions |
| Tool Holder Spindle | HSK-40E | |
| Tool Overhang | 90mm | |
| Accuracy | Positioning Accuracy in X-/Y-/Z-axis | 0.005mm |
| Repeatability Accuracy in X-/Y-IZ-axis | 0.003mm | |
| Power and Dimensions | PowerSupply | 3-phase AC, 380V/50Hz/25A |
| Weight | 5000kg | |
| Required Compressed Air Connection | ≥0.6MPa | |

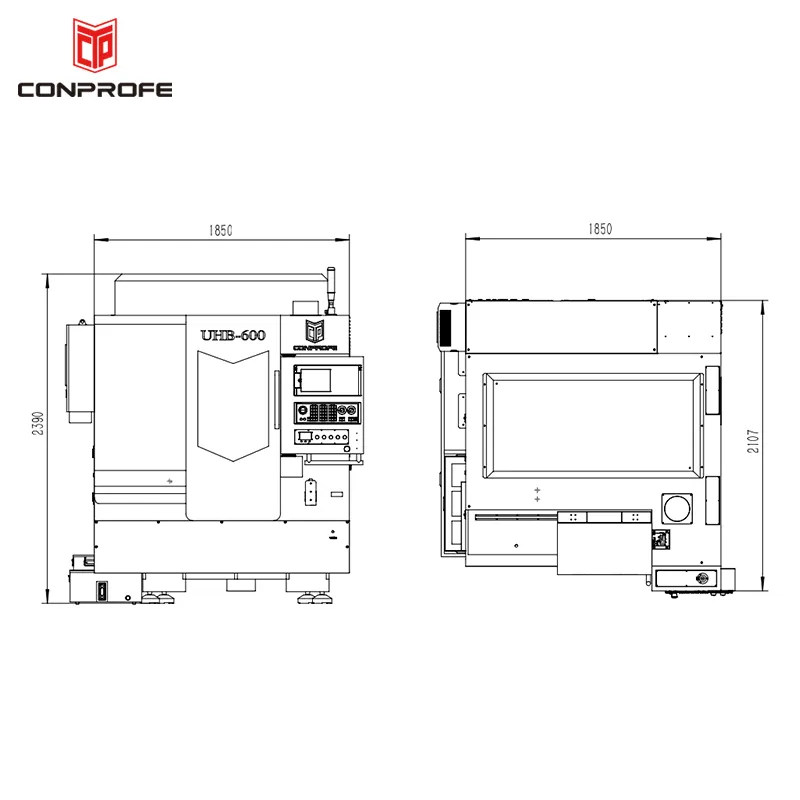

| Dimensions(X/Y/Z) | 2160 × 2090 × 2390mm | |
Our Advantage:
1.Excellent dynamic machining
2.Easy operation offered by Siemens 828D-280 system (with Top Surface)
3.Highly rigid gantry structure for optimal structure

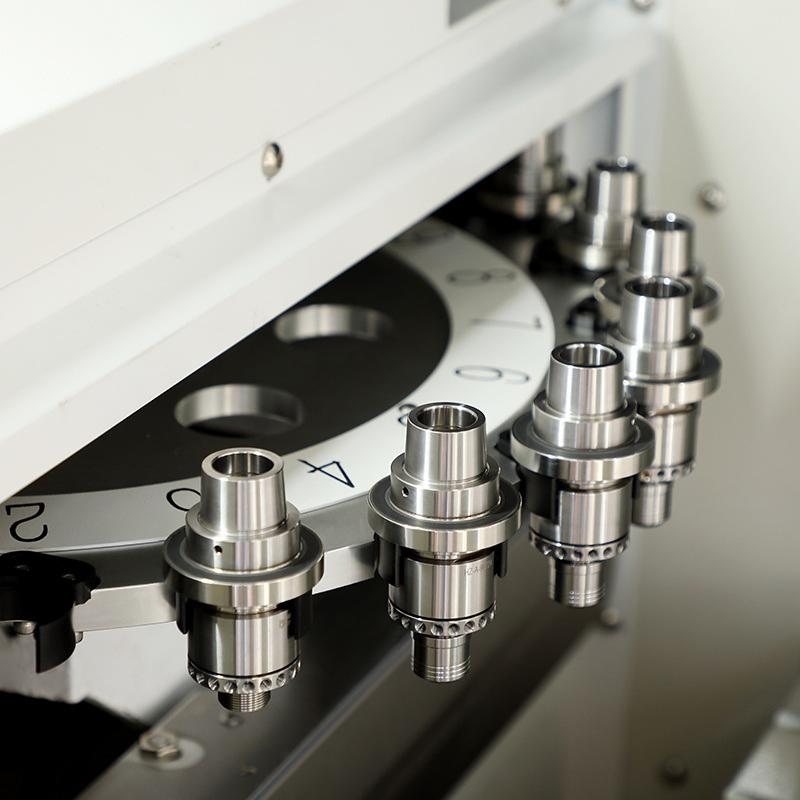

4.Quick tool change delivered by the servo umbrella type tool magazine

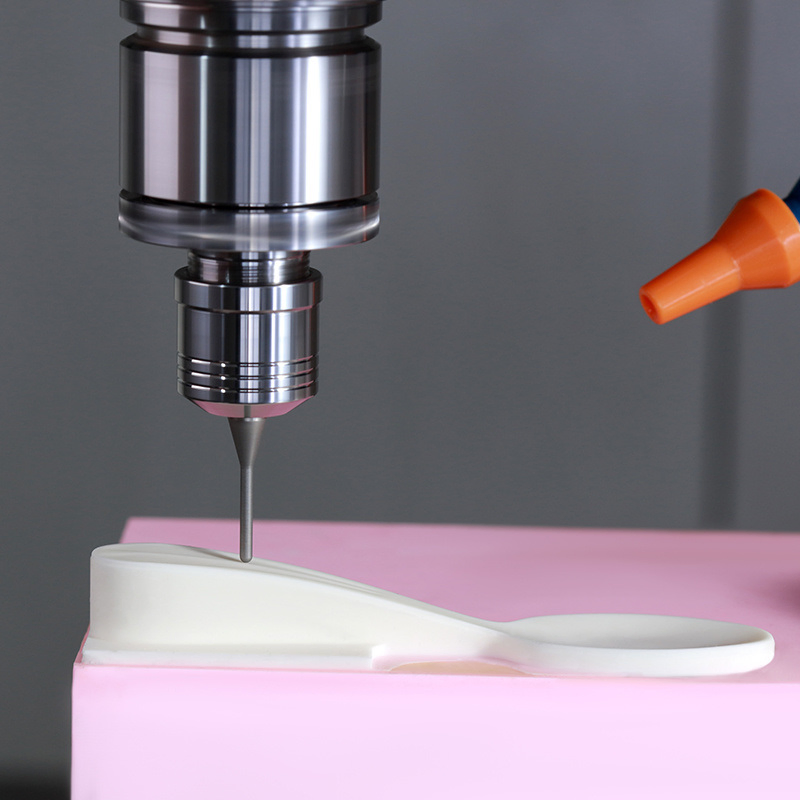

5.Integrated ultrasonic technology for better surface quality and tool life
6.Multi-angle machining with just one clamping can be realized by adding the 4th/4.5th axis (optional)

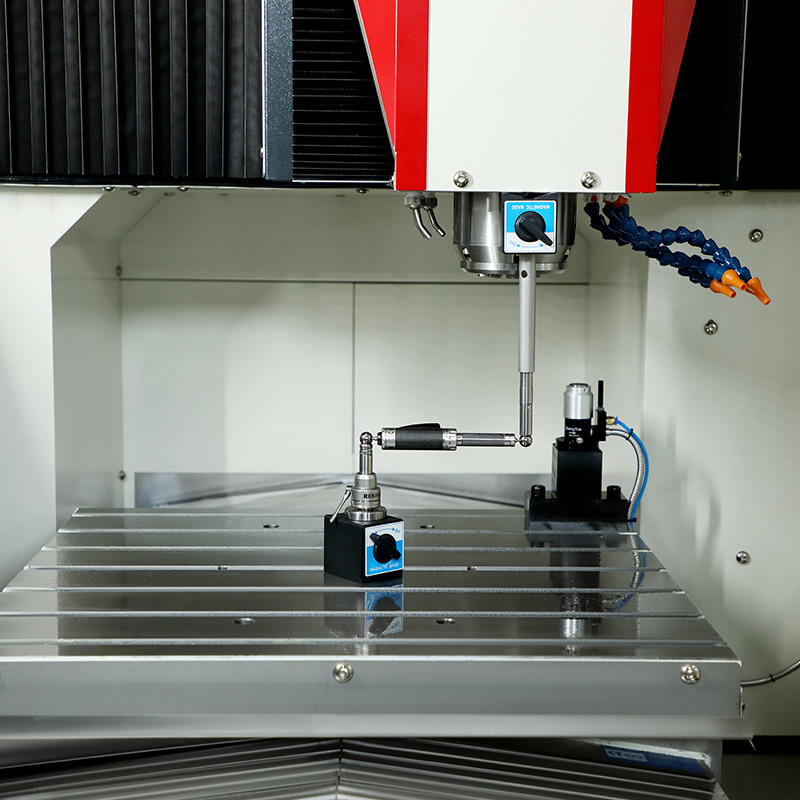

7.3D probe function can be added to realize on-line deviation correction and avoid deformed workpieces (optional)
2.Easy operation offered by Siemens 828D-280 system (with Top Surface)
3.Highly rigid gantry structure for optimal structure
4.Quick tool change delivered by the servo umbrella type tool magazine
5.Integrated ultrasonic technology for better surface quality and tool life
6.Multi-angle machining with just one clamping can be realized by adding the 4th/4.5th axis (optional)
7.3D probe function can be added to realize on-line deviation correction and avoid deformed workpieces (optional)
