Metal Machining CNC Vertical Machining Center Vmc 855 #
VMC 855#/ Vertical Machining Center 855#high-speed moving linear heavy-duty rollerguideway pairstability of machine tool controlThe large diameter C3 grade ball screw PRODUCT SPECIFICATIONS Machine modelunitVMC855X/Y/Z travelmm850/550/550distance from spindle nose to table surfacemm120-670distance f......
Send Inquiry
Product Description

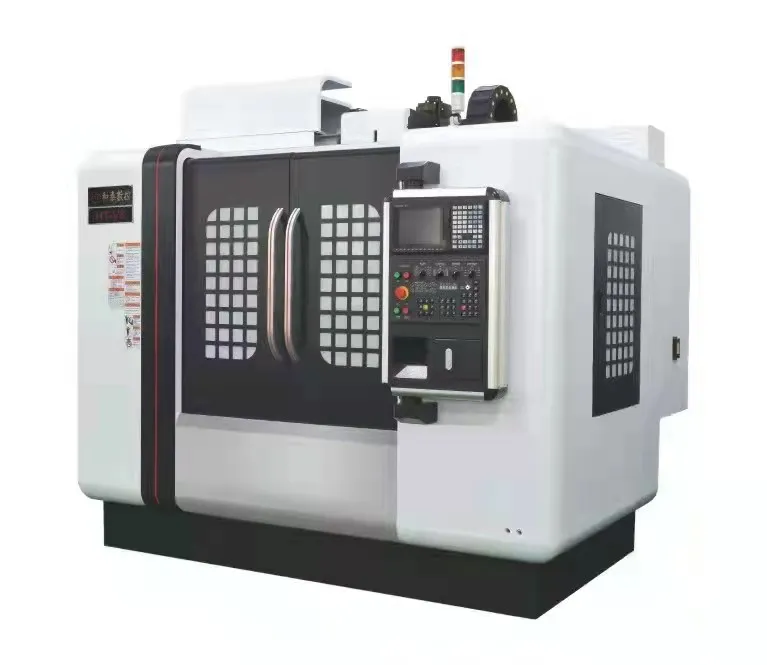

VMC 855#/ Vertical Machining Center 855#

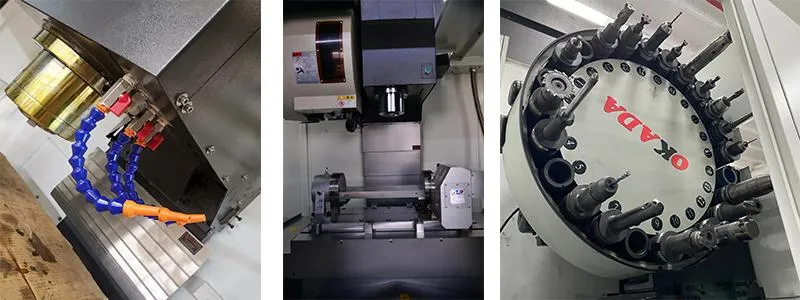

PRODUCT CONFIGURATION

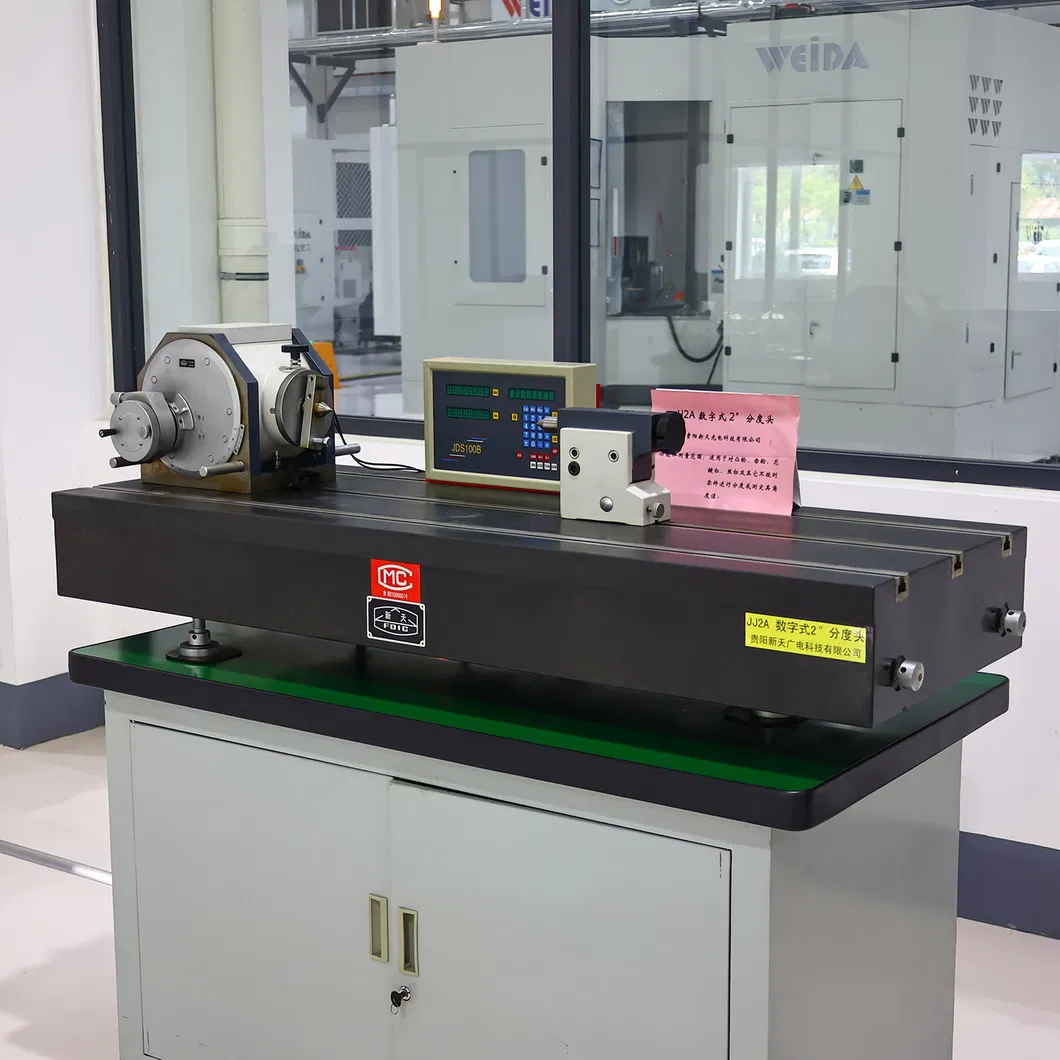

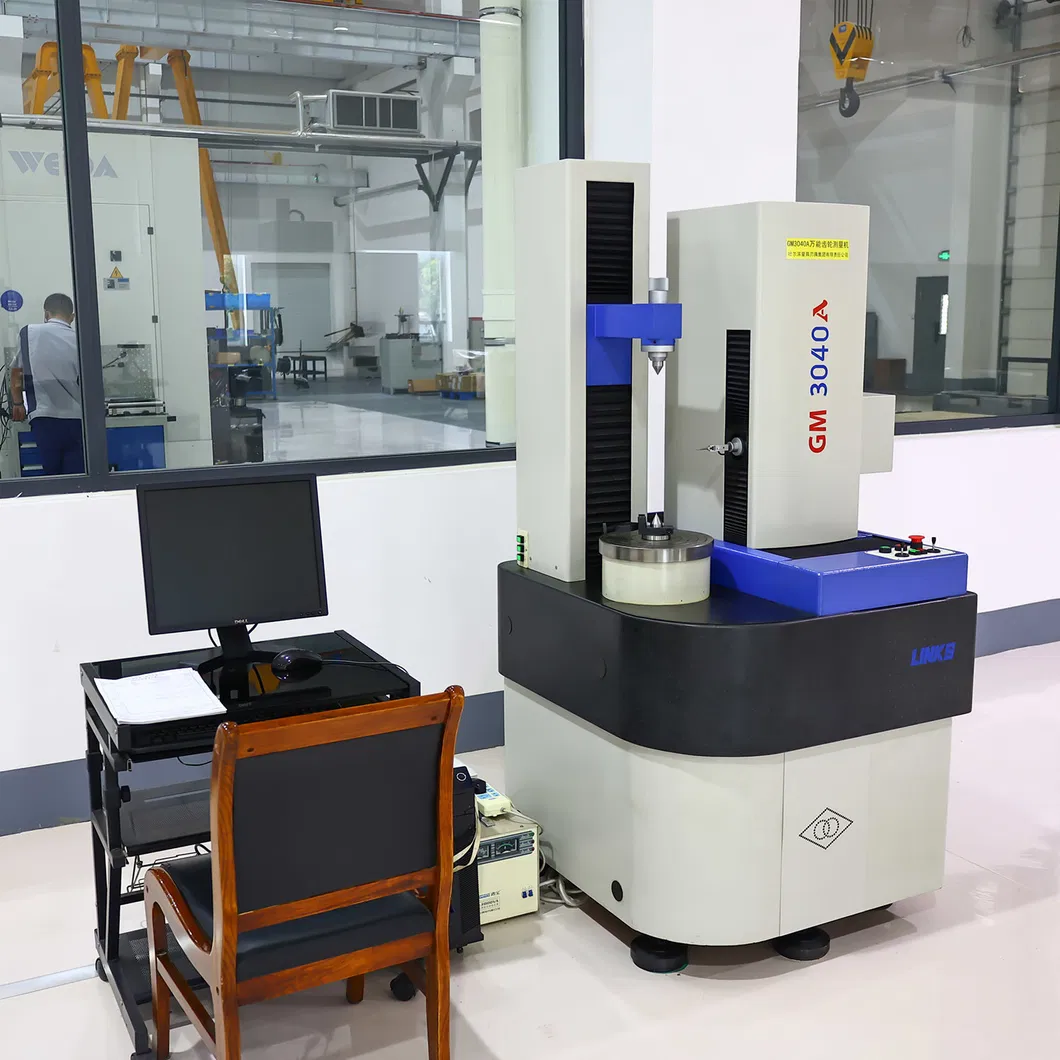

Lab

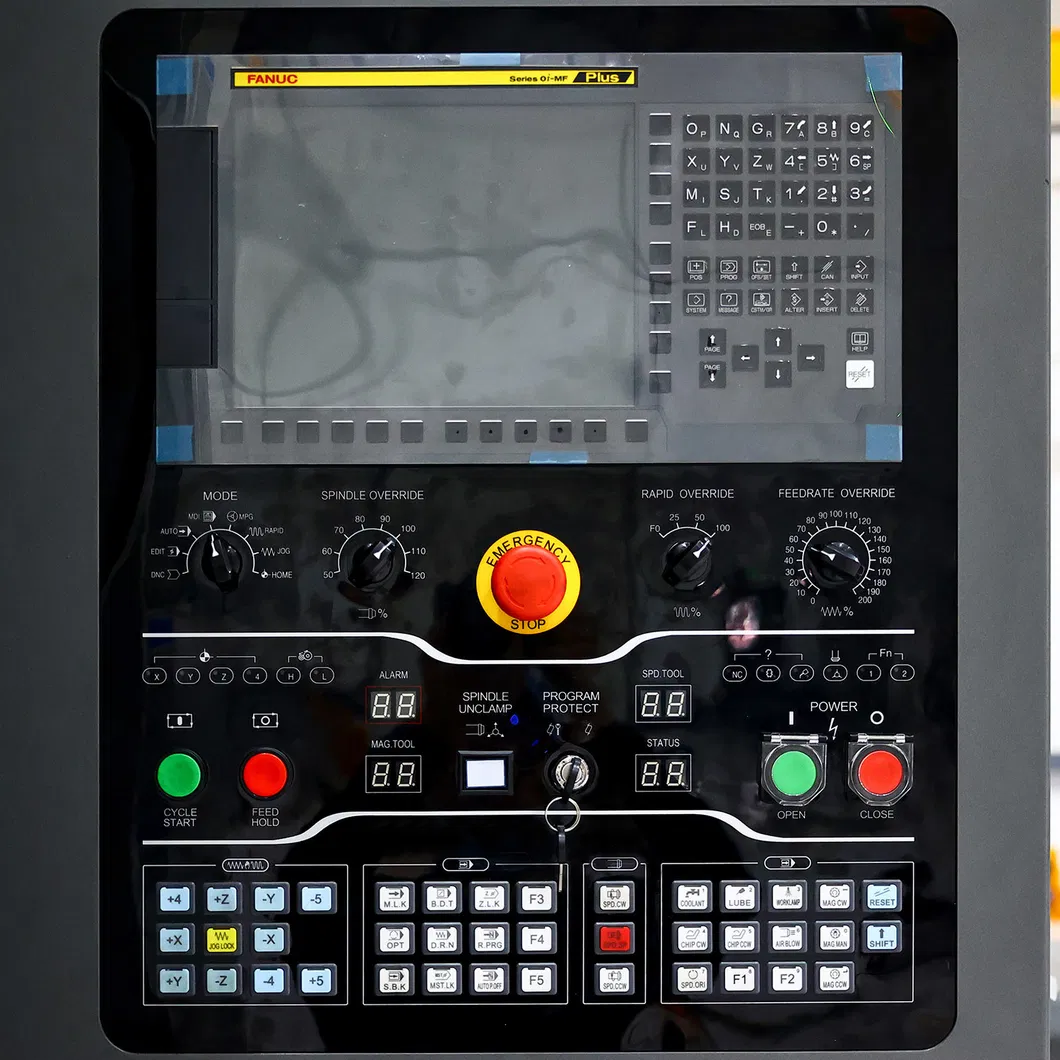

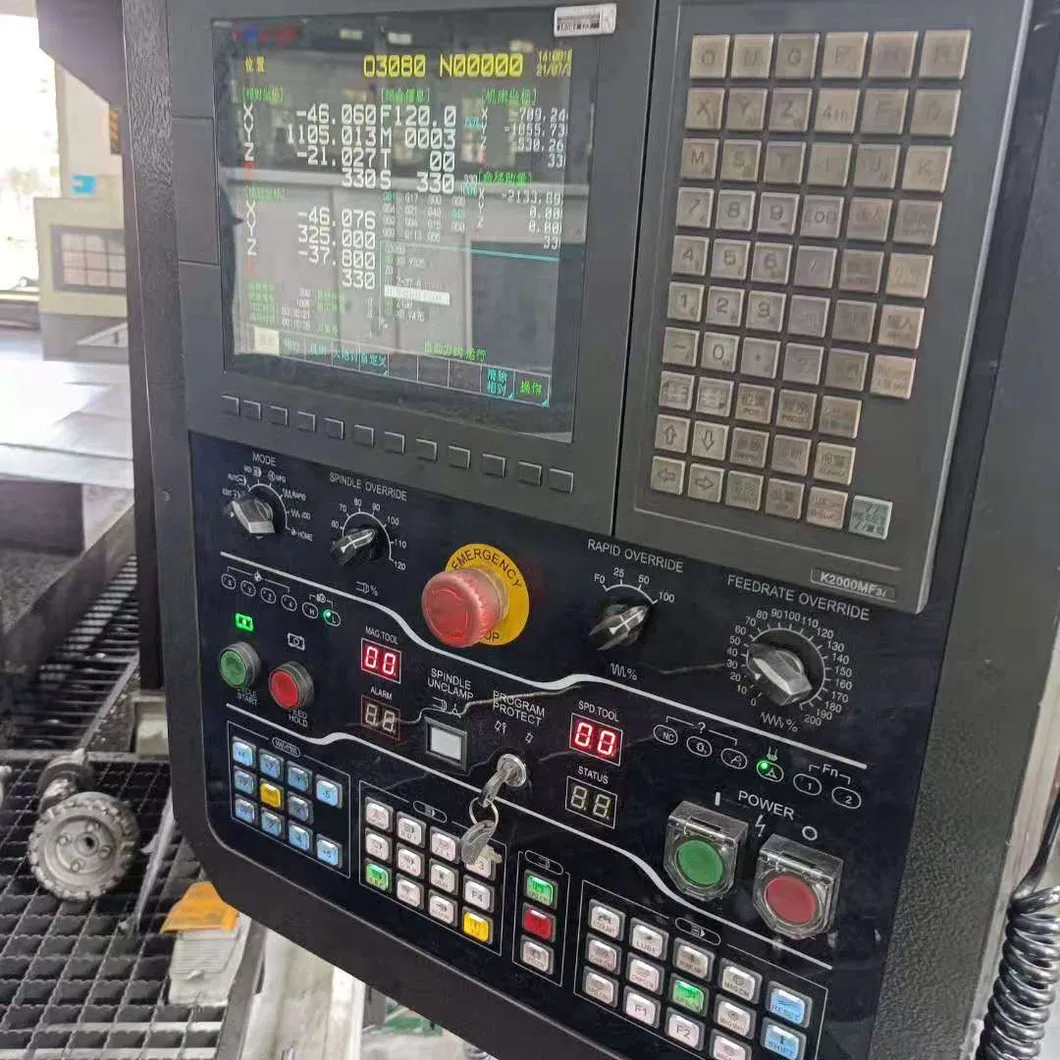

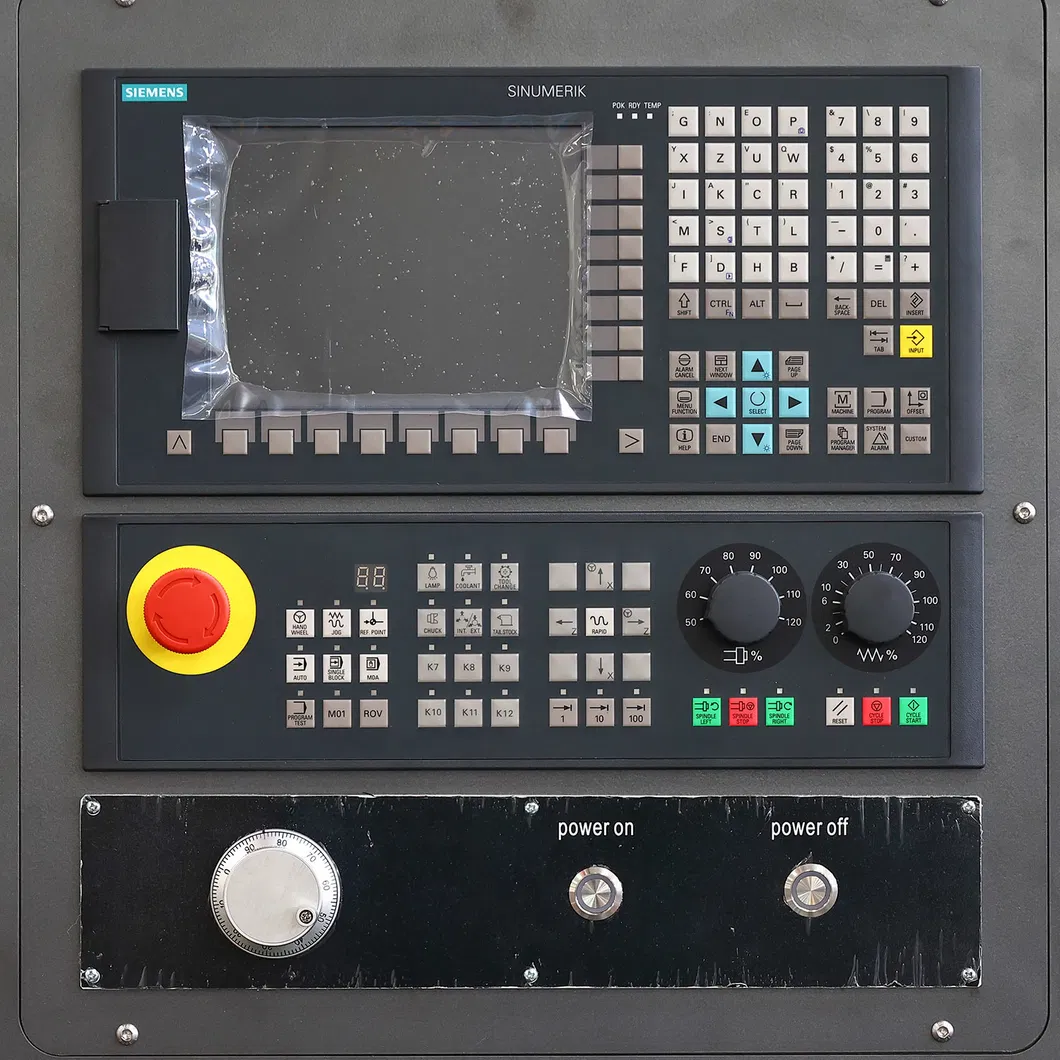

Controlling System
FAQ
1:How can I choose the most suitable machines? Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located?
How can I visit there? Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms? T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
high-speed moving linear heavy-duty roller
guideway pair
stability of machine tool control
guideway pair
stability of machine tool control
The large diameter C3 grade ball screw
PRODUCT SPECIFICATIONS
Machine model | unit | VMC855 | |
X/Y/Z travel | mm | 850/550/550 | |
distance from spindle nose to table surface | mm | 120-670 | |
distance from spindle center to column surface | mm | 595 | |
spindle power | kw | 7.5/11 | |
spindle speed | rpm | 10,000 | |
spindle taper | BT40(Φ150) | ||
positioning accuracy | mm | ±0.003 | |
repeat positioning accuracy | mm | ±0.001.5 | |
table size | mm | 1000×550 | |
Max. Table loading | kg | 650 | |
T Slot | 5-18-90 | ||
X/Y/Z rapid speed | M/min | 48/48/48 | |
cutting speed | Mm/min | 1-10000 | |
X,Y,Z axes ball screw diameter | Φ40 | ||
X/Y/Z axes servo motor power | kw | 2.0/2.0/3.0 | |
Linear width/type /guideway no./slider no. | X | 35mm/roller/2/4 | |
Y | 45mm/roller/2/4 | ||
Z | 45mm/roller/2/6 | ||
Control | Depends customer | ||
Max.power consumption | 20.0 | ||
air | Mpa | 0.5-0.7 | |
power | 380V/220V/415V/50(60)Hz/3PH | ||
ambient temperature | 0ºC-42ºC | ||
relative humidity | ≤ 80% | ||
machine Net weight | Ton | 5.5 T | |

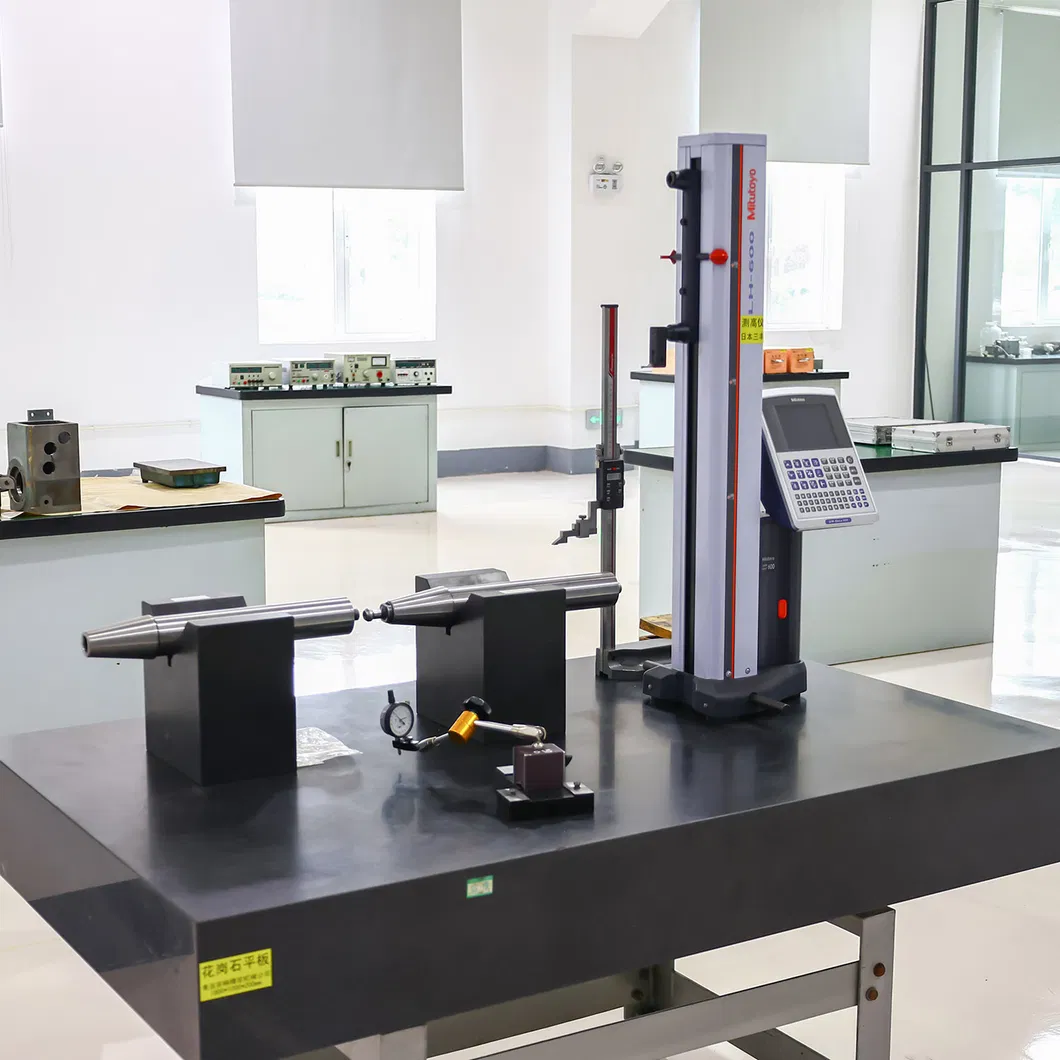

Lab
FAQ1:How can I choose the most suitable machines? Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located?
How can I visit there? Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What is your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms? T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
