Micro CNC Metal Lathe Machine Tool Ck0640 Ck0660 Ck0680

Product Description

Micro CNC Metal Lathe Machine Tool CK0640 CK0660 CK0680

CNC Lathe specification

Item	CK0640	CK0660	CK0680
Max. swing dia. over bed	Φ260mm	Φ260mm	Φ260mm
Max. swing dia. over cross slide	Φ130mm	Φ100mm	Φ130mm
Max. workpiece length	Collet 200mm Chuck 120mm	Collet 200mm Chuck 120mm	Collet 200mm Chuck 120mm
Diameter of spindle bore	Φ48mm	Φ70mm	Φ90mm
Drawn pipe diameter	Φ42mm	Φ60mm	Φ80mm
X-axis fast moving speed	6000mm/min	6000mm/min	6000mm/min
Z- axis fast moving speed	8000 mm/min	8000 mm/min	8000 mm/min
X-axis feed rates	1~2000mm/min	1~2000mm/min	1~2000mm/min
Z- axis feed rates	1~1800mm/min	1~1800mm/min	1~1800mm/min
Range of spindle speed	50~2500rpm	50~2500rpm	50~2500rpm
Thread machining scope (metric system)	0.25~12mm	0.25~12mm	0.25~12mm
Thread machining scope (British system)	28~3 1/2	28~3 1/2	28~3 1/2
Stations of tool carrier	gang-type tool carrier	gang-type tool carrier	gang-type tool carrier
Main motor	3KW	4KW	4KW
Dimension	1550×920×1450mm	1650x1000x1600mm	1650x1000x1600mm
Weight	850KG	950KG	1000KG

CK0640A CNC Lathe Machine configurations

CNC system: GSK928
Pneumatic collect,
gang-type tool carrier
Automatic lubrication system,
Turning cooling system. Lighting system
Voltage:3 phase 380v 50HZ
User's manual operational manual

CNC system: GSK980, KND, Siemens, Fanuc, etc.,
Manual chuck, pneumatic chuck, hydraulic chuck (solid and hollow),
Manual tailstock, pneumatic tailstock, hydraulic tailstock,
Automatic feeder,
Vertical four-station turret.
Change voltage to others .add more 330$

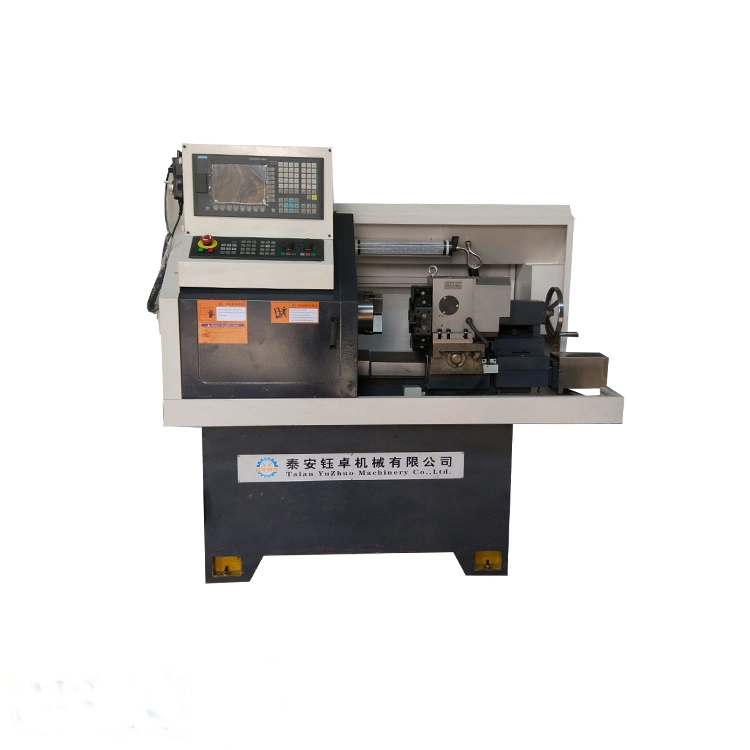

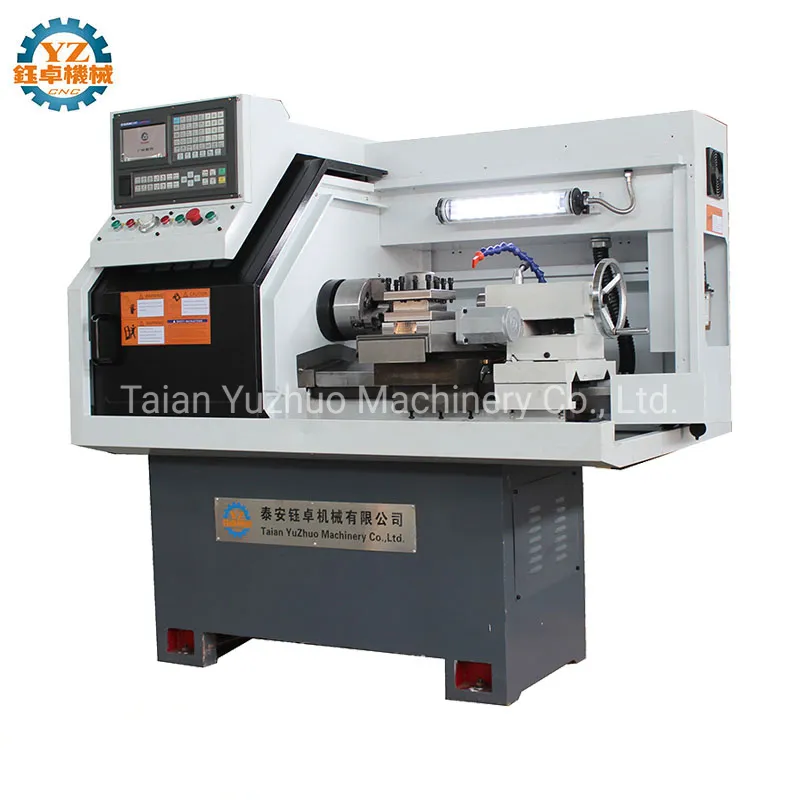

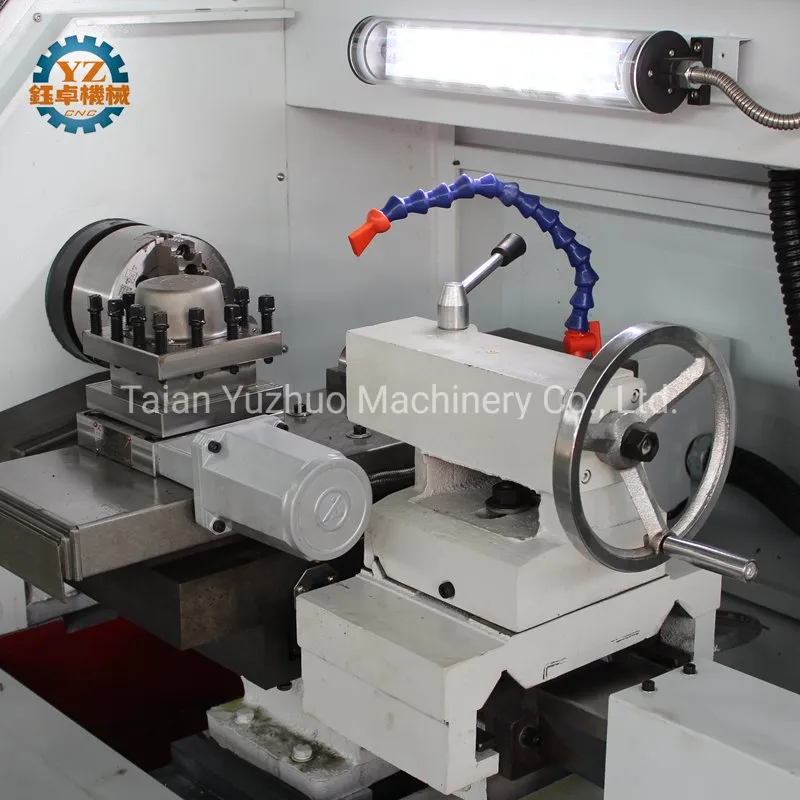

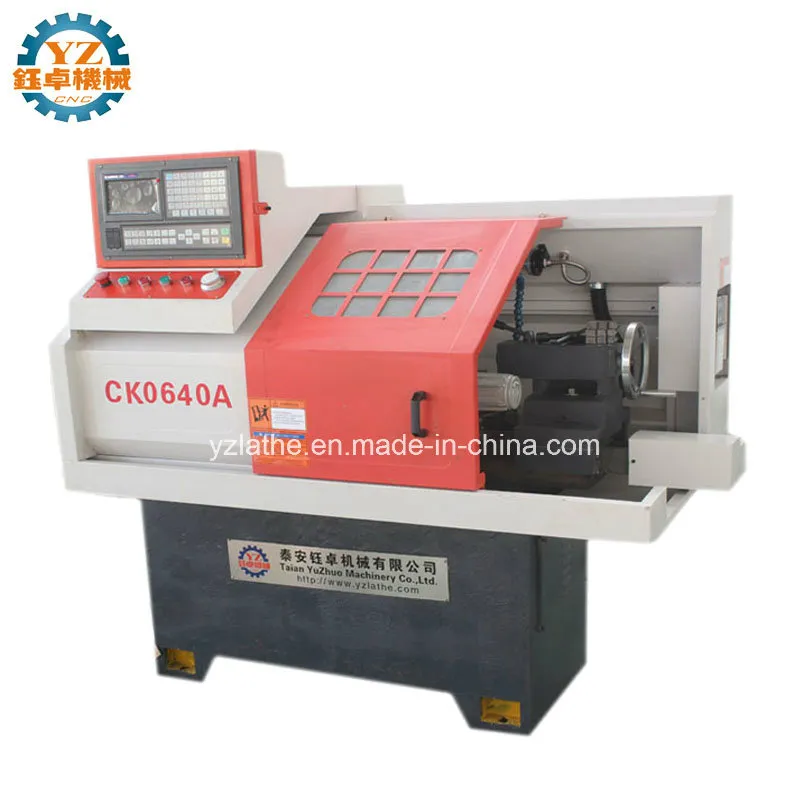

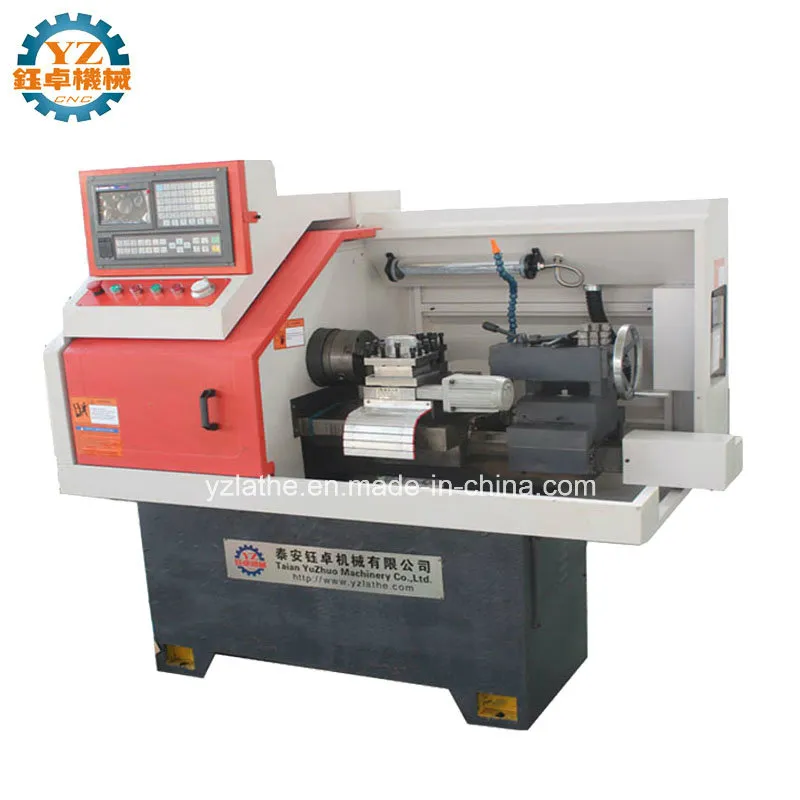

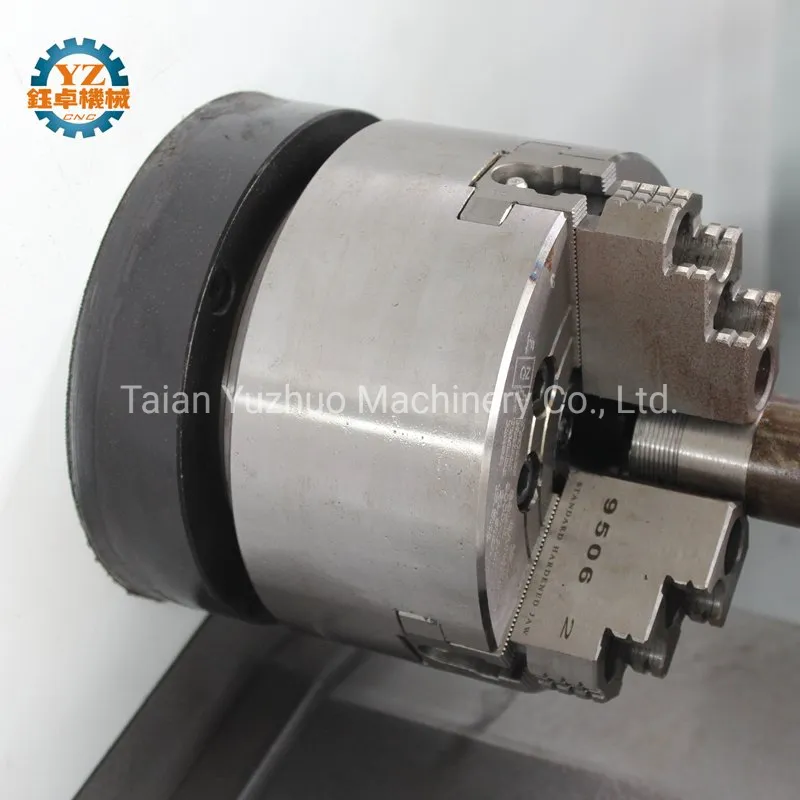

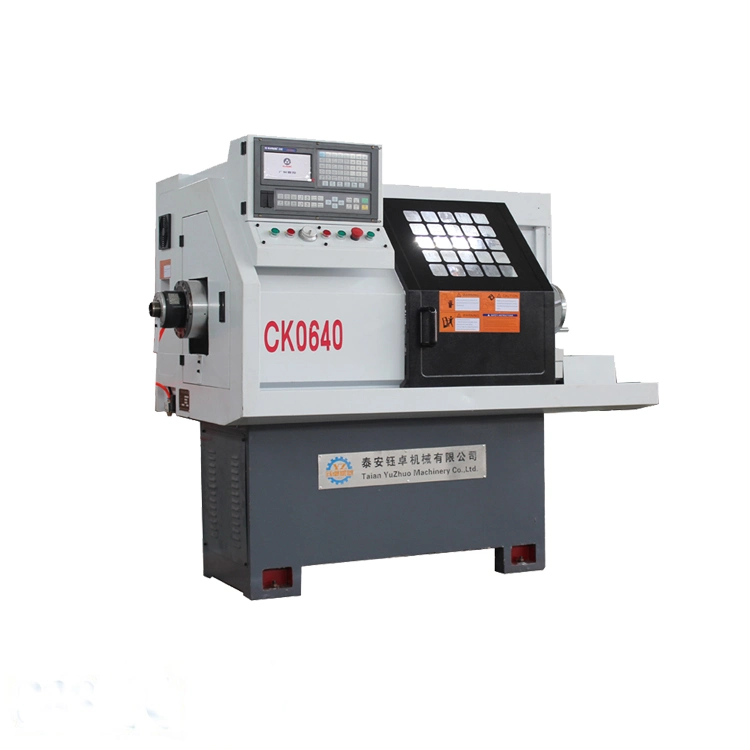

CK0640A CNC Lathe Machine Photos

Micro CNC Metal Lathe Machine Tool Ck0640 Ck0660 Ck0680

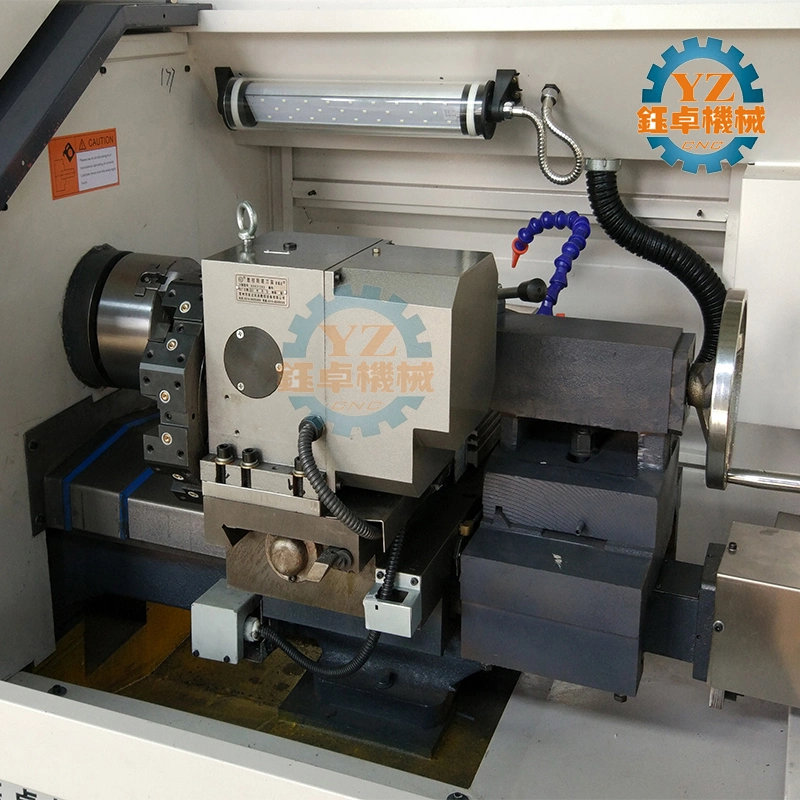

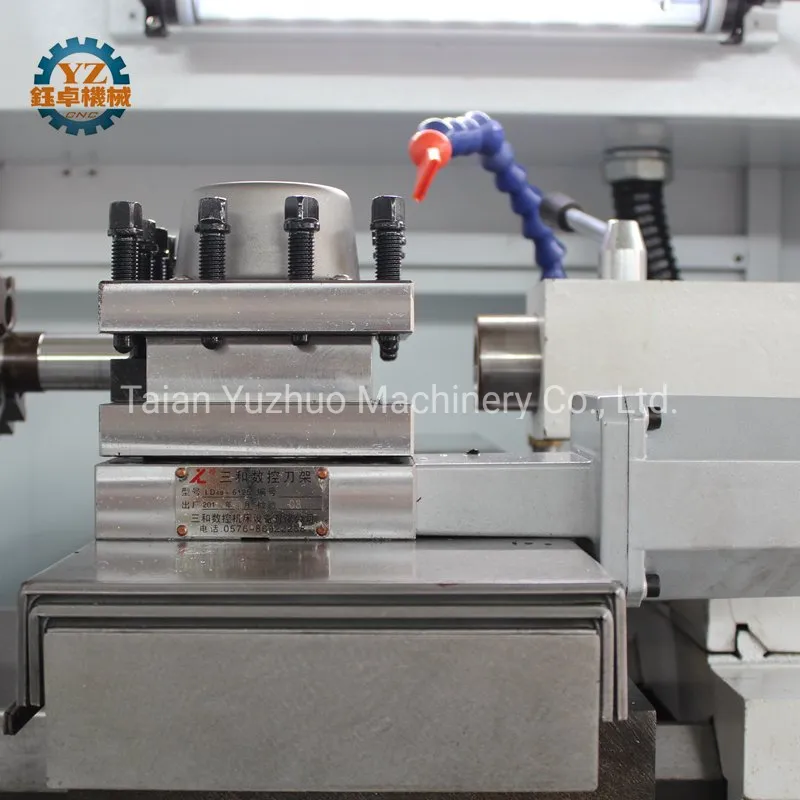

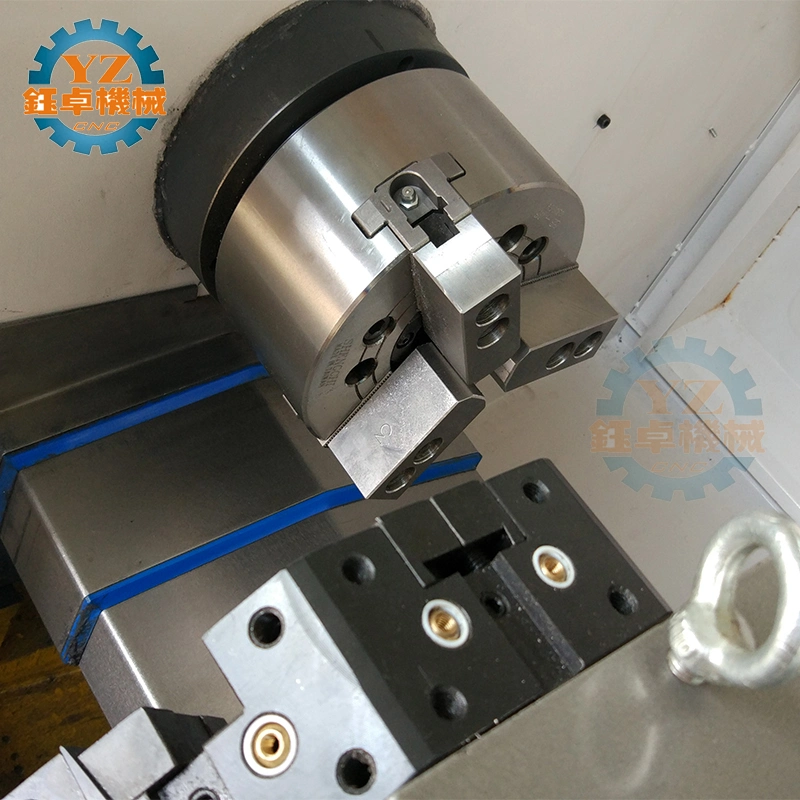

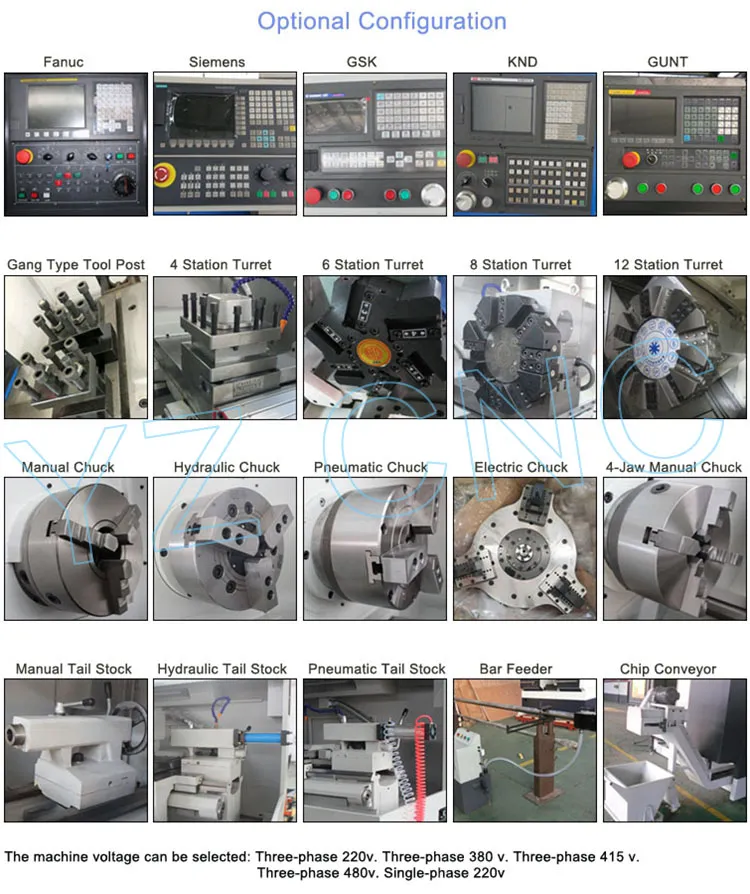

CK0640A CNC Lathe Machine Optional

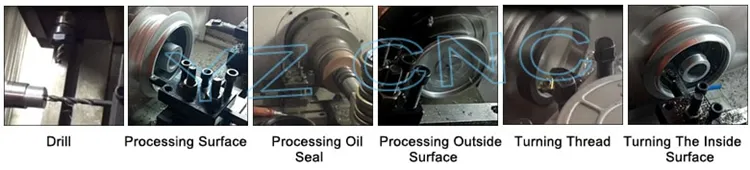

CNC Lathe Machine Processing

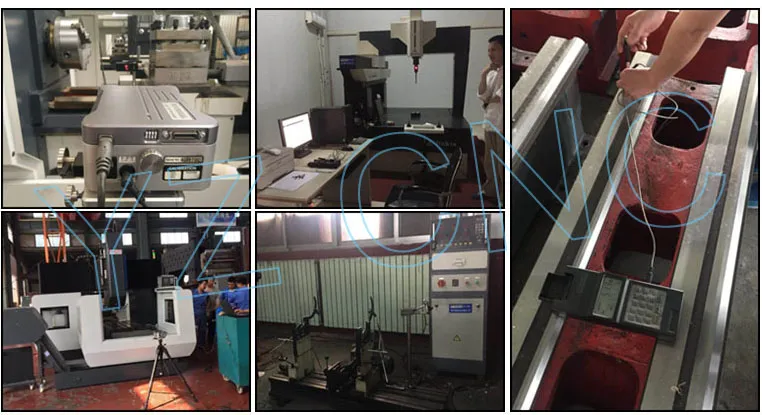

Machine inspection equipment

CNC Lathe Machine package
