Mt52A Advanced Siemens-System High-Speed CNC Drilling and Milling Lathe
1.SpecificationModelMT52AItem SIEMENSTableSize 600(23.57)*380(14.93) mm(inch)Max. bearing weight 300(11.79) kg(lbs)TravelX-axis 520(20.43) mm(inch)Y-axis 400(15.71) mm(inch)Z-axis ......
Send Inquiry
Product Description
1.Specification
2. Features
Larger work table improve machining ability.
Greatly reduced tool change time to achieve high productivity (Cut to Cut 1.7s)
Optimized the shape of the structure and arrangement of ribs to enhance machine rigidity,
leading to improved cutting performance.
3. Standard accessories
(1) Work Light
(2) Signal Light
(3) Foundation Plates and Bolts
(4) 14-Tool Changer
(5) Cooling System
(6) Automatic Lubricating Device
(7) Splash-proof Metal Sheet
(8) Toolkit
(9) Bed Shower
(10) Safety Door Lock
(11) Hand-operated MPG
(12) Special Technical Documents
4. Optional Accessories
(1) Hydraulic Unit
(2) NC rotary table
(3) NC Slant Rotary Worktable
(4) Hand-operated MPG
(5) Transformer (Unnecessary for SIEMENS System)
(6) Air-conditioner for Electrical Cabinet
(7) Higher Column
(8) Spraying Water from Spindle Center
(9) Spindle Cooling System
5. Factory information
(1) Annual production: 2000sets.
(2) Spindle and tool changer are produced independently, based on German technology.
(3) R&D center: founded in 2006.
(4) Patents and honors: more than 50 certificates.
(5) Sales network: 9 regions, 23 offices in China; 5 branches around the world.
(6) 3 part warehouse: 1 in Shanghai, 1 in Changzhou and 1 at oveseas.

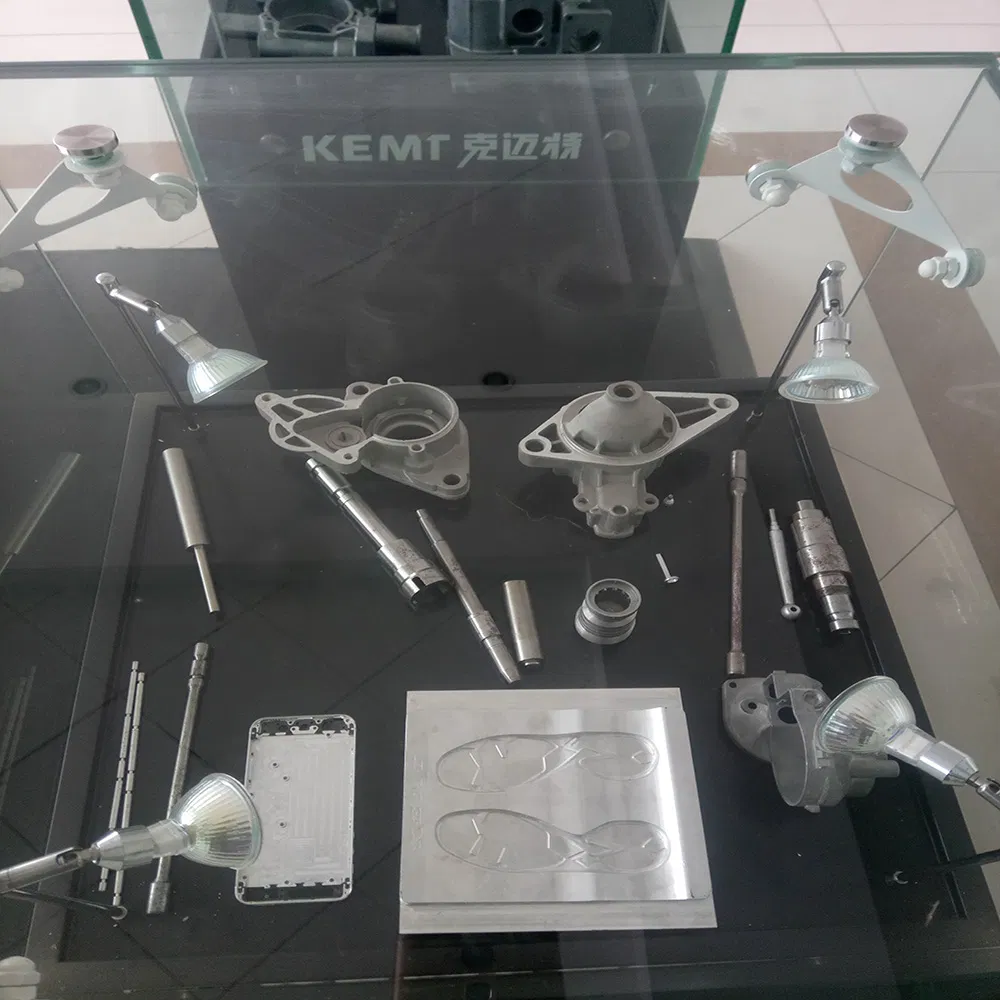

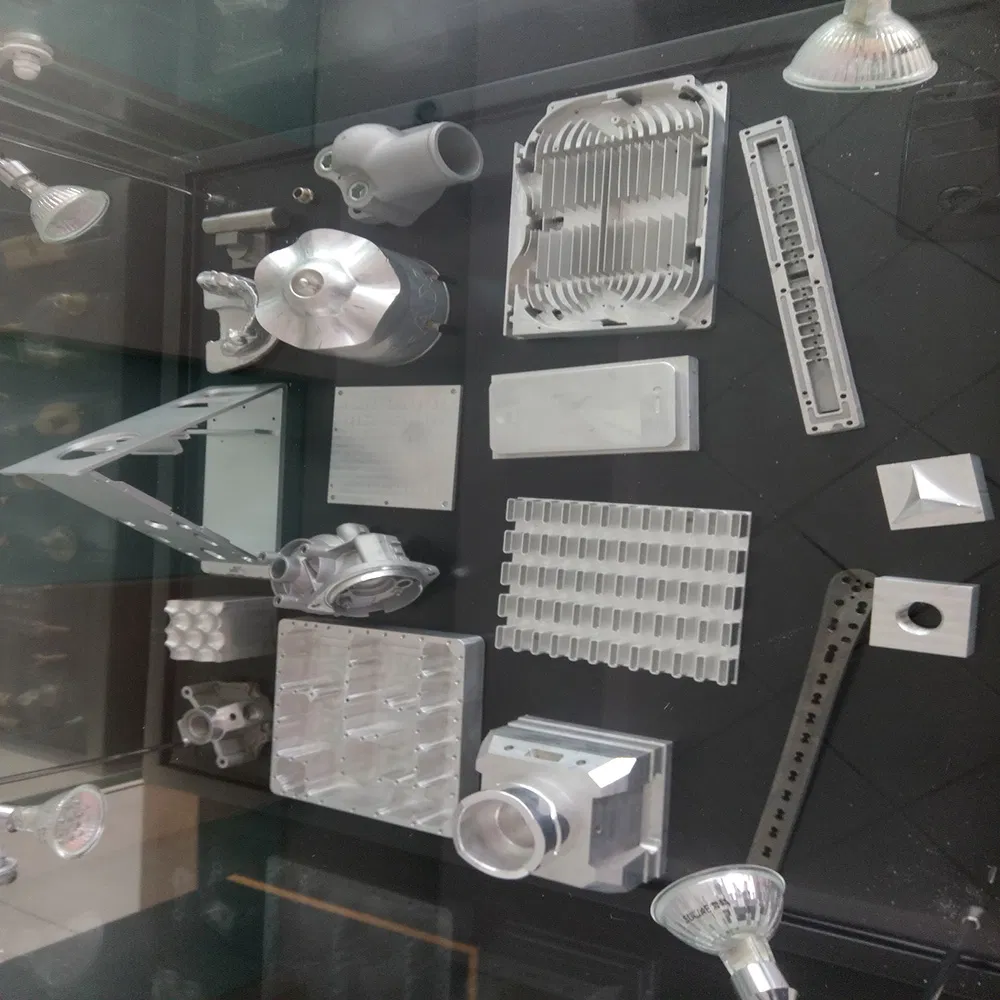

6. Part of applications
(1) auto industry
(2) medical industry
(3) military industry
(4) IT industry
(5) others
| Model | MT52A | |
| Item | SIEMENS | |

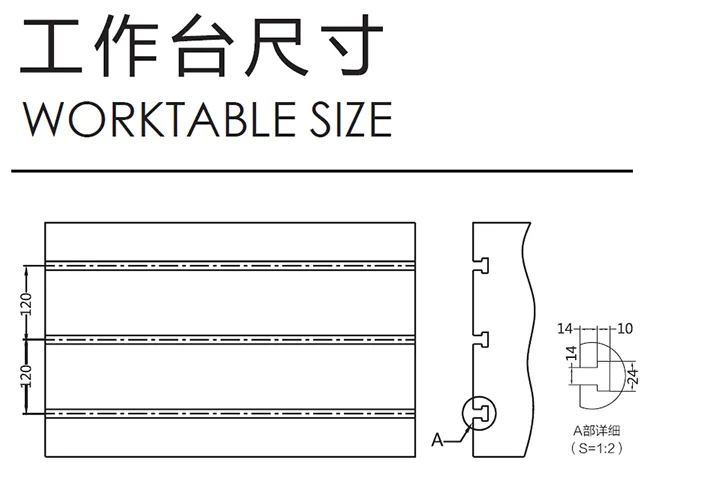

| Table | Size | 600(23.57)*380(14.93) mm(inch) |
| Max. bearing weight | 300(11.79) kg(lbs) | |
| Travel | X-axis | 520(20.43) mm(inch) |
| Y-axis | 400(15.71) mm(inch) | |
| Z-axis | 300(11.78) mm(inch) | |
| Distance from spindle to table surface | 180(7.09)-480(18.90) mm(inch) | |
| Spindle | Spindle speed | 12000 rpm |
| Tapping speed | 6000 rpm | |
| Taper | 7/24 | |
| Feeding rate | Rapid rate X/Y/Z axes | 56(2.2)/56(2.2)/56(2.2) m/min(inch/min) |
| Cutting feeding rate | 1-22,000(866.14) mm/min(inch/min) | |
| ATC unit | Toolholder specification | BT30 |
| Pull stud type | P30T-1 | |
| Tool storage capacity | 14 pcs | |
| Max. tool length | 200(7.86) mm(inch) | |
| Max. tool diameter | 80(3.14) mm(inch) | |
| Max. tool weight | 3(6.61) kg(lbs) | |
| Tool change time | Tool to Tool | 1.1 Sec. |
| Chip to Chip | 1.7 Sec. | |

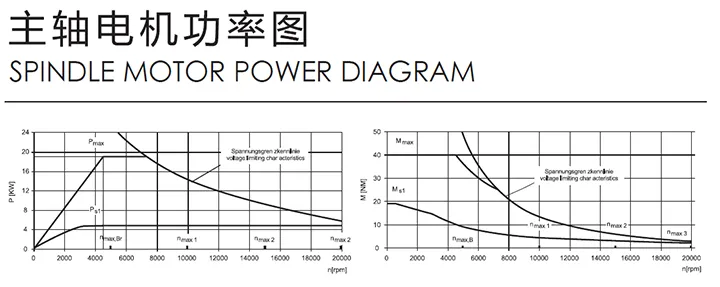

| Electric motors | Spindle motor | 4.8/ 19 kw |
| Power source | Power | AC220+/-10% |
| Power capacity | 15 KVA | |

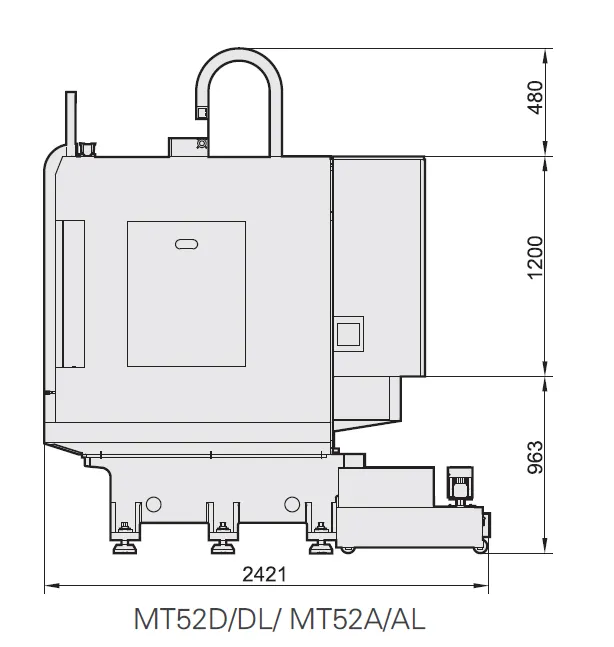

| Machine dimensions | Machine height | 2,600(102.36) mm(inch) |
| Floor space [with control unit door opened] | 2,421(95.32)*1,650(64.96) mm(inch) | |
| Weight(including control unit and splash guard) | 3,500(7716) kg(lbs) | |
| Accuracy | Positioning accuracy | 0.005/300(0.0002 / 11.8) mm(inch) |
| Repeat positioning accuracy | +/-0.003(+/-0.00012) mm(inch) | |
2. Features
Larger work table improve machining ability.
Greatly reduced tool change time to achieve high productivity (Cut to Cut 1.7s)
Optimized the shape of the structure and arrangement of ribs to enhance machine rigidity,
leading to improved cutting performance.
3. Standard accessories
(1) Work Light
(2) Signal Light
(3) Foundation Plates and Bolts
(4) 14-Tool Changer
(5) Cooling System
(6) Automatic Lubricating Device
(7) Splash-proof Metal Sheet
(8) Toolkit
(9) Bed Shower
(10) Safety Door Lock
(11) Hand-operated MPG
(12) Special Technical Documents
4. Optional Accessories
(1) Hydraulic Unit
(2) NC rotary table
(3) NC Slant Rotary Worktable
(4) Hand-operated MPG
(5) Transformer (Unnecessary for SIEMENS System)
(6) Air-conditioner for Electrical Cabinet
(7) Higher Column
(8) Spraying Water from Spindle Center
(9) Spindle Cooling System
5. Factory information
(1) Annual production: 2000sets.
(2) Spindle and tool changer are produced independently, based on German technology.
(3) R&D center: founded in 2006.
(4) Patents and honors: more than 50 certificates.
(5) Sales network: 9 regions, 23 offices in China; 5 branches around the world.
(6) 3 part warehouse: 1 in Shanghai, 1 in Changzhou and 1 at oveseas.
6. Part of applications
(1) auto industry
(2) medical industry
(3) military industry
(4) IT industry
(5) others
