Multi axis motion control card PCI bus

6 Axis Classic Series Motion Control Card
Product Introduction
 The ADT-856 specially is a classic motion control card, which produced by ADTECH. It has been continuously optimizes and its stability is getting higher and higher. The product is widely used in engraving and milling engraving and cutting dispensing welding machetes processing industries

Basic functions
1. Each shaft encoder feedback channel A/B phase difference between the pulse input, 32 count, frequency up to 4MHz,pulse rate:4.2.1;
2. Zero function in many ways;
3. Fixed linear velocity mode;
4. Real-time changes in the speed and movement of the target location;

Product specification
Type 6 Axis High Performance Motion Control Card
Suitable occasion Universal point movement
Model name ADT-856

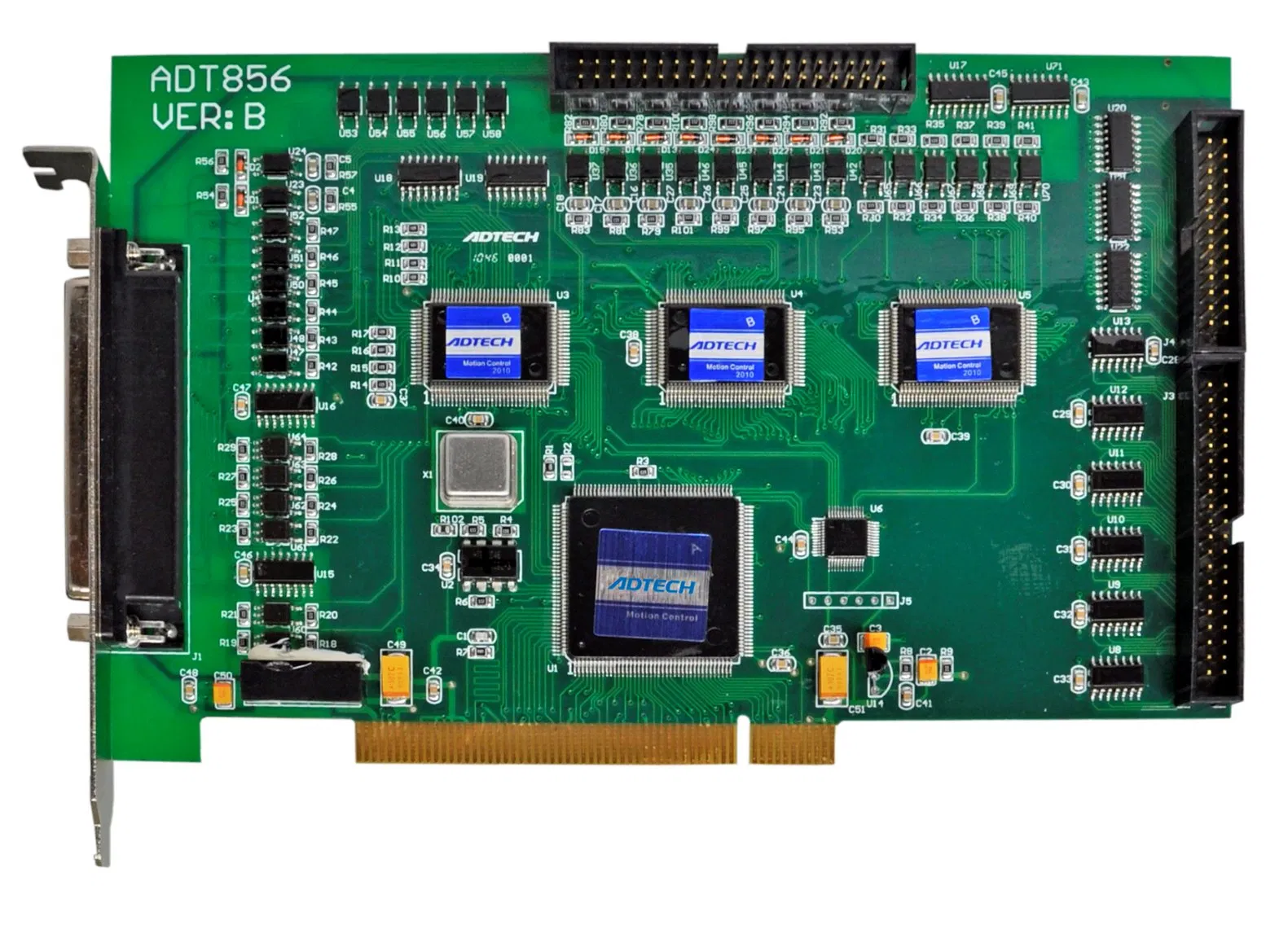

Appearance picture
Eternal interface Number of axis 6 axis
 General digital input 48
 Digital output 32
 Encoder shaft 6
Line interpolation Fixed 2 to 6 axis
Circular interpolation Hardware arc
Hardware cache One command cache achieved
Pulse frequency 4M

Configuration Checklist
Product model  Name Model description Quantity
Standard configuration Motion control card ADT-856 1
 Terminal blocks ADT-9137 1
 Terminal blocks ADT-9162 1
 Data transmission lines ADT-D37GG 1
 Data transmission lines ADT-D62GG 1
 Flat line DB37 1

Application
Spong cutting machine, engraving and milling machine

Deliver,shipping and serving
Delivery and shipping:We provide ocean shipping, international express and air transportation to deliver your products to you.(*Arrival time will vary depending on destination country policy and traffic condition.)

Serving:All products have a one-year warranty and online technical support.

FAQ:
1.How many axes of servos can the ADTECH motion control card control?
ADTECH motion card can support up to 32 axis.
2.What's the software can the control card support?
Operating system: DOS/WINDOWS.
Programming environments:C/BC++/VC/VB/C#/C++Builder/Delphi/LabVIEW/EVC
3.What fields can ADTECH motion card be used for?
ADTECH motion card can be used in semiconductor, automatic processing and testing equipment, packaging equipment, PCB processing equipment,etc.
4.Does ADTECH have a EtherCAT motion control card?
Yes. ADTECH launch a high-performance EtherCAT motion control card, it support multi-axis line interpolation and arc interpolation. It can be used in many advanced movement and tracking movement.
5.How to use the motion control card?
The control card is used with PC or PLC.
